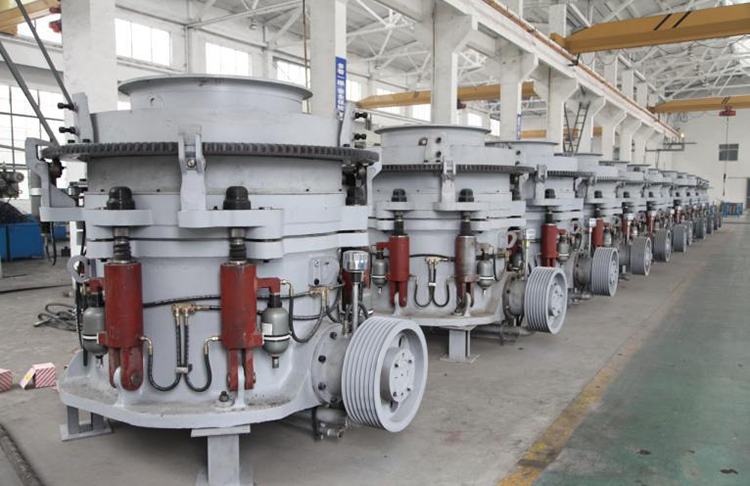

Cone crusher plays an important role in the mining industry, it has the advantages of large crushing force, high efficiency, simple structure, easy to maintain, easy to operate and adjust. Which types of cone crusher are there exactly? Next, let's take a look.

1. Spring Cone Crusher
The feed size of spring cone crusher is ≤300mm, and the output is 12-700t/h. The spring cone crusher mainly achieves the purpose of crushing through the rotating and swinging of the eccentric bushing, and under such working condition, it has strong stability, and there are fewer wearing parts inside the machine, so it has the advantage of longer service life, and it can reduce the unnecessary maintenance cost. Spring Cone Crusher is suitable for crushing various ores and rocks with medium or above hardness.

2. Compound Cone Crusher
Compound Cone Crusher has a feed size of ≤314mm and a production capacity of 27--1814t. Compound Cone Crusher is also known as Simmons, which is divided into standard type and short head type. Generally speaking, the standard type is suitable for coarse and medium crushing, and the short head type is suitable for medium and fine crushing, so the composite cone crusher is not suitable for ultra-fine crushing or sand making. It is used in the occasions that do not require high product size, and it is the more common cone crusher at present.

3. Fully hydraulic cone crusher
The feed size of full hydraulic cone crusher is ≤314mm, and the output is 36--1814t/h. The hydraulic insurance system of full hydraulic cone crusher is relatively strong, which can support the top of the sleeve and cone through hydraulic pressure to exclude the faulty material in case of iron failure or bogging down phenomenon of the machine, and the structure of the special operation of the energy consumption, the machine's automation is high, the operation is convenient, and the failure rate is low, so the full hydraulic cone crusher is suitable for the ultra fine grinding or sand making. Full hydraulic cone crusher is suitable for crushing materials containing foreign materials, over-iron function is more reliable.

4. Multi-cylinder hydraulic cone crusher
Multi-cylinder hydraulic cone crusher has a feed size of ≤326mm and a production capacity of 72-1100t/h. Multi-cylinder hydraulic cone crusher adopts a hydraulic motor to adjust the fixed cone, and because the radius of the spherical surface R is relatively small, the radius of the rotary pendulum is also relatively small, and there are unstable phenomena such as overturning, poor contact between the main shaft and the liner, and flying car, which will affect the normal work of the machine, but the crushing capacity is relatively high. Multi-cylinder hydraulic cone crushing is suitable for crushing materials with high hardness, and its processing capacity is also larger.

5.Single Cylinder Hydraulic Cone Crusher
The feed size of single-cylinder hydraulic cone crusher is ≤560mm, and the output is 36-2181t/h. The structure of single-cylinder hydraulic cone crusher is simple, and the granularity of the discharged material is better, and the combination of various cavities with the stroke can satisfy the demand of various granularities, and the structure is simple and easy to maintain. However, the crushing force of this machine is slightly insufficient, especially not suitable for crushing harder materials. Single-cylinder hydraulic cone crusher is mainly used in ultra-fine crushing, fine crushing and medium crushing operations, the discharge of materials with high requirements for the industry.

The above gives you an introduction to the five types of cone crusher, if you want to more systematic understanding of mining equipment, or to buy cost-effective products, please contact us ZLIN Group, we provide you with one-stop service.
