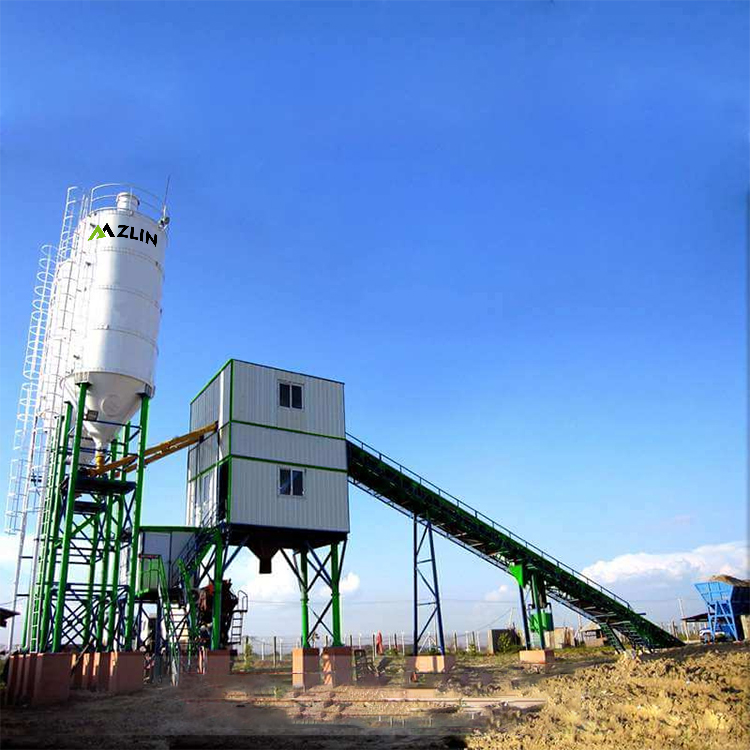

HZS120 concrete mixing plant is one of the main equipment models for producing concrete theoretically producing 120 square meters of concrete per hour and the actual output is around 90 square meters. Many customers are confused when they inquire about the price of the equipment, some are high and some are low. Today, we will discuss the following with you.

First of all, we need to know the configuration and parts of the equipment. 120 mixing plant mainly consists of the following parts:

1.Mixing mainframe
120 mixing plant with two hosts, each time you can mix the plant with two squares of concrete, each manufacturer is equipped with a different host. At present, the highest end of the domestic is the mainframe of Sigma, Italian brand, joint venture, product quality is excellent, but the price is relatively high. The second is the Meeks host, product quality is also good, the price is more favorable than the Sigma, and finally is the host produced by the mixing plant enterprises, this quality varies, but the price will be cheaper than the above two brands. If you need to know more, you can contact us.

2.Measuring system
Each time the host mixes two parties, sand and gravel aggregate, cement and coal ash, water and additives must reach the ratio of two concrete production. At present, the basic domestic use of 3-point metering, but according to different designs, some use tension sensors, some use pressure sensors. The difference is that the pressure sensor wobble small, good stability, but the production process details are strict. Many companies use pressure sensors to produce a somewhat high failure rate of equipment. Sensor configuration also varies, the price of each sensor between 3000-80 RMB, we recommend that the general mixing station equipped with ordinary sensors can be, the sensor in addition to the passage of high current, such as lightning, welding, rain moisture, bad frequency is low, generally in full compliance with the production accuracy.

3. Dosing machine
120 mixing plant standard with 4 bins PLD3200 type concrete batching machine, the upper 4 bins each bin volume of about 22-25 square, the lower 4 bins for metering hopper, 2 of which are equipped with vibrators, steel plate thickness varies from 3mm to 5mm from manufacturers, which is also a key factor to increase the cost. In addition, the batching machine also needs to be equipped with anti-falling device to prevent the metering hopper from lifting up and damaging the belt due to shaking and other reasons in the process of use.

4. Belt machine
Some manufacturers in 120 mixing plant with 800 wide belt, the standard is 1 meter flat belt. Although 800 can meet the production requirements of 120 mixing plant, but there will be spreading of materials, in addition to the short life of the belt. There are also some enterprises use herringbone belt, herringbone belt up to 30 degrees, the belt machine is short, covers an area of small, flat belt angle of 20 °, slower, covers an area of long, need to increase the seeding device, so the cost is higher, but the flat belt makes a glossy surface, less sticky material, easy to clean up through the scraper, unlike the sand foam inside the corner of the herringbone belt, it can not be cleaned up, reducing the loss of raw materials, reducing the frequency of cleaning and labor.
