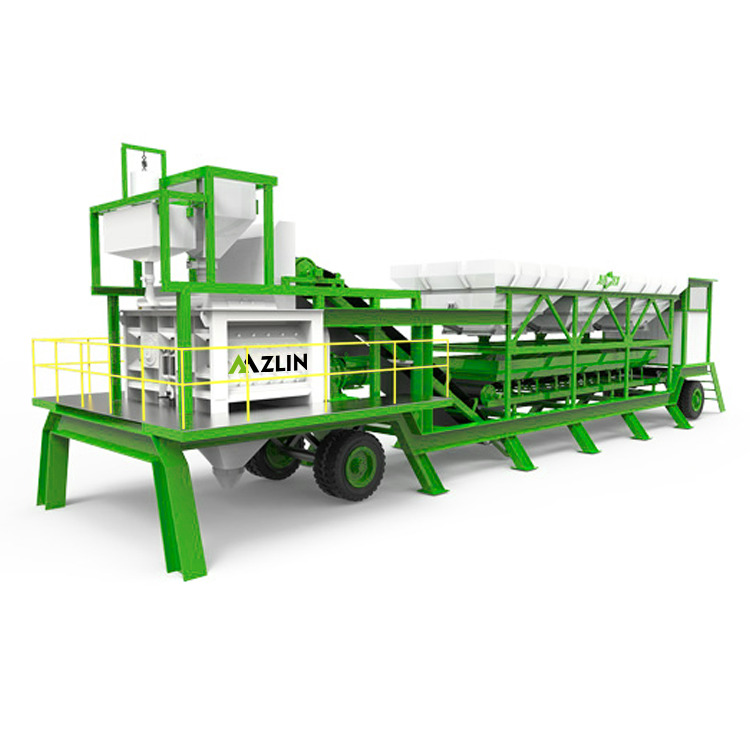

Mobile concrete Batching plant is an innovation movable (by trailer) concrete plant designed to fulfill a variety of applications. It is mobile so it’s an ideal model for distance construction projects like roads, bridges, dam, airport, ports and any other small-scale projects.
The biggest benefit that a mobile concrete mixing plant can bring to you is to produce concrete at the construction site. The pumping equipment can then transport the produced concrete directly to the pouring site, saving the cost of concrete transportation. The mobile ready mix concrete plant saves a lot of time and labor cost for the customer compared to the fixed plant, while ensuring the demand of concrete production.
Moreover, the workflow, operation and maintenance of the mobile batching plant for sale is basically the same as those of the stationary type plant. In particular, the mobile cement plant has the advantages of flexible movement and easy assembly and disassembly.
Mobile concrete mixing plants are usually equipped with twin-shaft concrete mixers. zlin offers its customers twin-shaft mixer machines of its own brand or of well-known brands. Of course, we can also provide planetary concrete mixers according to customer’s requirements.
The dosing system mainly consists of storage hopper, weighing hopper and belt conveyor.
It mainly consists of cement weighing, water weighing, admixture weighing, etc. The load cell of the weighing system adopts the domestic famous brand load cell.
Adopting inclined belt for feeding, which shortens the feeding length and saves space.
The powder system includes cement silo and screw conveyor.
Used to supply air source to each discharge gate cylinder.
The main electrical components are selected from Schneider brand. The automatic control system can remotely control the software, which can immediately assist the customer to solve the problem remotely once it occurs.
Based on good quality and decades of experience, the Mobile Concrete Batching Plant which is manufactured by ZLIN was exported to different countries. The Mobile Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
1. The structure is compact, and almost all the processes of concrete production are concentrated on the trailer unit;
2. The operation interface is humanized, the working performance is reliable, and it can still run stably in various harsh environments;
3. The twin-shaft concrete mixer has excellent continuous operation ability, comprehensive mixing trajectory, strong mixing motion, and rapid and uniform mixing;
4. Highly automation, excellent maneuverability, simple operation and good stability;
5. The structure is firm, the space layout is compact and reasonable, which ensures flexibility and production capacity at the same time ,so which is not inferior to the stationary concrete batching plant;
6. The mobile RMC batching plant occupies less area and is easy to move around, which greatly reduces the amount of basic engineering;
7. The mixing and metering platform is equipped with an epitaxial platform, and the space is as same as the stationary concrete batch plant, which fully guarantees the needs of commissioning and maintenance.
| Brand name | ZLIN |
| Model | 1000 mobile |
| Dimension | 2.8*18m (three bins) |
| Rotation speed | 30(r/s) |
| Feeding capacity | 1600L |
| Discharge capacity | 1000L |
| Mixing power | 7.5-11kw |
| Motor power | 37.30 （2*30）/18.5(2*37) |
| Discharge | Self-help |
| Loading box size | |
| HZS25 station | Box width*15m |
| HZS35 station | Box width*15m |
| HZS50 station | Box width*20m |
| HZS60 station | Box width*23m |
| HZS75 station | Box width*27m |
There are so many mobile concrete batch plant manufacturers in the market for selection. Before making the decision, the customers need to do a lot of prep investigation work, then select a reliable one among them. Among different mobile concrete batch plant manufacturers, ZLIN is also a reputable and reliable one for your right choice. Here are some reasons why to choose ZLIN.
ZLIN has been specialized in manufacturing and exporting concrete mixing plant for more than 30 years, and has been committed to providing perfect solutions for customers according to their needs. Our service is always available, including technical consultation, quotation, product delivery, spare parts supply, trouble-shooting and repair, etc.
In addition, we have branches in many countries to help you solve technical problems and deliver vulnerable parts in time. Our portable batch plant can be installed and disassembled quickly, thus reducing the cost of moving and relocation. Its flexibility and other advantages of the mobile plants provide the perfect solution to complex problems.
If you are looking for a cost-effective solution to a practical construction problem, Please leave us a message or call us at 008617638132352
Theoretical Productivity : 25m³/h
Mixing Power: 18.5kw
Theoretical Productivity : 120m³/h
Mixer Power (kW): 2×37
Theoretical Productivity : 50m³/h
Mixer Power (kW): 2×18.5
