Self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length.
According to its structure, it can be divided into the integrated type and transition type. In general, concrete self loading mixer capacity above 4 m3, belongs to the integrated type; while, capacity under 3.5 m3, is usually a transition type.
In terms of drive mode, there are fully hydraulic type and hydraulic torque converter types.
As for its capacity, there are several models, including 1.8 m3, 2.6 m3, 3.5 m3, 4 m3, 5.5 m3, 6.5 m3 etc. We call them: ZL-1.8, ZL-2.6, ZL-3.5, ZL-4, ZL-5.5 and ZL-6.5.
Capacity: 7.2m3/h
Capacity: 10.4m3/h
Capacity: 14m3/h
Capacity: 16m3/h
Capacity: 22m3/h
∇ It owns all the functions of concrete batching plant; It combines loading, mixing, transit and discharging; 270 degree rotation mixing drum, it can discharge the concrete in different directions;
∇ High quality components; Famous brand engine, Equipped with famous brand hydraulic system for stable work performance; An electronic weighting system and printer is available, The weighing scales monitor is at the operator’s convenience to certify 100% quality concrete is produced. Water pump has the ability to draw water from any water source available (ponds, Lakes, rivers, water containers, etc.) to its water tank. From its tank, the water is pumped through the flow meter, making sure the right amount of water is added, to the drum.
∇ Different shipping ways; it can be delivered by the container, save cost for sea freight; it also can be shipped by RORO vessel or bulk goods vessel, so the client can use it as soon as they receive the goods;
∇ Wide range of application; there is always a HAMAC unit can do the job. Depending on the site conditions and which HAMAC machine used, the concrete can be produced at site and poured immediately for house and workshop in remote areas, concrete road, water canal, infrastructure in remote areas and reservoir dam projects etc.
∇ Strong production strength and excellent service; Factory direct sales, systematic and standardized procedures from receiving orders to organizing shipment ensuring the quality and high efficiency;

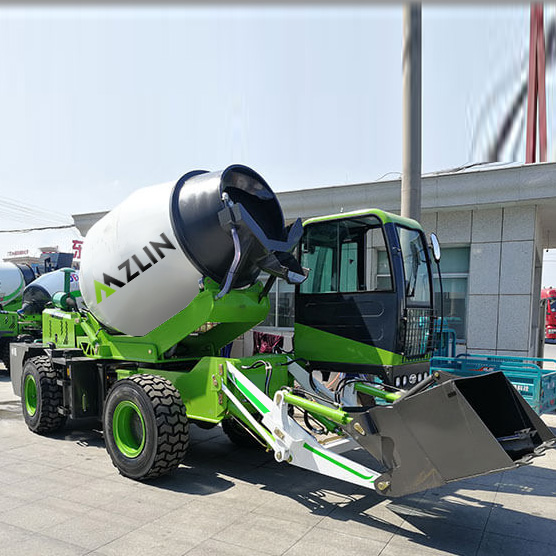

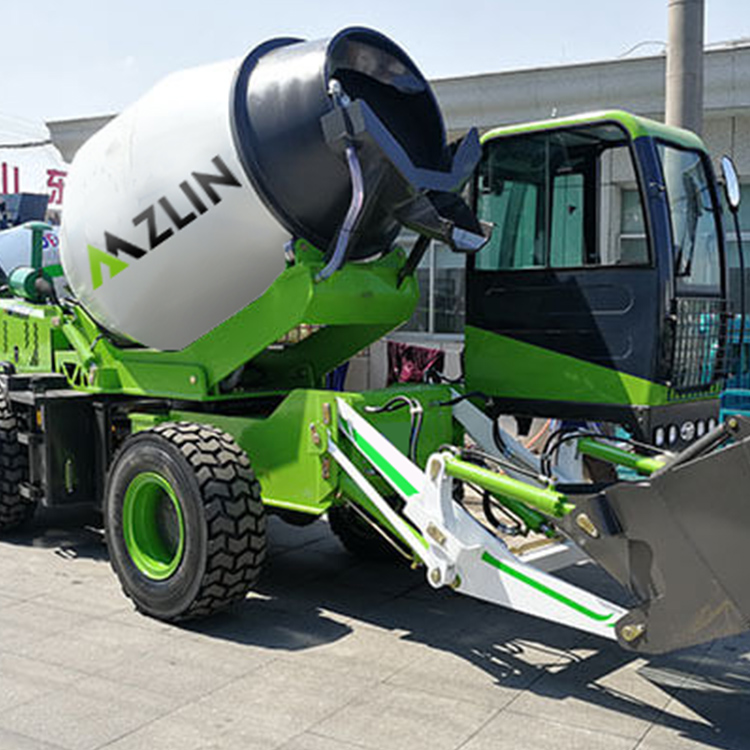

Loading System
The shovel is controlled by a hydraulic system, which can be controlled by a function lever. The self loading concrete truck can load material easily. Besides, blades are installed in the shovel in order to cut cement bags automatically, which can avoid cement waste.
Mixing System
After loading the concrete mixture, the material will be blade in the mixer drum. Add water into the mixer barrel during mixing and transporting. The double screw design of the mixer tank can ensure the concrete mixture quality. Besides, it is made of high manganese steel, which can ensure a long life span.
Weighing System
In-cab, there is a display of weighing. You can set and control material loading and unloading standards. Therefore, the self loading concrete machine is convenient for users to operate.
Discharging System
Because the mixer tank of the self loading mixture can rotate at 270 degrees, the mixer can discharge the concrete at 2 meters high in various directions. The operator can control the discharging process through a handle shank in the driving cab. Moreover, the ROPS-FOPS system equipped can ensure the operator’s safety.
Wheel System
The self-mixing concrete truck adopts steel wire super-resistant engineering tires to ensure its load capacity
NO.1
Using the bucket to load the raw materials into the mixing drum.
NO.2
The mixing drum rotates in one direction to mix the materials. The self loading mobile concrete mixer for sale has a control panel that allows you to control the speed of the drum and the amount of water to add.
NO.3
Transport the concrete mixture to the desired location. The operator can control the discharge direction and speed of the mixer using the hydraulic system.
NO.4
Use the hydraulic system to pour the concrete out of the drum. Control the process to ensure that the concrete is placed exactly where it is needed.
NO.5
After the concrete is discharged, the mixer needs to be cleaned. Clean through the self-cleaning system or high-pressure water jets.
NO.6
The operator can then repeat the process of loading, mixing, transporting, and cleaning as needed to continue mixing concrete on-site.
The Self-loading concrete mixer is widely used for different projects all over the world. ZLIN exported the Self-loading concrete mixer to different countries and got good comments from our clients.
Actually, ZLIN self loading concrete mixers for sale have been used by global users. Up to now, ZLIN has exported countless sets of self loading mixers to over 100 countries. These countries include the the Philippines, Indonesia, Malaysia, Myanmar, Germany, United States, United Kingdom, Vietnam, Thailand, Sri Lanka, Nigeria, Malawi, Kenya, Namibia, Somalia, Dominican, Saudi Arabia, Peru, Mexico, South Africa, Australia, etc. Here are some cases of exporting and customer feedback and reviews on our equipment.
ZL-3.5 For Foundation Construction In Indonesia
1.8 Cubic Meter Self Loader Mixer Was Transported To Malaysia
In 2023, the customer in Nigeria has test and debug it after receiving the concrete mixer truck self loading.
Self loading concrete mixer price for sale in ZLIN Group is a concerning factor when customers sent us inquiries. To be honest, our self loading mobile concrete mixer price is reasonable and competitive among all self loading concrete mixer manufacturers and suppliers in China. Because we have our own factory in China, we do not have other fees to pay.
For the different models self-loading concrete mixer for sale, the price is different. When you want to purchase a self loading concrete mixer machine, you had better make sure the model of mobile concrete mixer firstly, to see which capacity is suitable for your projects. As the above information, we can provide you with 1.8-5.5m3. The price is from 15000USD to 55000USD for different models and designs. You can contact our local sales manager to get the exact cost.
If you want to get the latest price of any self loader mixer model, welcome to contact our sales right now. Send your requirements via email: [email protected] Or leave a message in inquiry forms.
· Max. theo. concrete output：40m³/h
· Max. vertical conveying distance：100M
Output Power / speed : 199Kw/2300RPM
Boom Vertical Height: 38m
Electrical Engineering Power : 90kw
Distribution Valve Type: S Valve
