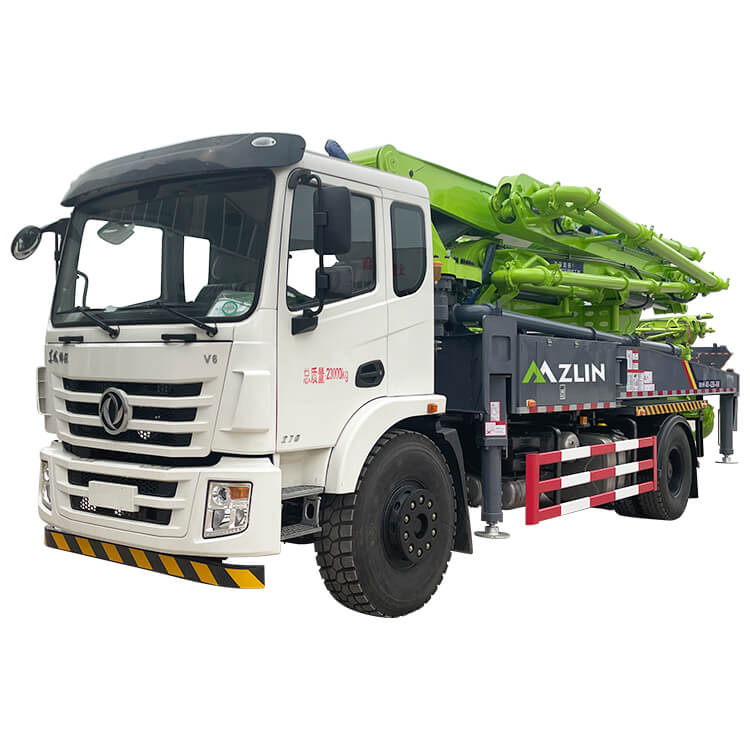

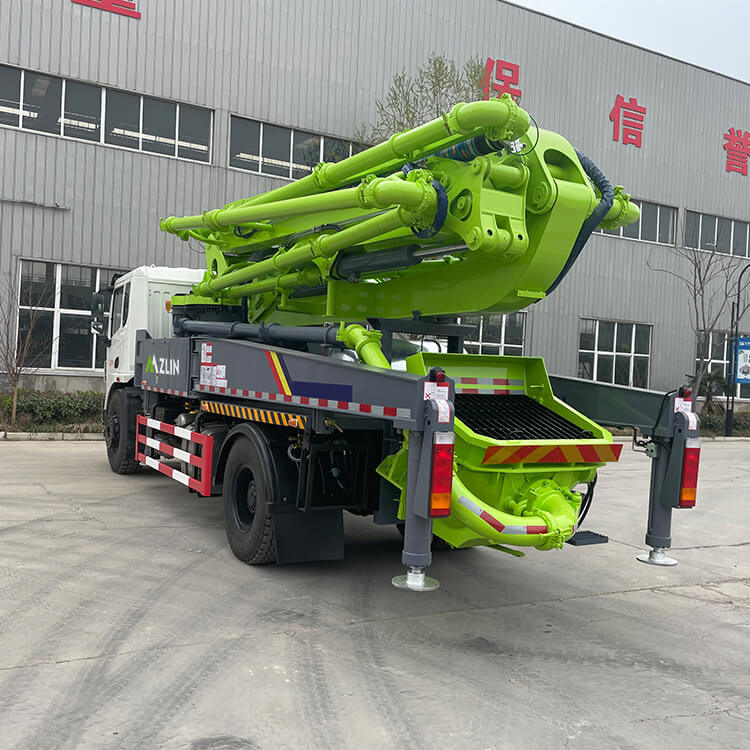

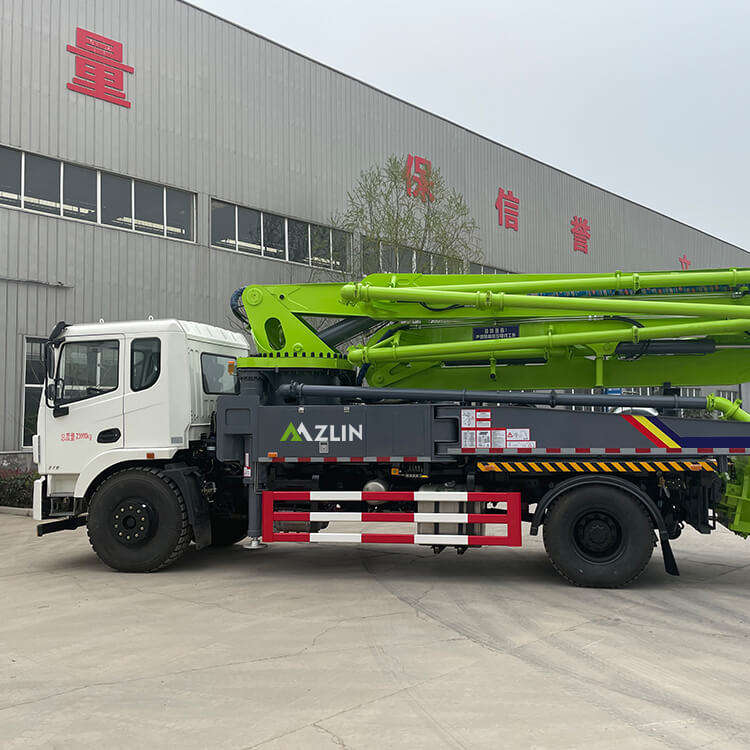

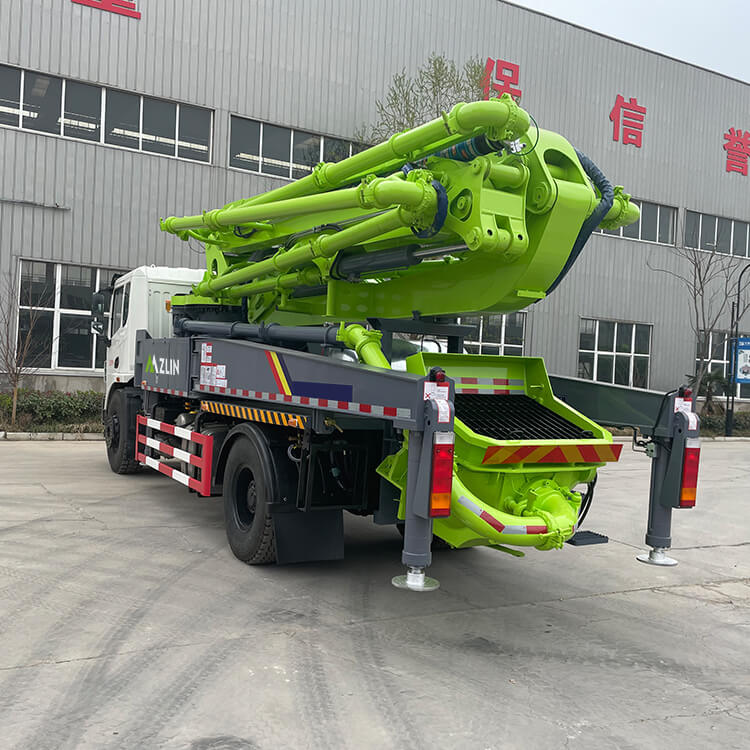

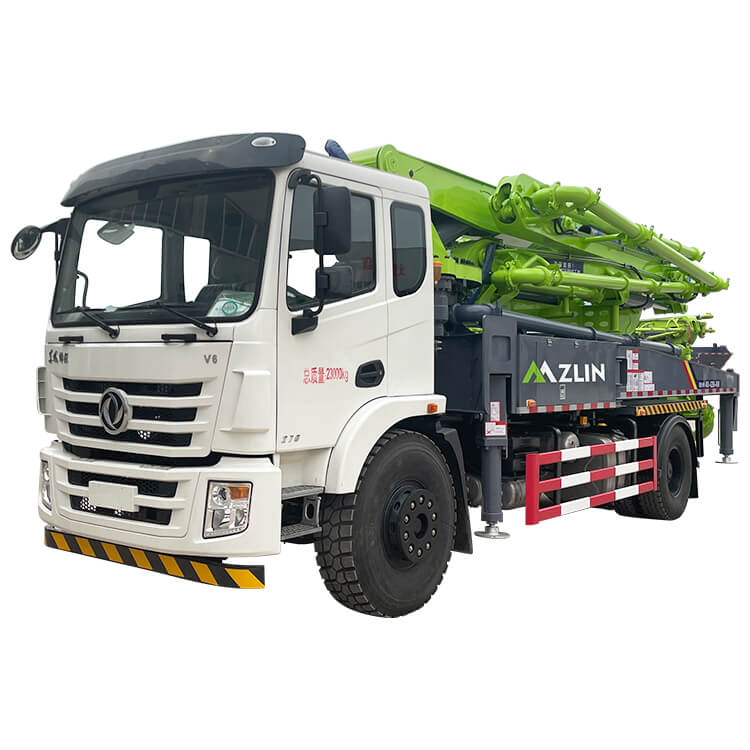

33M Boom Pump

Product Description

The 33M concrete boom pump is a machine that continuously conveys concrete along a pipe using pressure. It consists of a pump body and a delivery pipe. The pump body is mounted on a car chassis and equipped with a telescopic or bendable boom to form a concrete boom type pump truck.

Chat [email protected] Inquiry

RELATED PRODUCTS

25M Boom Pump

Engine: Yuchai
Engine power/speed: 147kw / 2000rpm
Maximum feeding height (MM): 1450
Maximum vertical height of boom: 25.5m
Concrete distribution valve form: S valve
Maximum concrete outlet pressure high / low pressure: 10.5/8.5
Theoretical pumping times (times / min): 18~26



Get Quotation

30M Boom Pump

Engine: Yuchai
Engine power/speed: 177Kw/2300RPM
Chassis model: DONGFENG
Drive method: 4×2
Boom vertical height: 30m
Boom folding form: 4R



Get Quotation



37M Boom Pump

Engine: Yuchai, German Man
Output power / speed: 199/228Kw/2300RPM
Chassis model: Dongfeng, Zhongqi
Drive method: 4×2
Boom vertical height: 37m
Wheelbase: 5200/5000mm



Get Quotation

42M Boom Pump

Engine: Yuchai, German Man
Output power / speed: 199/243Kw/2100RPM
Chassis model: Dongfeng
Drive method: 6×4
Boom vertical height: 40.1m
Wheelbase: 4350+1300mm



Get Quotation

50M Boom Pump

Boom vertical height: 50m
Boom horizontal length: 46m
Drive method: 6×4
engine model: Yuchai
Output power / speed: 243Kw/2100RPM
Boom folding form:6RZ
Outrigger opening method:Front leg X type



Get Quotation

58M Boom Pump

Engine model : MC11.44-50
Output power / speed: 327Kw/1900RPM
Chassis model: Sinotruk Shandeka
Drive method: 8×4
Boom vertical height: 52m
Boom folding form: 6RZ



Get Quotation

63M Boom Pump

Engine model : MC11.44-50
Output power / speed: 327Kw/1900RPM
Chassis model: Sinotruk Shandeka
Drive method: 8×4
Boom vertical height: 62.5m
Boom folding form: 6RZR



Get Quotation


PRODUCT STRUCTURE

PRODUCT ADVANTAGES

ZLIN Boom Pump Truck

1. High configuration: adopt the core components of international high-end brands, and become long-term strategic partners with companies such as German Spall, Rexroth, Harvey, HBC, Italian Wolff, NEM, and American Eaton;
2. Stable performance and low failure rate: through three-dimensional modeling and finite element analysis, the structure is more reasonable and the performance of the whole machine is more stable; the failure rate has been low after more than 20 years of market inspection;
3. High construction efficiency and wide construction range: equipped with high and low pressure automatic switching function, pumping is self-adaptive, energy-saving and efficient;
4. Strong human-computer interaction, easy operation of intelligent control, simple and clear troubleshooting.

What Benefit It Can Bring You Boom Pump Description
1. Through three-dimensional modeling and finite element analysis, the structure is more reasonable and the machine performance is more stable;
2. Low failure rate through more than 20 years of market inspection;
3. High and low voltage automatic switching function;
4. Pump with self-adaptation, energy saving and high efficiency;
5. Man-machine interaction is strong, intelligent control is easy to operate, troubleshooting is simple and clear.



Application Fields

Applications

1.The boom pump truck is a kind of engineering vehicle which can pump, fabric and walk in one vehicle without dismantling the pipe to convey concrete.
2.Concrete pump truck has low fuel consumption, short, narrow and short body, can walk in the set limit width, high road card, suitable for narrow work site construction.
3.It has its own boom for laying, and the auxiliary time is short. It is convenient and quick to fabricate, fast pumping speed and high working efficiency.
4.High degree of automation, can be operated by one person, equipped with wireless remote control, easy to operate.
5.Good maneuverability, high efficiency of equipment use; dexterous body design, small footprint of outriggers.
6.The whole vehicle design integrates economy, reliability, safety and durability.


Click to watch the video

RECOMMENDATION

TECHNICAL PARAMETER

Model:ZL52261THB33 Technical Parameters
Machine
parameters
full length 9850mm
Total height 3540
Total width 2350mm
Self weight 22600Kg
Chassis model Dongfeng
Drive method 4×2
engine model Yuchai
Output power / speed 177Kw/2300RPM
Emission Standards Country V
Tire size 11.00R20
Wheelbase 5200/5000mm
Boom leg
parameters
Boom vertical height 33m
Boom horizontal length 29.5m
Boom vertical depth 19m
Boom folding form 5RZ
First arm length 7000mm
Corner 90o
Second arm length 5600mm
Corner 180 o
Third arm length 5400mm
Corner 180 o
Fourth arm length 5700mm
Corner 229o
Fifth arm length 5700mm
Corner 212o
End conveying hose length 3m
Turntable rotation angle ±360 o
Front outrigger width 5800mm
Rear outrigger width 8350mm
Longitudinal distance of front and rear legs 6800mm
Outrigger opening method Front leg X type
Back leg Leg swing
