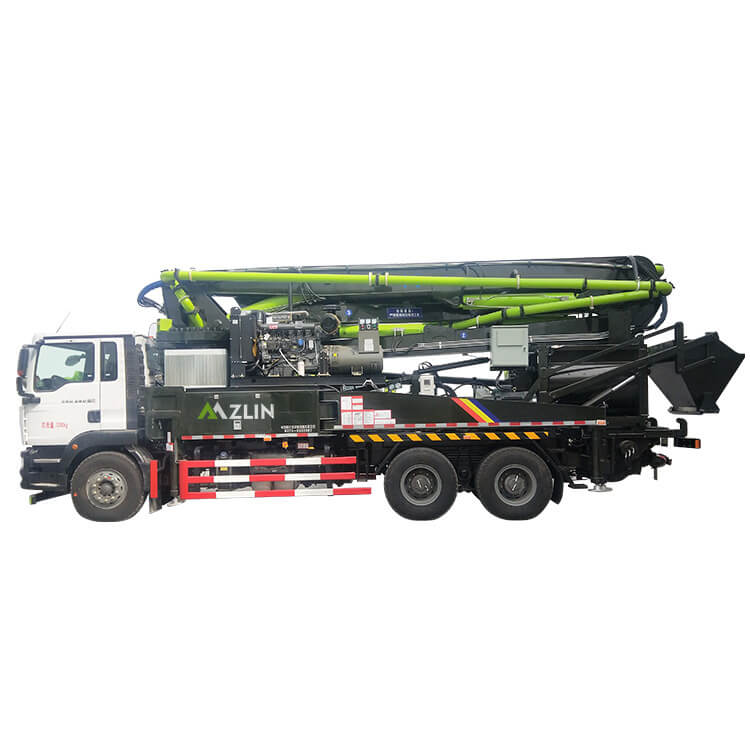

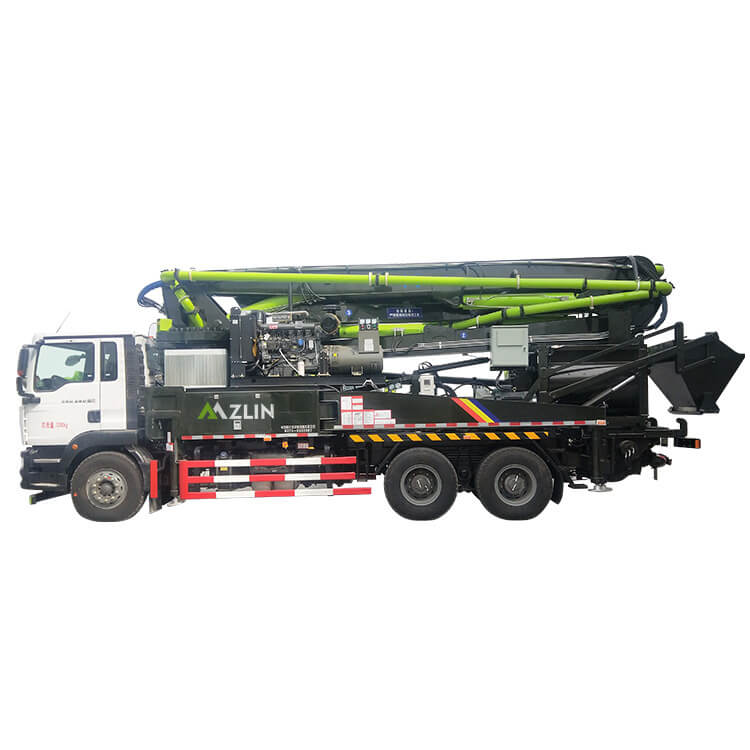

The 37M concrete boom pump is a machine that continuously conveys concrete along a pipe using pressure. It consists of a pump body and a delivery pipe. The pump body is mounted on a car chassis and equipped with a telescopic or bendable boom to form a concrete boom type pump truck.
25M Boom PumpEngine: Yuchai
Get Quotation |
30M Boom PumpEngine: Yuchai
Get Quotation |
37M Boom PumpEngine: Yuchai, German Man
Get Quotation |
42M Boom PumpEngine: Yuchai, German Man
Get Quotation |
50M Boom PumpBoom vertical height: 50m
Get Quotation |
58M Boom PumpEngine model : MC11.44-50
Get Quotation |
63M Boom PumpEngine model : MC11.44-50
Get Quotation |
ZLIN Boom Pump Truck
1. High configuration: adopt the core components of international high-end brands, and become long-term strategic partners with companies such as German Spall, Rexroth, Harvey, HBC, Italian Wolff, NEM, and American Eaton;
2. Stable performance and low failure rate: through three-dimensional modeling and finite element analysis, the structure is more reasonable and the performance of the whole machine is more stable; the failure rate has been low after more than 20 years of market inspection;
3. High construction efficiency and wide construction range: equipped with high and low pressure automatic switching function, pumping is self-adaptive, energy-saving and efficient;
4. Strong human-computer interaction, easy operation of intelligent control, simple and clear troubleshooting.
What Benefit It Can Bring You Boom Pump Description
1. Through three-dimensional modeling and finite element analysis, the structure is more reasonable and the machine performance is more stable;
2. Low failure rate through more than 20 years of market inspection;
3. High and low voltage automatic switching function;
4. Pump with self-adaptation, energy saving and high efficiency;
5. Man-machine interaction is strong, intelligent control is easy to operate, troubleshooting is simple and clear.
1.The boom pump truck is a kind of engineering vehicle which can pump, fabric and walk in one vehicle without dismantling the pipe to convey concrete.
2.Concrete pump truck has low fuel consumption, short, narrow and short body, can walk in the set limit width, high road card, suitable for narrow work site construction.
3.It has its own boom for laying, and the auxiliary time is short. It is convenient and quick to fabricate, fast pumping speed and high working efficiency.
4.High degree of automation, can be operated by one person, equipped with wireless remote control, easy to operate.
5.Good maneuverability, high efficiency of equipment use; dexterous body design, small footprint of outriggers.
6.The whole vehicle design integrates economy, reliability, safety and durability.
Model:ZL52261THB37 | Technical Parameters | ||
Machine parameters |
full length | 10250mm | |
Total height | 3720mm | ||
Total width | 2500mm | ||
Self weight | 22600Kg | ||
Chassis model | Dongfeng,Zhongqi | ||
Drive method | 4×2 | ||
engine model | Yuchai, German Man | ||
Output power / speed | 199/228Kw/2300RPM | ||
Emission Standards | Country V | ||
Tire size | 12.00 R20 | ||
Wheelbase | 5200/5000mm | ||
Boom leg parameters |
Boom vertical height | 37m | |
Boom horizontal length | 33.2m | ||
Boom vertical depth | 22m | ||
Boom folding form | 5RZ | ||
First arm | length | 7500mm | |
Corner | 90o | ||
Second arm | length | 6200mm | |
Corner | 180 o | ||
Third arm | length | 6100mm | |
Corner | 180 o | ||
Fourth arm | length | 6700mm | |
Corner | 229o | ||
Fifth arm | length | 6700mm | |
Corner | 212o | ||
End conveying hose | length | 3m | |
Turntable rotation angle | ±360 o | ||
Front outrigger width | 6800mm | ||
Rear outrigger width | 8350mm | ||
Longitudinal distance of front and rear legs | 6800mm | ||
Outrigger opening method | Front leg | X type | |
Back leg | Leg swing |
