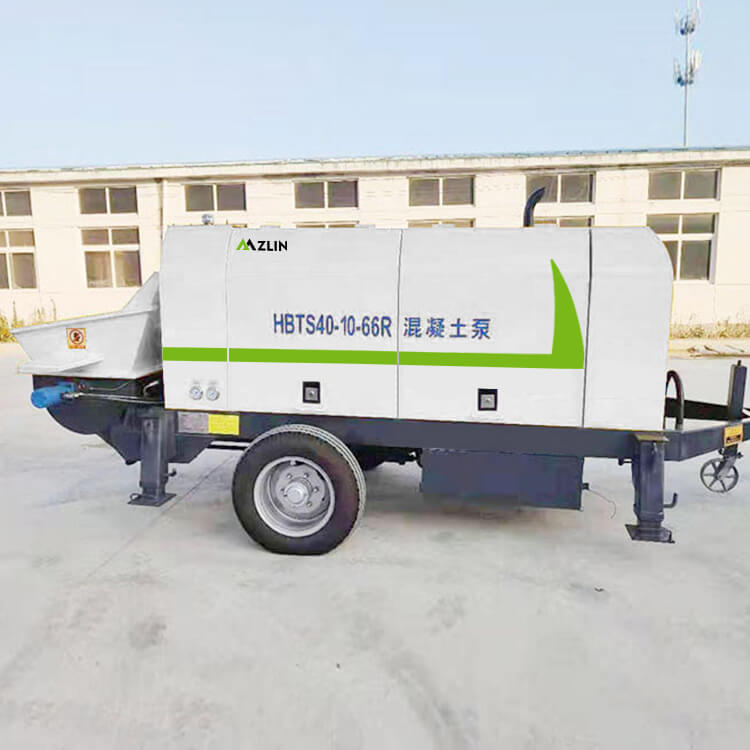

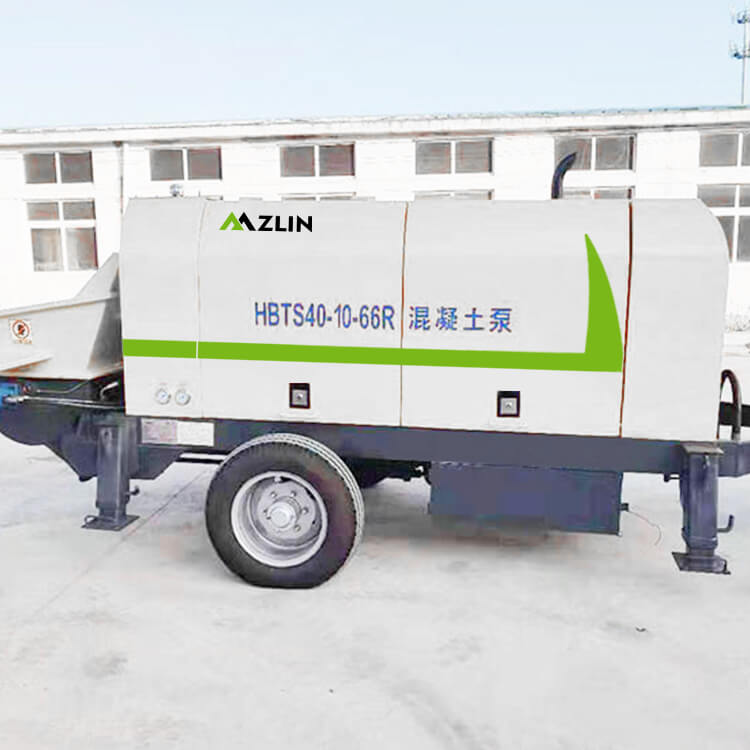

HBTS40 Concrete Trailer Pump

Product Description

Concrete trailer pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.

Chat [email protected] Inquiry

RELATED PRODUCTS

HBTS30 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 30
Max. Theoretical Vertical Conveying Distance(m): 60/100
Max.concrete pumping pressure(MPa) 6
Max. aggregate diameter(mm): 40-50
Distribution valve type: S Valve
Electrical engineering power(kw): 42



Get Quotation

HBTS40 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 40/26
Max. Theoretical Vertical Conveying Distance(m): 120/500
Max.concrete pumping pressure(MPa): 10/7.6
Max. aggregate diameter(mm): 30-40
Distribution valve type: S Valve
Diesel engine model: WP4G110E220
Electrical engineering power(kw): 82



Get Quotation

HBTS60 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 84/46
Max. Theoretical Vertical Conveying Distance(m): 160/800
Max.concrete pumping pressure(MPa): 13/6.3
Max. aggregate diameter(mm): 40-50
Distribution valve type: S Valve
Hydraulic system Circuit type: Open circuit
Electrical engineering power (kW): 90



Get Quotation

HBTS80 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 84/45
Max. Theoretical Vertical Conveying Distance(m): 200/1200
Max.concrete pumping pressure(MPa): 16/7.6
Max. aggregate diameter(mm): 40-50
Distribution valve type: S Valve
Diesel engine model: Weichai DEUTZ
Electrical engineering power(kw): 129



Get Quotation

HBTS90 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 95/55
Max. Theoretical Vertical Conveying Distance(m): 360/1200
Max.concrete pumping pressure(MPa): 18/9.3
Max. aggregate diameter(mm): 50
Distribution valve type: S Valve
Diesel engine model: Weichai DEUTZ
Electrical engineering power(kw): 176



Get Quotation


PRODUCT STRUCTURE

PRODUCT ADVANTAGES

ZLIN Concrete Trailer Pump
1. With triple-pump open system, hydraulic circuits will not interfere with each other.

2. With anti-pumping function, operators can eliminate the blockage in time, and the concrete pump can stop working for a short time to wait for the material feeding.

3. Advanced S tube distribution valve can automatically compensate for wear and tear and it has good sealing performance.

4. Wear-resistant alloy glasses and floating cutting ring has long service life.

5. The long stroke of material cylinder extends the service life of material cylinder and piston.

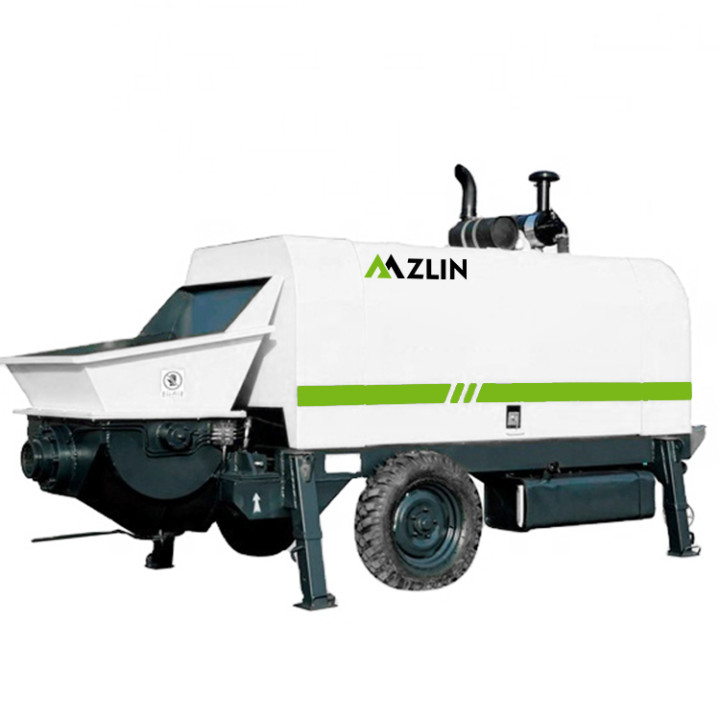

In order to meet the various needs of field construction sites and customers, ZLIN has developed a concrete transfer pump powered by a diesel engine. The pump power system adopts a diesel engine that meets emission standards. It has the advantages of reliable performance, stable operation and easy maintenance. It can operate stably in harsh environment, saves cost and can create more benefits.

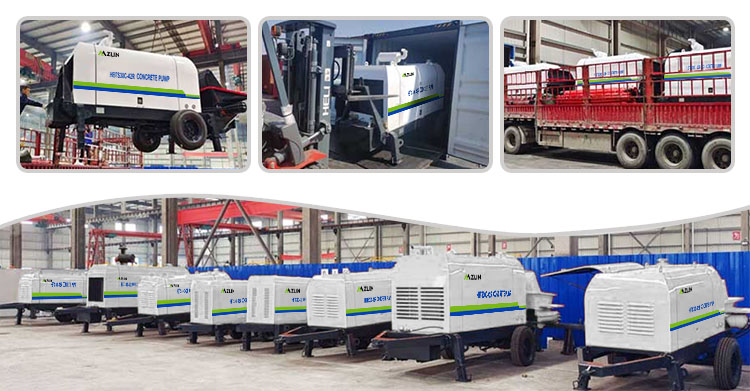

Trailer Concrete Pump Goods Delive

Based on good quality and decades of experience, Trailer Concrete Pumps manufactured by ZLIN are exported to different countries. The trailer-mounted concrete pumps will be packed and loaded at our factory and then safely shipped to our customers.

Recently, a set of ZLIN’s stationary concrete pump worked normally at the construction site after successful installation and commissioning. The customer sent us a positive feedback about this concrete pump.


Click to watch the video

RECOMMENDATION

TECHNICAL PARAMETER

Items Units Parameters

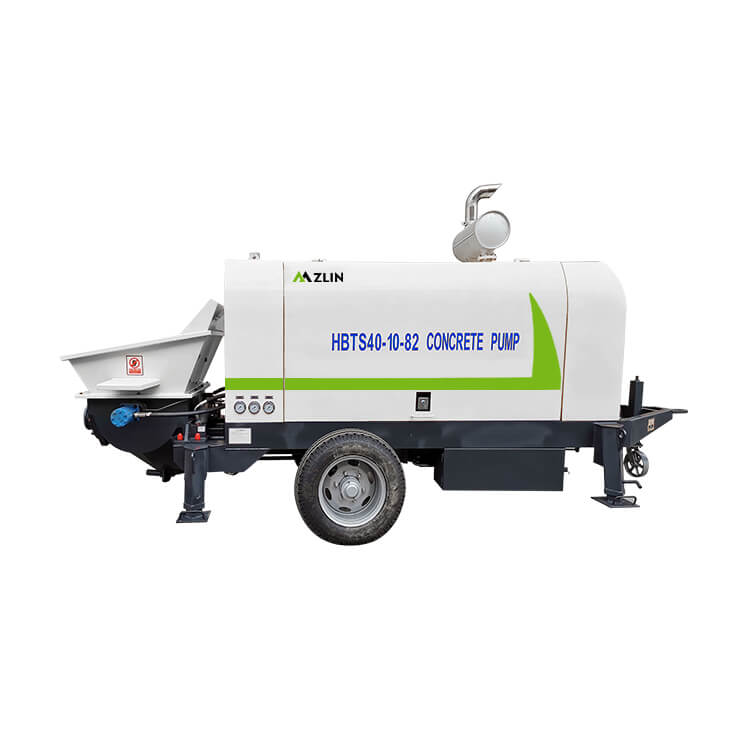

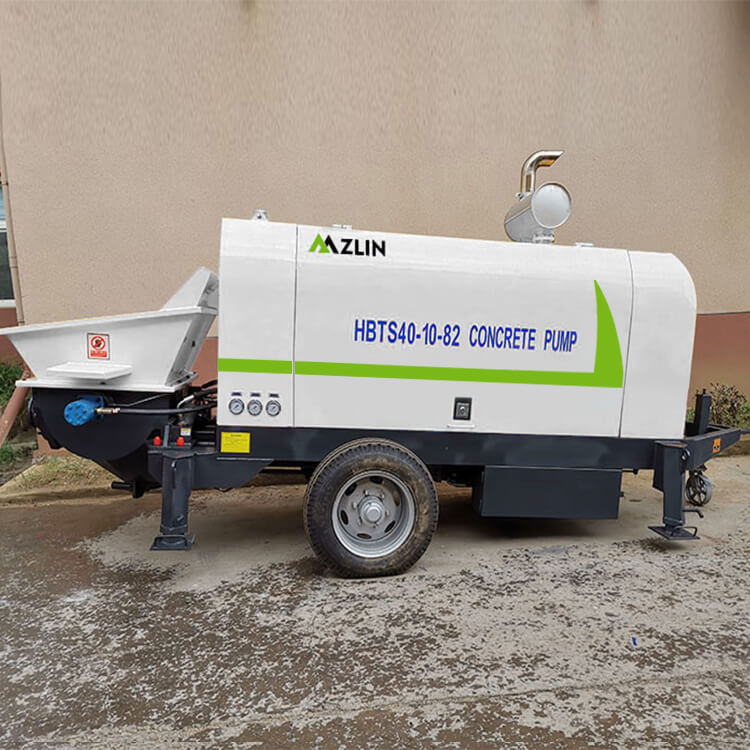

HBTS40-10-82R
Whole performance of machine Max. theo. concrete output (L./H.) m3/h 40/26
Max.concrete pumping pressure (H. /L.) MPa 10/7.6
Distribution valve type S Valve
Concrete cylinder diameter×stroke mm Ф1800×1300
Hopper capacity×feeding height L×mm 400×1100
Outlet diameter mm Ф150
Power system Diesel engine model WP4G110E220
Electrical engineering power kW 82
Rotate speed r/min 2100
Hydraulic system Circuit type Open circuit



Pumping system pressure MPa 31.5
Mixing system pressure MPa 6-8
Capacity of oil tank L 370
The biggest transportation is away from vertically (/Level) m             120/500
Other parameters Max. aggregate diameter mm Scree:30 40
Inside diameter of delivering pipe mm Ф125
Dimensions:length×width×height mm 4800×1850×2200
Total weight kg 4800

What is the price of trailer concrete pump for sale?

As a well-established manufacturer of concrete trailer pump machinery, ZLIN has designed this range of concrete trailer pumps for different projects. It is equipped with components of famous brands such as electric motors, diesel engines, hydraulic oil pumps, valves, seals and hoses. This concrete pump machine can be used to pump concrete with maximum 40mm aggregate. It is also known as S valve type concrete trailer pump.

For the sale of concrete trailer pump, ZLIN can offer you different models with capacities from 30m3/h to 90m3/h and different lengths of steel and rubber pipes. Therefore, the price of concrete trailer pump for sale varies from model to model.

We would like to understand your specific requirements and recommend the right concrete pump machine to you. Then give you a best price for concrete pump, welcome to contact us and we will reply you within 24 hours.


Pre-sales service

Before purchase, ZLIN business manager will provide you with technical consultation about concrete trailer pump, including information on payment terms, concrete trailer pump quotation, delivery time, etc.

Recommend the most suitable model of trailer pump according to your project needs and provide you with the most economical choice.

We provide you with factory pictures, factory videos and technical information of the trailer pump to help you understand the working principle of the trailer pump.

After-sales service

We are responsible for the transportation of the products and deliver them to the designated place safely and quickly.

We will provide technical training and operation guidance and free installation service for our customers.

If you have any problem in the process of using, we will provide you with 24-hour online consultation service and send engineers for on-site technical guidance.

For customers who purchase ZLIN equipment, subsequent spare parts will be provided at the original price, and wearing parts will be guaranteed for one year. For specific after-sales service, please consult your sales manager.
