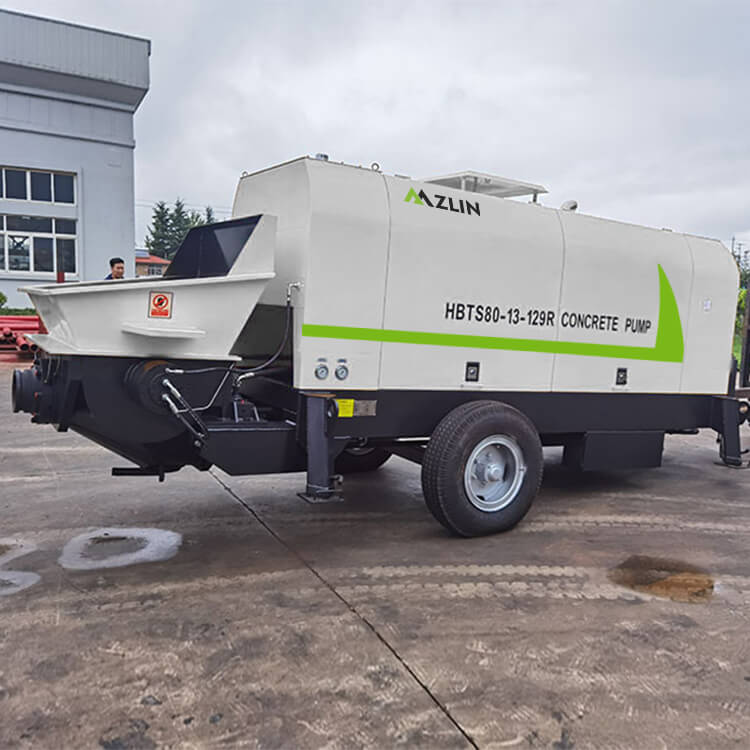

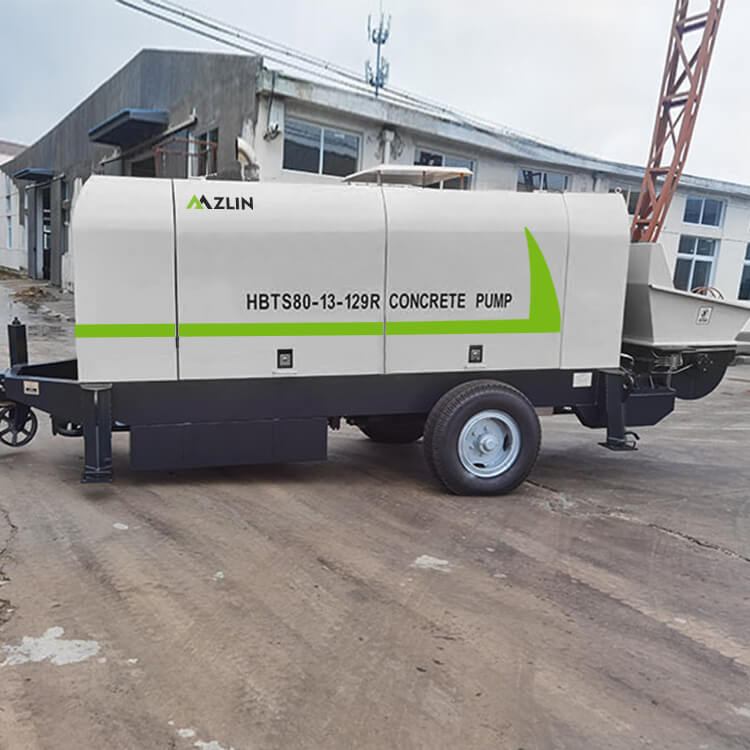

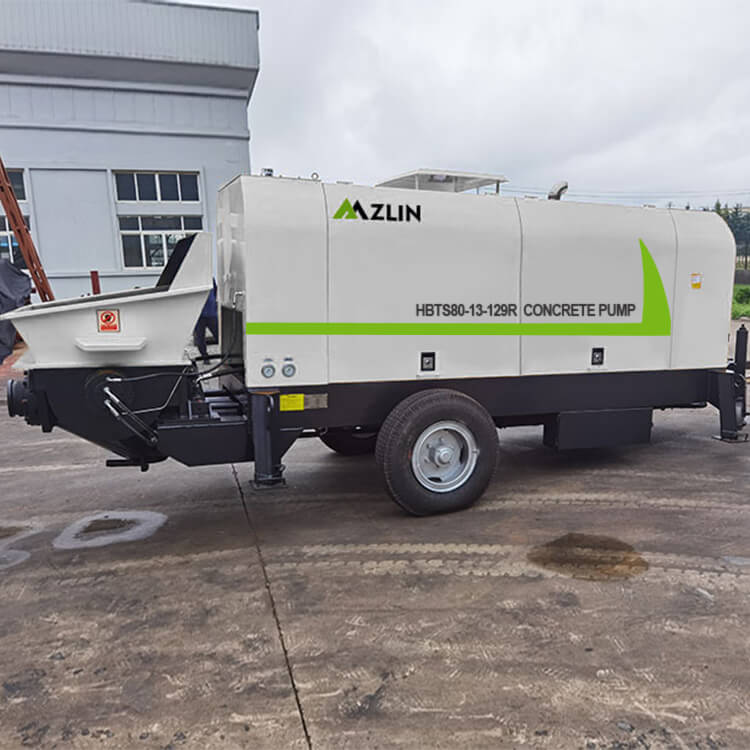

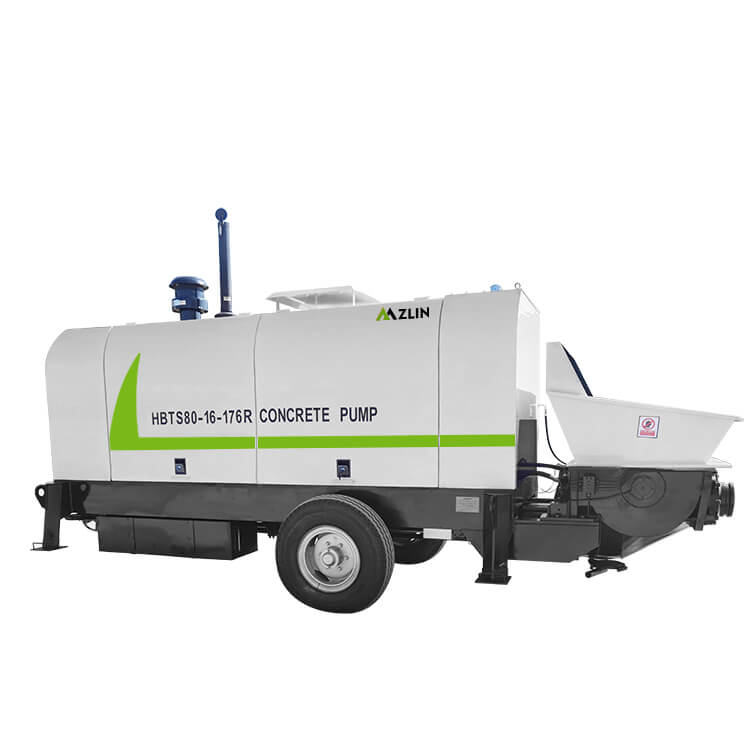

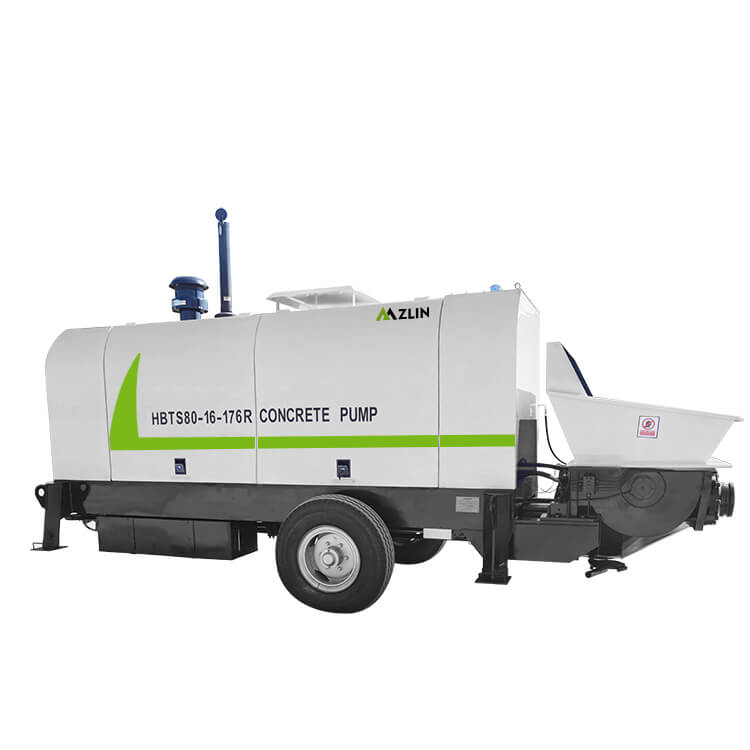

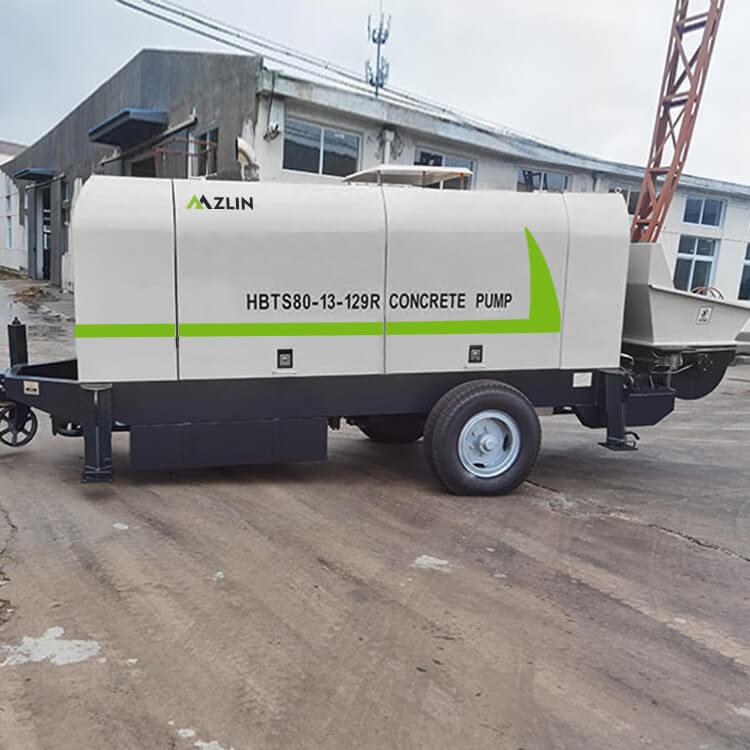

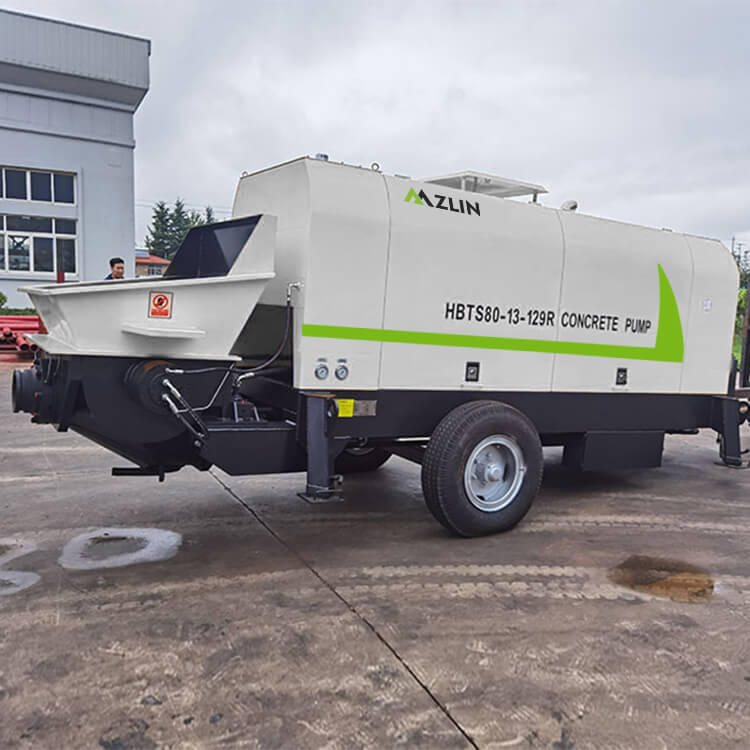

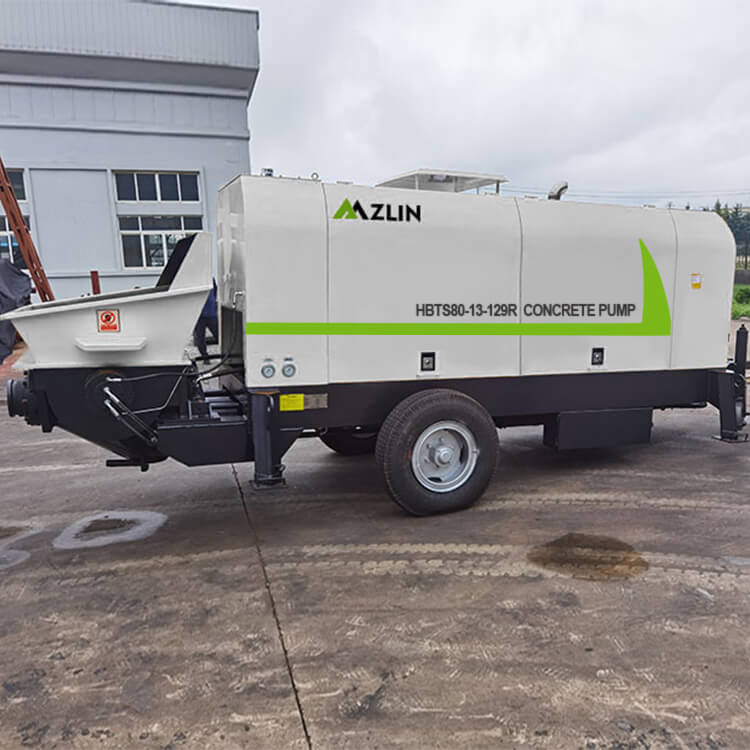

HBTS80 Concrete Trailer Pump

Product Description

Concrete trailer pump, also known as concrete pump, is composed of pump body and delivery pipe. It is a machine that uses pressure to continuously transport concrete along the pipeline. It is mainly used in housing construction, bridge and tunnel construction. It is mainly divided into gate valve concrete pump and S valve concrete pump.

Chat [email protected] Inquiry

PRODUCT STRUCTURE

HBTS30 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 30
Max. Theoretical Vertical Conveying Distance(m): 60/100
Max.concrete pumping pressure(MPa) 6
Max. aggregate diameter(mm): 40-50
Distribution valve type: S Valve
Electrical engineering power(kw): 42



Get Quotation

HBTS40 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 40/26
Max. Theoretical Vertical Conveying Distance(m): 120/500
Max.concrete pumping pressure(MPa): 10/7.6
Max. aggregate diameter(mm): 30-40
Distribution valve type: S Valve
Diesel engine model: WP4G110E220
Electrical engineering power(kw): 82



Get Quotation

HBTS60 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 84/46
Max. Theoretical Vertical Conveying Distance(m): 160/800
Max.concrete pumping pressure(MPa): 13/6.3
Max. aggregate diameter(mm): 40-50
Distribution valve type: S Valve
Hydraulic system Circuit type: Open circuit
Electrical engineering power (kW): 90



Get Quotation

HBTS80 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 84/45
Max. Theoretical Vertical Conveying Distance(m): 200/1200
Max.concrete pumping pressure(MPa): 16/7.6
Max. aggregate diameter(mm): 40-50
Distribution valve type: S Valve
Diesel engine model: Weichai DEUTZ
Electrical engineering power(kw): 129



Get Quotation

HBTS90 Concrete Trailer Pump

Max. theo. concrete output(m3/h): 95/55
Max. Theoretical Vertical Conveying Distance(m): 360/1200
Max.concrete pumping pressure(MPa): 18/9.3
Max. aggregate diameter(mm): 50
Distribution valve type: S Valve
Diesel engine model: Weichai DEUTZ
Electrical engineering power(kw): 176



Get Quotation


PRODUCT STRUCTURE

PRODUCT ADVANTAGES

ZLIN Concrete Trailer Pump
1. Saving cost; It is much cheaper than concrete boom truck
2. Saving labors; one operator is ok
3. Easy to operate; remote control is available
4. High suction efficiency, the actual pumping efficiency reached the theoretical value of 80% or more
5. Easy to move; the machine has wheels, we can use a car to tow it to another job site easily

Trailer concrete pump for sale is mainly used in concrete construction of conveying and pouring work. You can easily move it by a trailer, which can save your transportation time. With the development of modern industry, the construction method of concrete as the main material has become one of the main structures in construction industry, which occupies a large proportion in various projects, making the development of concrete machinery lasting. So more and more clients are willing to invest in a trailer mounted concrete pump.

How to Select A Suitable Trailer Concrete Pump?

There are several tips for you as reference:

1. The maximum aggregate size in the concrete will be pumped.

It is an important factor to be considered. Because for some small concrete pumps, they are only can be used to pump the concrete with maximum 20mm aggregates or smaller than 20mm. It is not a good option if you want to pump different grades concrete with different sizes aggregate. For some concrete, the maximum aggregates size will reach 40mm;

2. The maximum height and horizontal distance you want to pump.

Normally speaking, for the technical data of most of the companies who sell the concrete pump, the delivery height and horizontal distance are based on pumping water under ideal working conditions. So, you have to provide the actual height and horizontal distance when you want support from us. We can also recommend you different length of steel pipes and rubber hose which will be attached to the concrete pump;

3. The capacity.

That means how many cubic meters per hour you want this concrete pump to process. Based on the capacity, we will decide small concrete pump or big concrete pump is suitable for you;

4. Altitude of jobsite.

The work performance of diesel engine or electric motor will be affected if the altitude is too high. The trailer concrete pump for sale will be equipped with bigger motor or diesel engine according to the altitude of jobsite.

5. The trailer concrete pump is for your own projects or for hire?

After collecting the information above, we can recommend you a suitable concrete trailer pump for your projects or for hire.




Click to watch the video

RECOMMENDATION

TECHNICAL PARAMETER

Items Units Parameters
HBTS80-16-129R
Whole performance of machine Max. theo. concrete output m3/h 84/45
Max.concrete pumping pressure (H. /L.) MPa 16/7.6
Distribution valve type S Valve
Concrete cylinder diameter×stroke mm Ф200×1800
Hopper capacity×feeding height L×mm 800×1400
Outlet diameter mm Ф180
Power system Diesel engine model          Weichai DEUTZ
Electrical engineering power kW 129
Rotate speed r/min 2200
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 32
Mixing system pressure MPa 6-8
Capacity of oil tank L 560L
The biggest transportation is away from vertically (/Level) m            200/1200
Other parameters Max. aggregate diameter mm Scree:50 40
Inside diameter of delivering pipe mm Ф125
Dimensions:length×width×height mm 5950×2150×2400
Total weight kg 8500

FIND A REPUTABLE SUPPLIER - ZLIN

At ZLIN, the HBTS80 is a concrete pump with a diesel engine. The diesel engine can be customized, such as Weihai, Cummins or other specified brands. In addition, it is a large capacity diesel concrete pump available for sale. 80 m3/hour capacity is suitable for large construction projects such as high rise buildings, large foundations, roads, tunnels, ports, etc. The maximum theoretical vertical conveying distance and the maximum theoretical horizontal conveying distance are 260 m and 1200 m. In addition, ZLIN concrete pumps are equipped with S-valves to ensure a low failure rate when pumping. For more precise parameters, please check the following charts.

If you are planning to buy a concrete pump for your construction project, look no further than ZLIN. in addition to the 80 m³/h capacity, we also have 30, 40 and 60 m³/h. Feel free to contact us today for the latest concrete pump prices. Email: [email protected].


Pre-sales service

Before purchase, ZLIN business manager will provide you with technical consultation about concrete trailer pump, including information on payment terms, concrete trailer pump quotation, delivery time, etc.

Recommend the most suitable model of trailer pump according to your project needs and provide you with the most economical choice.

We provide you with factory pictures, factory videos and technical information of the trailer pump to help you understand the working principle of the trailer pump.

After-sales service

We are responsible for the transportation of the products and deliver them to the designated place safely and quickly.

We will provide technical training and operation guidance and free installation service for our customers.

If you have any problem in the process of using, we will provide you with 24-hour online consultation service and send engineers for on-site technical guidance.

For customers who purchase ZLIN equipment, subsequent spare parts will be provided at the original price, and wearing parts will be guaranteed for one year. For specific after-sales service, please consult your sales manager.
