Heat resistance, low thermal expansion, high thermal conductivity, good electrical conductivity, good corrosion resistance and wear resistance, high density, radiation absorption, outstanding purity – these are the decisive properties that we perfect depending.

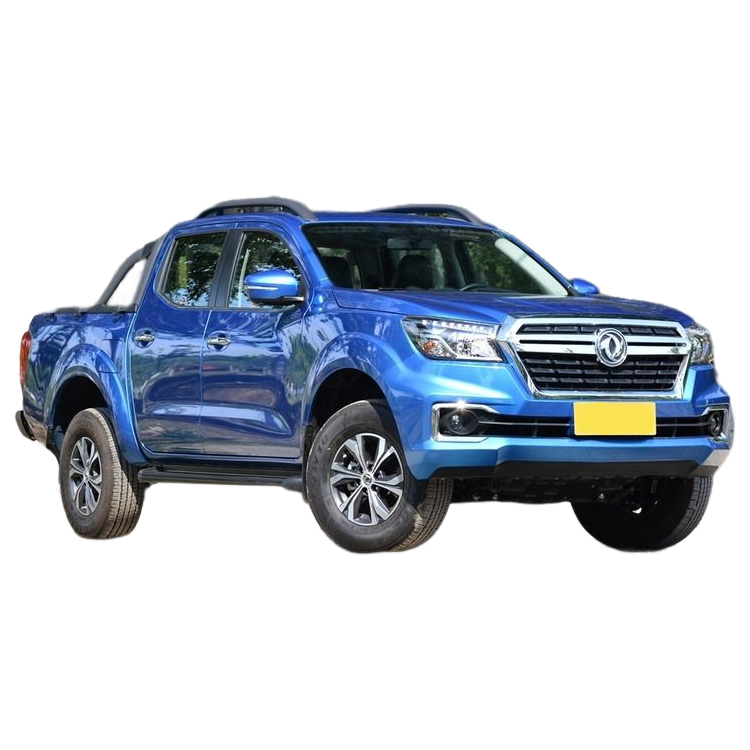

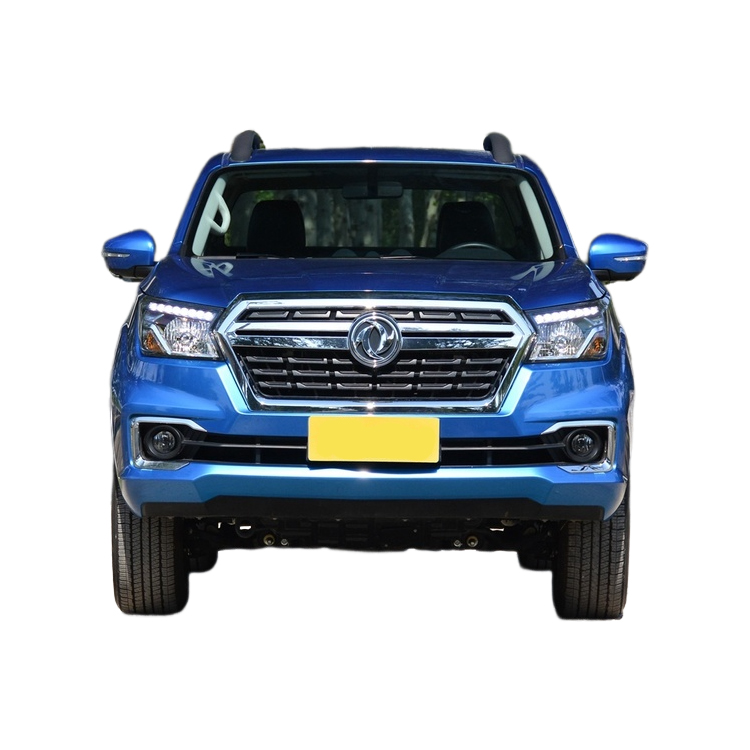

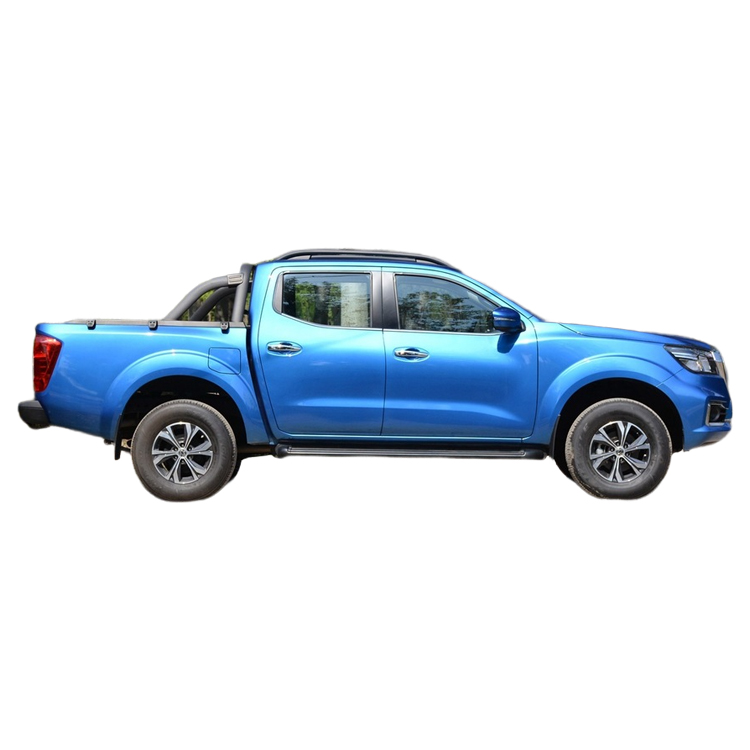

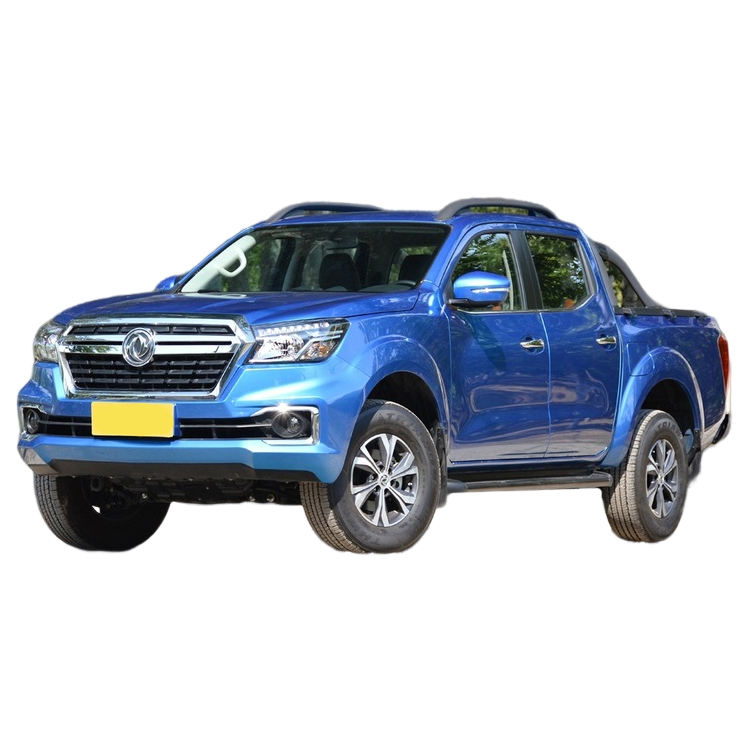

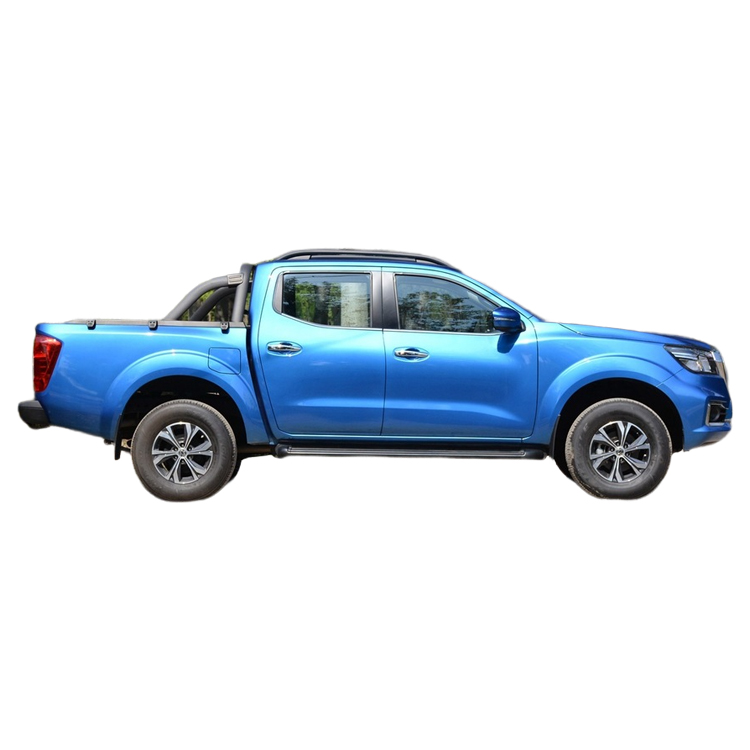

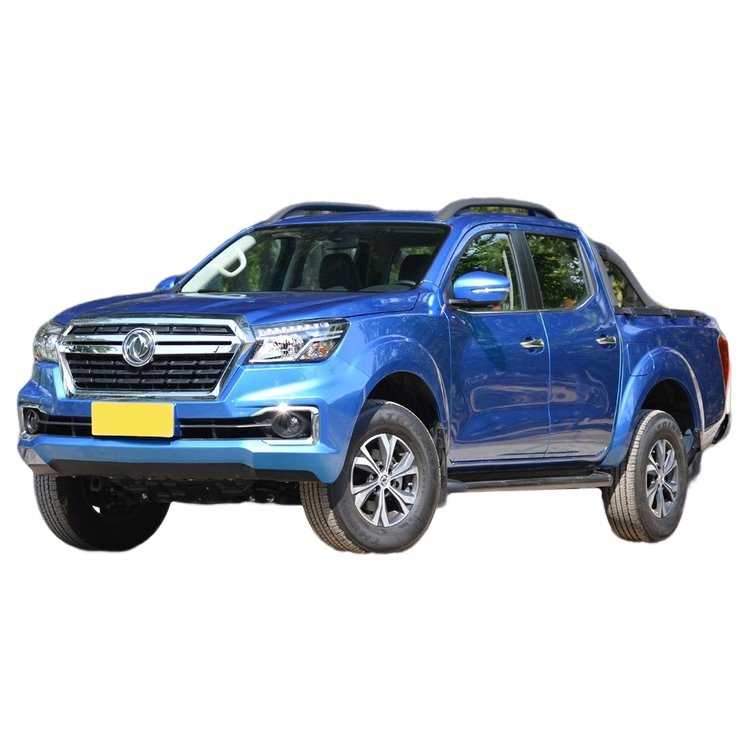

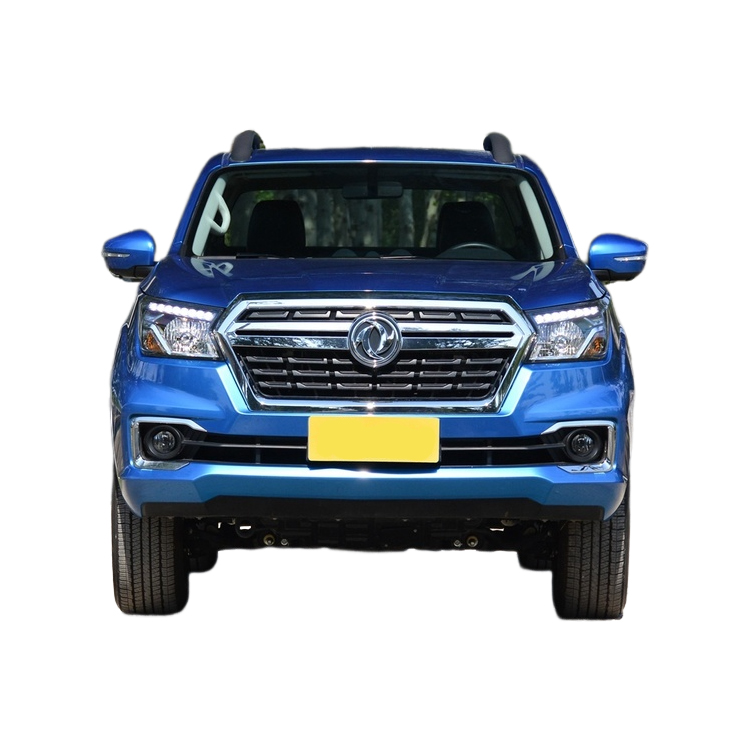

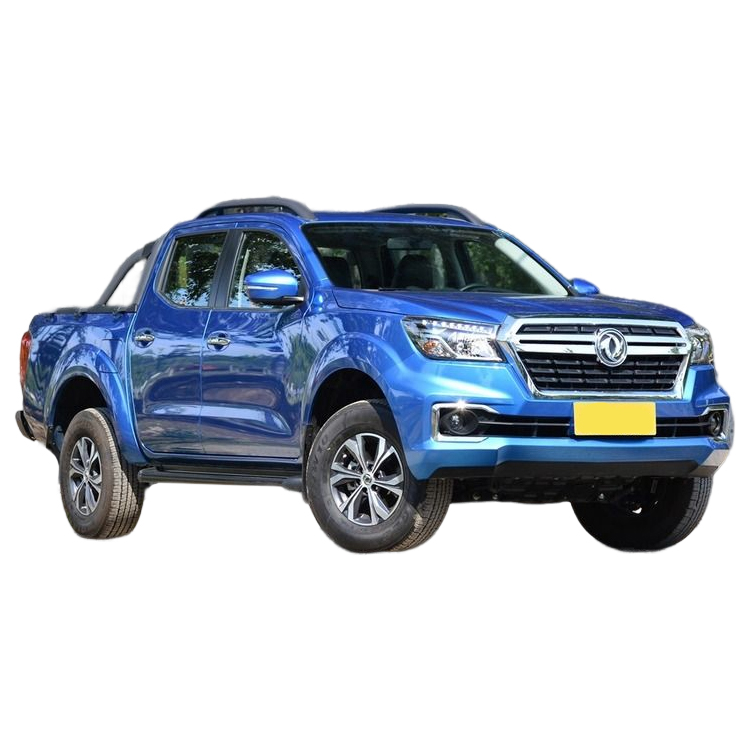

1. Dongfeng Rich 6 puts the details into practice and extends quality from the exterior to the interior.
2. Thanks to the nature of the diesel engine, it exhibits an abundant power reserve at low speeds
3. The Dongfeng Rich 6 follows a diversified product strategy, offering two powertrains, petrol (2.4L) and diesel (2.3T), and two types of drive, 2WD and 4WD
Road Construction
Port Terminal
Urban Construction
Port Terminal
Urban Construction
|
Fuel type
|
P15 Gasoline
|
|||||
|
Y01A
|
Y01B
|
Y02A
|
Y02C
|
|||
|
Model
|
ZN1035U5N5
|
ZN1035UCN5
|
||||
|
Model specifications
|
STD
|
LUX
|
STD
|
LUX
|
||
|
STD
|
MID
|
STD
|
UPR
|
|||
|
Driving type
|
2WD
|
4WD
|
||||
|
Transmission
|
5MT
|
|||||
|
Emission standard
|
Euro V+OBD
|
Euro V+OBD
|
||||
|
Parameters
|
L×W×H（mm）
|
5290*1850*1810
|
5290*1850*1810（1850 with roof rack）
|
|||
|
Wheelbase（mm）
|
3150
|
|||||
|
Tread (Front/Rear)(mm)
|
1570/1570
|
|||||
|
Cargo box L×W×H(mm)
|
1510*1562*475
|
|||||
|
Min. ground clearance(mm)
|
207
|
|||||
|
Min. turning radius(m)
|
6.4
|
|||||
|
G.V.W. (kg)
|
2525
|
2600
|
||||
|
Curb weight (kg)
|
1710
|
1785
|
||||
|
Load capacity (kg)
|
490
|
490
|
||||
|
Approach angle/Departure angle(°)
|
31/20
|
|||||
|
Max. gradeability(%)
|
30
|
|||||
|
Passenger numbers
|
5
|
|||||
|
Fuel tank(L)
|
73
|
|||||
|
Max. speed (km/h)
|
150
|
|||||
|
Engine
|
Model
|
2TZD
|
||||
|
Displacement (mL)
|
2438
|
|||||
|
Max. power (Kw)
|
116
|
|||||
|
Max. torque (Nm)
|
230
|
|||||
|
Fuel type
|
P15 Diesel
|
||||||
|
Y03A
|
Y03B
|
Y04B
|
Y05A
|
Y05C
|
|||
|
Model
|
ZN1035U5X5
|
ZN1035U5X5A
|
ZN1035UCX5
|
||||
|
Model specifications
|
STD
|
LUX
|
LUX
|
STD
|
Flagship
|
||
|
STD
|
MID
|
MID
|
STD
|
UPR
|
|||
|
Driving type
|
2WD
|
4WD
|
|||||
|
Transmission
|
5MT
|
6AT
|
5MT
|
||||
|
Emission standard
|
Euro V+OBD
|
Euro V+OBD
|
|||||
|
Parameters
|
L×W×H（mm）
|
5290*1850*1810
|
5290*1850*1810（1850 with roof rack）
|
||||
|
Wheelbase（mm）
|
3150
|
||||||
|
Tread (Front/Rear)(mm)
|
1570/1570
|
||||||
|
Cargo box L×W×H(mm)
|
1510*1562*475
|
||||||
|
Min. ground clearance(mm)
|
207
|
||||||
|
Min. turning radius(m)
|
6.4
|
||||||
|
G.V.W. (kg)
|
2625
|
2655
|
2715
|
||||
|
Curb weight (kg)
|
1810
|
1840
|
1900
|
||||
|
Load capacity (kg)
|
490
|
490
|
490
|
||||
|
Approach angle/Departure angle(°)
|
31/20
|
||||||
|
Max. gradeability(%)
|
40
|
||||||
|
Passenger numbers
|
5
|
||||||
|
Fuel tank(L)
|
73
|
||||||
|
Max. speed (km/h)
|
150
|
||||||
|
Engine
|
Model
|
ZD25T5
|
|||||
|
Displacement (mL)
|
2498
|
||||||
|
Max. power (Kw)
|
103
|
103
|
|||||
|
Max. torque (Nm)
|
305
|
305
|
|||||
Henan Zlin Heavy Industry Co., LTD founded in 2016, focuses on the R&D and manufacturing of construction machinery. It is a comprehensive group company with multi-plate operations, including e-commerce operations, overseas trade, overseas warehouse operations, product supply chains and equipment manufacturing, etc. The leading products cover 6 categories, 60 product series and nearly 700 varieties. We provide customers with complete construction solutions and one-stop solutions to all customer needs.
We welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Q: Are you the original manufacturer?
A: Yes, Zlin is construction machinery manufacturers in China, we have the full range of products you need.
Q: How is the quality of your products?
A: We have more than 10 years experience in concrete machinery maintenance. All our machines are carefully and strictly inspected and maintained by our skilled workers according to national and international standards, and we will test each piece of equipment until it works well before delivery. We guarantee good performance and high quality of every machine we deliver to our customers.
Q: What is the price?
A: We have our own factory and have many customers all over the world, we have the best price, we can give you lower price because we are the main source.
Q: Will you provide after-sales service?
Answer: Yes. Our new machine is guaranteed for 12 months, in addition to that, we have a professional after-sales service team to solve your problems thoroughly and promptly.
Q: How about your concrete pump spare parts service?
A: We are committed to providing our customers with concrete pump spare parts of the highest quality, precise suitability and fast delivery and service. Guarantee that once a customer submits a spare parts request or product list to us, it will be dealt with quickly and properly.
· Max. theo. concrete output：40m³/h
· Max. vertical conveying distance：100M
Output Power / speed : 199Kw/2300RPM
Boom Vertical Height: 38m
Electrical Engineering Power : 90kw
Distribution Valve Type: S Valve
You can consult online or write an email, We deal with your needs immediately
Chat online
