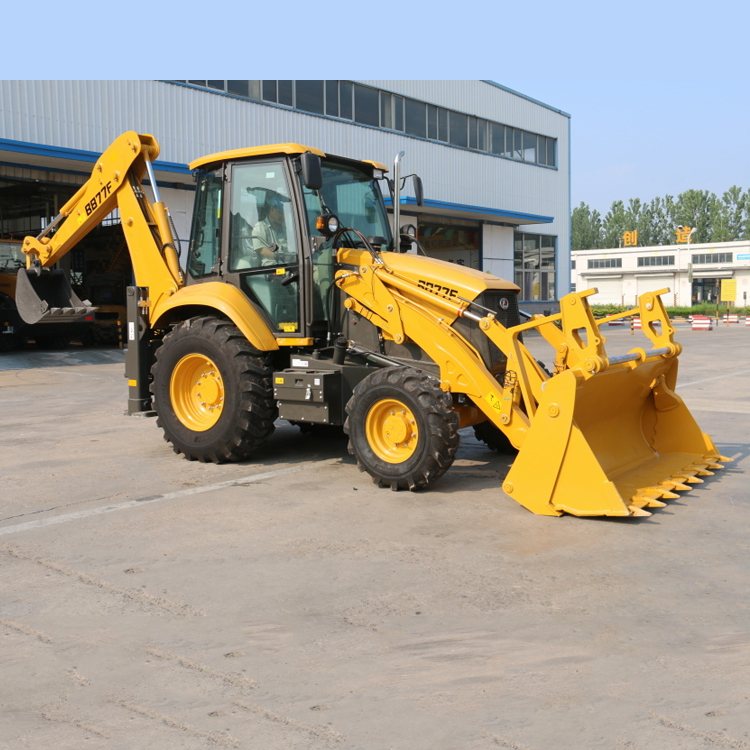

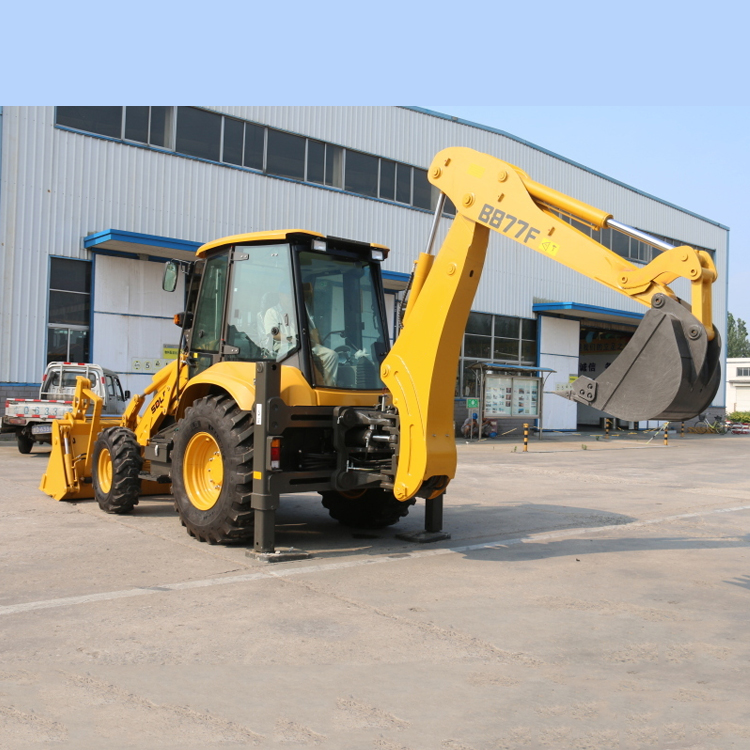

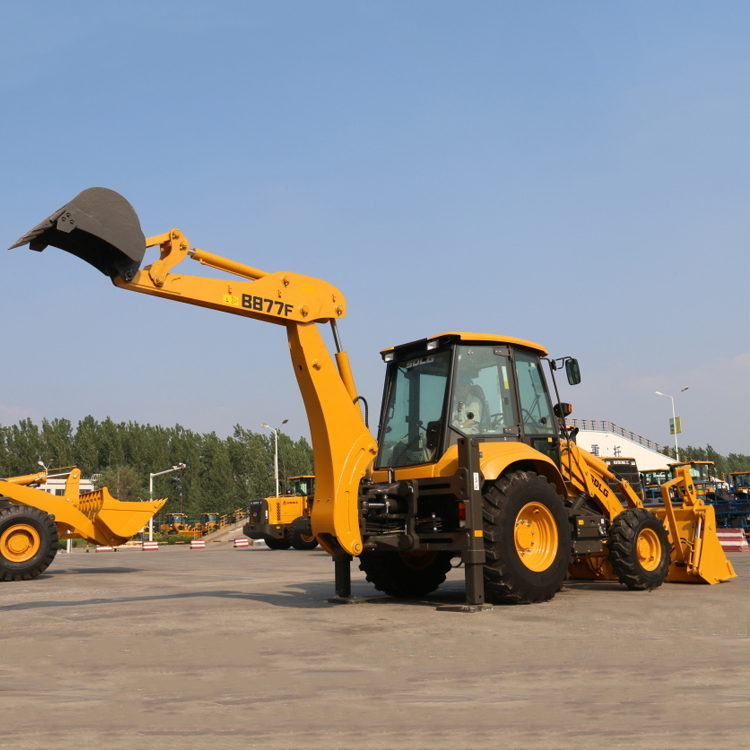

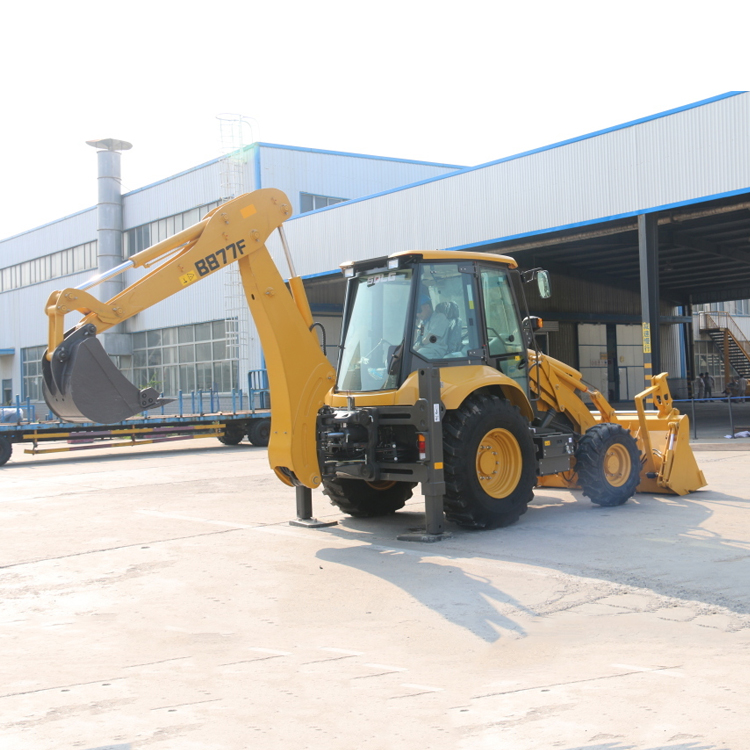

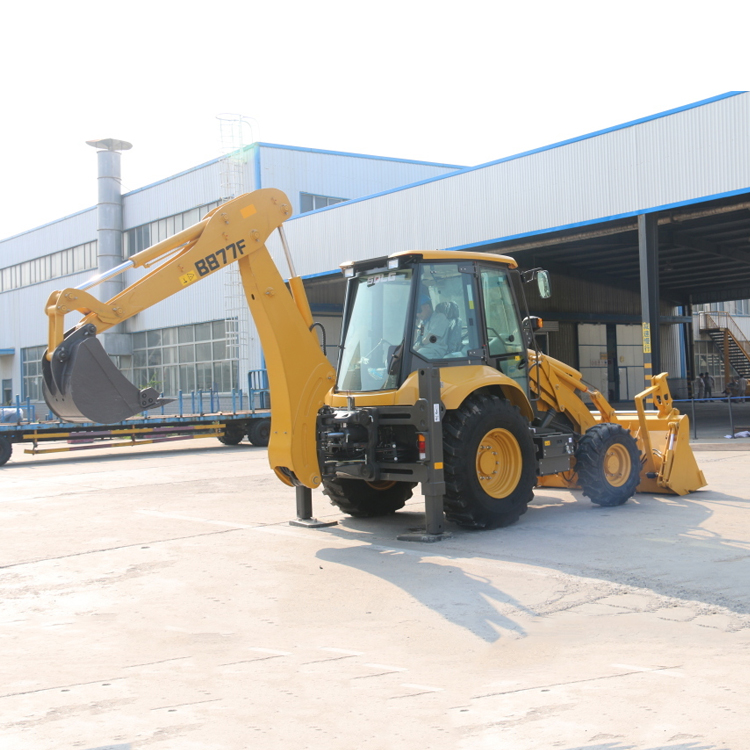

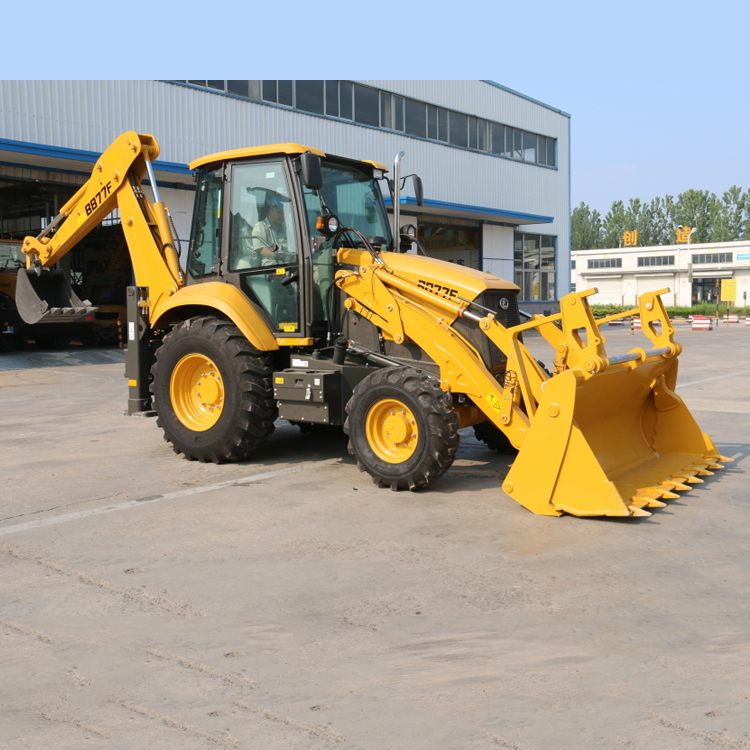

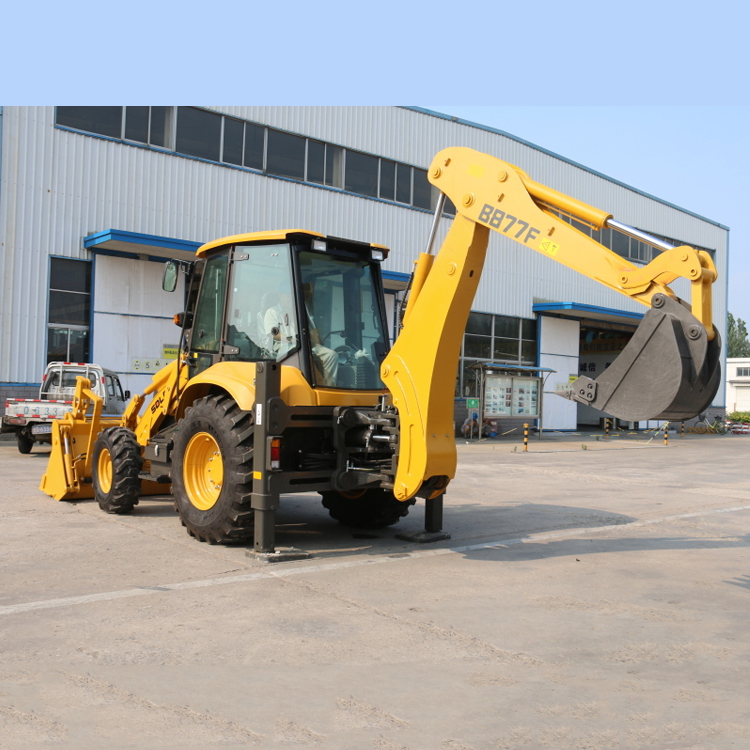

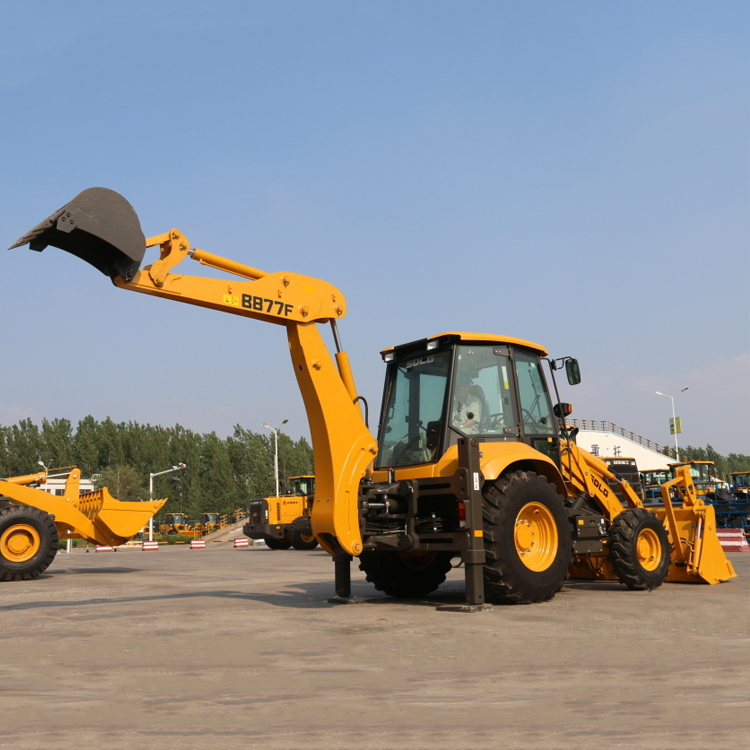

SDLG B877F Backhoe loader is a multifunctional construction machine integrating loading and excavating functions. Commonly known as "busy at both ends". During the construction, the operator only needs to rotate the seat to replace the working end. Widely used in road maintenance, farmland development, take mud brick, pipeline construction, cable construction, parking greening and road excavation, crushing and so on.
The SDLG B877F Backhoe is easy and convenient to operate. Backhoe excavators are easy and convenient to operate, and require fewer operators than front shovel excavators. This not only saves labour costs, but also improves construction safety and efficiency.
Backhoe excavator is the most widely used earthmoving excavation machinery, with flexible operation, fast slewing speed and other characteristics. In recent years, the backhoe excavator market has developed rapidly, and the production of excavators has developed in the direction of large-scale, miniaturisation, multifunctionality and specialisation.
| A. Overall width | 2 350 mm |
| B. Overall height | 3 608 mm |
| C. Height to top of cab (including beacon) | 3 090 mm |
| D. Overall length | 5 917 mm |
| E. Wheelbase | 2 170 mm |
| F. Ground clearance | 346 mm |
| G. Roll back angle ground level | 45° |
| H. Dump angle | 45° |
| I. Dump height | 2 693 mm |
| J. Maximum operating height loader | 4 313 mm |
| K. Loading clearance excavator | 3 607 mm |
| L. Maximum digging depth | 4 303 mm |
| M. Operating height excavator | 5 335 mm |
| N. Reach from swing post ground level | 5 393 mm |
Cab fitted with adjust able seat and adjustable steering column forall day operator comfort leading to higher productivity. ldeally-placed controls and a high-performance heating/AC system.
Loader performance benefits from easy-to-handle controllevers working in harmony with efficient hydraulics and powerful lift and breakout forces.
Excavator controls are easy to access, The comfortable working environment combined with efficient hydraulics ensures reliable levels of productivity
Drive mode : 6×4
Fuel Tanker: 20000L
GVW(Kg) : 7490
Overall Dimension(mm) : 7420×2320×2540
Loading capacity : 40cbm
King pin diameter : 2 or 3.5 inch
