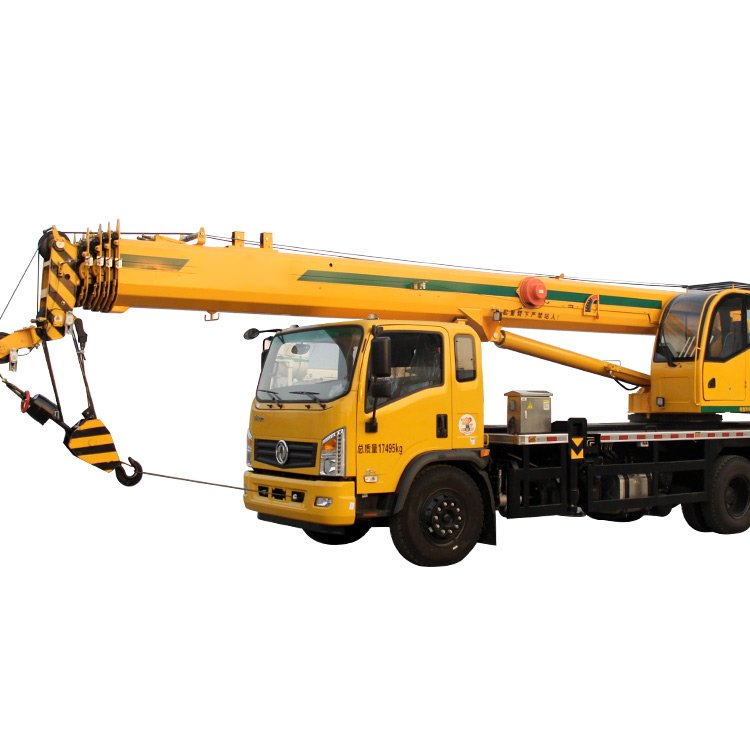

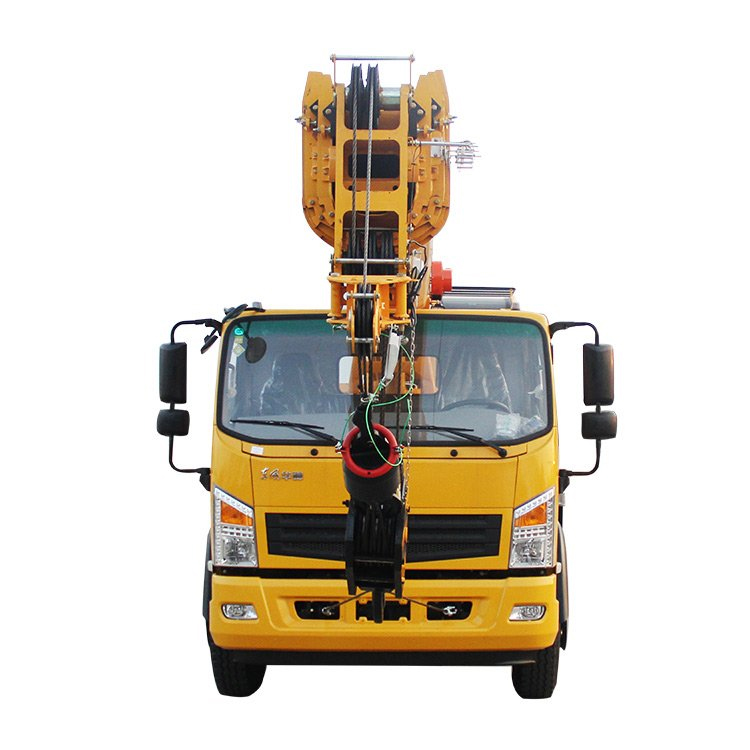

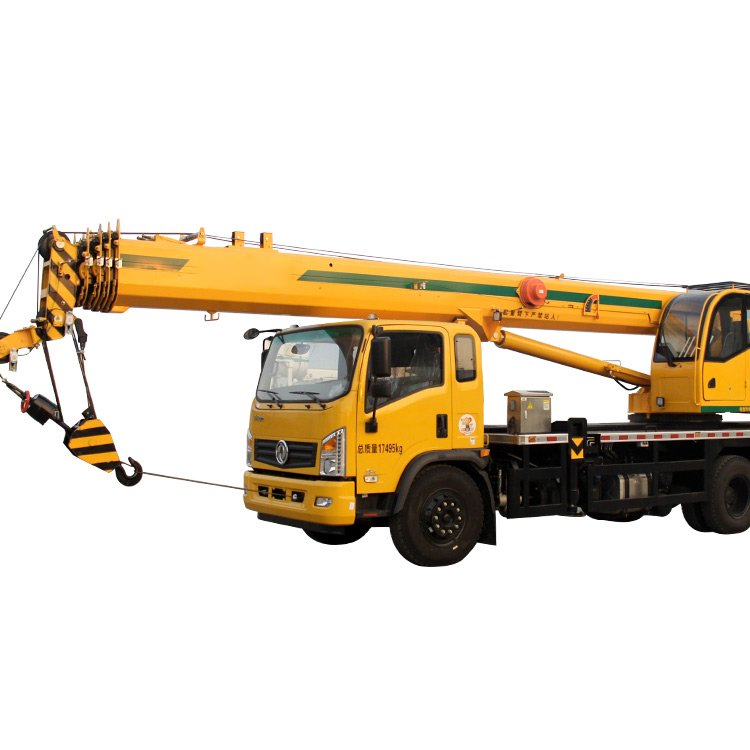

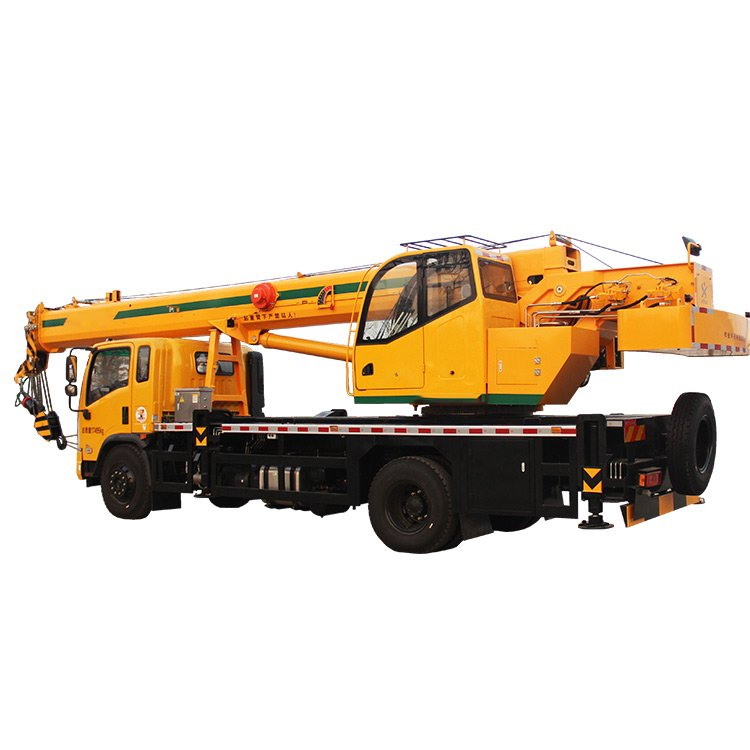

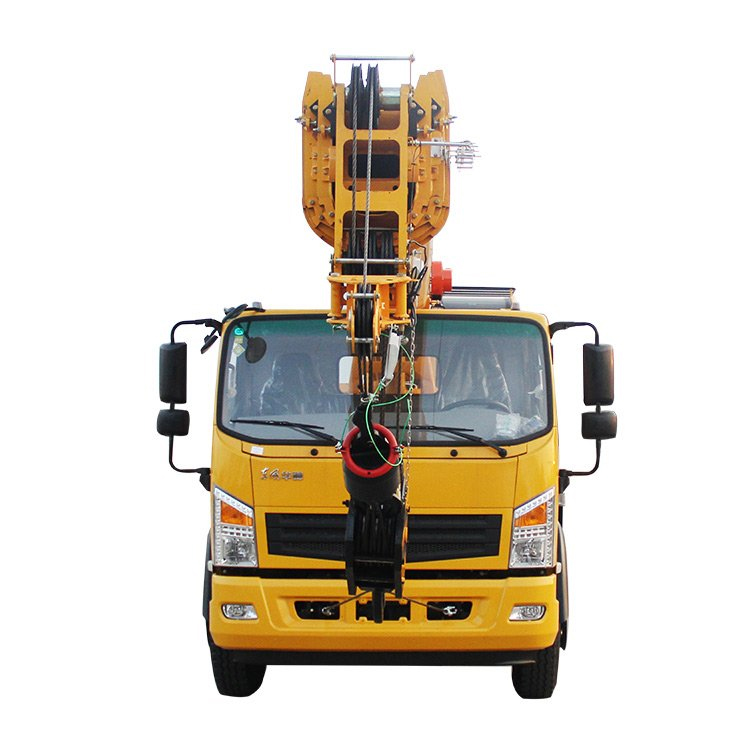

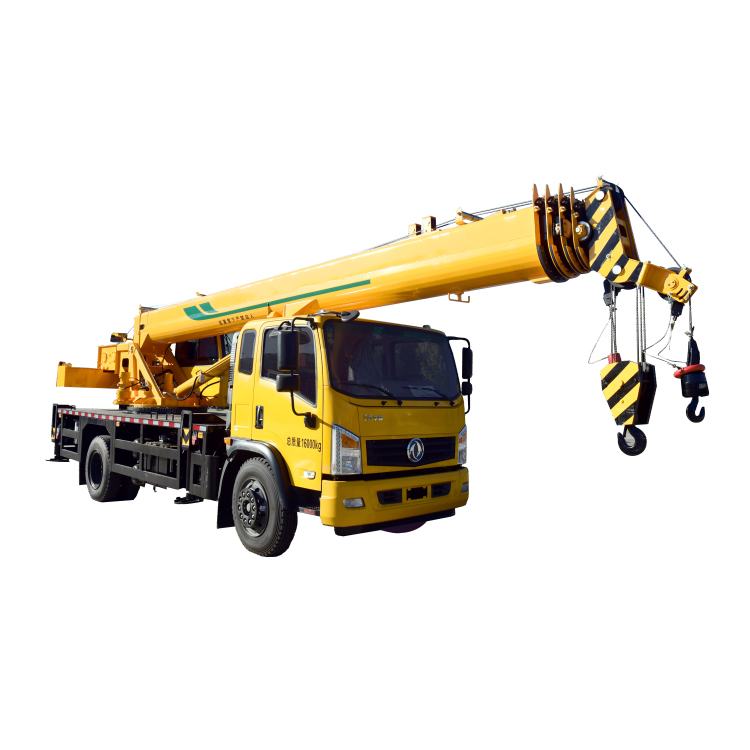

12 Ton Crane Truck is widely used in all kinds of loading and unloading, installation lifting operations, especially suitable for field lifting, rescue operations and work in stations, ports, warehouses, construction sites and other narrow places.
The advantages of Crane Truck in general are:
1. Ease of movement. With its lifting performance and appearance of the size of the conditions, can be lifted to accept the lifting of most of the factory or workshop lifting work.
2. without overhead tracks and other fixed structures, but also to reduce the infrastructure of some unnecessary investment and production costs and maintenance costs.
3. There are unique power supply devices, without the installation of feeder wires and contact with conductive equipment.
|
Item
|
project
|
Unit
|
Specification
|
|
t
|
12
|
||
|
performance specification
|
Maximum lifting moment
|
KN.m
|
320
|
|
Full extension arm*lift height
|
m
|
33
|
|
|
Full extension arm + jib maximum lifting height
|
m
|
33
|
|
|
mass specification
|
total mass
|
kg
|
16000
|
|
driving specification
|
maximum speed
|
km/h
|
90
|
|
*±1® slope
|
%
|
30
|
|
|
External shape size (length X Yao X height)
|
mm
|
10470x2400x3380
|
|
|
Longitudinal span of outrigger
|
mm
|
5000
|
|
|
Horizontal span of outriggers
|
mm
|
5400
|
|
|
upper body specification
|
The main arm is fully extended
|
mm
|
8400/30650
|
|
jib length
|
mm
|
none
|
|
|
Fuel tank capacity
|
L
|
280
|
|
|
Radius of gyration
|
mm
|
2550
|
|
|
Windlass Bear (Swiss IJ)
|
m/min
|
125/140
|
|
|
Number
|
EQ1160GL6DJ1
|
||
|
engine model
|
YCS04180-68
|
||
|
engine power
|
KW
|
132
|
|
|
chassis specificiation
|
Typical box model
|
SC8JS85E/ 8 forward
|
|
|
Cylindrical lattice
|
9.00R20-16PR
|
||
|
fuel tank volume
|
L
|
160
|
|
|
wheelbase
|
mm
|
4200
|
The 12t Mounted Crane Truck has stable lifting capacity and large working radius, fast lifting speed, excellent manoeuvrability and safety performance. Meanwhile, ZLIN Group has a good brand reputation and perfect after-sales service system.
