25T Mobile Crane-QY25K5

The main advantages of truck cranes are fast traveling speed, rapid movement, small damage to the road surface, suitable for large mobility, often change the location of the operation.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

The biggest advantage of mobile crane is movable, flexible, safe and reliable. Reasonable size, light weight, easy operation of the trolley, can easily complete the manual or electric movement, and can quickly and reliably convey the workpiece and improve the speed.

Wild Applications of Crane Truck

The advantages of Crane Truck in general are:
1. Ease of movement. With its lifting performance and appearance of the size of the conditions, can be lifted to accept the lifting of most of the factory or workshop lifting work.
2. without overhead tracks and other fixed structures, but also to reduce the infrastructure of some unnecessary investment and production costs and maintenance costs.
3. There are unique power supply devices, without the installation of feeder wires and contact with conductive equipment.

Technical Parameters

Dimension
Unit
QY25K-II
Overall length
mm
12650
Overall width
mm
2500
Overall height
mm
3380
Weight
Total weight in travel
kg
29400
Front axle load
kg
6200
Rear axle load
kg
23200
Power
Engine model
SC8DK280Q3 / WD615.329(domestic III)
Engine rated power
kW/(r/min)
206/2200 213/2200
Engine rated torque
N.m/(r/min)
1112/1400 1160/1400
Travel
Max. travel speed
km/h
75
Min. turning diameter
m
21.5
Min. ground clearance
mm
275
Approach angle
°
16
Departure angle
°
13
Max. grade ability
%
30
Fuel consumption for 100km
L
≈37
Main performance
Max. rated total lifting capacity
t
25
Min. rated working radius
mm
3000
Turning radius at turntable tail
m
3.065
Max. lifting torque
kN.m
1010
Base boom
m
10.7
Fully extended boom
m
34.19
Fully extended boom+jib
m
42.15
Longitudinal outrigger span
m
5.14
Lateral outrigger span
m
6
Working speed
Boom luffing time
s
75
Boom full extension time
s
100
Max. swing speed
r/min
≥2.5
Max. speed of main winch (single rope)
m/min
≥120
Max. speed of aux. winch (single rope)
m/min
≥120

Vehicle Details

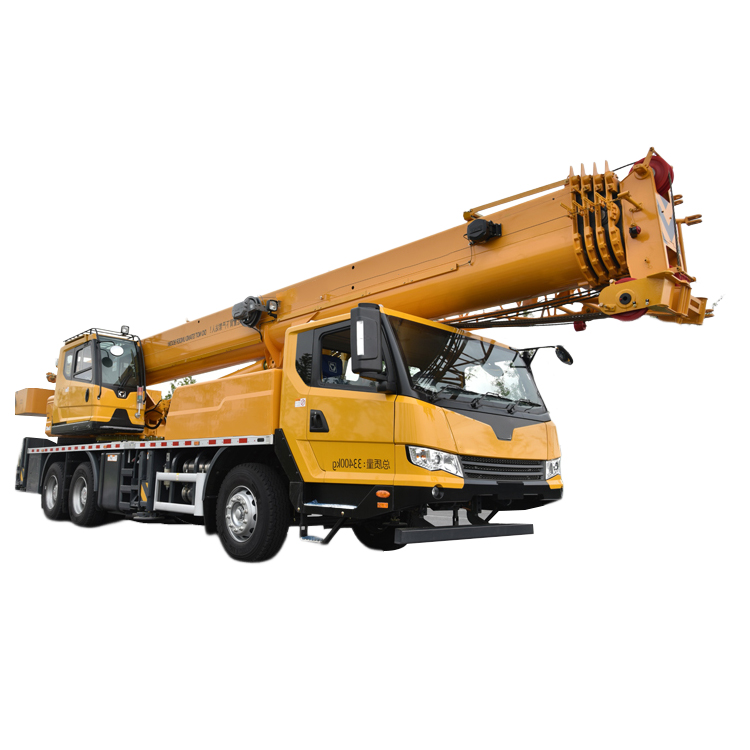

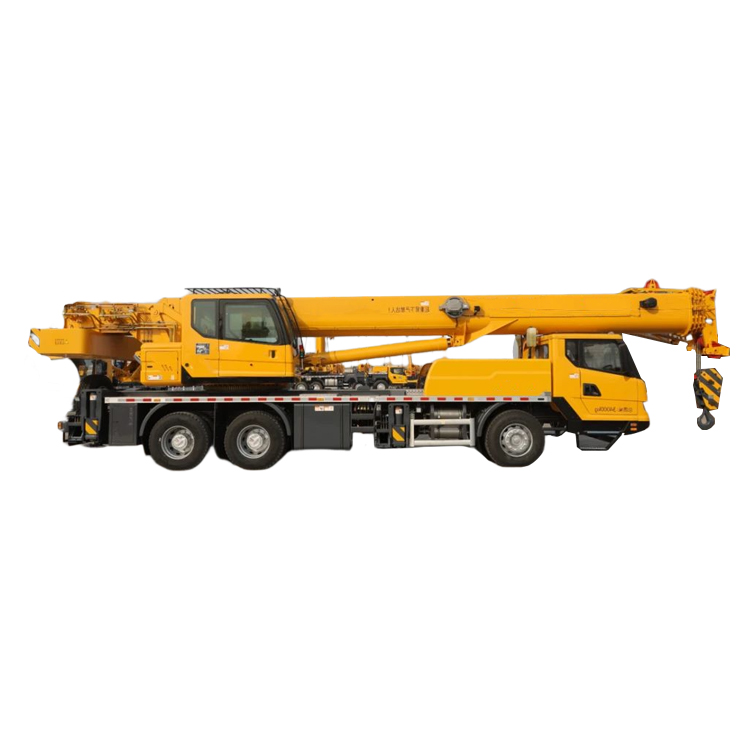

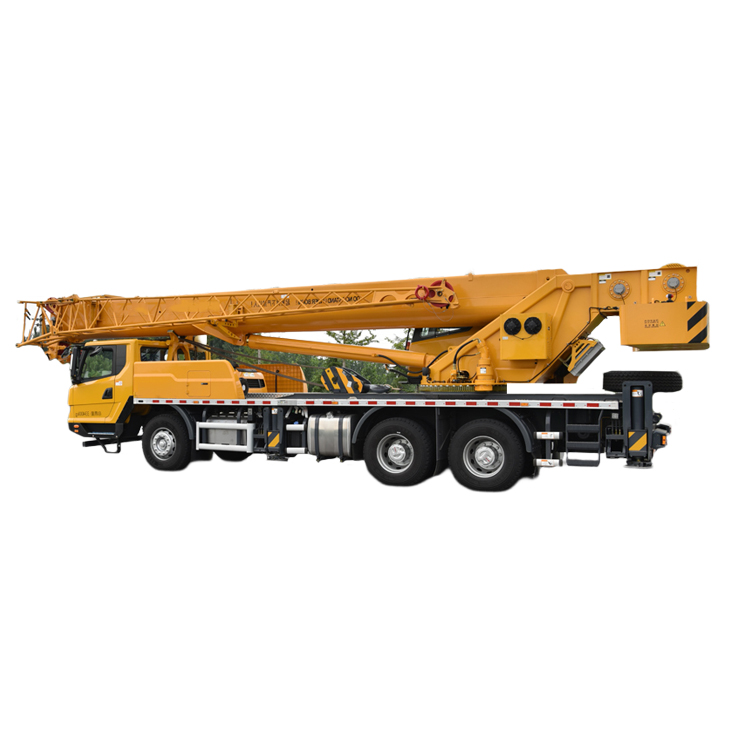

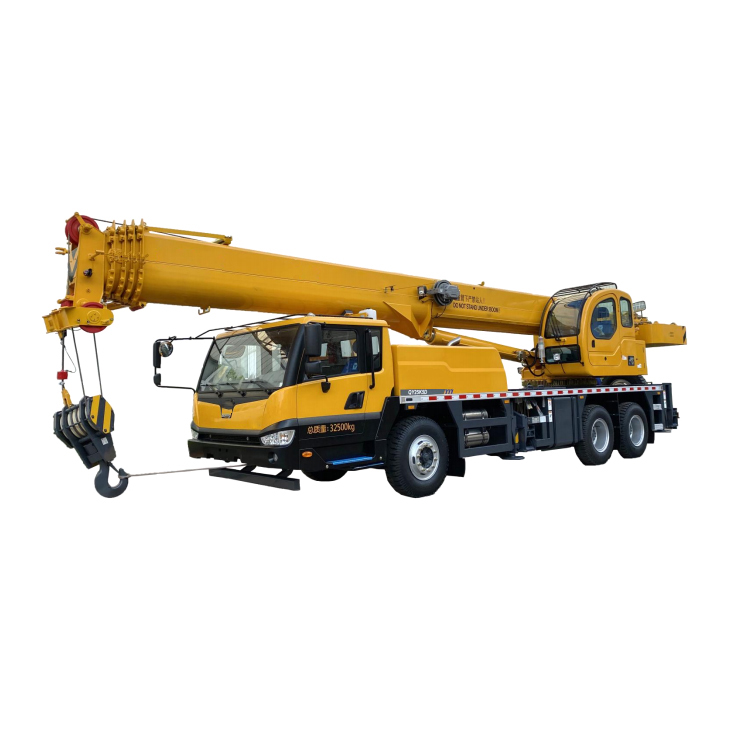

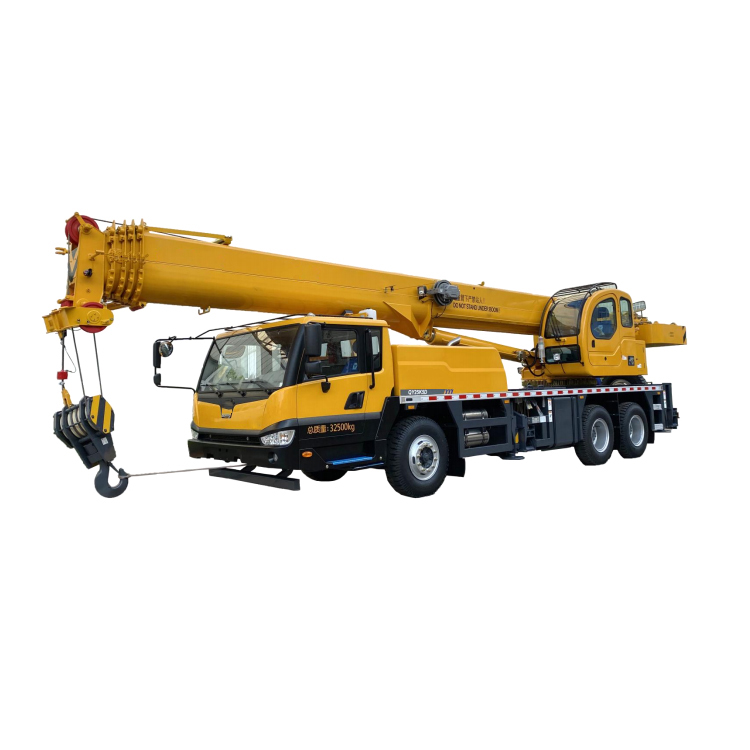

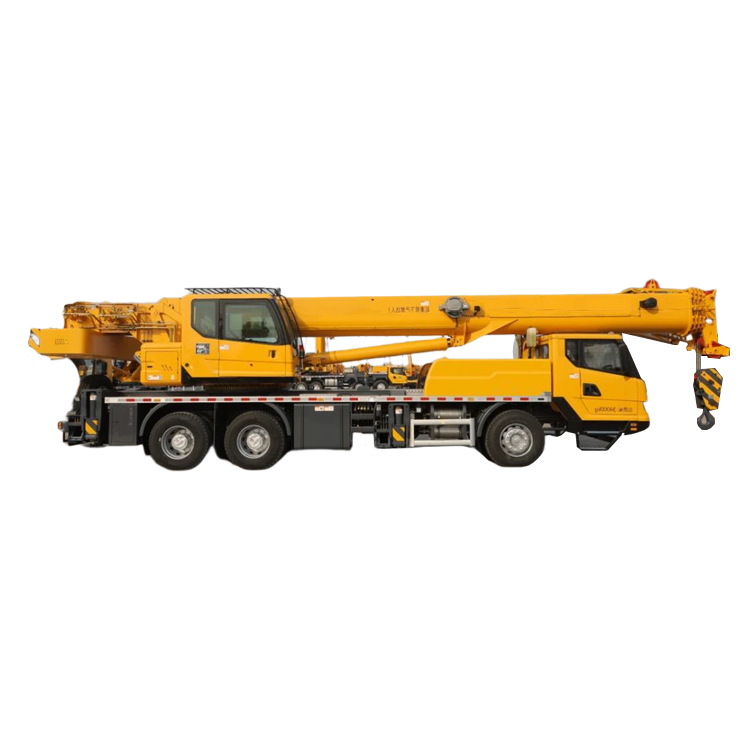

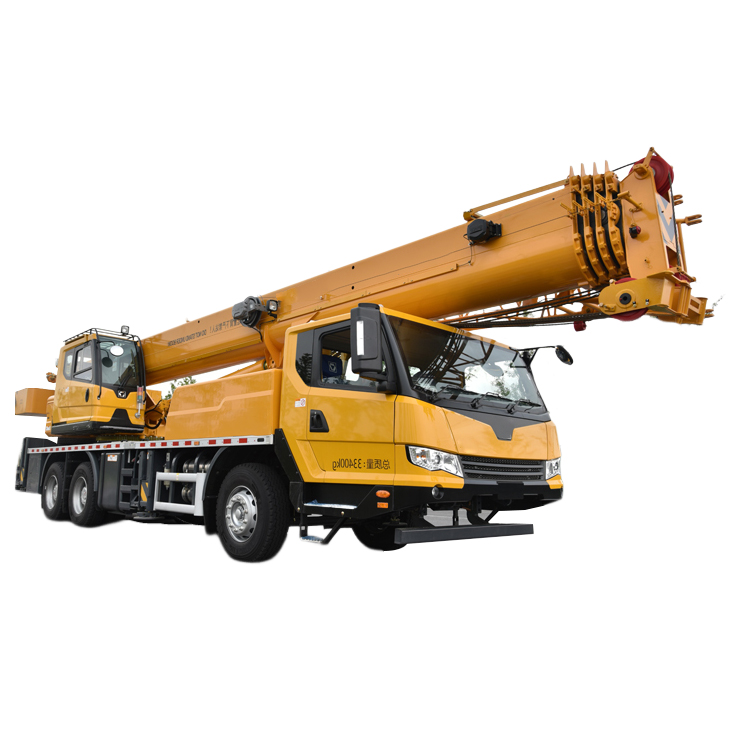

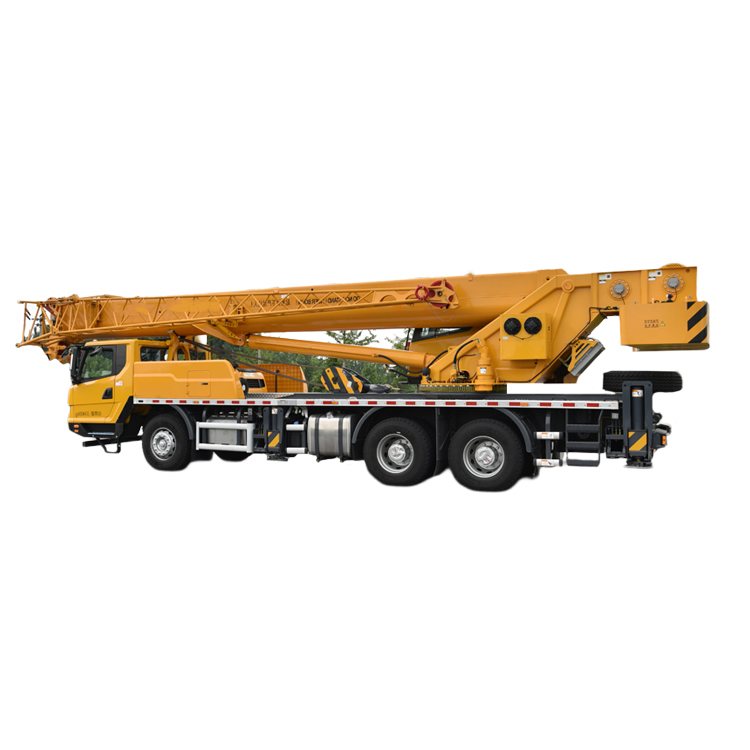

Truck Crane QY25K5D .
• The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
