With its unique advantages of compactness, flexibility, versatility and efficiency, the 0.8T mini excavator is increasingly becoming the ideal machine for earthmoving applications, and user demand is expanding.

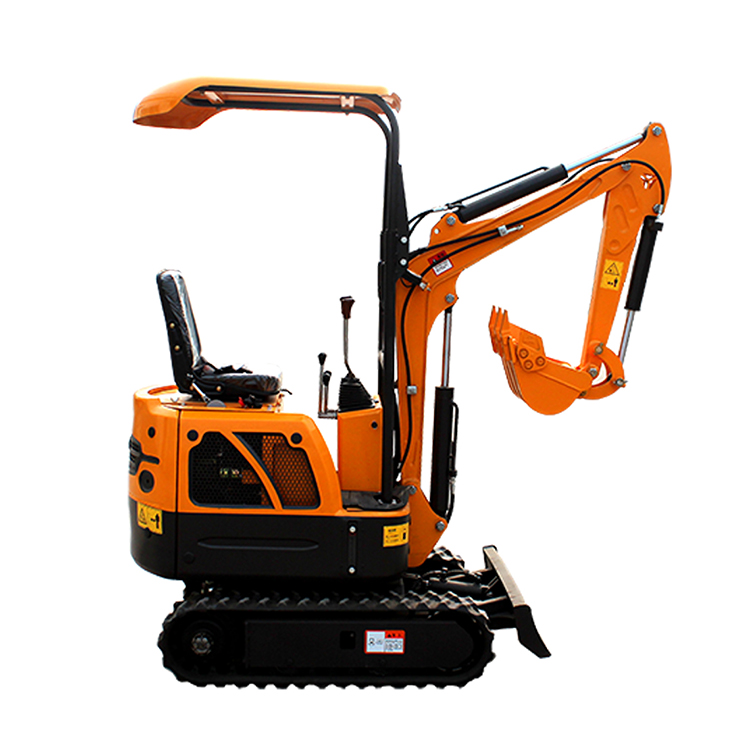

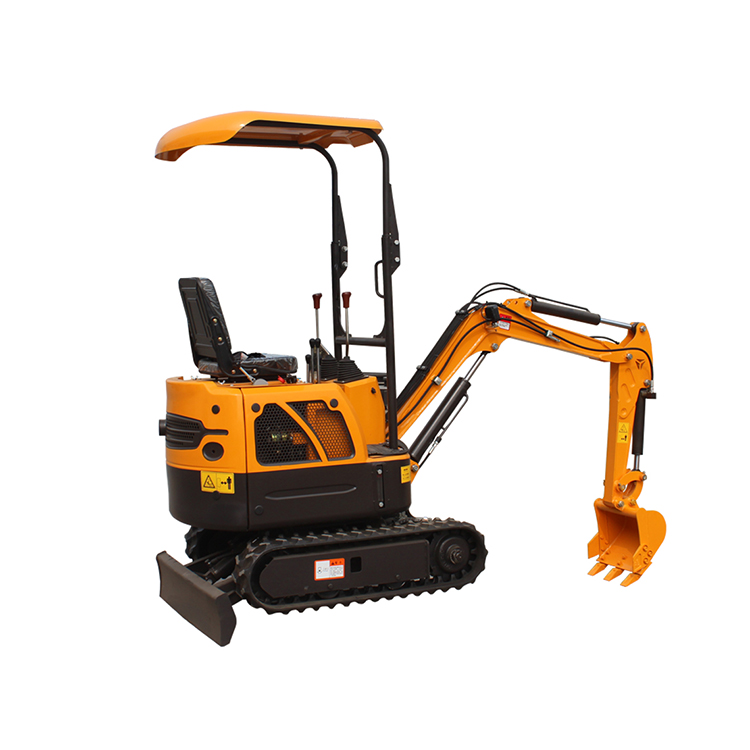

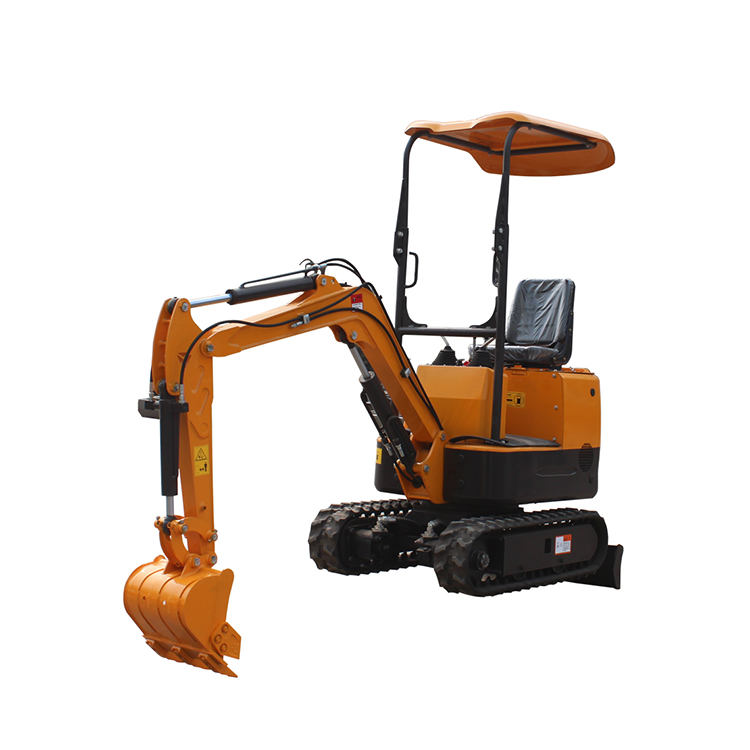

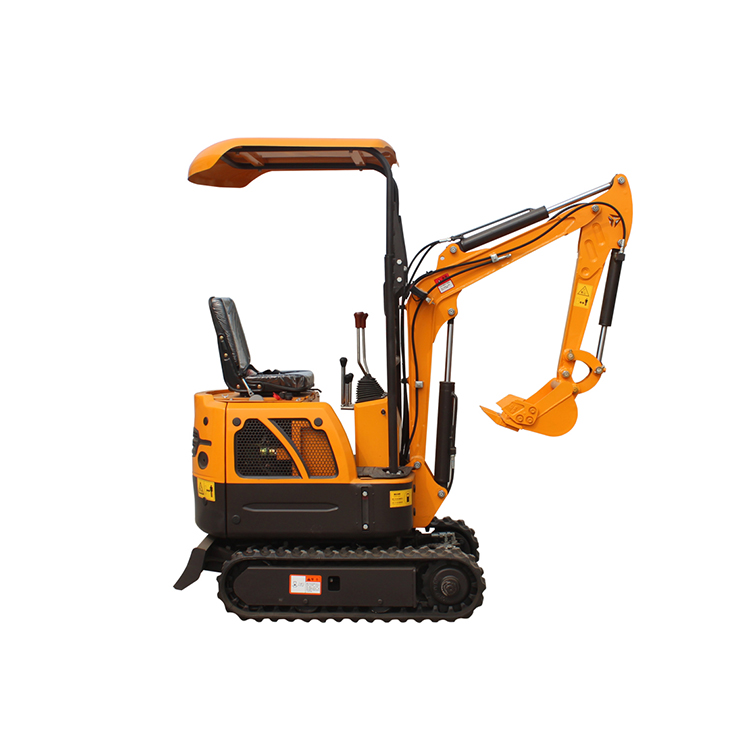

0.8T mini excavator Crawler excavator is a kind of compact excavator, excavator boom swinging, your work, suitable for different directions mining hydraulic pilot operating system, rubber tracks, with a broken pipe system, adopts the forerunner of the hydraulic servo system operation, the machine can change the orbit by rubber to steel, cabin from open to closed. Make sure it works in different working environments and conditions.
The excavator now refers to the hydraulic excavator, which has a wide range of application scenarios and various functions. It can be applied to earthmoving excavation, building demolition, road surface renovation and other working scenarios, and its application scenarios include:
(1) Railway, highway, municipal and other infrastructure construction;
(2) Earthmoving excavation brought by real estate investment;
(3) Extraction demand brought by mining;
(4) Earth excavation demand brought by manufacturing infrastructure construction;
(5) Rural infrastructure and other applications.
CHANGCHAI
|
Specification
|
Engine Model
|
192FAM
|
Engine Type
|
Forced Air-Cooled, Direct Injection, Vertical
|
Number Of Cylinders
|
1
|
Combustion Chamber Form
|
Direct Injection
|
Bore Stroke
|
92×75mm
|
Displacement
|
0.499L
|
Rated Power
|
7.5kw/3600r/min
|
Max.Torque
|
26.8N.m
|
Max.Torque Point Speed
|
2400r/min
|
Injection Mode
|
Direct Injection
|
Intake mode
|
Naturally Aspirated
|
Displacement
|
Second Stage
|
Ignition Mode
|
Compression Ignition
|
Lubrication Method
|
Pressure Splash Compound
|
Calibration fuel consumption
|
≤320g/kw.h
|
Idle
|
1300r/min
|
Compression Ratio
|
19:1
|
Engine Weight
|
55kg
|
Overall dimension
|
420mm×440mm×497mm
|
Advantages of 0.8T mini excavator
1.Unique structure design
2.Smooth pipeline before operation, the protective cover can protect the pipeline from damage.
3.The moving arm cylinder adopts famous brand
4. All structural parts are finely processed, with high gloss surface and high paint adhesion.
