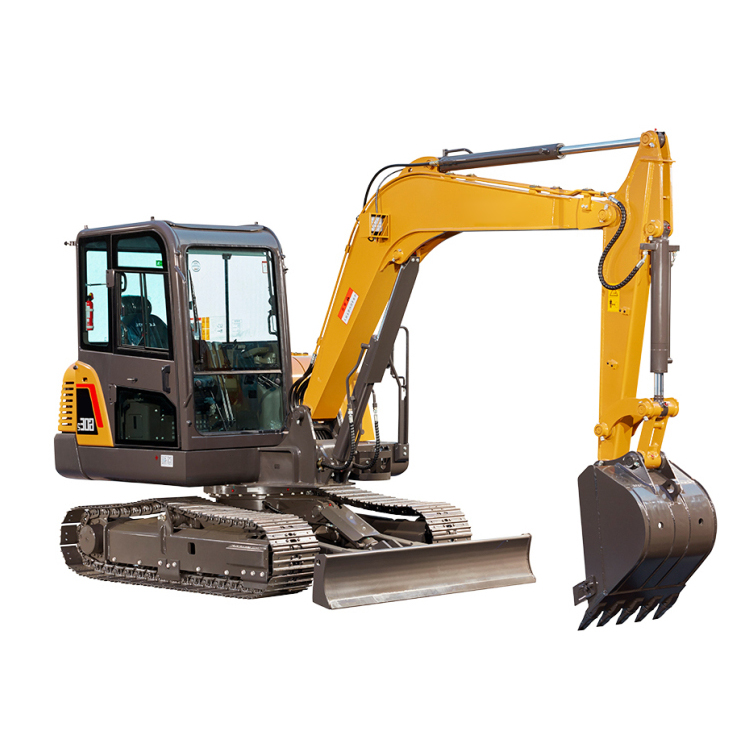

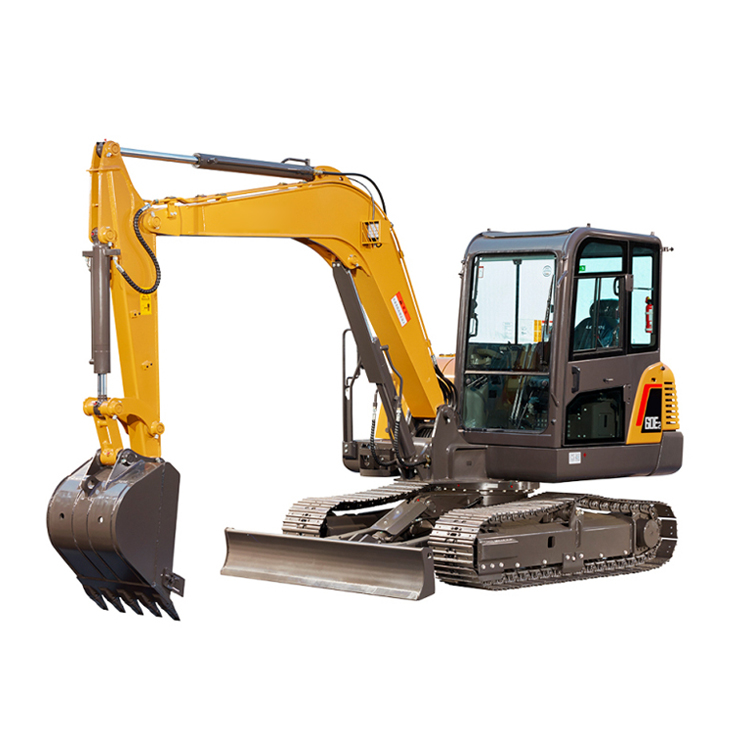

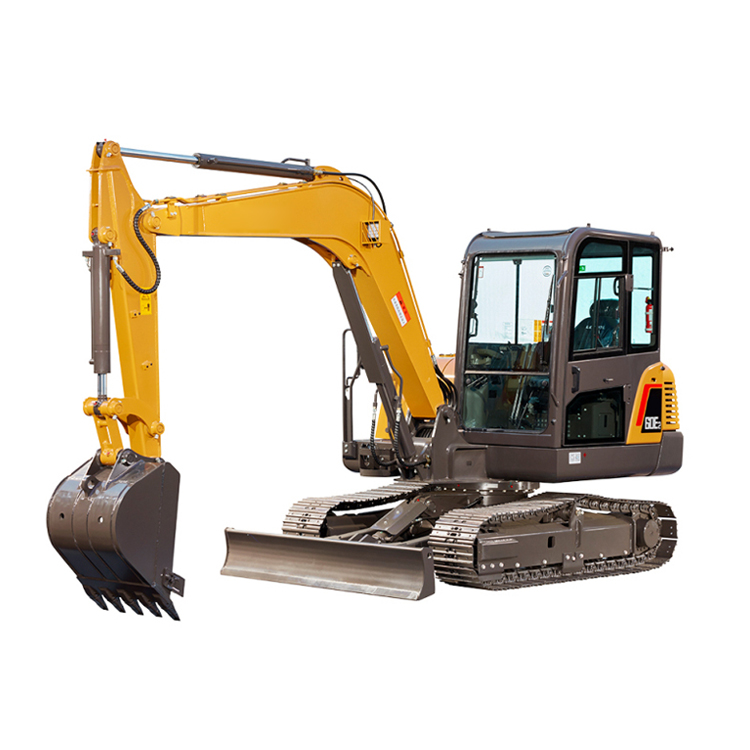

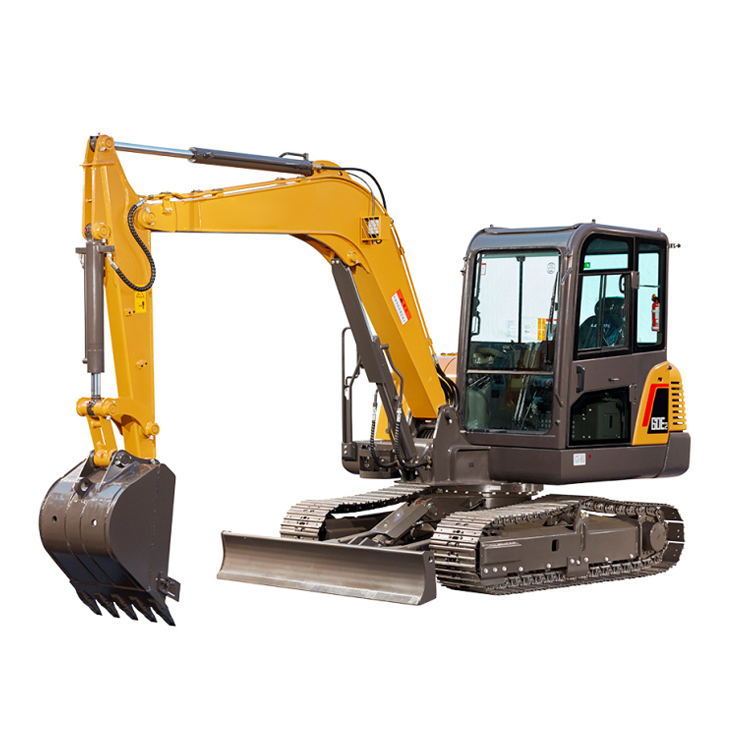

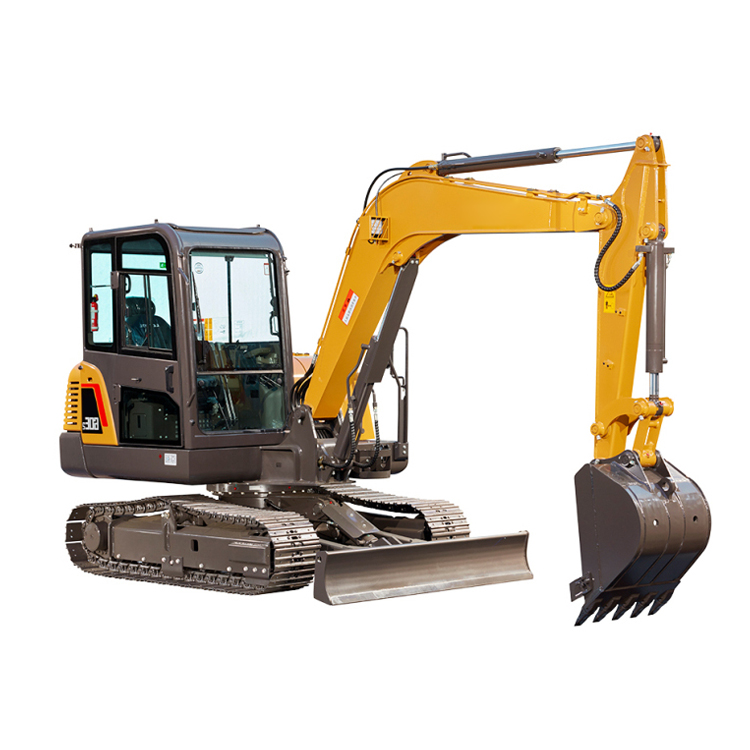

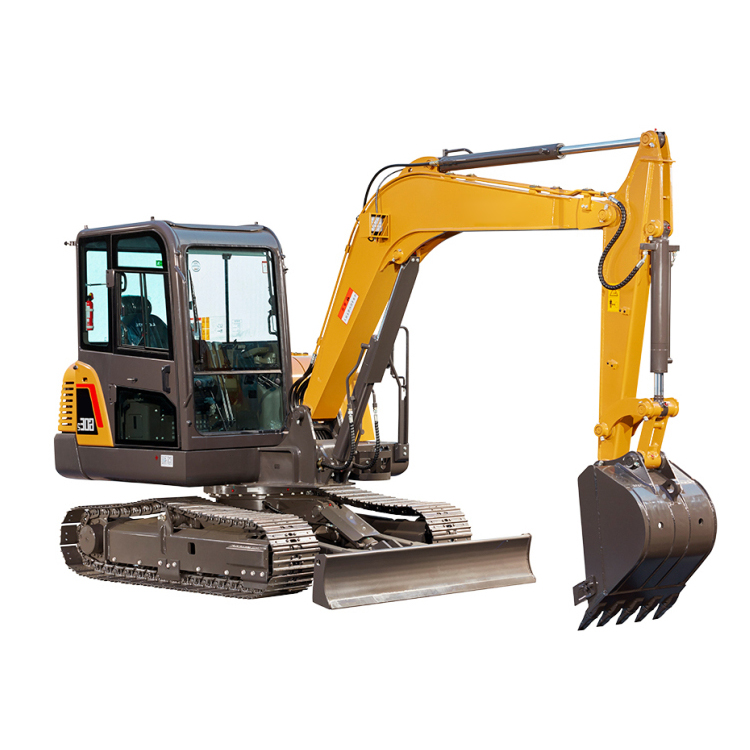

FR60 is a version of energy-saving small excavator product. It is widely used in park and garden construction, urban construction project, farm & pasture, small water conservancy and power construction etc.
Performance description
• World famous engines ;
• Hydraulic control valves from KYB/REXROTH system, main pump
from KYB/REXROTH/CASAPPA, high efficiency and reliability;
• Design and manufacture of structural components can achieve
world-class level;
• Fashionable and safe driving cab.
The excavator now refers to the hydraulic excavator, which has a wide range of application scenarios and various functions. It can be applied to earthmoving excavation, building demolition, road surface renovation and other working scenarios, and its application scenarios include:
(1) Railway, highway, municipal and other infrastructure construction;
(2) Earthmoving excavation brought by real estate investment;
(3) Extraction demand brought by mining;
(4) Earth excavation demand brought by manufacturing infrastructure construction;
(5) Rural infrastructure and other applications.
| ◎ Main parameters | FR60 | FR80G | |
| kg | 5730 | 8300 | |
| Standard bucket capacity | m3 | 0.18 | 0.32 |
| Transport dimensions (LxWxH) | mm | 6010x1880x2650 | 6100X2275X2650 |
| Bucket digging force | kN | 42 | 64.7 |
| Stick digging force | kN | 31 | 46.1 |
| Maximum traction force | kN | 52.8 | 63 |
| ◎ Walking device | |||
| High and low speed | km/h | 4.5/3.0 | 4.8/3.0 |
| Gradeability | o | 30 | 30 |
| Ground pressure | kpa | 32 | 37 |
| ◎ Rotating device | |||
| Rotating speed | rpm | 10.2 | 12 |
| ◎ Engine | |||
| Model | / | YANMAR 4TNV94L-SFN | Cummins B3.3-C80 |
| Type | / | Four—cylinder, direct injection, naturally aspirated, water-cooled | |
| Rated power / speed | kW/rpm | 39/2200 | 60/2200 |
| Bore x stroke | mm | 94×110 | 95×115 |
| Displacement | L | 3.054 | 3.3 |
| Fuel consumption | g/kW*h | 235 | 257 |
| Fuel tank capacity | L | 120 | 110 |
| ◎ Hydraulic system | |||
| Main pump pressure | Mpa | 24.5 | 24.5 |
| Main pump flow | L/min | 135 | 160 |
| ◎ Operation range | |||
| Maximum digging height | mm | 6110 | 7150 |
| Maximum unloading height | mm | 3640 | 5030 |
| Maximum digging depth | mm | 3935 | 4050 |
| Maximum digging radius | mm | 6110 | 6335 |
| Bulldozing blade size (LxW) | mm | / | / |
Low speed and high torque engine can meet the emission requirements of National IV with outpostprocessing
Reliable product quality. speaking with strength leading the industry in thermal efficiency.
The bottom guard of the bucket is made of wear resistant materials to improve the durability and wear resistance of the bucket.
Newly developed F-generation driver’s cab,overall layout more in line with ergonomics
GVW(Kg) : 7490
Overall Dimension(mm) : 7420×2320×2540
Bucket capacity : 0.3m³
Power : 46.3KW
