SY215 is a new-generation 21-class earthwork super excavator produced by Sany Heavy Industry. It was designed according to earthmoving conditions, with masonry in mind. It is designed to improve clients' return on investment. Compared with competitors, it has the characteristics of "super excellent adaptability, long life, low maintenance costs.

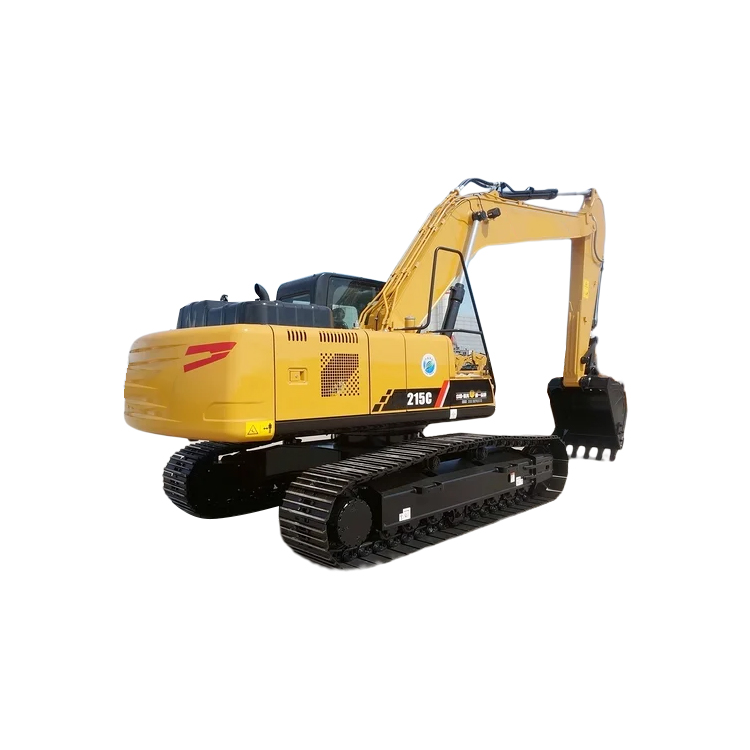

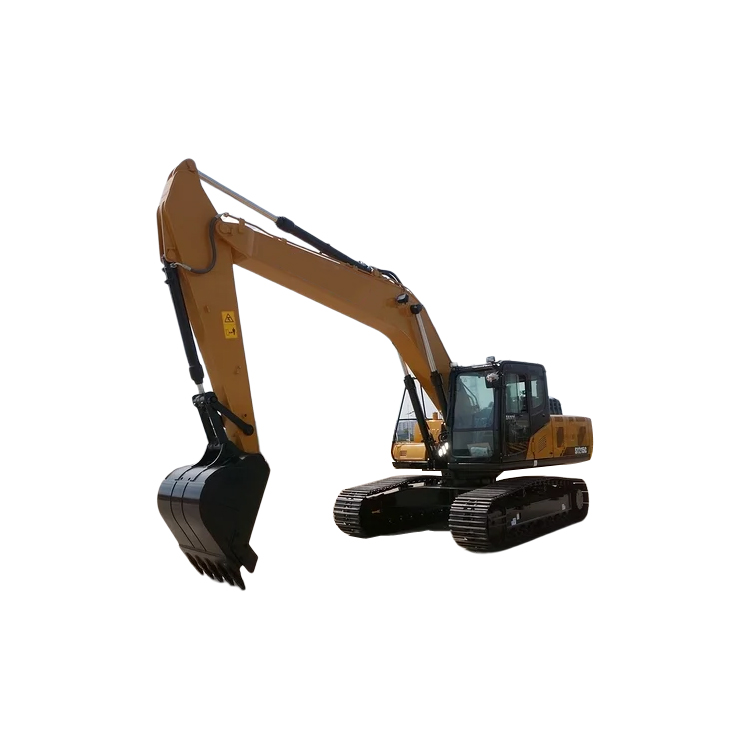

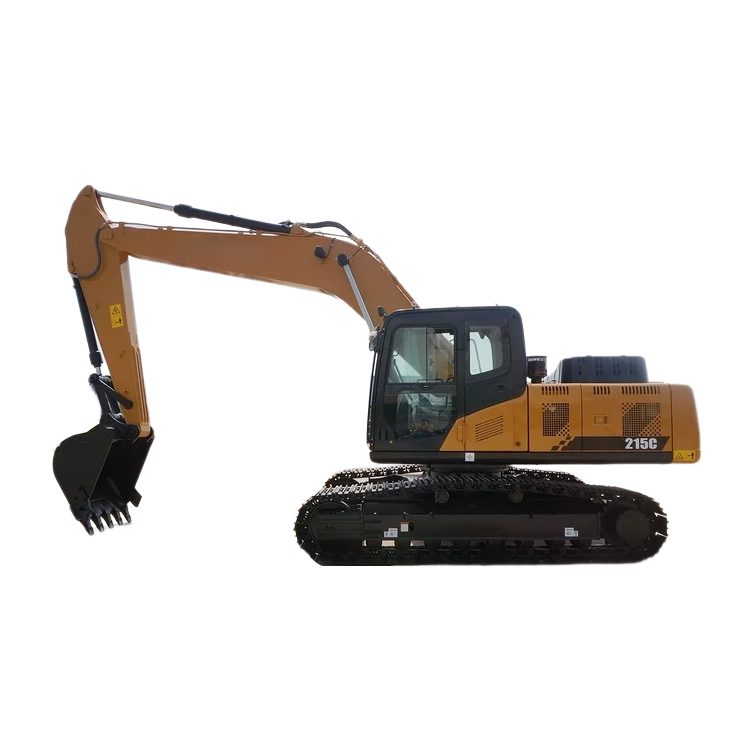

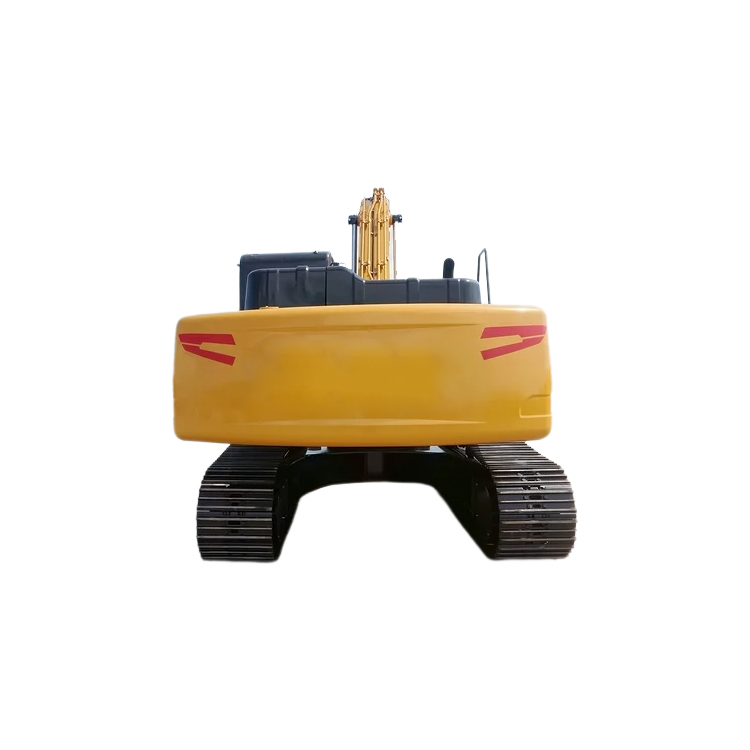

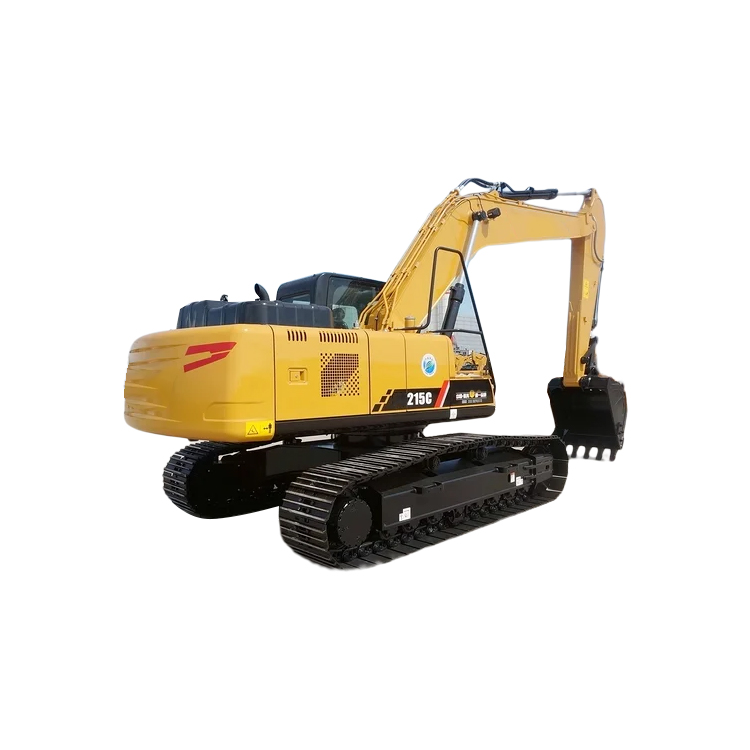

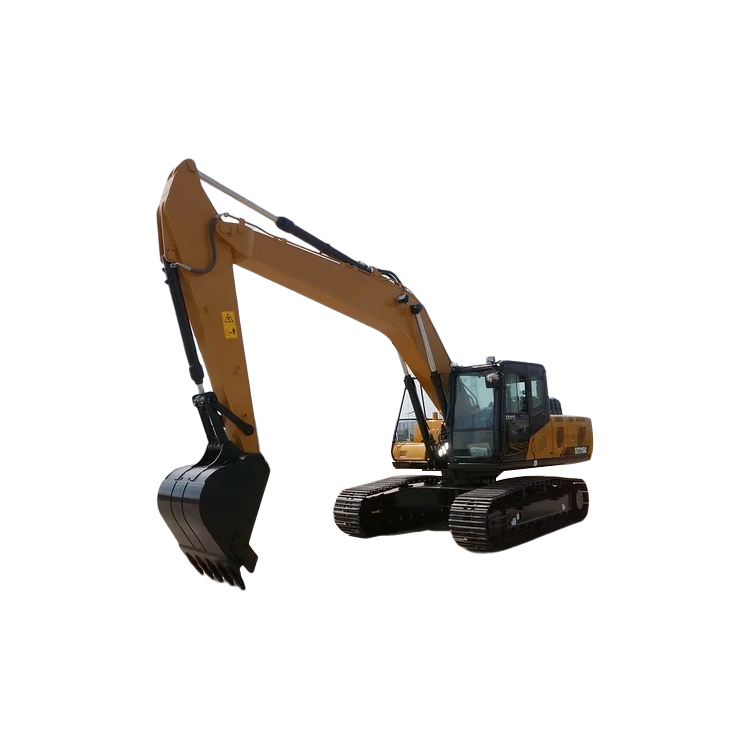

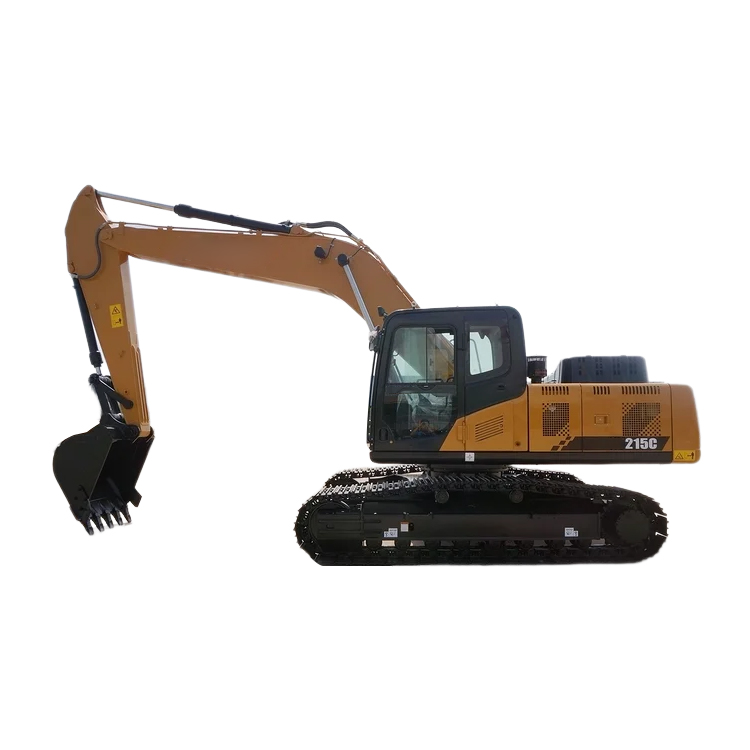

SANY 215C
Superior performance of SANY 215C: Specialised environmentally friendly engine with increased main pump displacement for excellent fuel economy and reduced machine noise to reach the best level in the industry. Superior comfort: powerful new styling.
The excavator now refers to the hydraulic excavator, which has a wide range of application scenarios and various functions. It can be applied to earthmoving excavation, building demolition, road surface renovation and other working scenarios, and its application scenarios include:
(1) Railway, highway, municipal and other infrastructure construction;
(2) Earthmoving excavation brought by real estate investment;
(3) Extraction demand brought by mining;
(4) Earth excavation demand brought by manufacturing infrastructure construction;
(5) Rural infrastructure and other applications.
| Overall dimensions: mm SY215C | |
| A. Overall length (in transportation state) | 9680 |
| B. Overall width | 2980 |
| C. Overall height (in transportation state) | 3440 |
| D. Upper width | 2875 |
| E. Overall height (cab top) | 3075 |
| F. Width of standard track shoe | 600 |
| G. Track gauge | 2380 |
| H. Minimum ground clearance | 440 |
| I. Slewing radius of tail | 2900 |
| J. Ground contact length of track | 3445 |
| K. Track shoe length | 4250 |
| Performance Parameters | SY215C |
| Total weight, kg | 21900 |
| Bucket capacity, m3 | 0.93 |
| Rated power; kW/rpm | 118/2000 |
| Traveling speed (high/low), km/h | 5.4/33 |
| Slewing speed, rpm | 11 |
| Gradeability | 70%/35° |
| Ground pressure, kPa | 47.4 |
| Digging force of bucket, kN | 138/148 |
| Digging force of bucket rod, kN | 103/107 |
| Operating range: mm SY215C | |
| a. Maximum digging height | 9600 |
| b. Maximum unloading height | 6730 |
| c. Maximum digging depth | 6600 |
| d. Maximum digging distance | 10280 |
| e. Minimum slewing radius | 3730 |
| f Maximum height at minimum slewing radius | 7680 |
GVW(Kg) : 7490
Overall Dimension(mm) : 7420×2320×2540
Bucket capacity : 0.3m³
Power : 46.3KW
