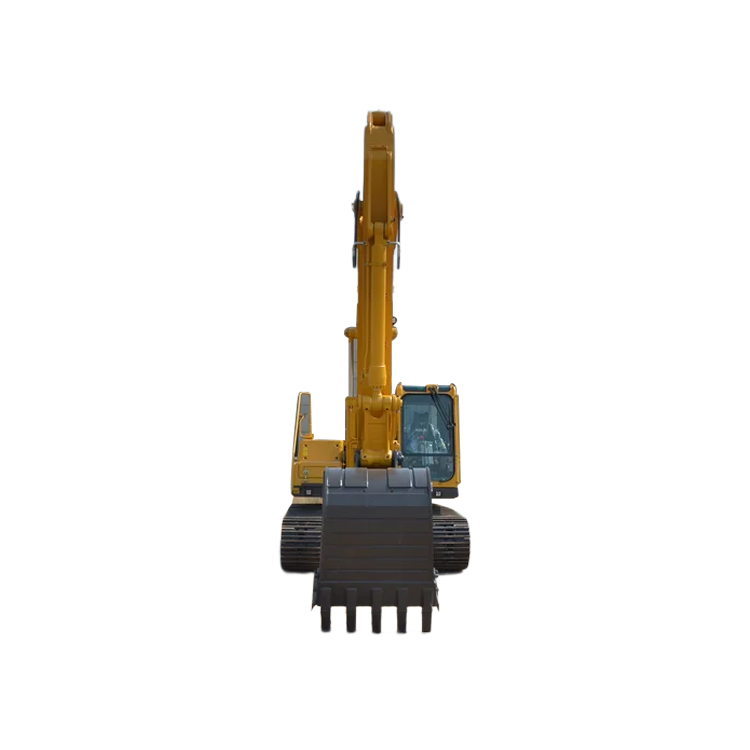

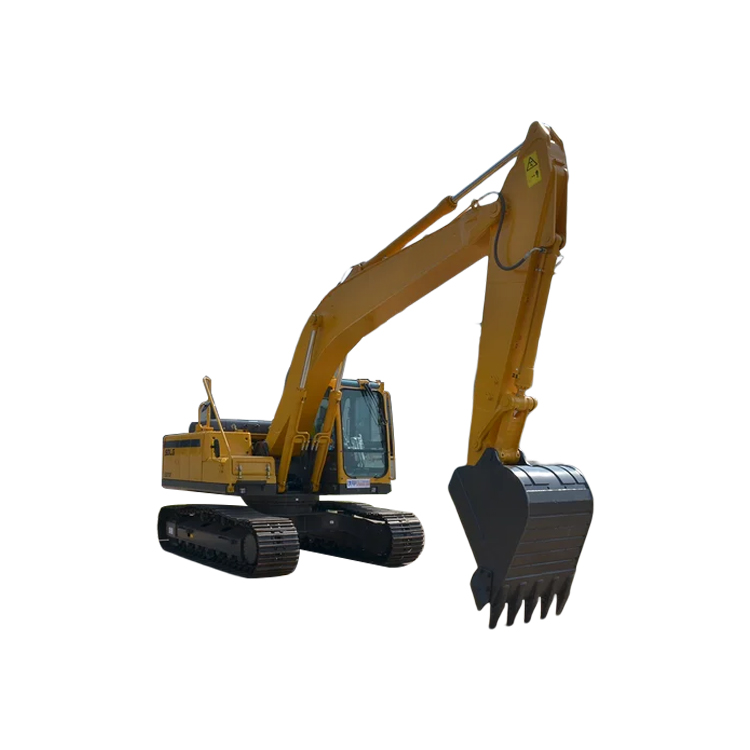

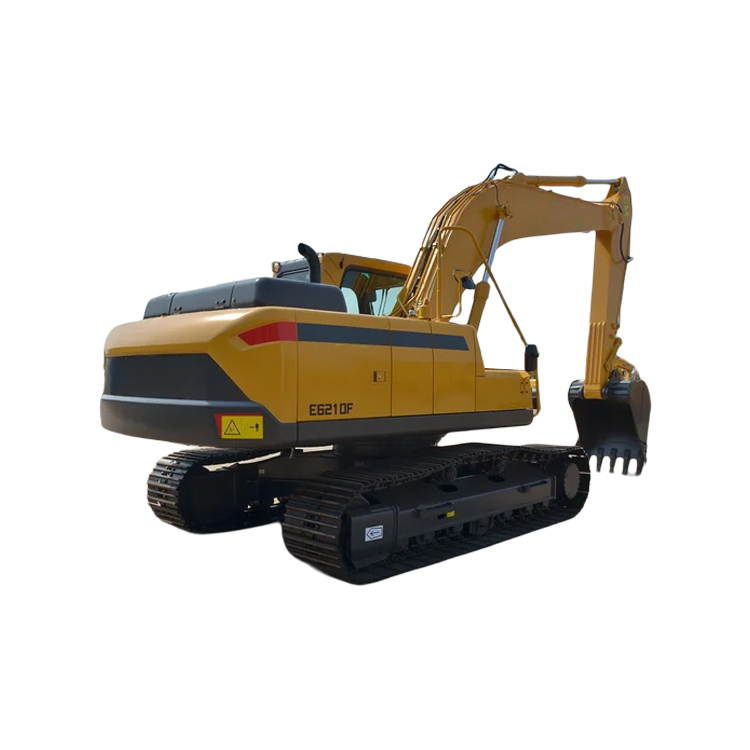

The E6210F crawler excavator is an upgraded product developed by SDLG based on the European advanced technology. With high-strength chassis, enhanced working device and perfectly matched power hydraulic systems, this product is compatible with a variety of harsh operating conditions.
The excavator now refers to the hydraulic excavator, which has a wide range of application scenarios and various functions. It can be applied to earthmoving excavation, building demolition, road surface renovation and other working scenarios, and its application scenarios include:
(1) Railway, highway, municipal and other infrastructure construction;
(2) Earthmoving excavation brought by real estate investment;
(3) Extraction demand brought by mining;
(4) Earth excavation demand brought by manufacturing infrastructure construction;
(5) Rural infrastructure and other applications.
|
Standard model
|
Extra long boom
|
|||
|
Boom
|
5.7 m
|
7.15 m
|
8.85 m
|
9.85 m
|
|
Arm
|
*2.9 m
|
4.56 m
|
6.25 m
|
7.8 m
|
|
A. Max. digging distance
|
9940 mm
|
13000 mm
|
15500 mm
|
18000 mm
|
|
B. Max. ground digging distance
|
9750 mm
|
12830 mm
|
15400 mm
|
17800 mm
|
|
C. Max. digging depth
|
6730 mm
|
9660 mm
|
12300 mm
|
14100 mm
|
|
D. Max. digging depth (horizontal 2.44m)
|
6510 mm
|
–
|
.
|
|
|
E. Max. vertical digging depth
|
5830 mm
|
–
|
–
|
|
|
F. Max. digging height
|
9450 mm
|
11300 mm
|
12200 mm
|
15000 mm
|
|
G. Max. dumping height
|
6650 mm
|
8690 mm
|
10100 mm
|
13000 mm
|
|
H. Min. front slewing radius
|
3650 mm
|
•
|
–
|
|
|
Max. excavating force of bucket
|
147.1 kN
|
108 kN
|
118 kN
|
103 kN
|
|
Max. excavating force of arm
|
104.9 kN
|
76.5 kN
|
58.8 kN
|
46.8 kN
|
|
Standard capacity of bucket
|
0.9 m3
|
0.72 m3
|
0.4 m3
|
0.35 m3
|
The shock absorption seats are very comfort-able, like sitting on the eather seats of a luxury car,especially soft.
The air conditioner is par-ticularly awesome and the position of the air outlet is designed reasonably.
GVW(Kg) : 7490
Overall Dimension(mm) : 7420×2320×2540
Bucket capacity : 0.3m³
Power : 46.3KW
