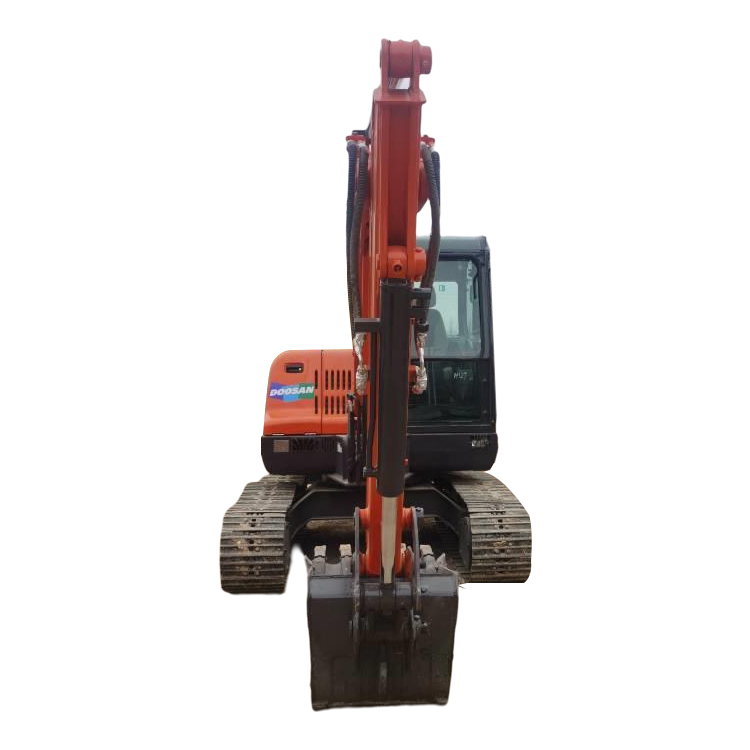

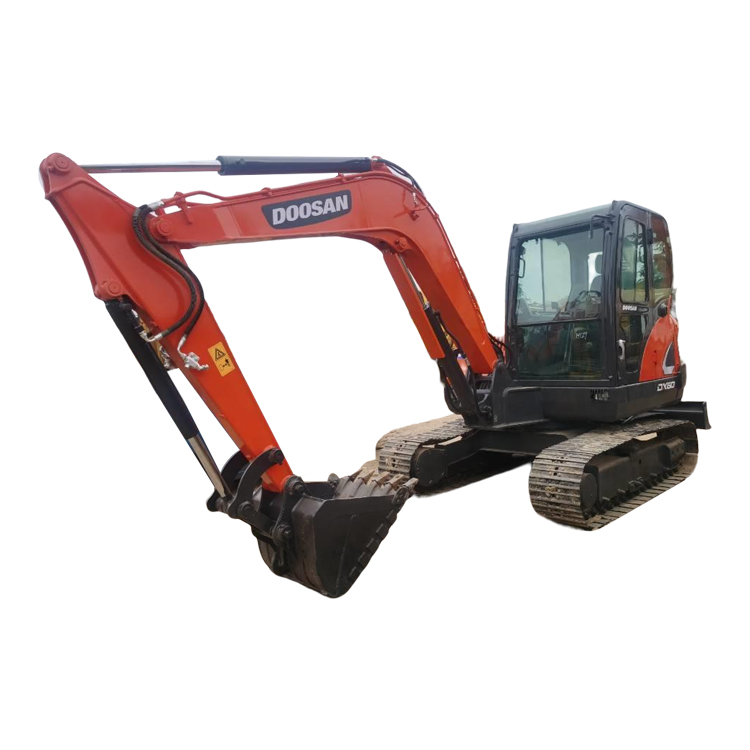

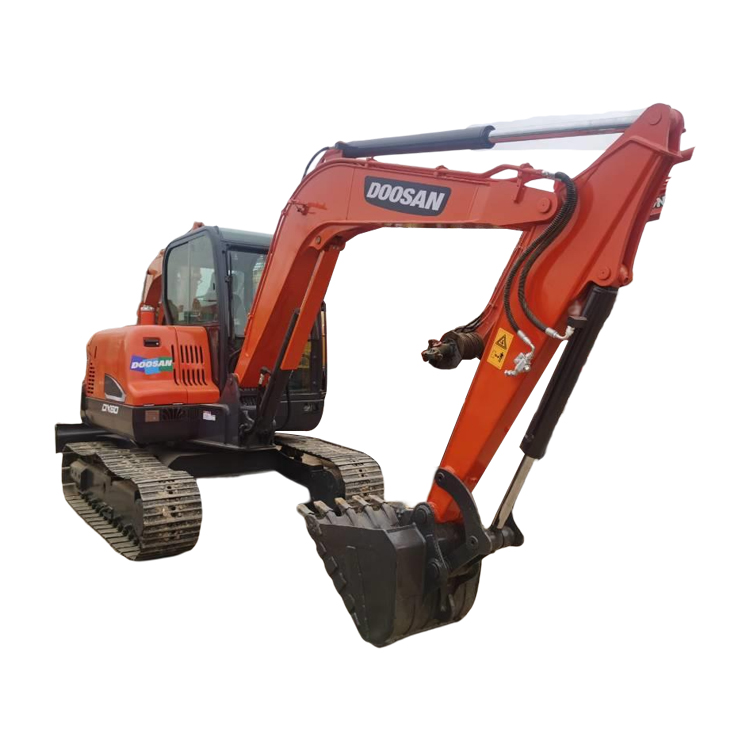

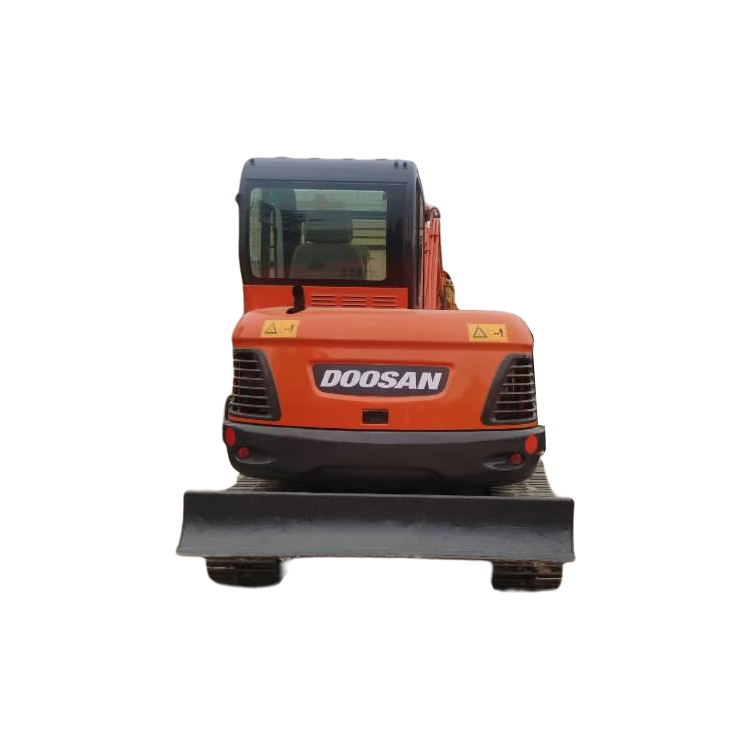

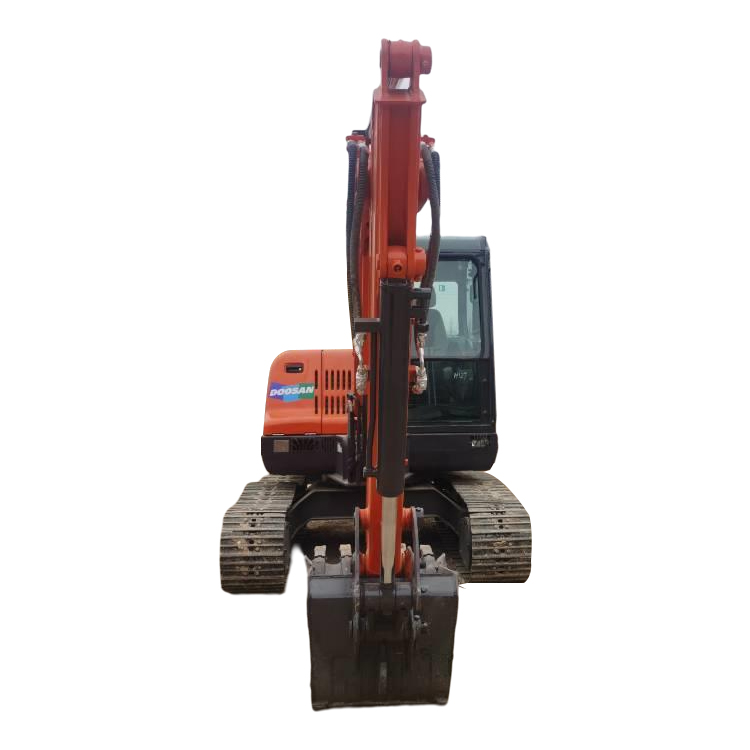

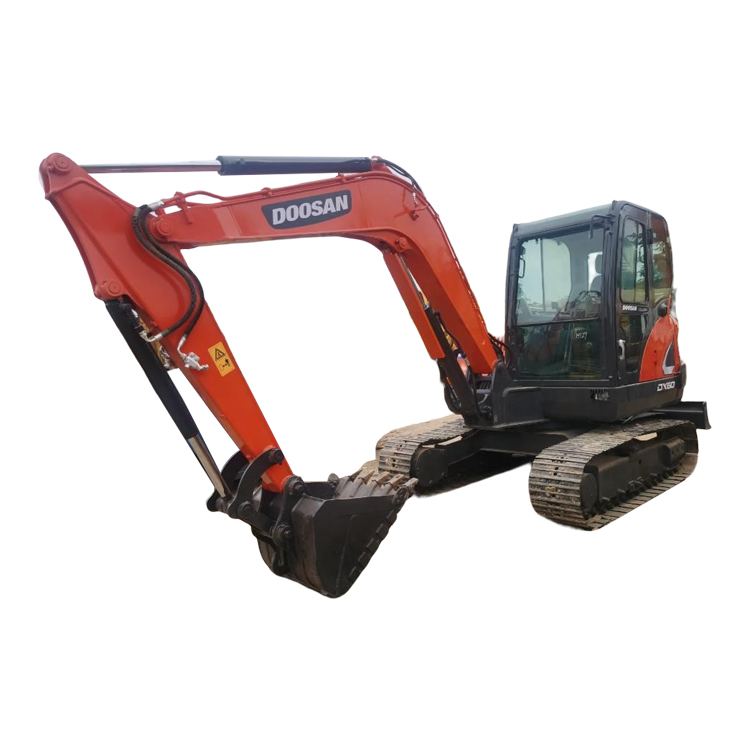

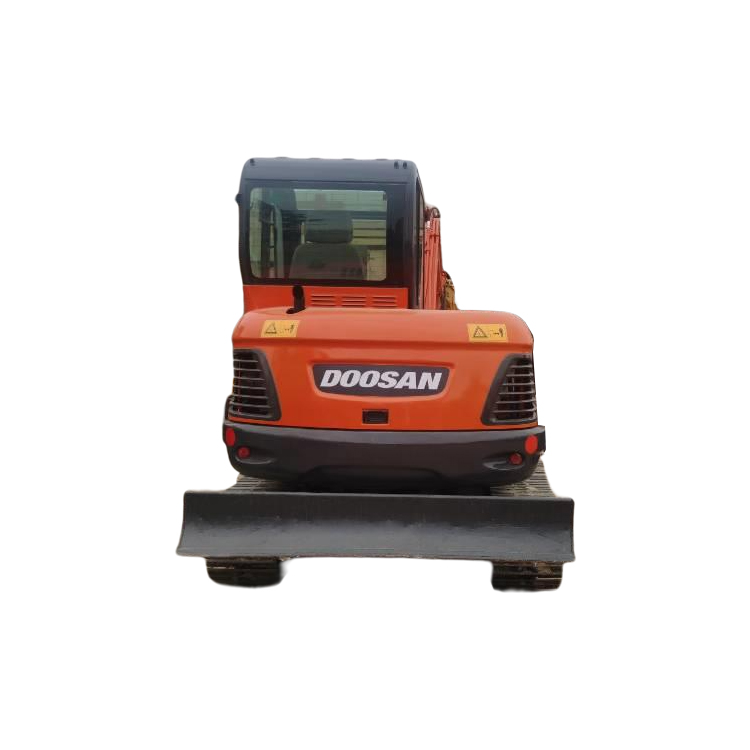

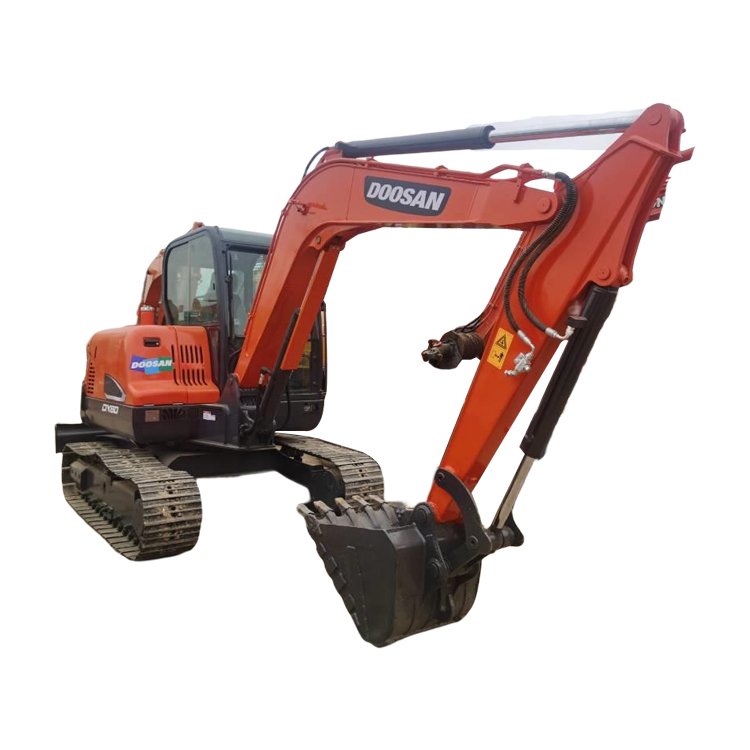

Used DOOSAN DX60-9C Crawler Backhoe is a wheeled excavator with the obvious advantage of being flexible and not damaging the road surface. In addition, it also has the characteristics of strong power, safety and stability of crawler excavators.
It has a wide range of uses in areas where the terrain is rough and the amount of earthwork is not large.
1. Good quality
2. Low price and high cost performance (more than 50% cheaper than the original new machine! Exciting price!)
3. There is almost no problem in performance
4. Complete procedures
The excavator now refers to the hydraulic excavator, which has a wide range of application scenarios and various functions. It can be applied to earthmoving excavation, building demolition, road surface renovation and other working scenarios, and its application scenarios include:
(1) Railway, highway, municipal and other infrastructure construction;
(2) Earthmoving excavation brought by real estate investment;
(3) Extraction demand brought by mining;
(4) Earth excavation demand brought by manufacturing infrastructure construction;
(5) Rural infrastructure and other applications.
| Machine type | |
| way of walking | crawler |
| digging method | backhoe |
| type | small |
| country of origin | China |
| performance parameter | |
| Machine working weight (kg) | 5700 |
| Standard Bucket Capacity(m³) | 0.21 |
| Walking speed (km/h) | 2.3-4.16 |
| Rotation speed(rpm) | 9 |
| Gradeability(%) | 70 |
| Bucket Digging Force(kN) | 42 |
| Stick Digging Force(kN) | 28 |
| Maximum digging radius (mm) | 6136 |
| The maximum digging radius of the parking surface (mm) | 6000 |
| Maximum digging depth (mm) | 3807 |
| Maximum digging height (mm) | 1473 |
| Maximum vertical digging depth (mm) | 3037 |
| Minimum radius of gyration (mm) | 2365 |
| Unloading height (mm) | 4064 |
| Number of rollers (one side) | 5 |
| Number of supporting sprockets (one side) | 1 |
| Number of track shoes (one side) | 40 |
| engine | |
| engine model | D24C DIESEL |
| Rated power KW (HP) | 38.9 |
| Number of cylinders (pieces) | 4 |
| engine type | in-line, turbocharged |
| Rated speed(rpm) | 2100 |
| Bore x stroke (mm) | 90×94 |
| Hydraulic device/transmission system | |
| oil capacity | |
| Fuel tank (L) | 115 |
| Hydraulic oil tank (L) | 62 |
| Engine oil replacement volume (L) | 8.6 |
| Coolant (L) | 10 |
| Overall size | |
| Transport length (mm) | 5870 |
| Transport width(mm) | 2000 |
| Transport height(mm) | 2153 |
| Full height of cab (mm) | 2565 |
| Counterweight ground clearance (mm) | 700 |
| Track ground length (mm) | 1990 |
| Track width(mm) | 2000 |
| Minimum ground clearance (mm) | 350 |
| Rear turning radius(mm) | 1660 |
| Back end length (mm) | 1660 |
| Total width of upper rotary platform (mm) | 1850 |
| Track shoe width (mm) | 400 |
Small excavators are cheap, light weight, easy to maintain and repair,and have distinct advantages.
The true advantage of small excavators lies in their ecology.
Beneficial for transportation and moving the workplace. Small excavators are beneficial for relocation between construction sites.
High return on investment. Small excavators have low prices and fast cost recovery.
GVW(Kg) : 7490
Overall Dimension(mm) : 7420×2320×2540
Bucket capacity : 0.3m³
Power : 46.3KW
