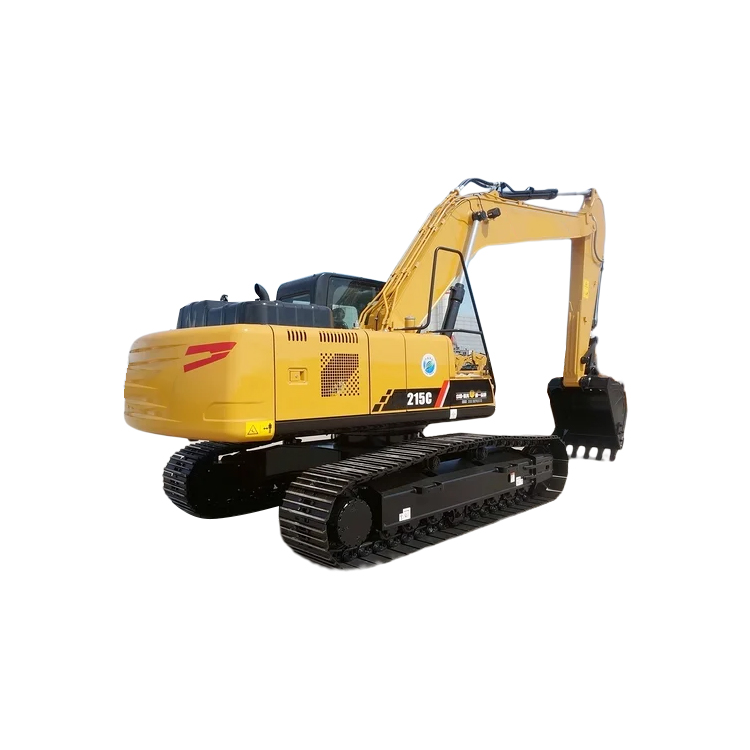

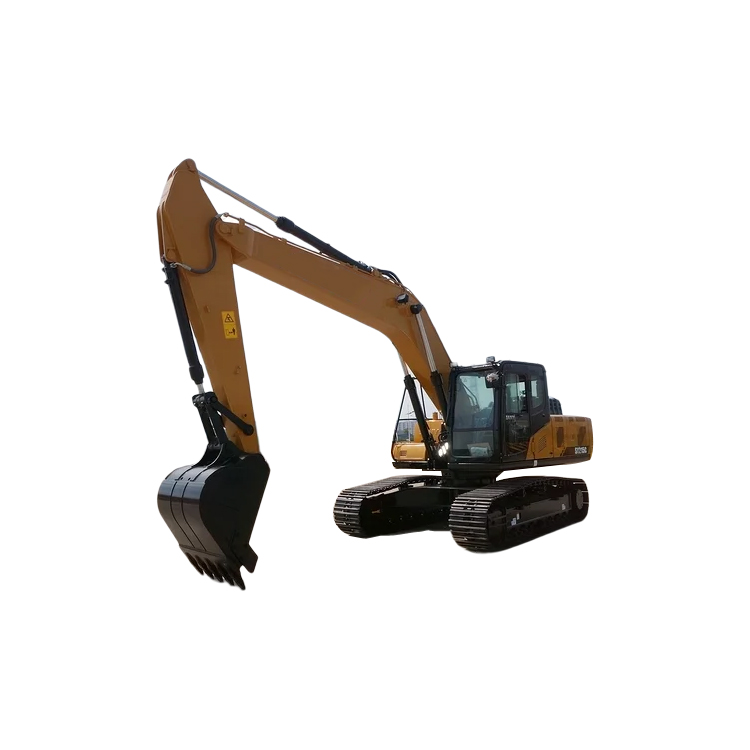

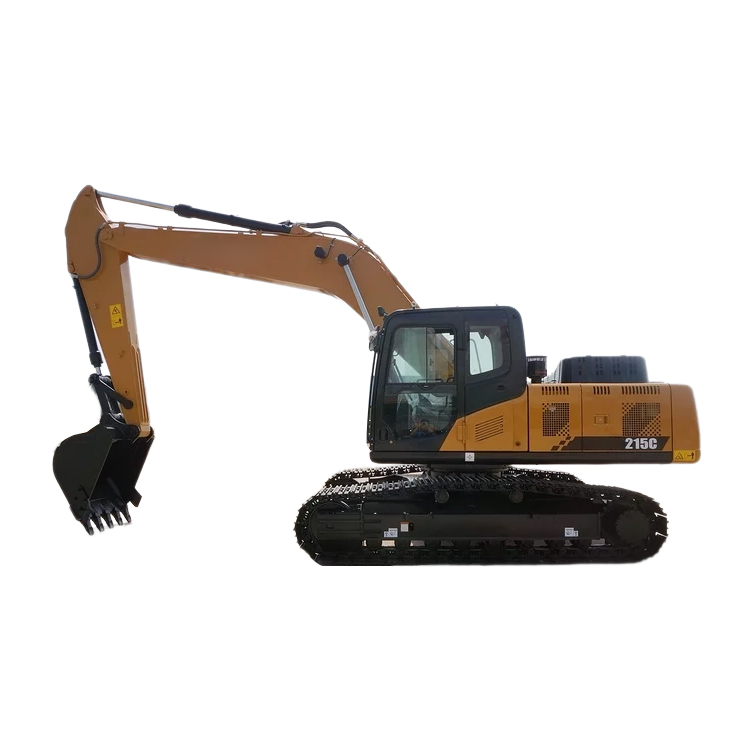

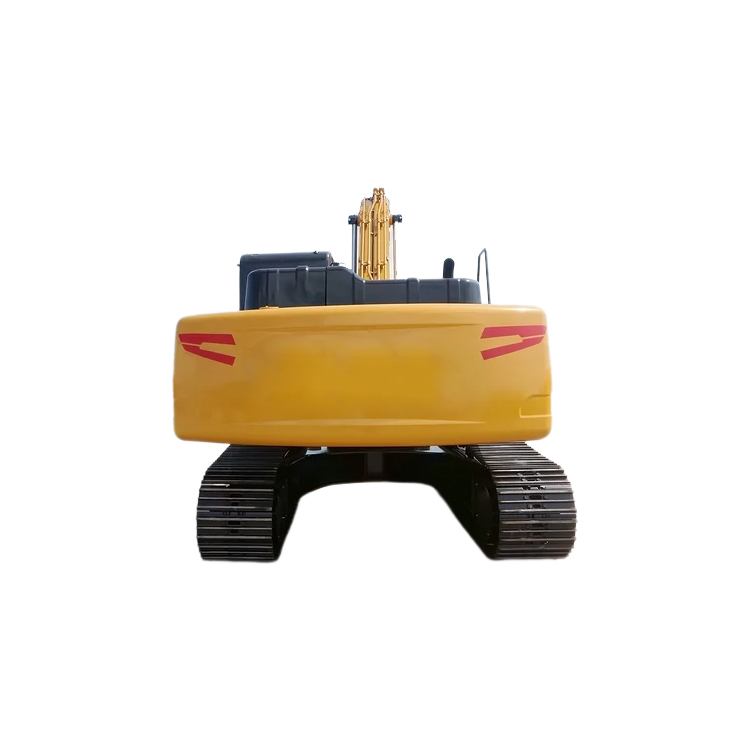

SANY XE215C Crawler Excavator is an efficient excavator with the latest technology, full attention to safety and environmental protection performance, and high production efficiency. It can be widely used for irrigation and water conservancy, river dredging, municipal construction and small mine construction. It can meet different operations such as digging, breaking and dismantling, and its working condition adaptability is further strengthened.
Product Selling Points
High proportional solenoid valve control system, using non-contact potentiometer full potentiometer full electric control handle anthropomorphic design, configuration of high CAN bus data transmission, accurate control, rapid response, simple operation, excellent composite coordination.
The excavator now refers to the hydraulic excavator, which has a wide range of application scenarios and various functions. It can be applied to earthmoving excavation, building demolition, road surface renovation and other working scenarios, and its application scenarios include:
(1) Railway, highway, municipal and other infrastructure construction;
(2) Earthmoving excavation brought by real estate investment;
(3) Extraction demand brought by mining;
(4) Earth excavation demand brought by manufacturing infrastructure construction;
(5) Rural infrastructure and other applications.
|
Model
|
Unit
|
XE215C
|
|
|
Operating weight
|
Kg
|
21700
|
|
|
Bucket capacity
|
m³
|
1
|
|
|
Engine
|
Model
|
/
|
CC-6BG1TRP
|
|
Direct injection
|
/
|
√
|
|
|
Four strokes
|
/
|
√
|
|
|
Water cooling
|
/
|
√
|
|
|
Turbo-charging
|
/
|
√
|
|
|
Air to air intercooler
|
/
|
√
|
|
|
No. of cylinders
|
/
|
6
|
|
|
Rated power/speed
|
kw/rpm
|
128.5/2100
|
|
|
Maximum torque/speed
|
N.m
|
637.9/1800
|
|
|
Displacement
|
L
|
6.494
|
|
|
Main performance
|
Travel speed（H/L)
|
km/h
|
5.5/3.3
|
|
Swing speed
|
r/min
|
13.2
|
|
|
Gradeability
|
°
|
≤35
|
|
|
Ground pressure
|
kPa
|
49.1
|
|
|
Bucket digging force
|
kN
|
149
|
|
|
Arm digging force
|
kN
|
111
|
|
|
Maximum tractive force
|
kN
|
184
|
|
|
Hydraulic system
|
Main pump
|
/
|
2个
|
|
Two piston pump
|
|||
|
Rated flow of main pump
|
L/min
|
2×231
|
|
|
Main safety valve pressure
|
MPa
|
34.3/37
|
|
|
Travel system pressure
|
MPa
|
34.3
|
|
|
Swing system pressure
|
MPa
|
28
|
|
|
Pilot system pressure
|
MPa
|
3.9
|
|
|
Oil Capacity
|
Fuel tank capacity
|
L
|
400
|
|
Hydraulic tank capacity
|
L
|
220
|
|
|
Engine oil capacity
|
L
|
25
|
|
|
Appearance size
|
Overall length
|
mm
|
9625
|
|
Overall width
|
mm
|
2890
|
|
|
Overall height
|
mm
|
2985
|
|
|
Width of platform
|
mm
|
2830
|
|
|
Track length
|
mm
|
4157
|
|
|
Overall width of chassis
|
mm
|
2890
|
|
|
Track shoe width
|
mm
|
600
|
|
|
Wheel base of crawler
|
mm
|
3366
|
|
|
Track gauge
|
mm
|
2290
|
|
|
Counterweight clearance
|
mm
|
1050
|
|
|
Min. ground clearance
|
mm
|
486
|
|
|
Min. tail swing radius
|
mm
|
2844
|
|
|
Track height
|
mm
|
942
|
|
|
Working scope
|
Max. digging height
|
mm
|
9620
|
|
Max. dumping height
|
mm
|
6780
|
|
|
Max. digging depth
|
mm
|
6680
|
|
|
Maximum depth cut for 2240mm(8 ft) level bottom
|
mm
|
6320
|
|
|
Max. Vertical digging depth
|
mm
|
5715
|
|
|
Max. digging radius
|
mm
|
9940
|
|
|
Min. swing radius
|
mm
|
3530
|
|
|
Standard
|
Length of boom
|
mm
|
5680
|
|
Length of arm
|
mm
|
2910
|
|
|
Bucket capacity
|
m³
|
1
|
|
|
Optional
|
Length of boom
|
mm
|
–
|
|
Length of arm
|
mm
|
2520
|
|
|
Bucket capacity
|
m³
|
0.9/1.0/1.2(Earthwork bucket)
|
|
|
0.9/1.0(Strengthened bucket)
|
|||
|
0.9/1.0(Rock bucket)
|
|||
215C Crawler Excavator First-class core configuration
Custom engine, hydraulic system
Fuel saving
Customized engine fuel-saving working areas
Customized main pump working area, optimized main spool structure
High efficiency
Power reserve 12%, torque 10%
Increase main pump displacement, optimize spool characteristics, improve operating efficiency
