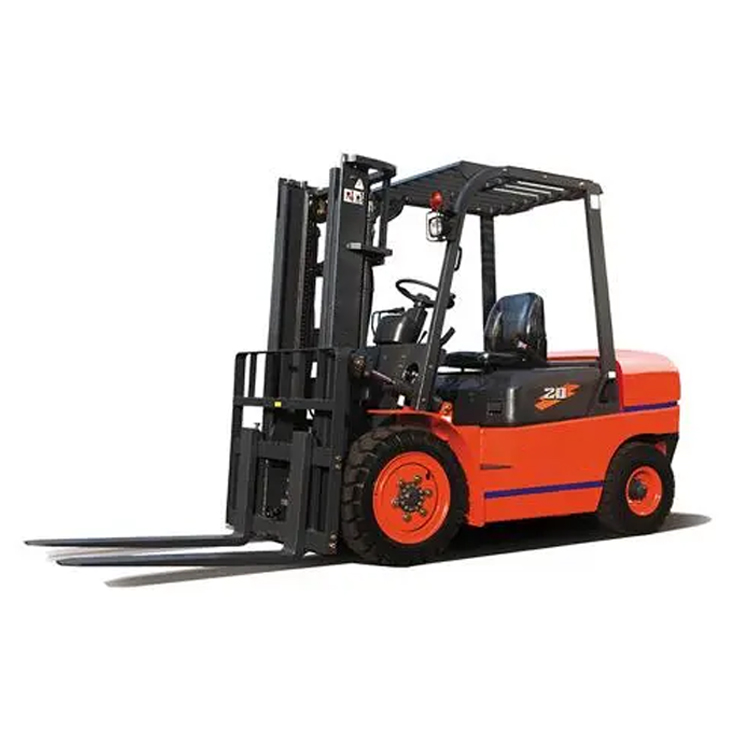

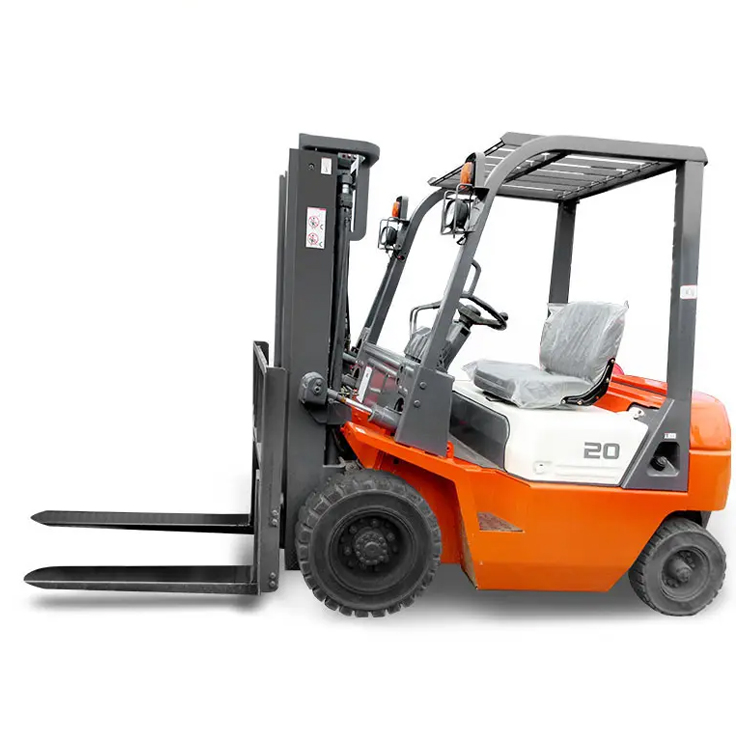

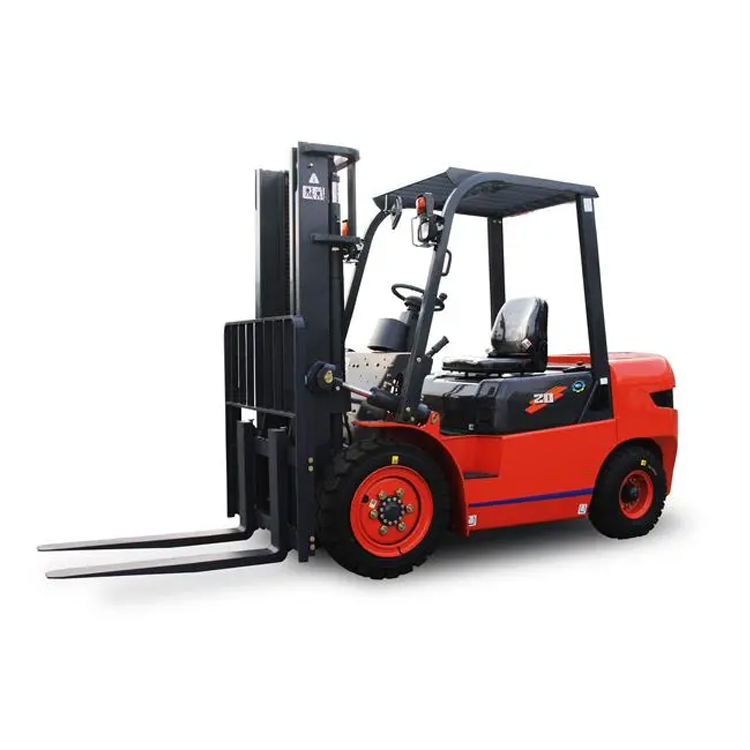

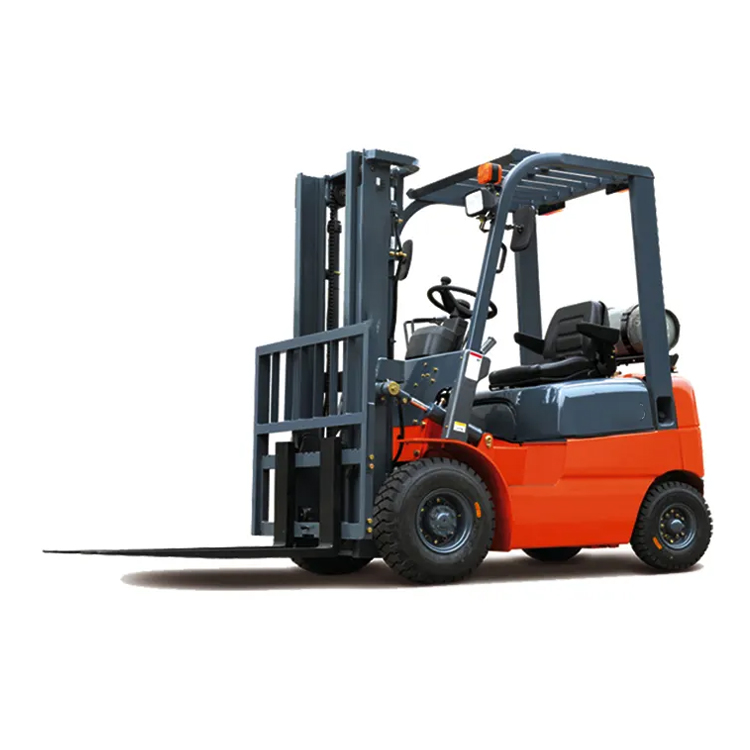

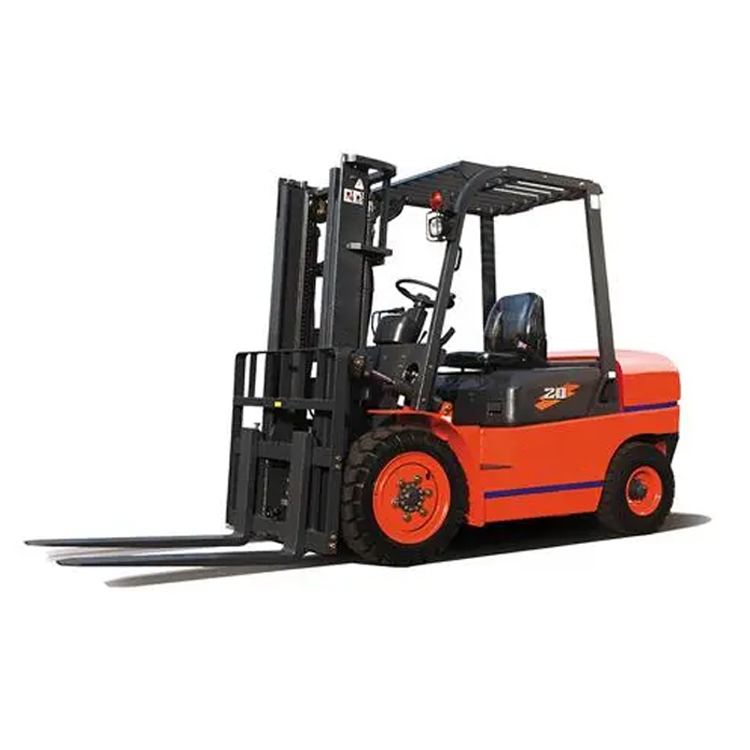

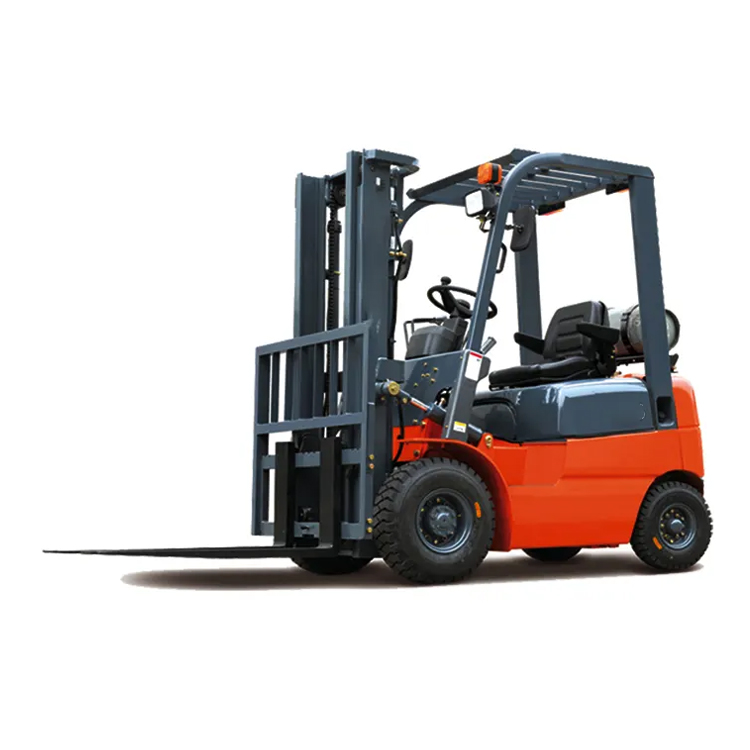

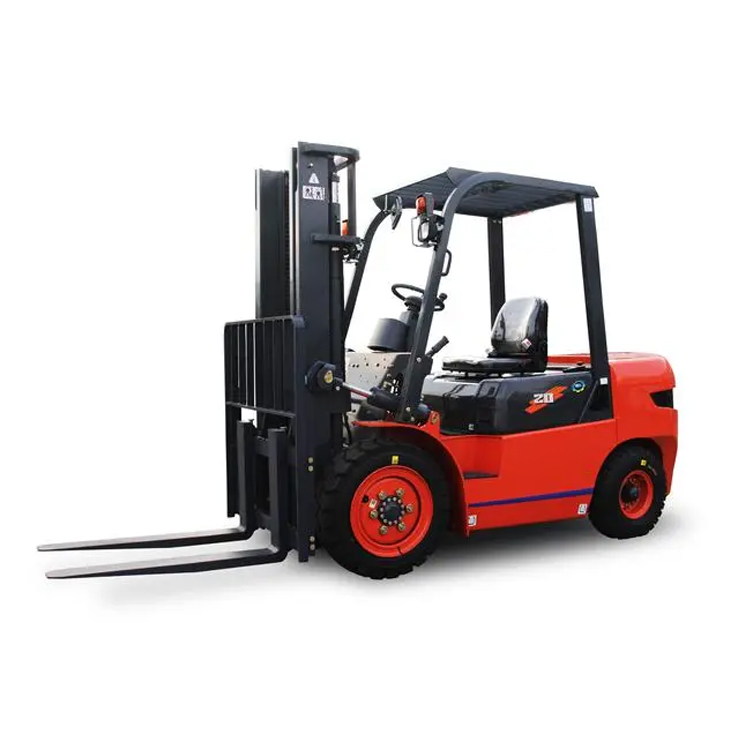

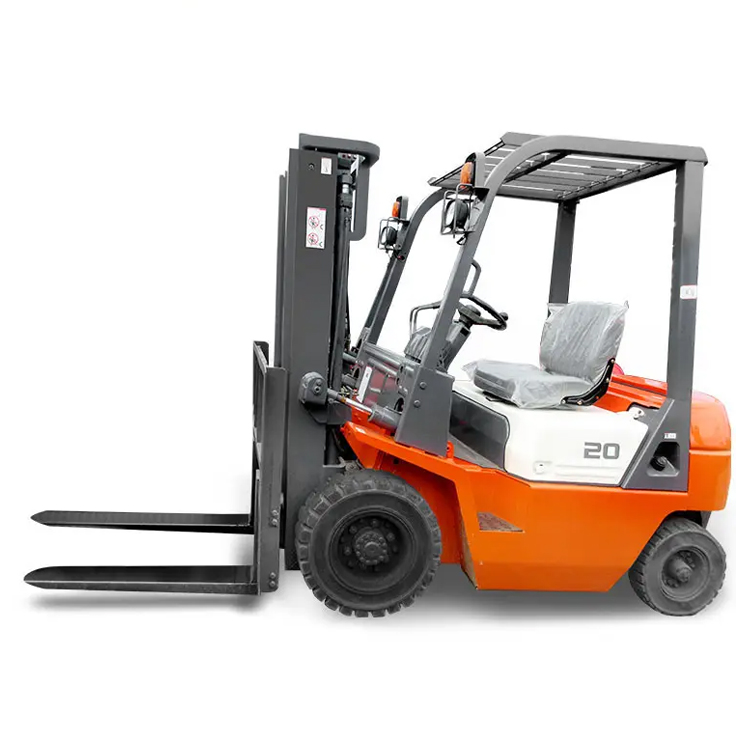

FD20 Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
1. The equipment is of high quality and can be turned smoothly and easily.
2. The equipment runs quietly, noiseless and environmentally friendly.
3. Lifting and lowering goods is fast and flexible.
4. Wide field of vision helps the driver to operate safely.
5. The equipment is equipped with a speed selection system suitable for various working conditions.
For factories and warehouses, forklift trucks are in demand, and their application has lasted for almost an entire era of great development in manufacturing, so this vehicle form is familiar enough. At the same time, forklift trucks are used in a wide range of scenarios, whether in factories, warehouses or airports, terminals, as long as there is a need for stacking, loading and unloading action of the scene need forklift trucks.
|
Manufacturer
|
HEU
|
||
|
Model
|
CPCD20/CP(Q)YD20
|
CPCD25/CP(Q)YD25
|
|
|
Rated capacity
|
kg
|
2000
|
2500
|
|
Load center
|
mm
|
500
|
|
|
Max. lifting height
|
mm
|
3000
|
3000
|
|
Mast overall height( Fork to the ground and mast be vertical)
|
mm
|
2000
|
2000
|
|
Max. fork lilting height (With backrest)
|
mm
|
4030
|
4030
|
|
Free lift height
|
mm
|
165
|
165
|
|
Overall height( Overhead guard)
|
mm
|
2150
|
2150
|
|
Min.groung clearancef Atthe mast)
|
mm
|
115
|
115
|
|
Distance from the surface of the seat to the overahead guard
|
mm
|
1030
|
1030
|
|
Overall length (With fork/Without fork)
|
mm
|
3500/2580
|
3708/2638
|
|
Wheel base
|
mm
|
1650
|
1650
|
|
Overall width
|
mm
|
1150
|
1150
|
|
Tread (Front tread / Rear tread)
|
mm
|
970/970
|
970/970
|
|
Fork adjustable range (The external of the fork )(Max. / Min.)
|
mm
|
1030/244
|
1030/244
|
|
Min.turning radius (Exterior)
|
mm
|
2170
|
2240
|
|
Min. right angle stacking aisle width
|
mm
|
2200
|
2280
|
|
Mast tilting angle
|
deg
|
6/12
|
6/12
|
|
Fork size
|
mm
|
920x122x40
|
1070x122x40
|
This machine is easyto operate, Catquality,and low fuelconsumption.
Diesel engines have highcompression ratio, highthermal efficiency, andvery low fuel consumption compared togasoline engines
In terms of operability.the automatic transmission forklift adopts anautomatic gearbox, whichcan automatically adjustthe transmission.
Diesel fuel has alowignition point, whichis relatively safe andess likely to causefires.
