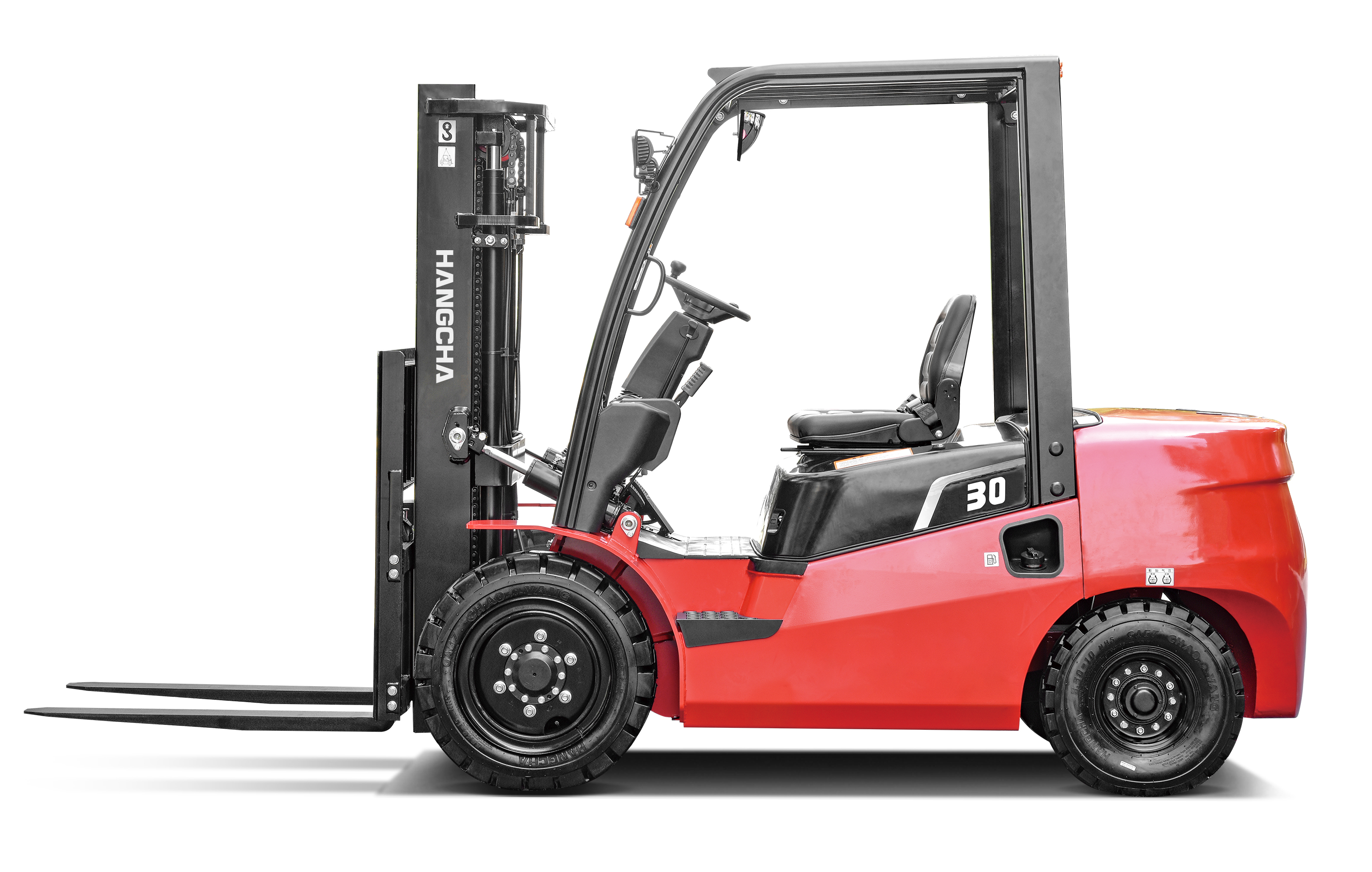

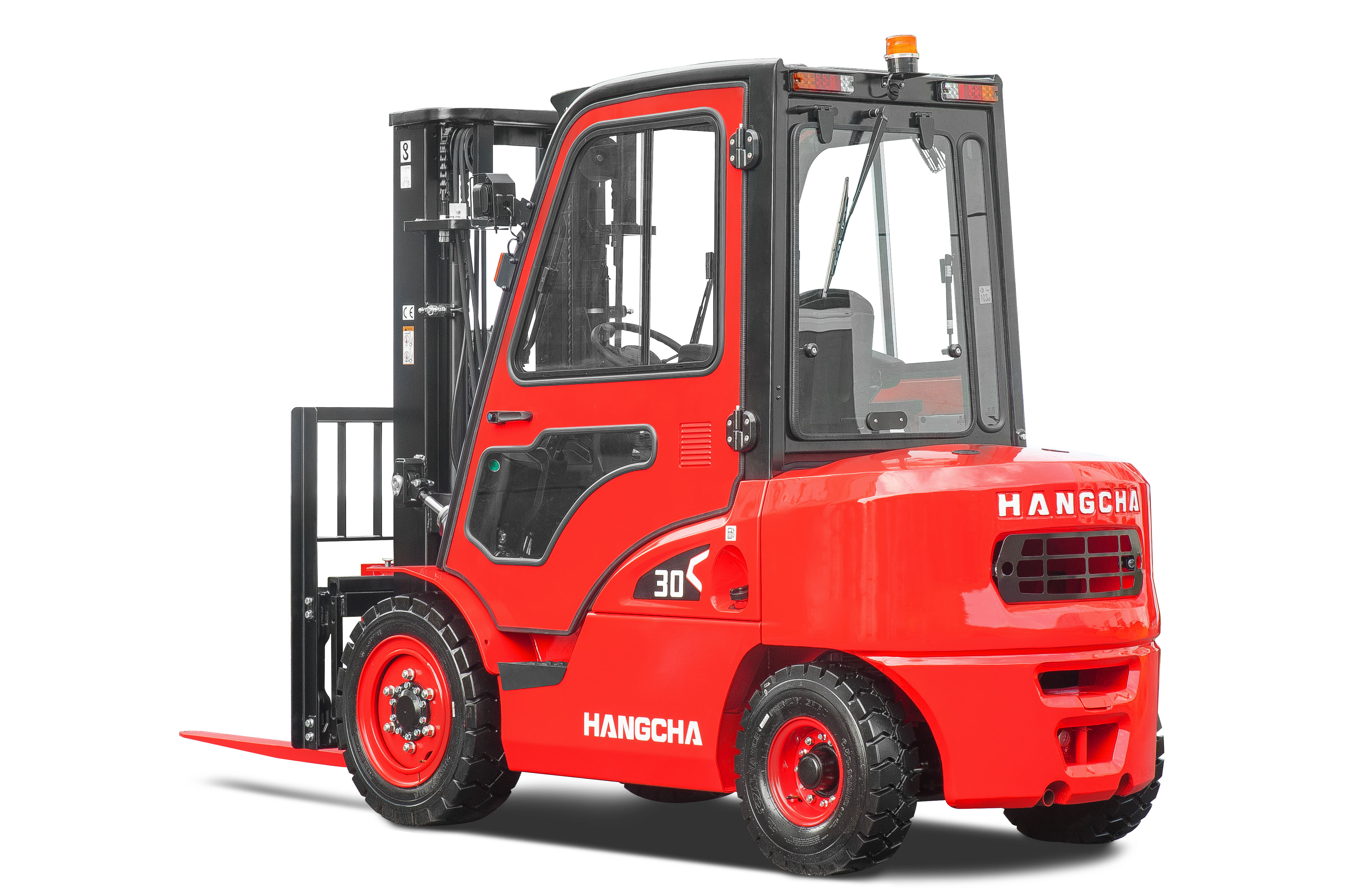

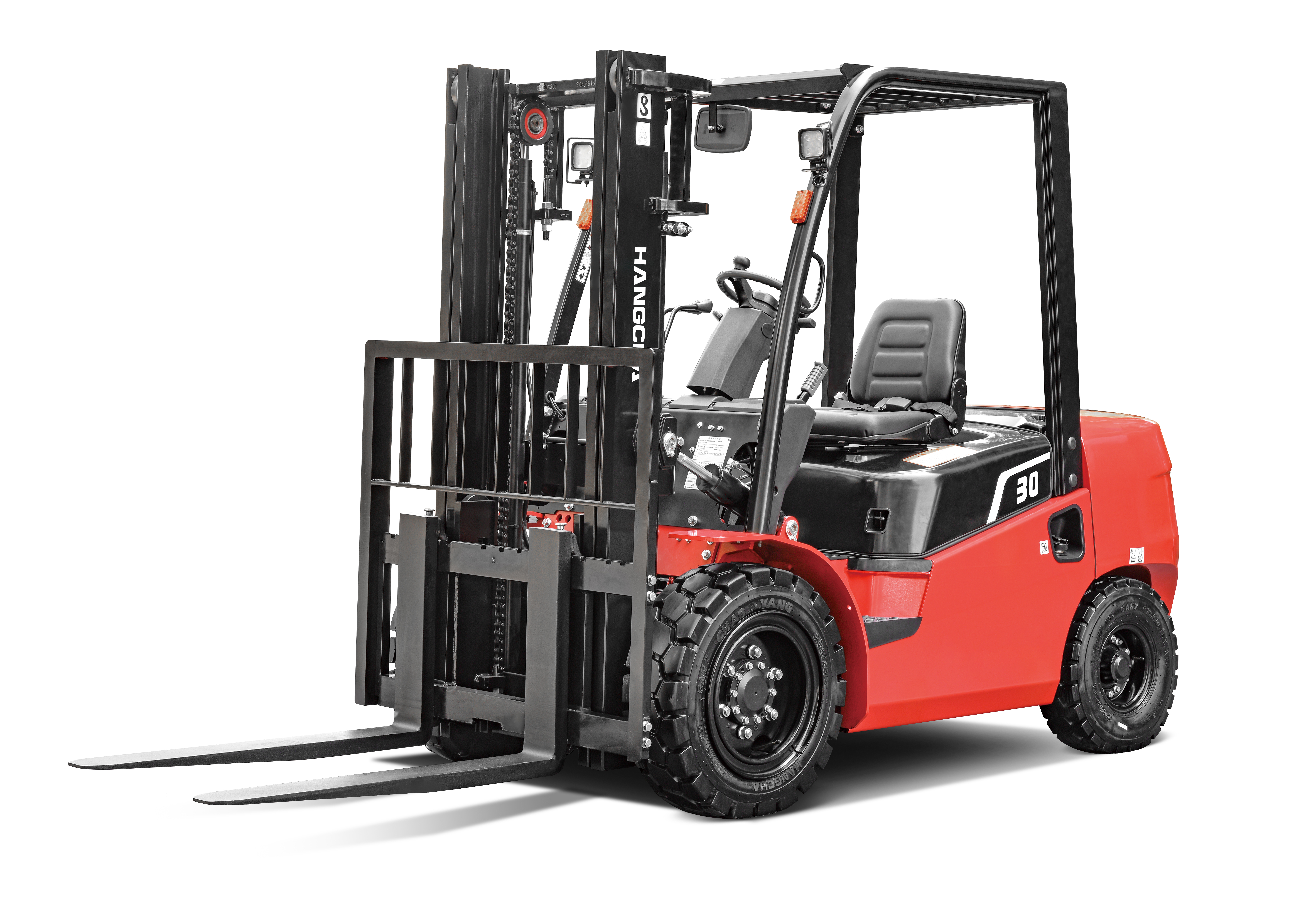

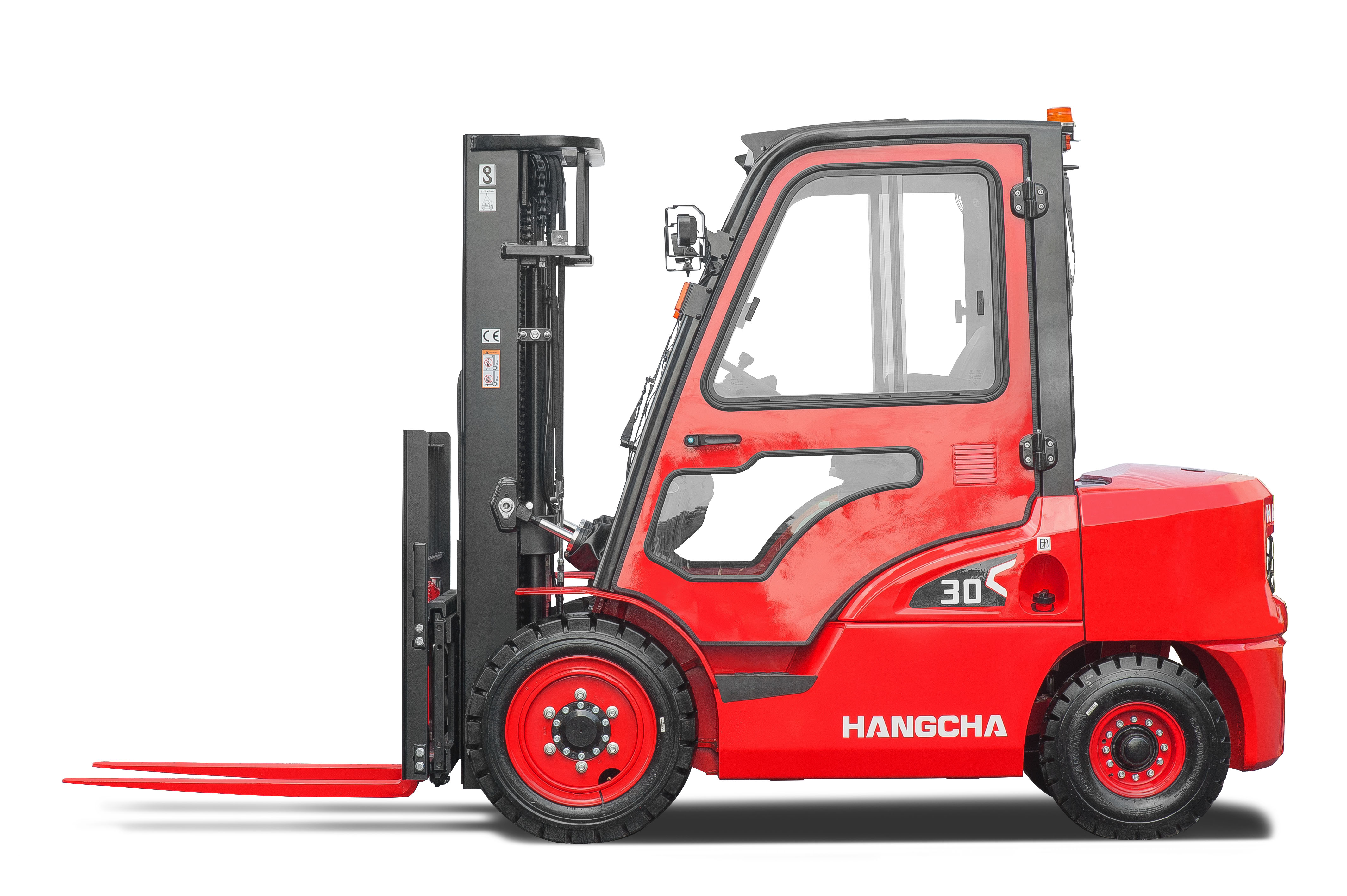

Hangcha 3ton Diesel Forklift

Hangcha equipped with advanced technologies, Hangcha's forklift series includes electric, diesel, and gasoline models, each engineered to handle a wide range of load capacities. The lineup encompasses compact counterbalance forklifts, reach trucks, pallet jacks, and specialized warehousing equipment, all optimized for maneuverability, energy efficiency, and durability.

Chat [email protected] Inquiry

Feature

We have many brands of forklifts, such as Toyo ta, Heli, KOMATSU, Off load forklift, etc. There are also multiple models for you to choose from. If you need them, please feel free to send an inquiry at any time

Appliction

The Hangcha 3-ton diesel forklift is a versatile piece of equipment widely used in various industries for material handling tasks. Here are some common application scenarios where the Hangcha 3-ton diesel forklift excels:

Warehousing and Distribution Centers: In warehouses and distribution centers, the Hangcha 3-ton diesel forklift is used for loading and unloading goods from trucks and containers, as well as for stacking and storing palletized goods in racks.

Manufacturing Facilities: In manufacturing plants, the forklift is utilized for transporting raw materials, components, and finished products between different production areas, assembly lines, and storage areas. It is also used for loading and unloading materials from delivery vehicles.

Overall, the Hangcha 3-ton diesel forklift is a versatile and indispensable tool for material handling operations across a wide range of industries, providing efficiency, productivity, and reliability in various application scenarios.

Technical Parameters

Product Name HANGCHA A25 HANGCHA-A30
Drive Diese Diesel
Rated capacity/rated load Q(kg) 2500 3000
Load centre distance c(mm) 500 500
Load distance,centre of drive axle to fork x (mm) 460 475
Wheelbase y(mm) 1665 1760
Service Weight kg 3765 4250
Axle loading,laden front/rear kg 5505/760 6370/880
Axle loading,unladen front/rear kg 1545/2220 1700/2550
Height,mast lowered hi(mm) 1999 2054
Free lift hz(mm) 160 165
Height,mast extended h4(mm) 4045 4140
Height of overhead guard hs(mm) 2120 2150
Overall length h(mm) 3695 3845
Length to face of forks lz(mm) 2625 2775
Overall width b1 (mm) 1155 1225
Fork dimensions s/e/l(mm) 40×122×1070 45×122×1070
Travel speed,laden/unladen km/h 18/19 19/20
Lift speed,laden/unladen m/s 0.58/0.60 0.46/0.49
Lowering speed,laden/unladen m/s 0.45/0.50 0.45/0.50
Drawbar pull,laden/unladen N 21300/14000 20300/16000
Gradeability,laden/unladen 0 25/25 22/22
Engine power kw 40 40
Rated speed r/min 2650 2650
Battery voltage/nominal capacity V/Ah 12/90 12/90
Rated torque N-m/r/min 160/1800-2000 160/1800-2000
Operating pressure for attachments MPa 17.5 17.5
Fuel tank capacity liter 65 70
