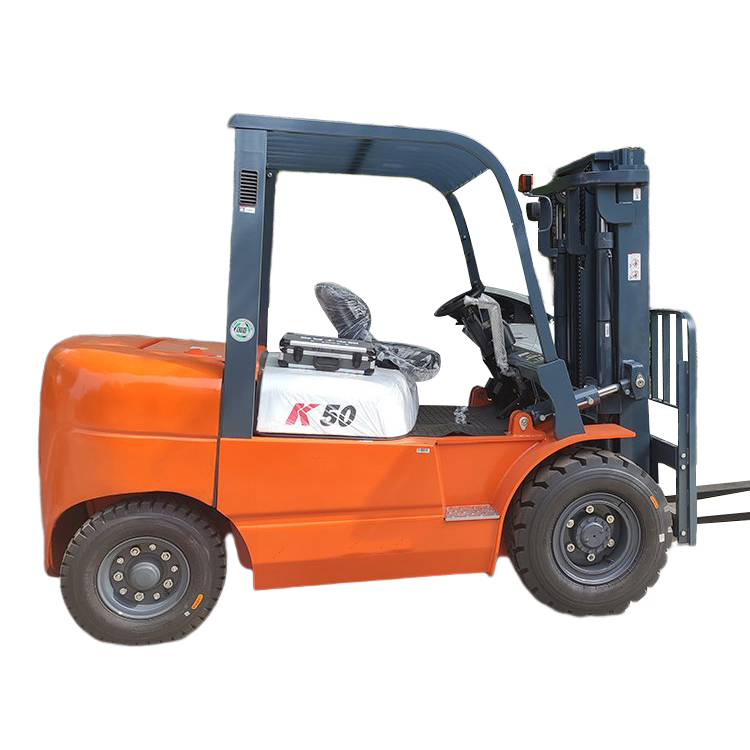

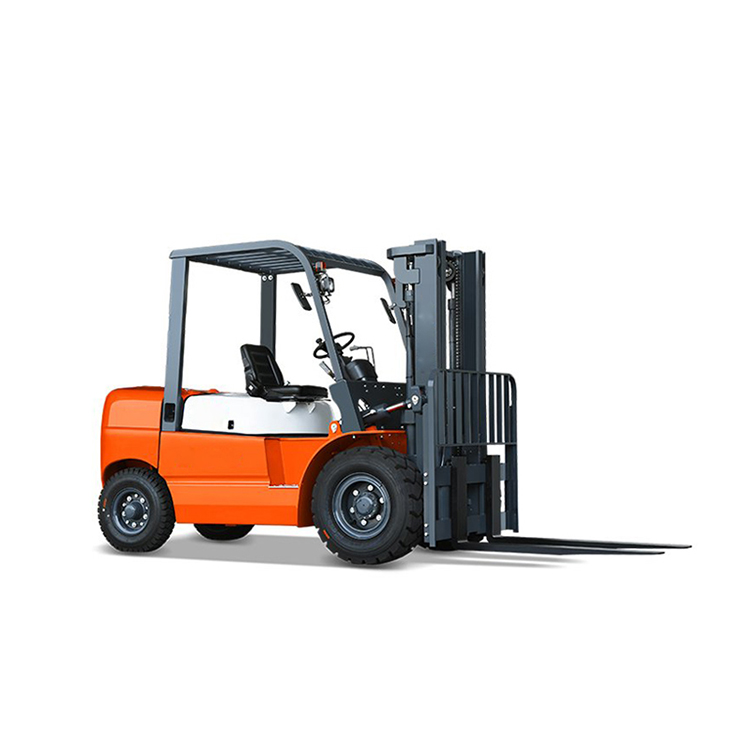

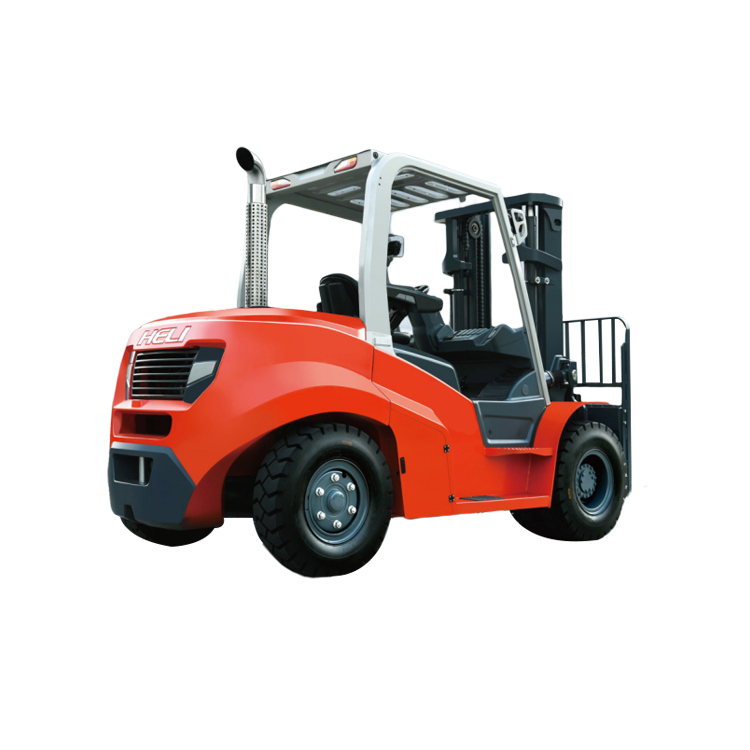

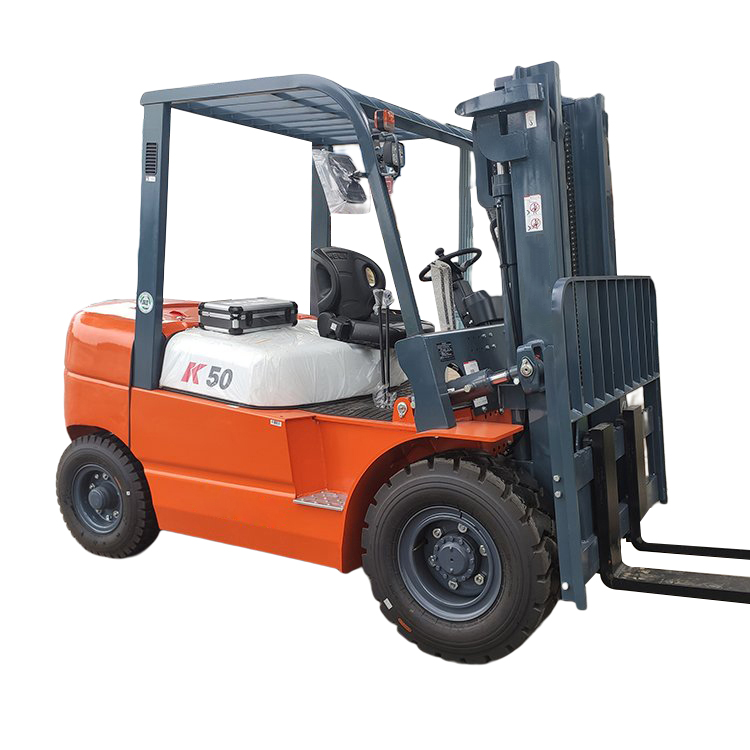

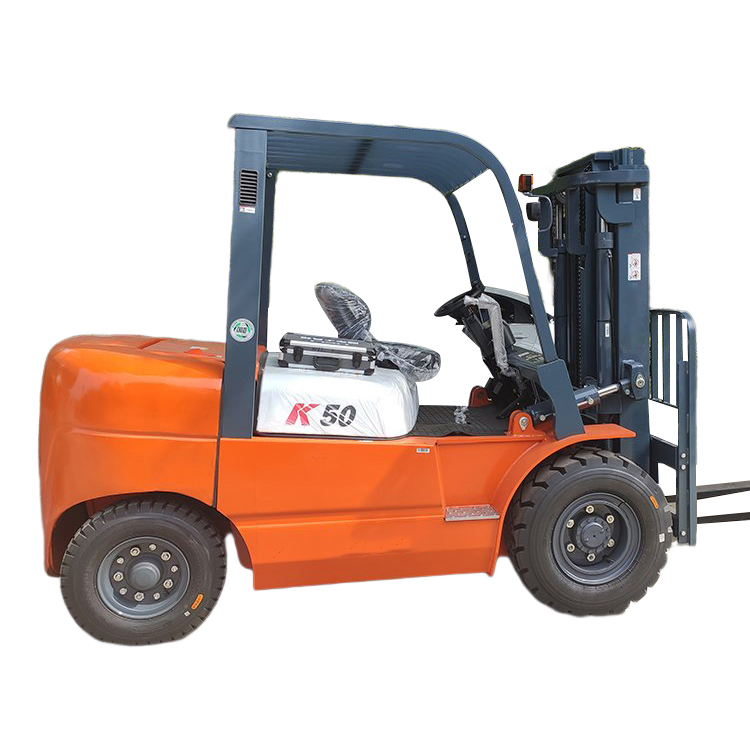

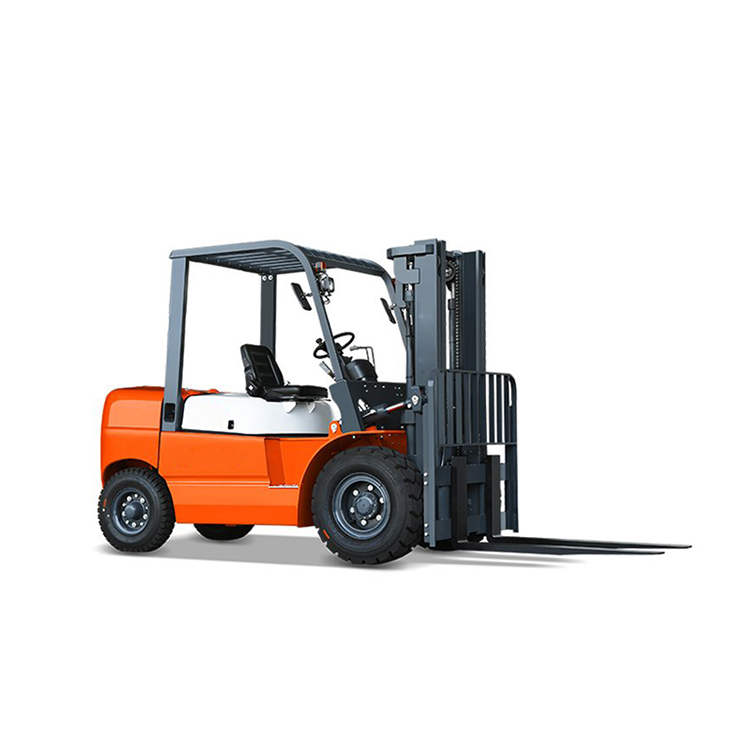

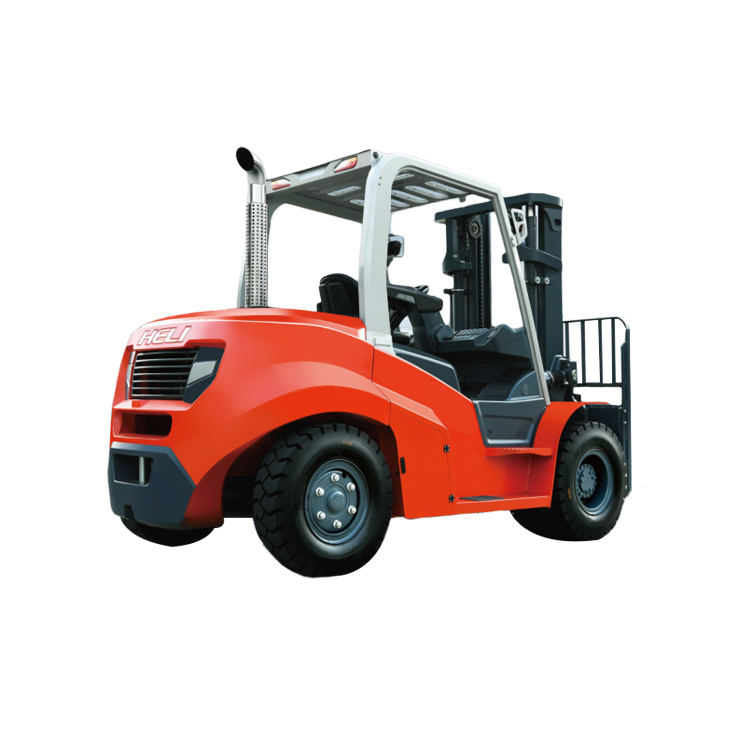

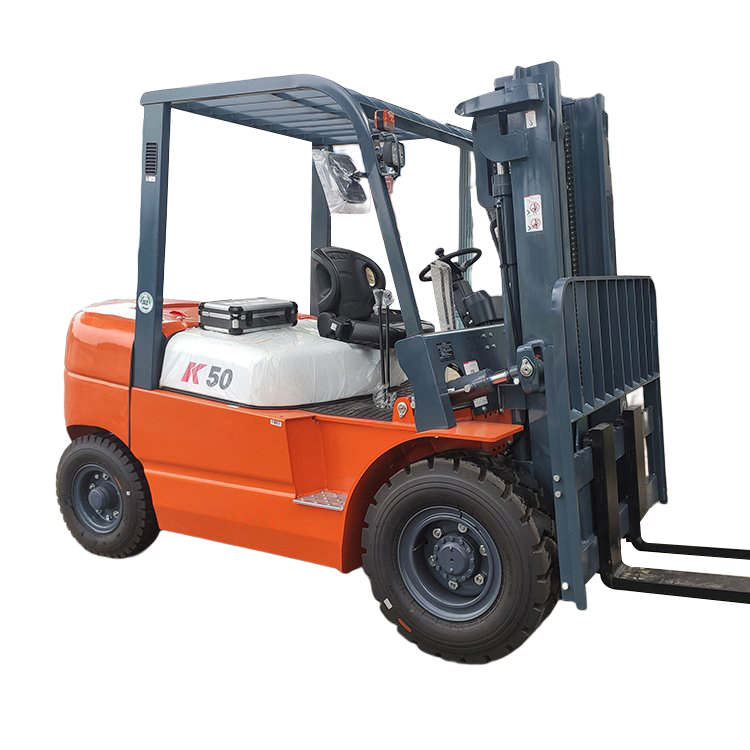

HELI CPCD50 forklift

HELI CPCD50 forklift is a new generation of internal combustion forklift with technological innovation and quality enhancement, which not only bears the important responsibility of the "growth engine" of HELI internal combustion engine, but also is an important measure for HELI to implement the strategy of a strong manufacturing country and take the road of high-quality development.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

HELI CPC50 Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.

Wild Applications of Forklift

For factories and warehouses, forklift trucks are in demand, and their application has lasted for almost an entire era of great development in manufacturing, so this vehicle form is familiar enough. At the same time, forklift trucks are used in a wide range of scenarios, whether in factories, warehouses or airports, terminals, as long as there is a need for stacking, loading and unloading action of the scene need forklift trucks.

Technical Parameters

Characteristics
1.01
Manufacturer
1.02
Model
CPC50 CPCD50
1.03
Power mode
Diesel
1.04
Rated capacity
Q
kg
4000
1.05
Load center distance
c
mm
500
1.06
Driving mode
Seated
Dimensions
2.01
Max. height,extended (With backrest)
H2
mm
4250
2.02
Free lifting height
H
mm
3000
2.03
Height (mast lowered)
Hl
mm
2275
2.04
Free lifting height
H3
mm
150
2.05
Backrest height rom the surfxe.otOv.ftxW
H13
mm
1250
2.06
Distance from the surtxe of the seat to the werhead gpard
H6
mm
1250
2.07
Height of overhead guard
H4
mm
2350
2.08
Overall length (withAvithout fork)
L/l’
mm
4310/3240
2.09
Front overhang
L2
mm
560
2.10
Rear overhang
L3
mm
580
2.11
Wheelbase
Ll
mm
2100
2.12
Towing coupling height
H9
mm
300
2.13
Ground clearance (laden,between mast)
H5
mm
175
2.14
O/erall width
W1
mm
1480
Z15
Distance across fork-arms, Max/Min.
W5
mm
1340/300
2.17
Min. outside turning radius
r
mm
2930
2.18
Min. internal turning radius
r’
mm
215
2.19
Min.right angle stacking aisle width
Ra
mm
2900

Vehicle Details

HELI CPCD50 forklift is a new generation of internal combustion forklift with technological innovation and quality enhancement, which not only bears the important responsibility of the “growth engine” of HELI internal combustion engine, but also is an important measure for HELI to implement the strategy of a strong manufacturing country and take the road of high-quality development.
