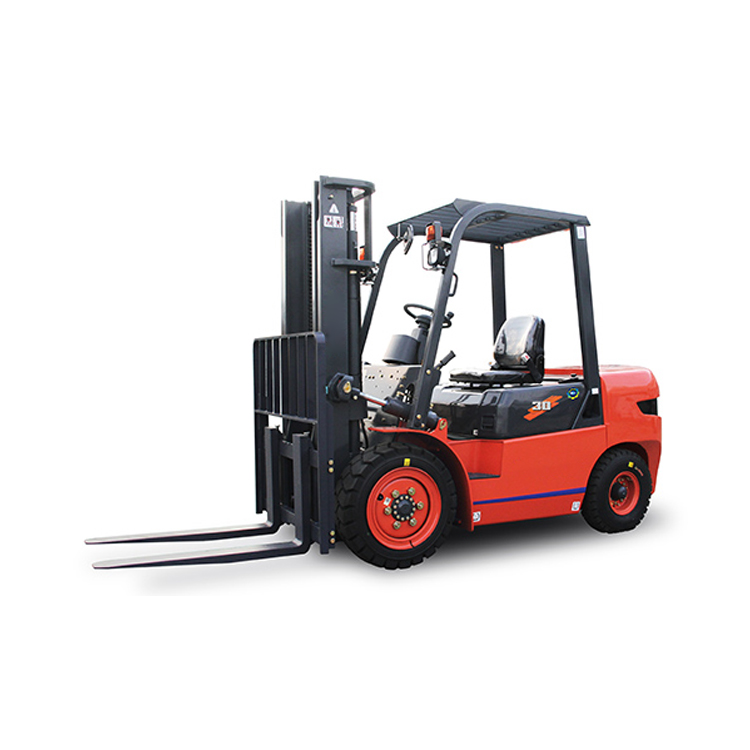

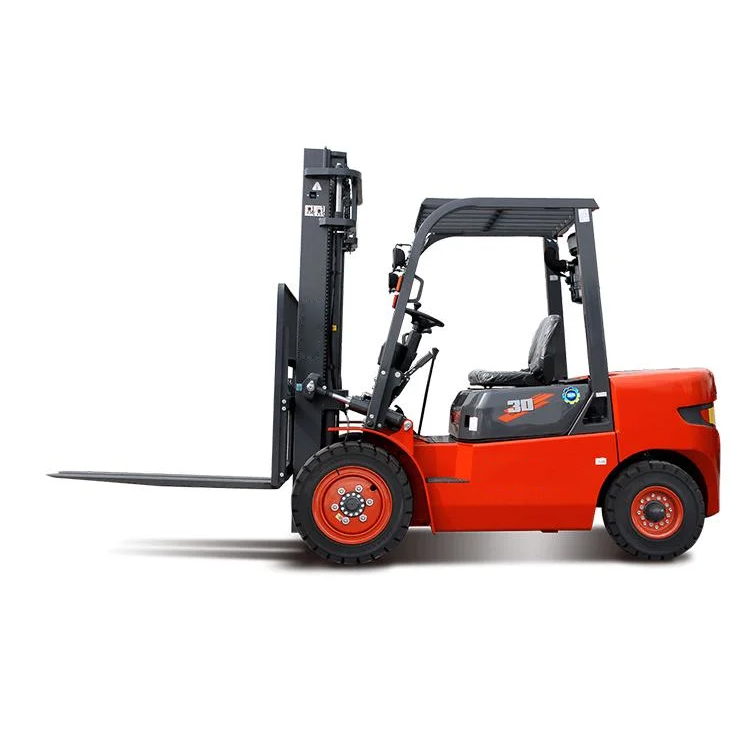

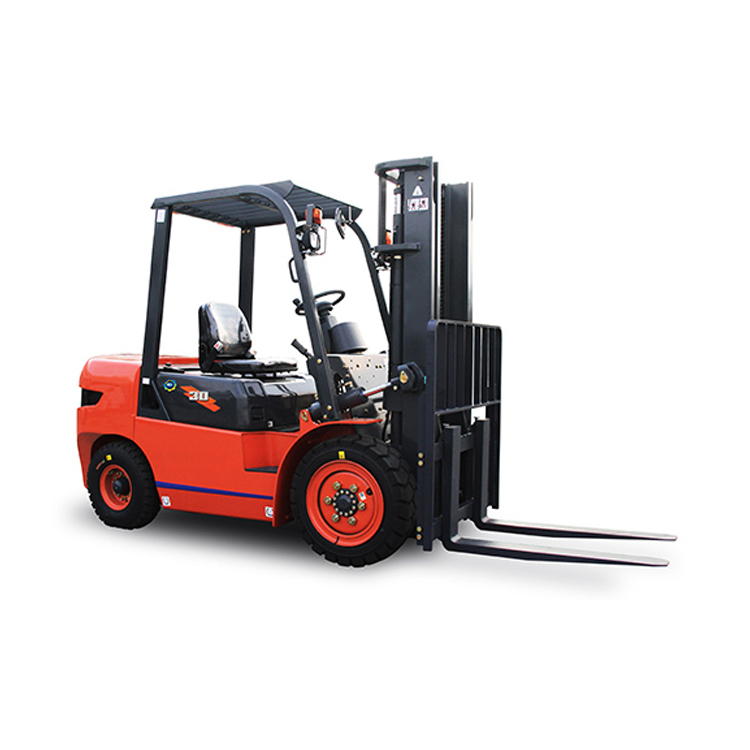

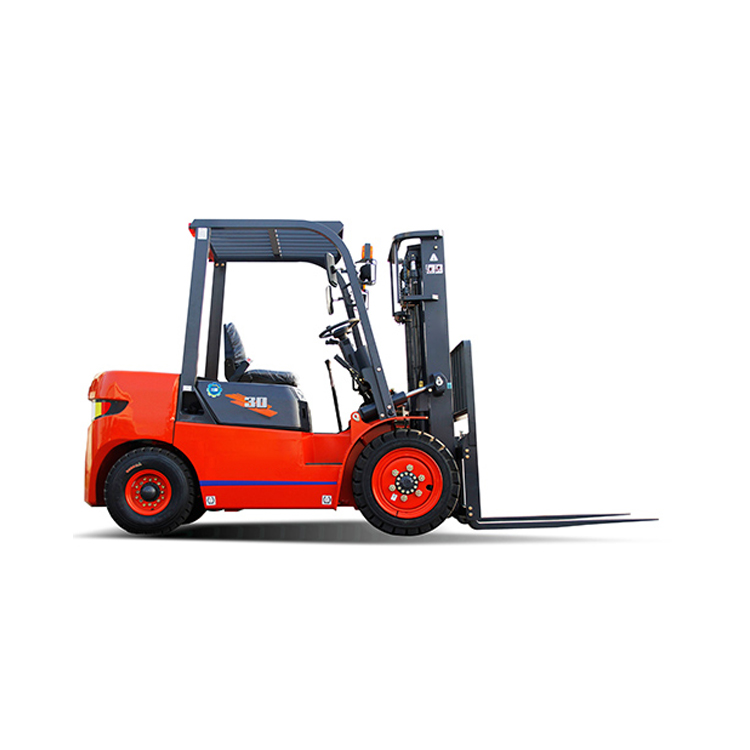

FD30 Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
HELI CPCD30 Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
For factories and warehouses, forklift trucks are in demand, and their application has lasted for almost an entire era of great development in manufacturing, so this vehicle form is familiar enough. At the same time, forklift trucks are used in a wide range of scenarios, whether in factories, warehouses or airports, terminals, as long as there is a need for stacking, loading and unloading action of the scene need forklift trucks.
model
|
FD30(T)
|
|||
power form
|
Diesel
|
|||
Rated load
|
kg
|
3000
|
||
load center distance
|
mm
|
500
|
||
Maximum Lifting Height
|
mm
|
3000
|
||
free lift height
|
mm
|
165
|
||
Fork size
|
mm
|
1070×125×45
|
||
Front suspension
|
mm
|
478
|
||
rear overhang
|
mm
|
522
|
||
Overall dimension
|
total length
|
mm
|
3770
|
|
total width
|
mm
|
1225
|
||
The mast does not rise
|
mm
|
2077
|
||
safety frame height
|
mm
|
2100
|
||
Shelf (fork) height
|
mm
|
1077
|
||
Minimum turning radius
|
mm
|
2460
|
||
Minimum Right Angle Stacking Aisle Width
|
mm
|
4155
|
||
Maximum travel speed (full load/no load)
|
Km/h
|
20/20
|
||
Maximum lifting speed (no load/full load)
|
mm/s
|
430/420
|
||
Maximum grade
|
%
|
20
|
||
Self-respect
|
kg
|
4220
|
||
Tire
|
front wheel
|
28×9-15-14PR
|
||
rear wheel
|
6.5-10-10PR
|
|||
Tired
|
front wheel
|
mm
|
1000
|
|
rear wheel
|
mm
|
980
|
||
wheelbase
|
mm
|
1700
|
||
Minimum ground clearance
|
Door frame
|
mm
|
132
|
|
frame
|
mm
|
165
|
||
model
|
Quanchai QC490GP
|
XINCHAI C490BPG
|
||
rated power
|
kw
|
39
|
40
|
|
Rated torque
|
N·m/r
|
157/1980
|
160/1800-2000
|
|
Number of cylinders
|
4
|
4
|
||
Displacement
|
L
|
2.67
|
2.67
|
|
fuel tank capacity
|
ltr
|
60
|
60
|
This machine is easy to operate, Cat quality, and low fuel consumption.
Dieselengines have high compression ratio, high thermal efficiency,and very low fuel consump-tion compared to gasoline engines.
In terms of operability the automatic transmission forklift adopts anautomatic gearbox, which can automatically adjust the transmission.
Diesel fuel has a low ignition point, which is relatively safe and less likely to causefires.
