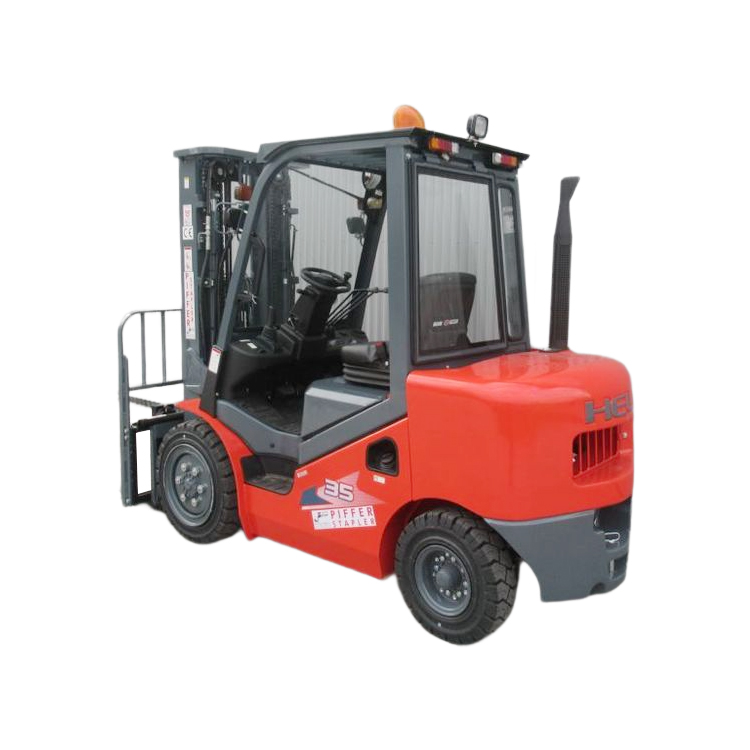

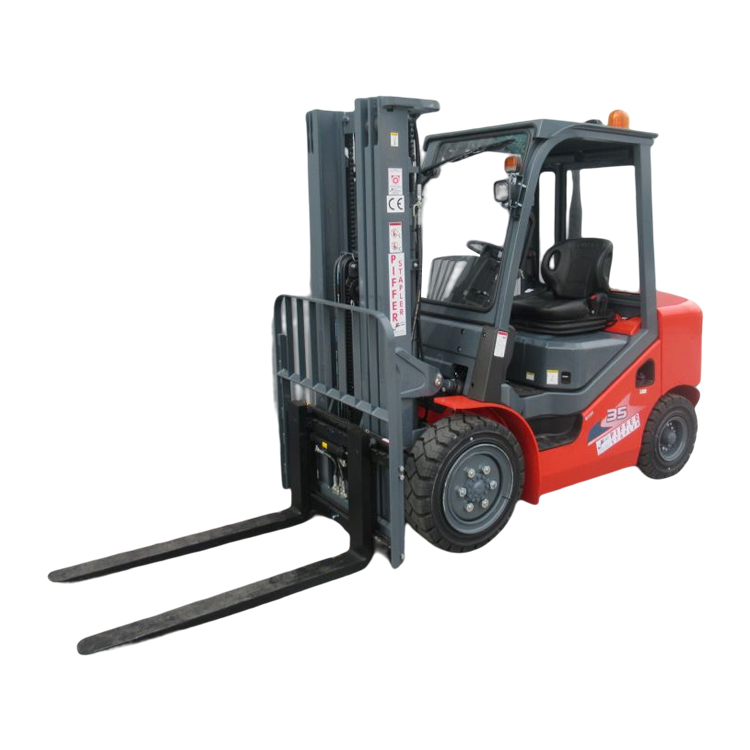

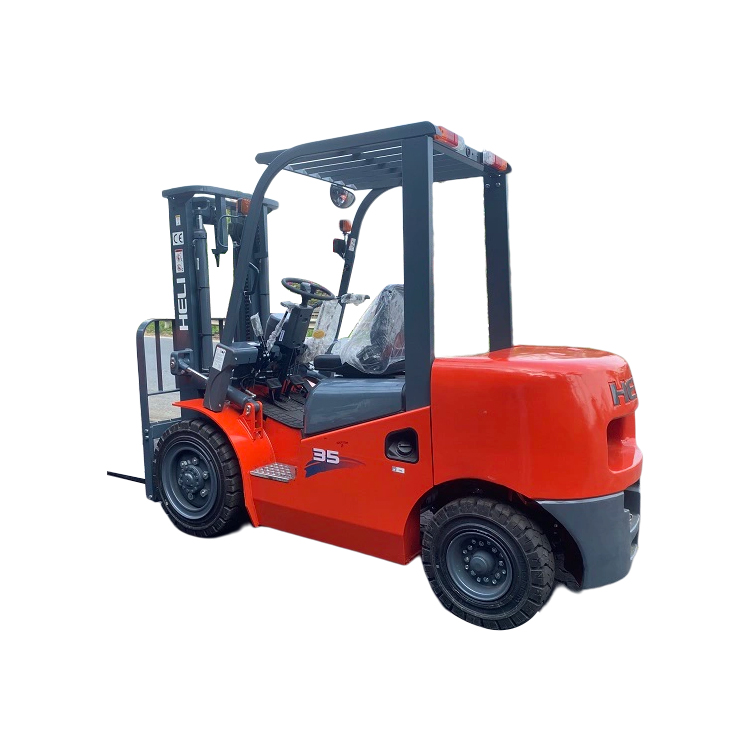

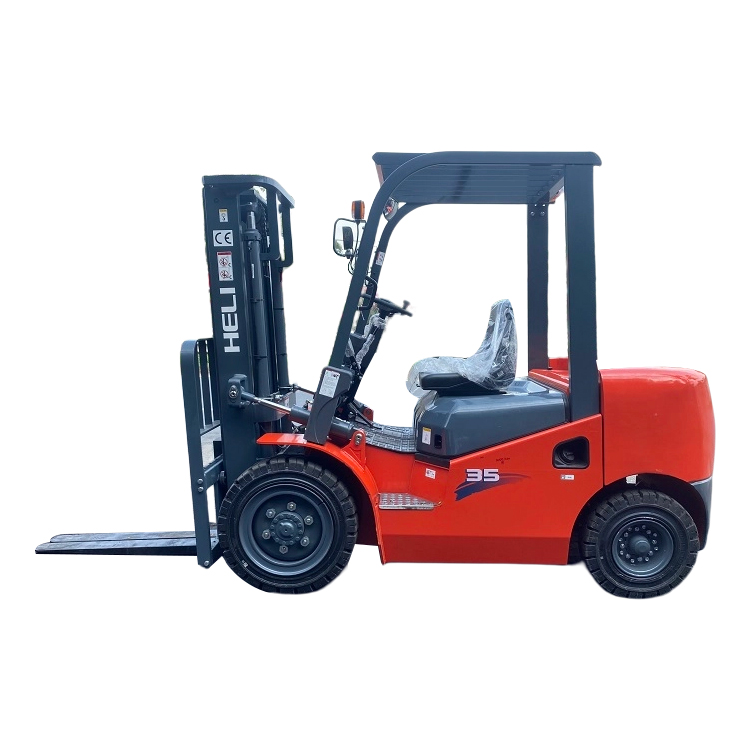

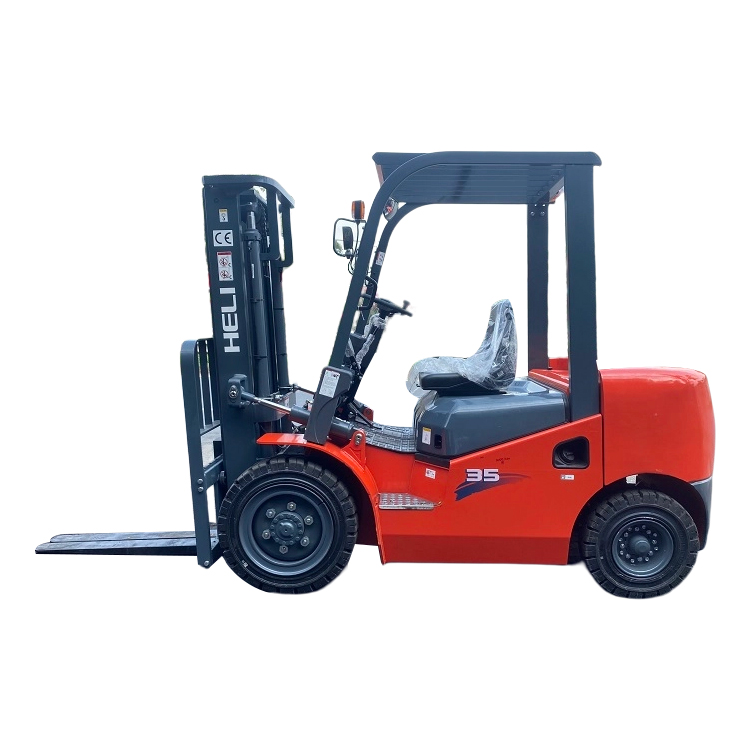

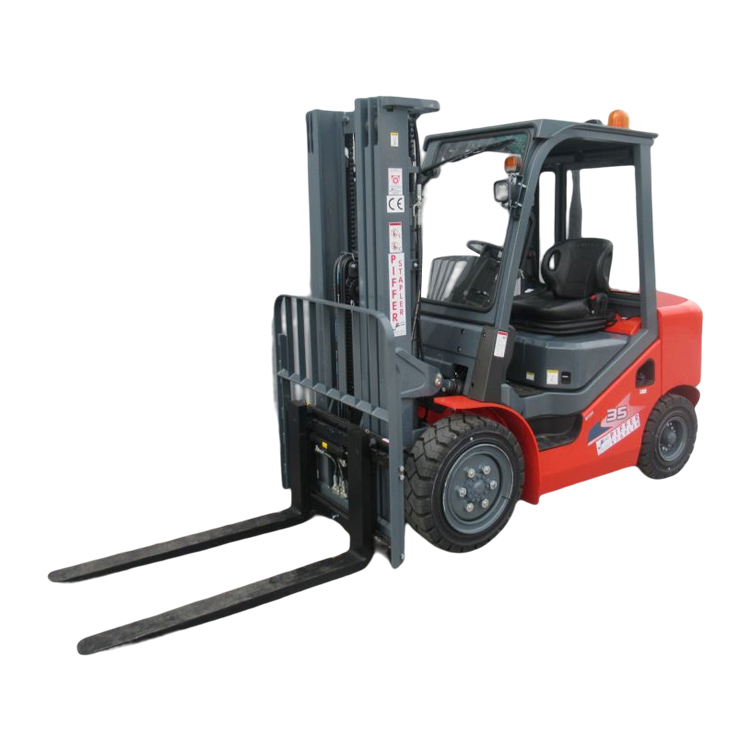

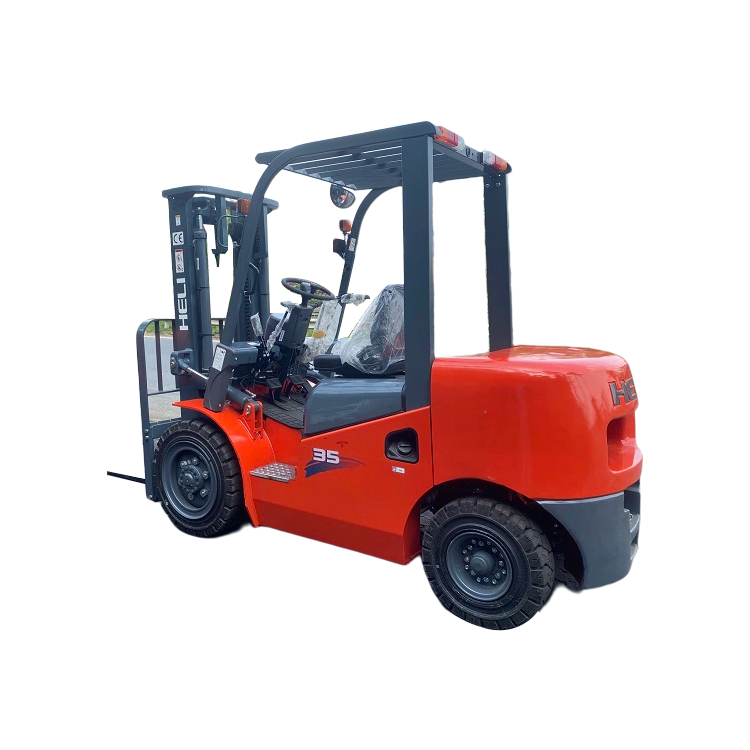

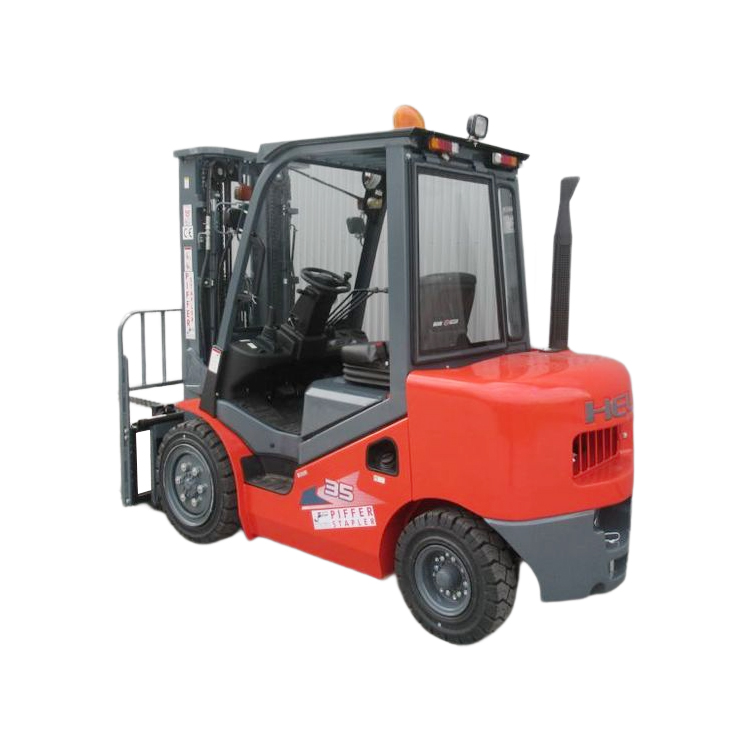

HELI CPCD35-M3H Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine
HELI CPCD35-M3H Forklift is a transportation vehicle,used for loading and unloading,short distance transport,heavy lifting,is called industrial vehicle by The international organization for Standardization ISO/TC110,used as transport machine, Widely used in national economic departments , for example: the railway station, port, airport,factory, warehouse, etc, is efficient equipment mechanical for loading andunloading, stacking and short distance transport.
For factories and warehouses, forklift trucks are in demand, and their application has lasted for almost an entire era of great development in manufacturing, so this vehicle form is familiar enough. At the same time, forklift trucks are used in a wide range of scenarios, whether in factories, warehouses or airports, terminals, as long as there is a need for stacking, loading and unloading action of the scene need forklift trucks.
Size
|
mm
|
CPCD35-M3H
|
|
Max.lifting Height
|
H
|
mm
|
|
Hl
|
mm
|
2180
|
|
Max.fork lifting height(with backrest)
|
H2
|
mm
|
4235
|
Free lift height
|
H3
|
mm
|
170
|
Overall height(overhead guard)
|
H4
|
mm
|
2170
|
Min.groungclearance(at the mast)
|
H5
|
mm
|
135
|
H6
|
mm
|
1030
|
|
Traction pin height
|
H7
|
mm
|
280
|
H8
|
mm
|
1222
|
|
Overall length(with fork/withoutfork)
|
(L/L1)
|
mm
|
3836/2766
|
Wheel base
|
LI
|
mm
|
1700
|
Front overhang
|
L2
|
mm
|
496
|
Rear overhang
|
L4
|
mm
|
570
|
Overall width
|
W1
|
mm
|
1225
|
Tread (front tread/rear tread)
|
(W3/W4)
|
mm
|
1000/970
|
W5
|
mm
|
1060/250
|
|
Min.turning radius(exterior)
|
Wa
|
mm
|
2420
|
Min.turning radius(interior)
|
V
|
mm
|
200
|
Min.right angle stacking aisle width
|
Ra
|
%
|
2400
|
MastTilt(fwd/bwd)
|
a/B
|
mm
|
6°/12°
|
Fork size
|
L3xWxT
|
1070X125X50
|
This machine is easyto operate, Catquality,and low fuelconsumption.
Diesel engines have highcompression ratio, highthermal efficiency, andvery low fuel consumption compared togasoline engines
In terms of operability.the automatic transmission forklift adopts anautomatic gearbox, whichcan automatically adjustthe transmission.
Diesel fuel has alowignition point, whichis relatively safe andess likely to causefires.
