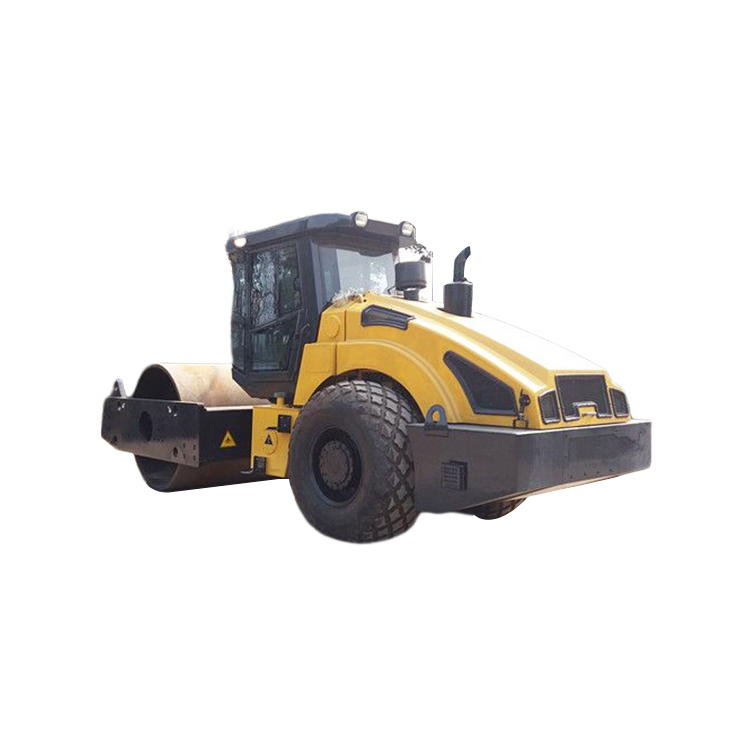

623B road roller

Adopt SC8D180 extra-pressure diesel engine,made by shanghai diesel engine factory with bigpower man reserving coefficiency,which comply with the operating conditions above 4000meters altitudes.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

23T 623b road roller has the advantages of high construction efficiency and short construction time. Due to its good flexibility, simple operation and adaptability to various complex environments, its construction efficiency can be several times higher than other machines.

Wild Applications of Road Roller

The roller can work flexibly in the narrow construction area, mainly used for ditch foundation, road, sports ground compaction leveling, can also be used for compaction of asphalt surface operation, the machine is good to the edge, making the compaction operation more rigorous and refined.

Equipped with export-standard brand-name power, strong horsepower, making the roller in the compaction operation performance is more stable, can be a long time continuous operation, compaction efficiency is high, easy for construction workers to catch up with the progress of the project, effectively shorten the construction period, there will be no delay in the phenomenon of the construction period.

Technical Parameters

Model
LT623B
Operating mass
kg
23000
Static linear load
N/cm
560
Vibrating amplitude
mm
1.9/0.95
Vibrating frequency
Hz
30
Centrifugal force
KN
430/330
Travel speed
km/h
10.5
Grade ability
%
30
Turning radius
mm
7500
Overall dimension
mm
6435x2350x3090
Vibration round width
mm
2100
Wheelbase
mm
3380
Diesel model
SC8D180
Diesel power
KW
132

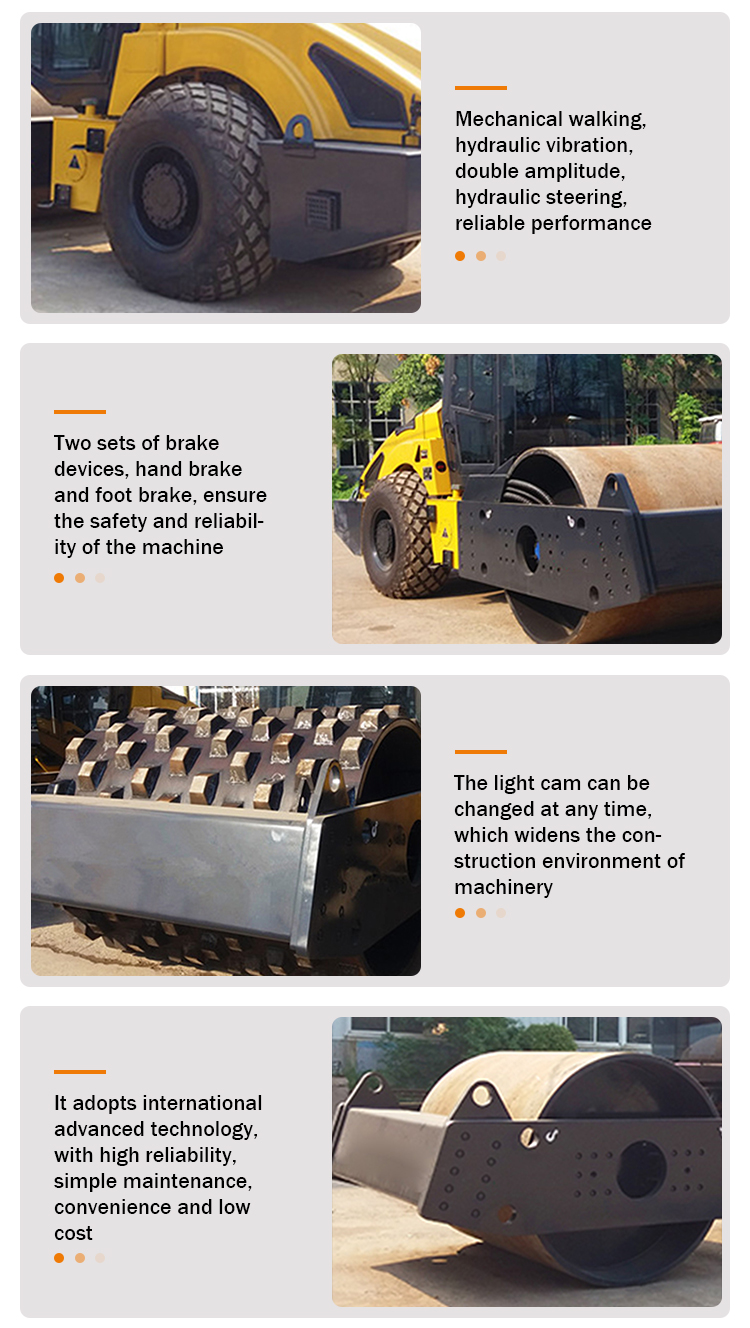

Vehicle Details

Mechanical walking hydraulic vibration, double amplitude hydraulic steering reliable performance

Two sets of brake devices, hand brakeand foot brake,ensure the safety and reliability of the machine

The light cam can be changed at any time,which widens the con-struction environment of machinery

lt adopts internationa advanced technology with high reliability, simple maintenance convenience and lowcost
