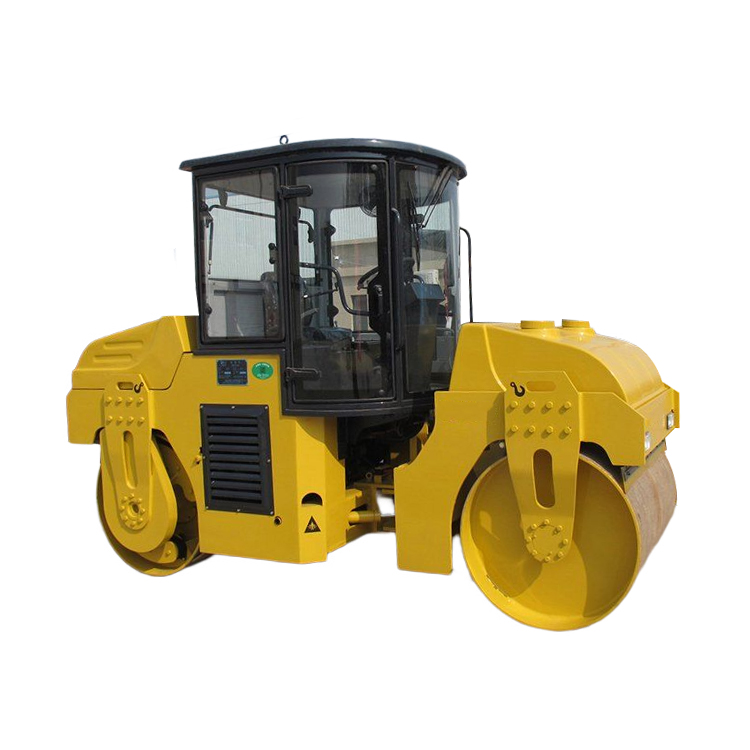

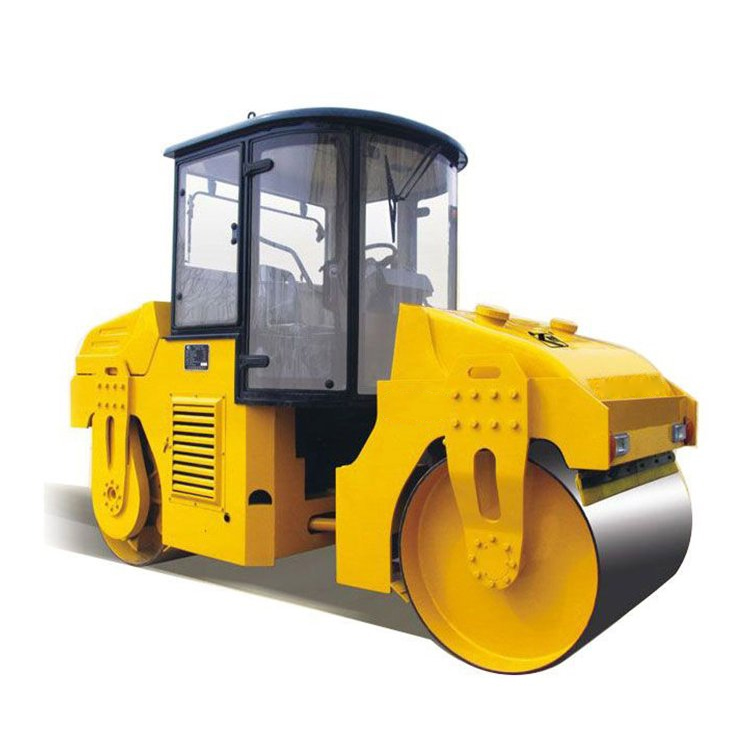

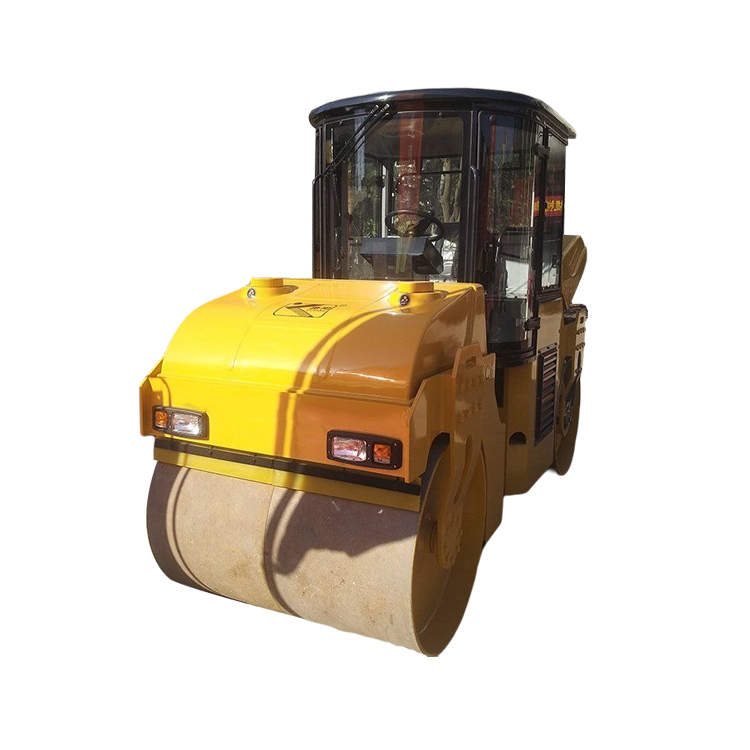

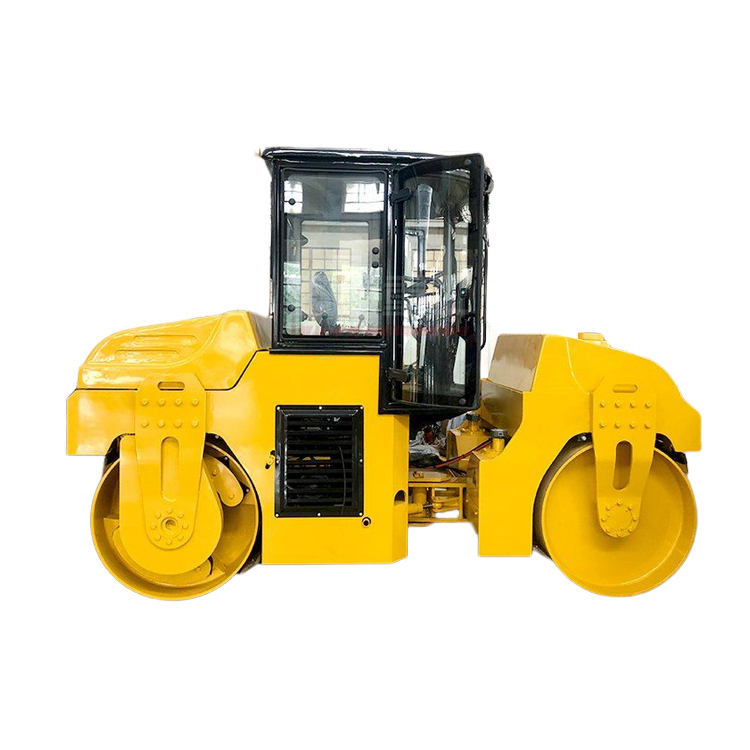

6T Double Steel Roller

This 6 tonne roller is suitable for compaction of various non-cohesive materials such as soil, gravel, gravelly soil, crushed stone, sand and gravel mix, rock fill and various kinds of stabilised soil, etc. for roadbed and pavement works.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

LTC6 Road roller Main Features
1. Hydraulic vibration and oscillation, great centifugal force and high compactness
2.This roller has articulated frame, hydraulic steering, small turning raming radius and flexible drive
3. Anticorrosive spray water system and fool capacity water tank and electric pressurized sprinkler.
4. Shock-proof stock absorber for long life and operate comfortable.
5. Close performance is extremely fine and work close building 6. Secure hydralic brake.



Wild Applications of Road Roller

The roller can work flexibly in the narrow construction area, mainly used for ditch foundation, road, sports ground compaction leveling, can also be used for compaction of asphalt surface operation, the machine is good to the edge, making the compaction operation more rigorous and refined.

Equipped with export-standard brand-name power, strong horsepower, making the roller in the compaction operation performance is more stable, can be a long time continuous operation, compaction efficiency is high, easy for construction workers to catch up with the progress of the project, effectively shorten the construction period, there will be no delay in the phenomenon of the construction period.

Technical Parameters

MODEL
LTC6
Operating Mass
kg
6000
Static Linear Load
N/cm
232.4
Drum diameter
mm
950
Rolling width
mm
1320
Vibration amplitude
mm
0.62
Vibration Frequency
Hz
46
Centrifugal Force
kN
55
Travel Speed 1st gear 2nd gear
km/h
2.5/7.5
Grade Ability
%
>20
Overall Dimension
mm
3690x1600x2700
Diesel model
498BG
Diesel speed
r/min
2200
Diesel power
kw
42
Water tank capacity
L
435

Vehicle Details

This hydraulic drive road roller, its working quality is 6 tonnes, the whole classified, small size.

The engine of this 6 tonne road roller adopts branded engine with low fuel consumption and low noise. This 6 tonne road roller front wheel hydraulic vibration, can be steered by hydraulic, in addition, its climbing ability is strong. Hydrostatic rear wheel drive, can achieve stepless speed change, one lever manipulation, control lighter and more flexible, effectively reduce labour intensity.
