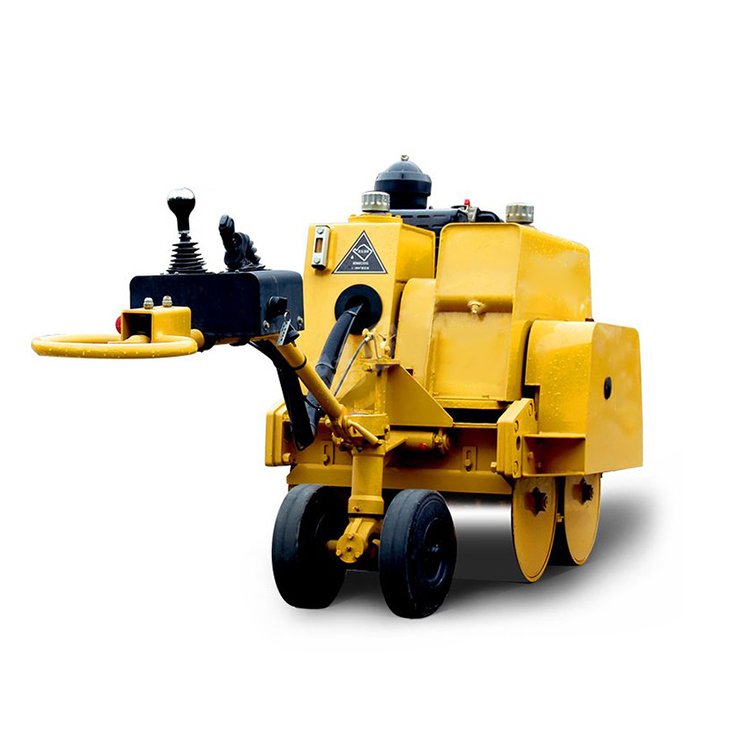

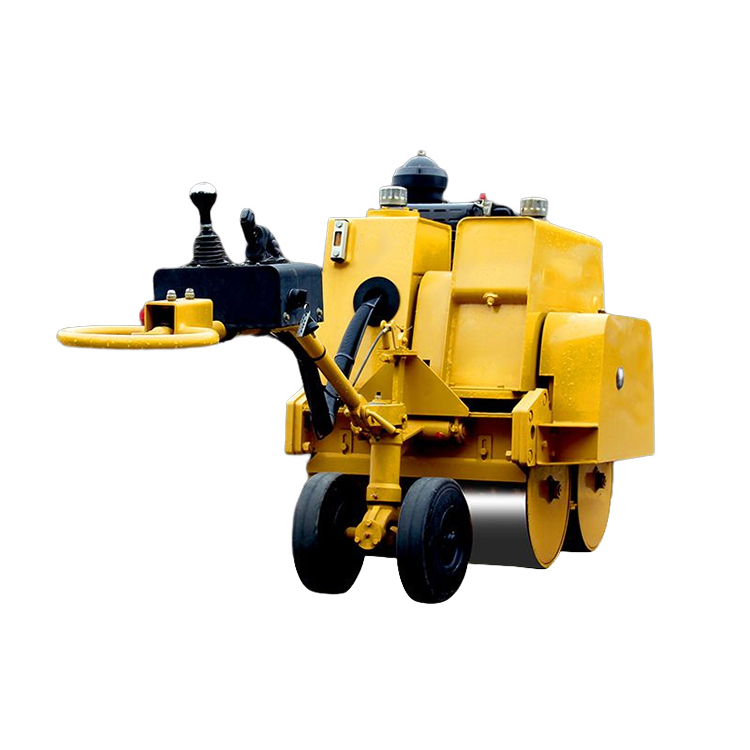

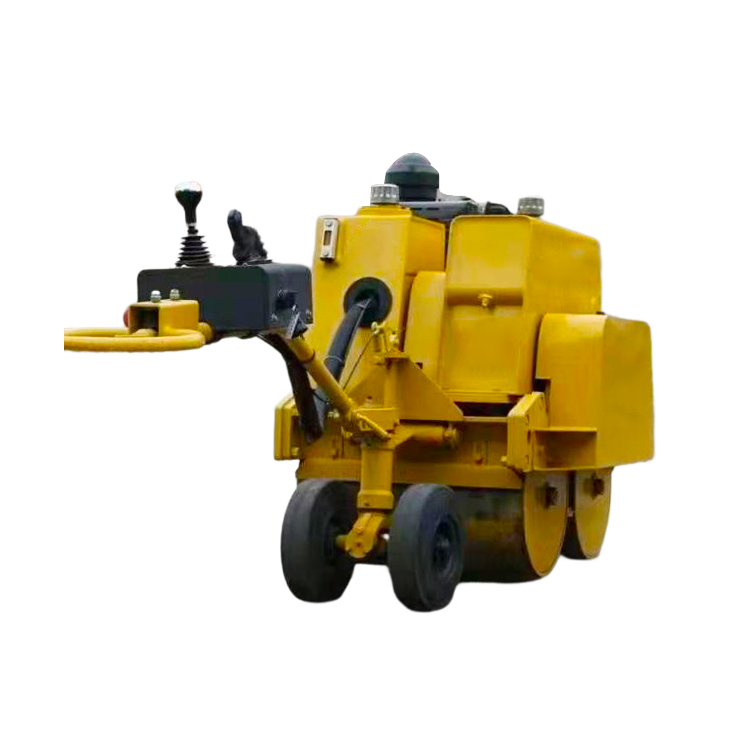

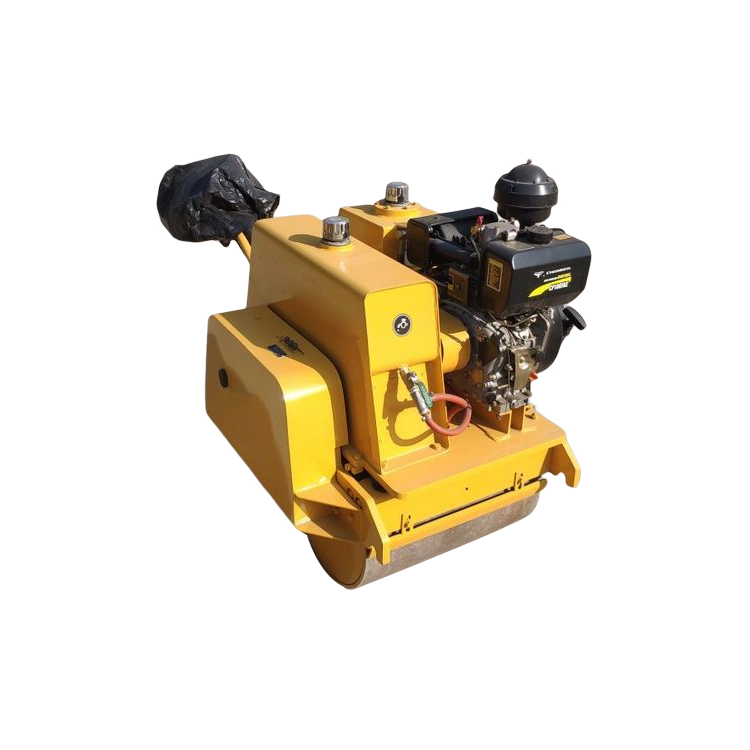

LTC08H Road roller has the advantages of high construction efficiency and short construction time. Due to its good flexibility, simple operation and adaptability to various complex environments, its construction efficiency can be several times higher than other machines.
Main features.
*Strong climbing ability.
*Advanced technology, light and comfortable handling, safe and reliable.
*High compaction degree and high working efficiency.
*Light steering, small turning radius, flexible maneuverability.
*Unique appearance, compact structure, low center of gravity, smooth driving, good front and rear view.
The roller can work flexibly in the narrow construction area, mainly used for ditch foundation, road, sports ground compaction leveling, can also be used for compaction of asphalt surface operation, the machine is good to the edge, making the compaction operation more rigorous and refined.
Equipped with export-standard brand-name power, strong horsepower, making the roller in the compaction operation performance is more stable, can be a long time continuous operation, compaction efficiency is high, easy for construction workers to catch up with the progress of the project, effectively shorten the construction period, there will be no delay in the phenomenon of the construction period.
Model
|
LTC08H
|
|
Operating Mass
|
kg
|
770
|
Static Linear Load
|
N/cm
|
62/62
|
Vibration Amplitude
|
mm
|
0.25
|
Vibration Frequency
|
Hz
|
48
|
Centrifugal Force
|
KN
|
12
|
Travel Speed
|
Km/h
|
0-4
|
Grade Ability
|
%
|
40
|
Turning Radius
|
mm
|
2700
|
Turning Angle
|
°
|
±30
|
Overall Dimension
|
mm
|
2400×880×1100
|
Vibration Drum Diameter
|
mm
|
400
|
Vibration Round Width
|
mm
|
600
|
Wheelbase
|
mm
|
470
|
Diesel Power
|
kw
|
5.68
|
Diesel Model
|
CF186F
|
|
Rated Speed
|
r/min
|
2600
|
Diameter X Travel
|
mm
|
86×70
|
Discharge Volume
|
mL/r
|
10
|
Drum Thinckness
|
mm
|
13
|
Drum width
|
mm
|
60
|
Drum Dirmeter
|
mm
|
40
|
Fuel Oil Capacity
|
L
|
5.5
|
Water Capacity
|
L
|
32
|
Hydraulic Oil Capacity
|
L
|
10
|
Fuel Consumption
|
2K-100
|
