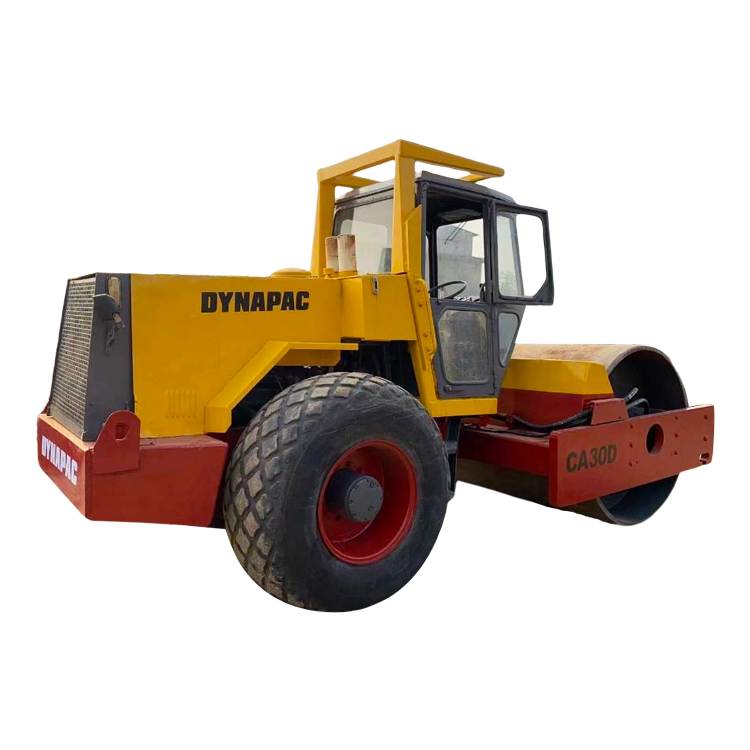

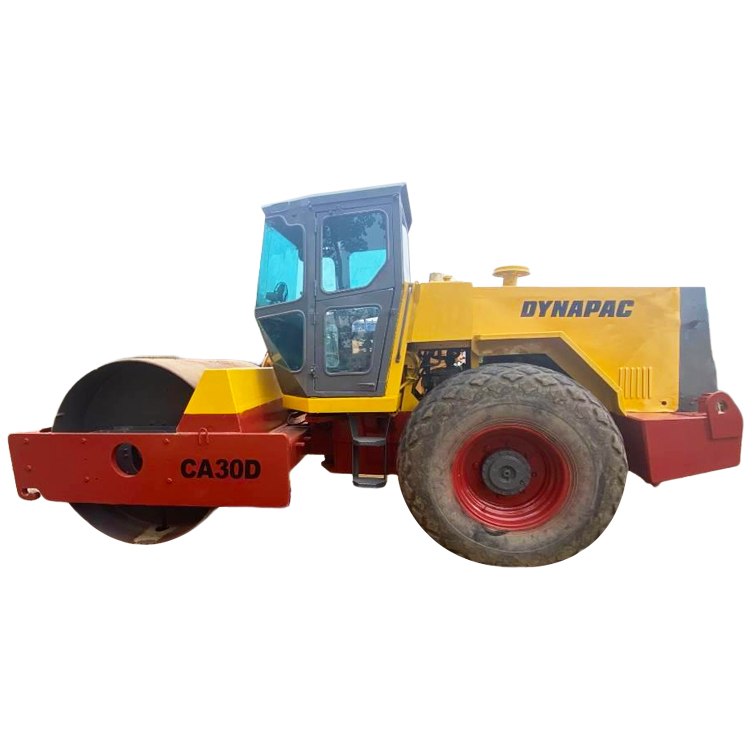

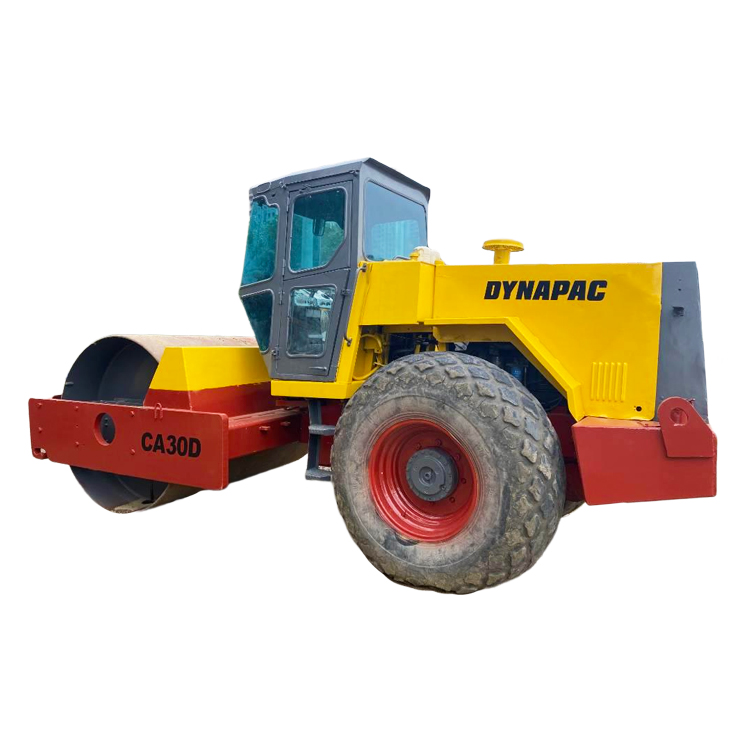

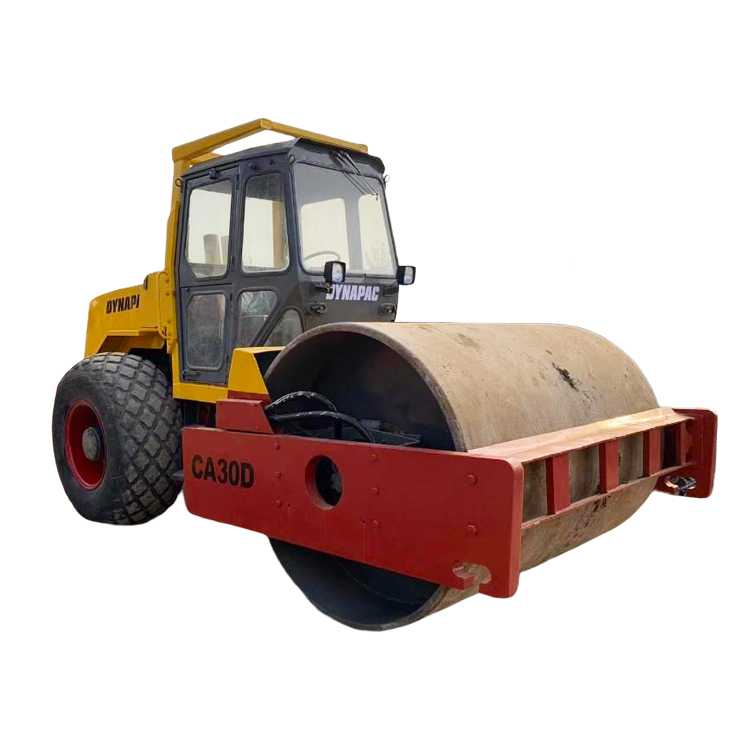

The CA30D is designed for compaction of pipe trenches, road shoulders and confined spaces associated with fill work. The roller is also suitable for maintenance work on dams, power stations, parking lots and airports.
The roller can work flexibly in the narrow construction area, mainly used for ditch foundation, road, sports ground compaction leveling, can also be used for compaction of asphalt surface operation, the machine is good to the edge, making the compaction operation more rigorous and refined.
Equipped with export-standard brand-name power, strong horsepower, making the roller in the compaction operation performance is more stable, can be a long time continuous operation, compaction efficiency is high, easy for construction workers to catch up with the progress of the project, effectively shorten the construction period, there will be no delay in the phenomenon of the construction period.
Machine type
|
|
roller type
|
vibrating, single steel
|
Road roller tonnage level
|
heavy
|
performance parameter
|
|
Machine working weight (kg)
|
13550
|
Gradeability(%)
|
30
|
Front wheel distribution weight (kg)
|
4450
|
Rear wheel distribution weight (kg)
|
7850
|
Static line pressure front wheel/rear wheel (N/cm)
|
368
|
Vibration frequency (Hz)
|
33/33
|
Vibration wheel width (mm)
|
2130
|
Exciting force (KN)
|
300/146
|
Nominal amplitude (mm)
|
1.7/0.8
|
Motor
|
|
engine model
|
4BTA 3.9C (*)
|
Rated power KW (HP)
|
82
|
Rated speed(rpm)
|
2200
|
Manufacturer
|
Cummins
|
