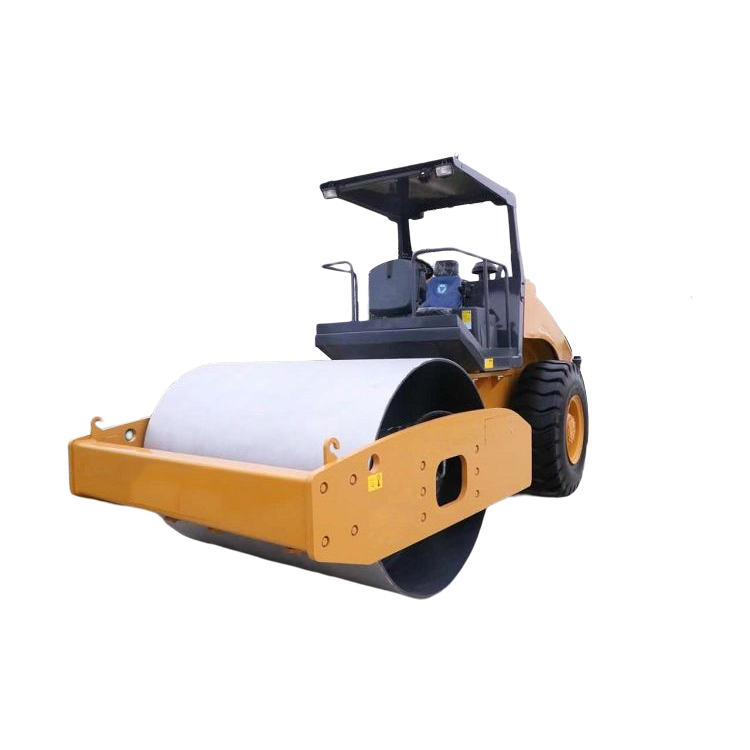

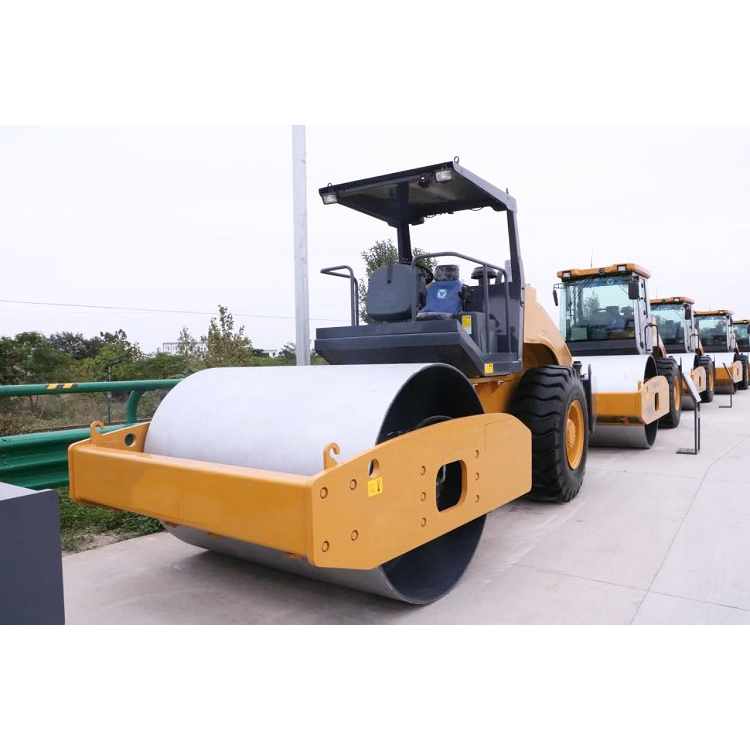

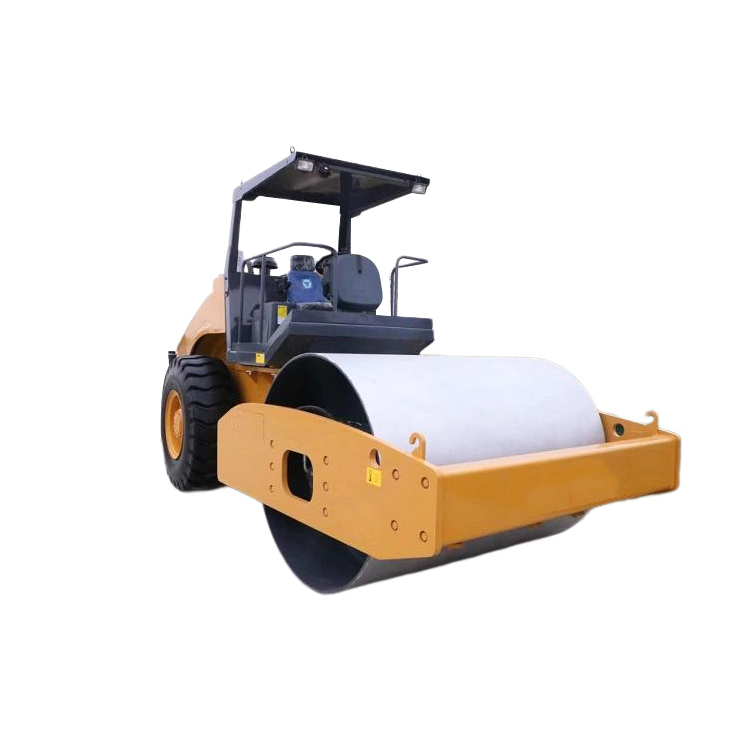

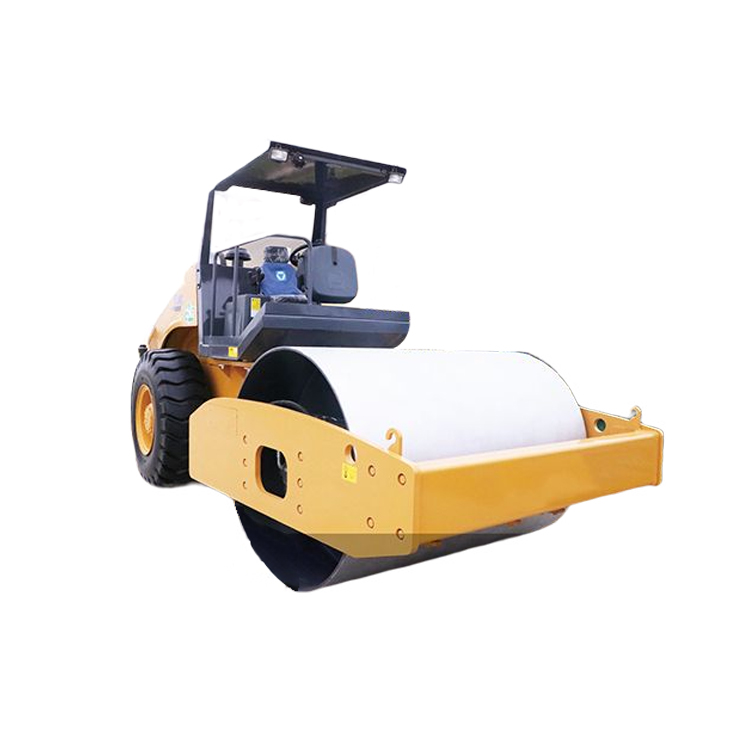

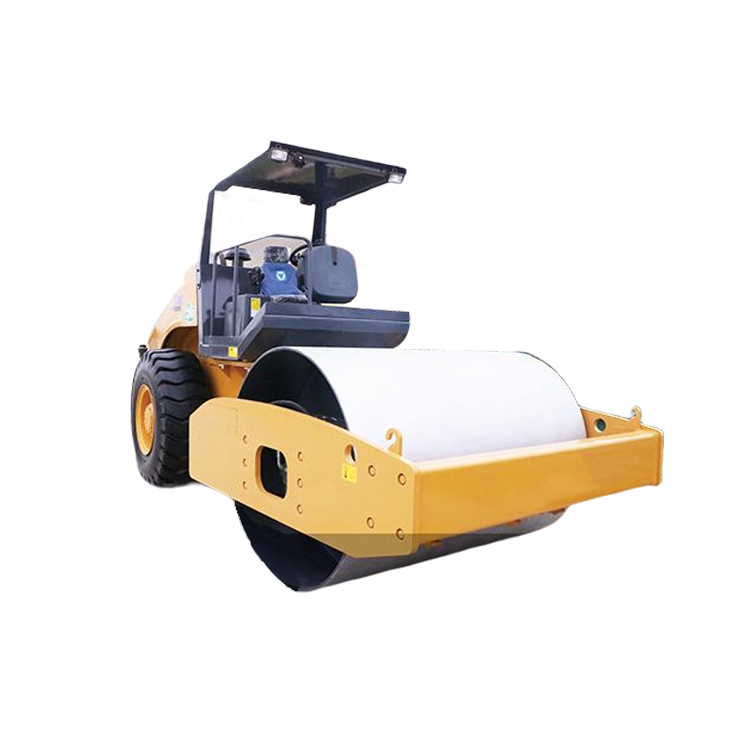

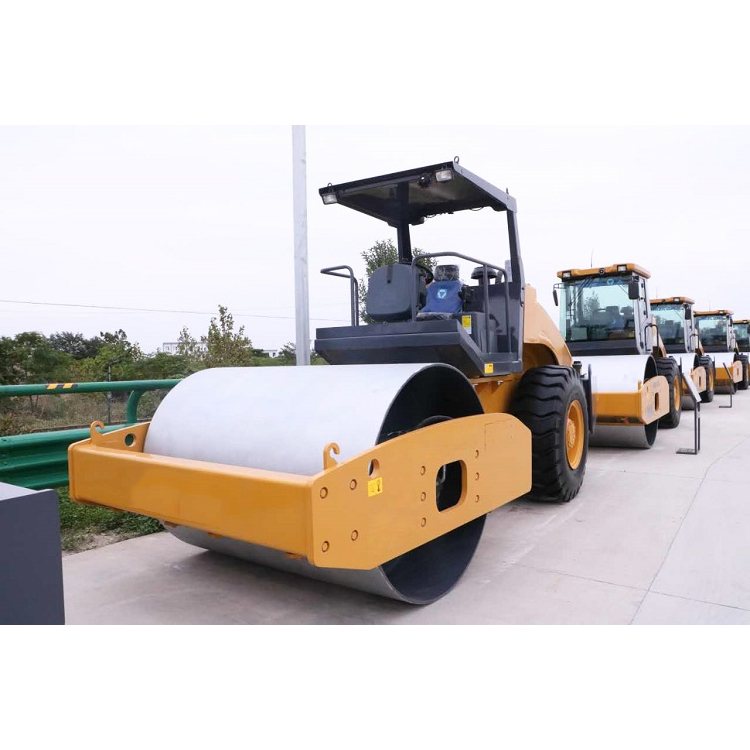

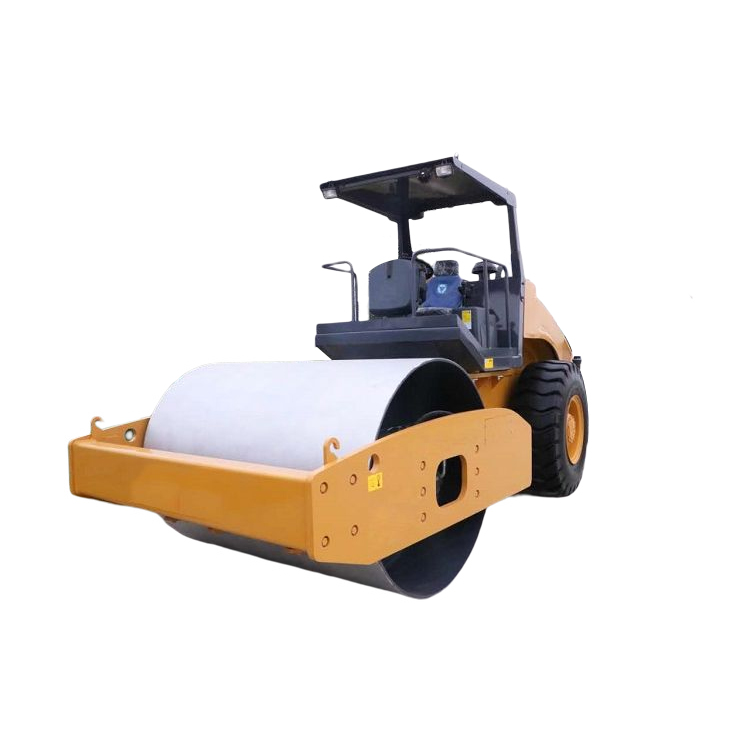

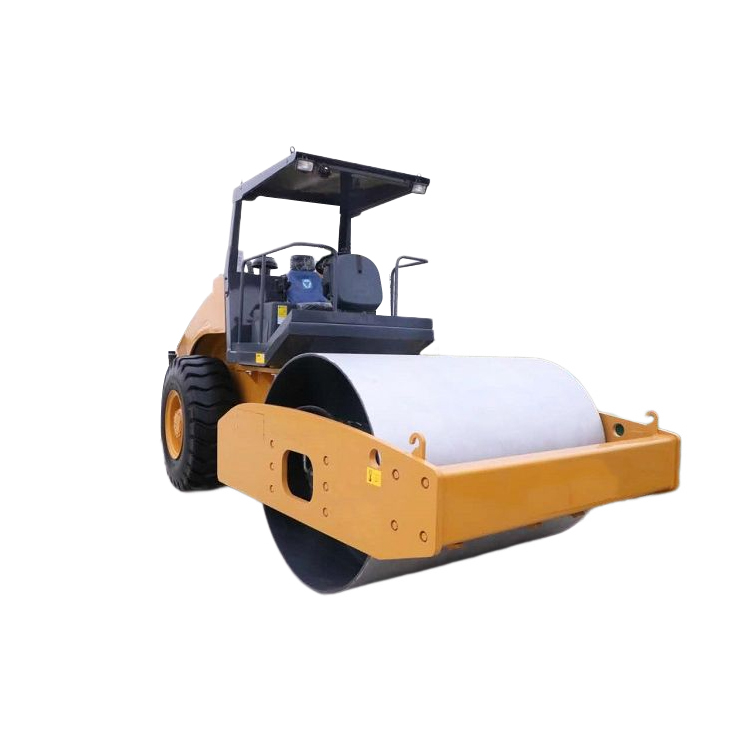

XH103 vibratory roller has a very high staticline load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayeysoil, etc.
It is also suitable to the com-paction of concrete and stabilized soil base materials in various large projects; Thus, it is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.
The roller can work flexibly in the narrow construction area, mainly used for ditch foundation, road, sports ground compaction leveling, can also be used for compaction of asphalt surface operation, the machine is good to the edge, making the compaction operation more rigorous and refined.
Equipped with export-standard brand-name power, strong horsepower, making the roller in the compaction operation performance is more stable, can be a long time continuous operation, compaction efficiency is high, easy for construction workers to catch up with the progress of the project, effectively shorten the construction period, there will be no delay in the phenomenon of the construction period.
Model
|
LT623B
|
|
Operating mass
|
kg
|
23000
|
Static linear load
|
N/cm
|
560
|
Vibrating amplitude
|
mm
|
1.9/0.95
|
Vibrating frequency
|
Hz
|
30
|
Centrifugal force
|
KN
|
430/330
|
Travel speed
|
km/h
|
10.5
|
Grade ability
|
%
|
30
|
Turning radius
|
mm
|
7500
|
Overall dimension
|
mm
|
6435x2350x3090
|
Vibration round width
|
mm
|
2100
|
Wheelbase
|
mm
|
3380
|
Diesel model
|
SC8D180
|
|
Diesel power
|
KW
|
132
|
The first gear stepless transmission ensures the optimal working speed under different working conditions.
Dual frequency and amplitude meet there quirements of different working conditions.
Optimized vibration drum structure and vibration parameters ensures moother compaction surface.
Provide service, parking and emergency functions to ensure driving safety.
