Backhoe is a multifunctional construction machine integrating loading and excavating functions. Commonly known as "busy at both ends". During the construction, the operator only needs to rotate the seat to replace the working end. Widely used in road maintenance, farmland development, take mud brick, pipeline construction, cable construction, parking greening and road excavation, crushing and so on.
Product Advantage
1. Upgrade safety seat
User-friendly design,equipped with seat belts,more comfortable driving,less fatigue,greatly improving comfort and work efficiency.
2.Full hydraulic steering system
Make the steering smoother and quicker to ensure the safety of the driver
3. LED high quality lamp group saves electricity
High strength,longer service life.
4.Wear-resistant solid tire
Solid and thick rubber rings are used before and after,which greatly increase the ability of forklifts to adapt to different roads and grades.
5. Excellent daily maintenance and repair
Simple mechanism saves precious time, specially designed for easy and fast maintenance, low maintenance cost, saving you time and money.
The loader is a kind of earthmoving construction machinery widely used in highway, railway, construction, hydropower, harbour, mine and other construction projects, which is mainly used for shovelling bulk materials such as soil, gravel, lime, coal, etc., and can also do light shovelling and digging work for ore and hard soil. It can also be used for light shovelling and digging of ores and hard soil, etc. It can also be used for bulldozing, lifting and loading and unloading of other materials such as timber by replacing different auxiliary devices.
Work Quality | 8400 kg |
Rated Power | 74.5kW |
Loading Side Unloading Height | 2691 mm |
Loading End Rated Load | 2000 kg |
Excavation End Rated Load | 360 kg |
Largest Traction | 73 kN |
Loading End Unloading Distance | 713 mm |
Overall Length | 7299 mm |
Vehicle Transportation Height | 3579 mm |
The Maximum Width Of The Whole Machine | 2280 mm |

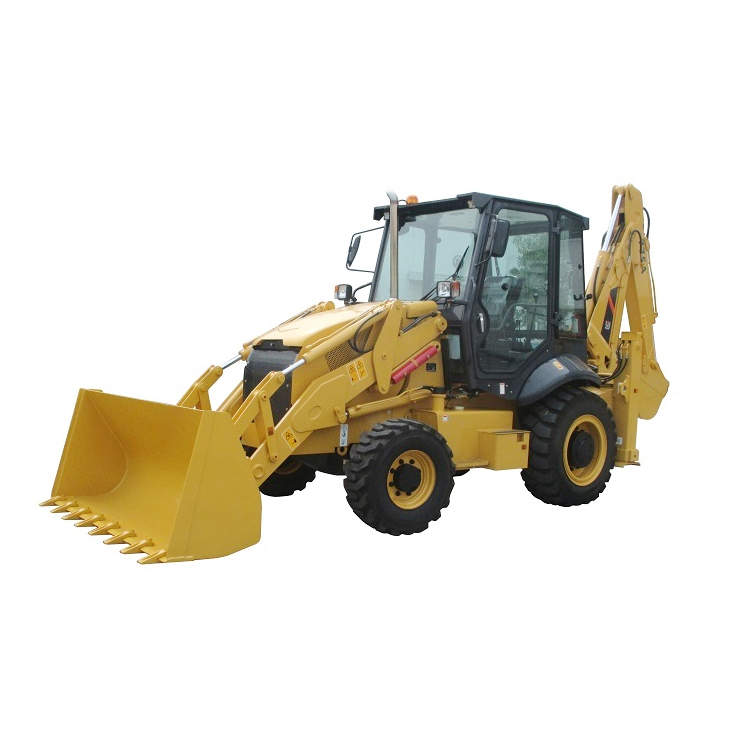

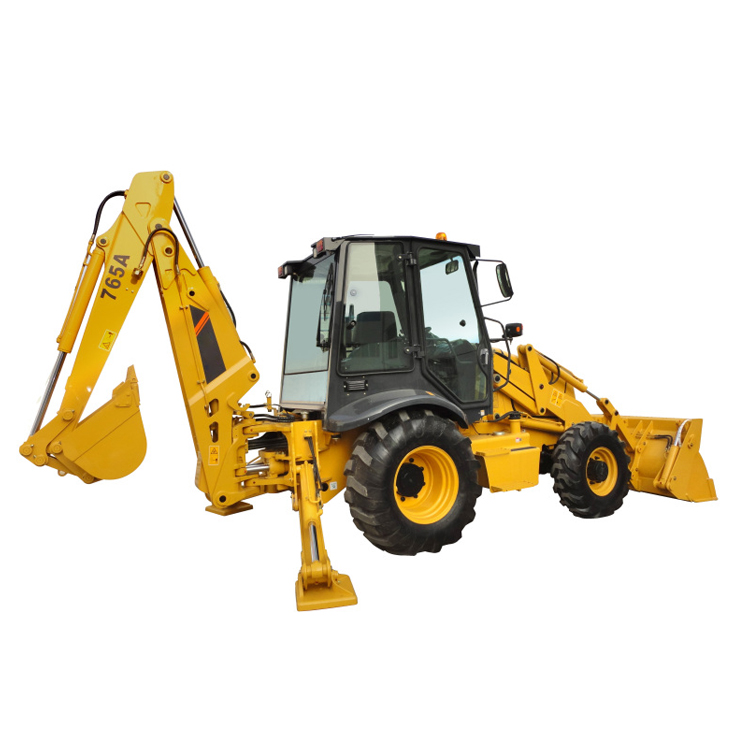

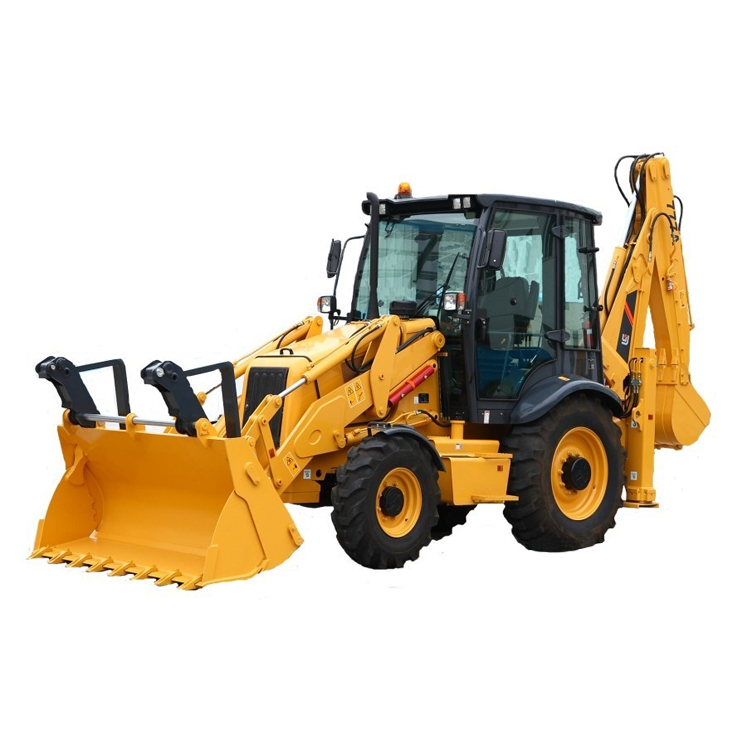

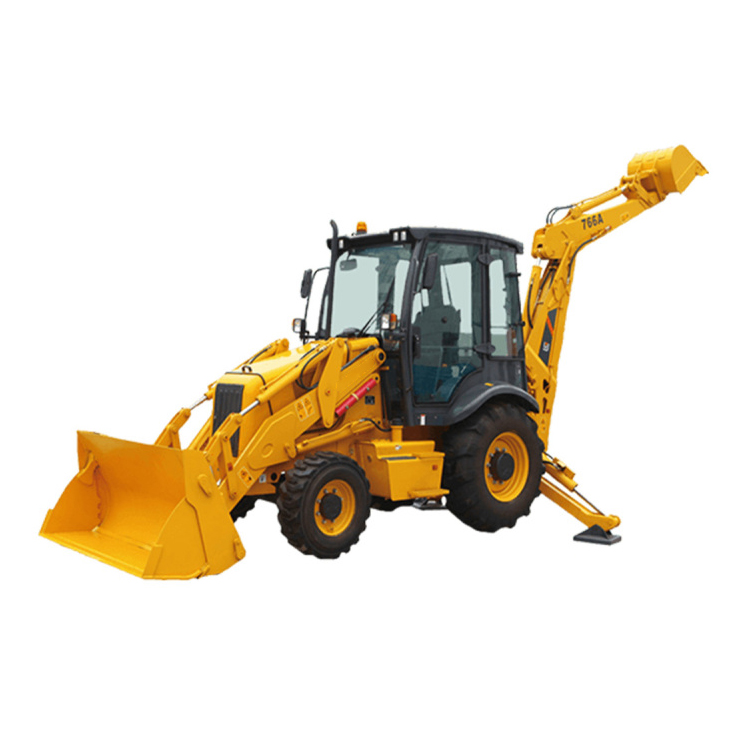

LiuGong 777 backhoe loader with loading end at the front and digging end at the rear, traveling at 40km/h, can be very conveniently transferred from one work site to another, and is an ideal work tool for emergency repair of municipal utilities such as trench digging, highway pavement maintenance, and laying of water mains and gas pipes. It has the following advantages:
Integral frame structure (non-articulated frame), good excavation stability, suitable for excavation work;
The excavation working device adopts side-shifting type, which can be shifted sideways according to the need, making the operation range of excavation and crushing large; without moving the whole machine, it can realize the square pit excavation operation
