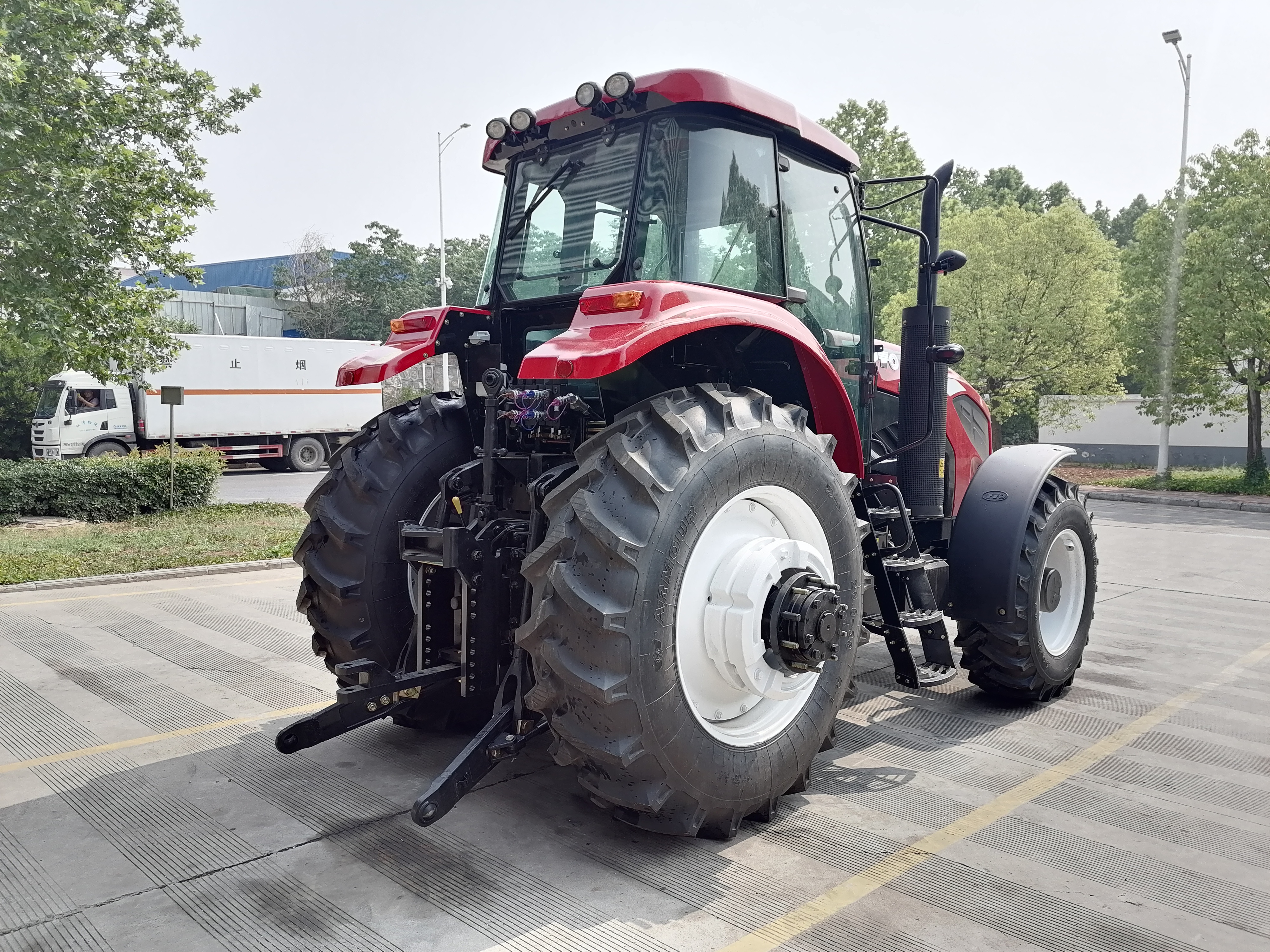

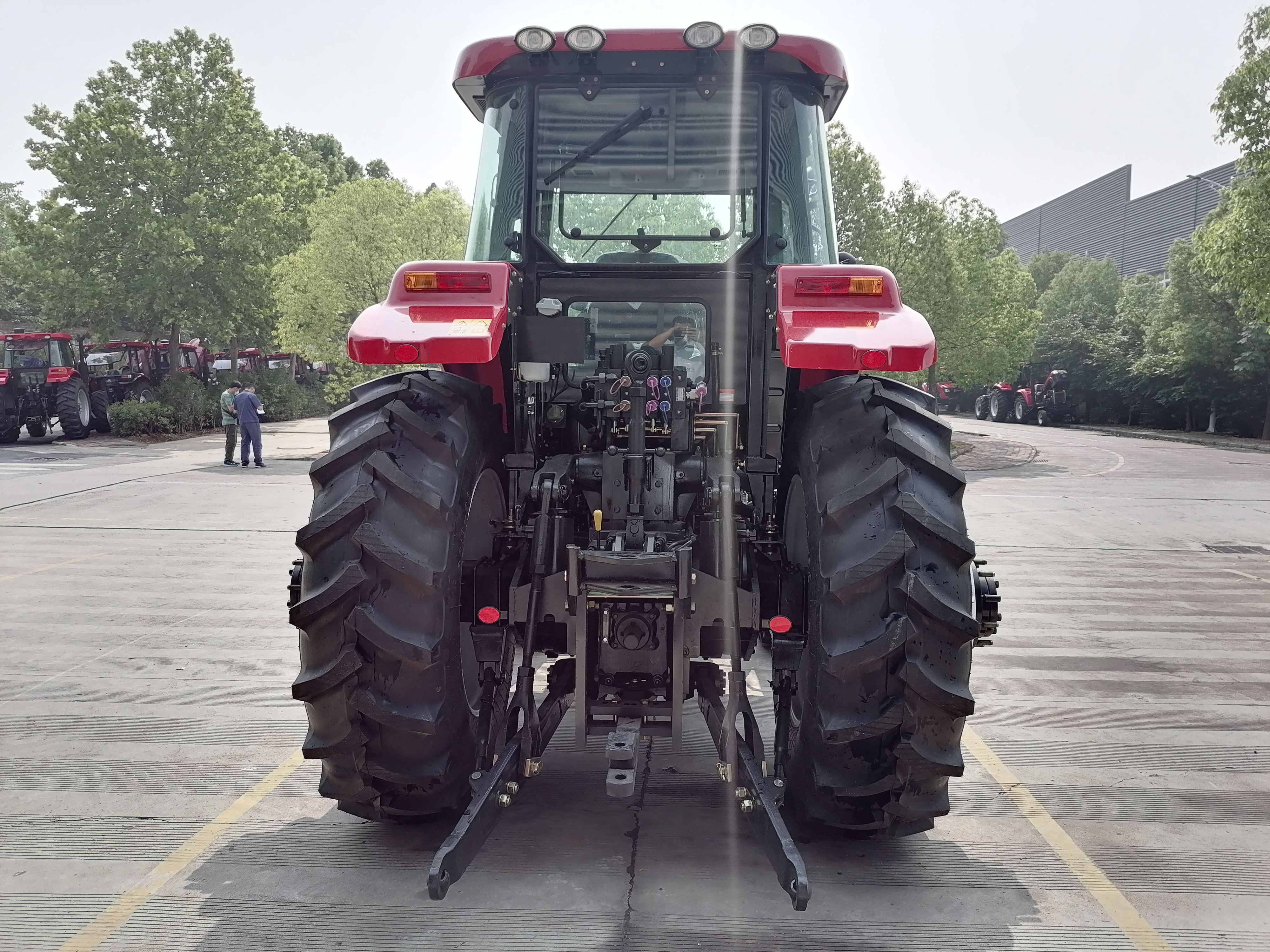

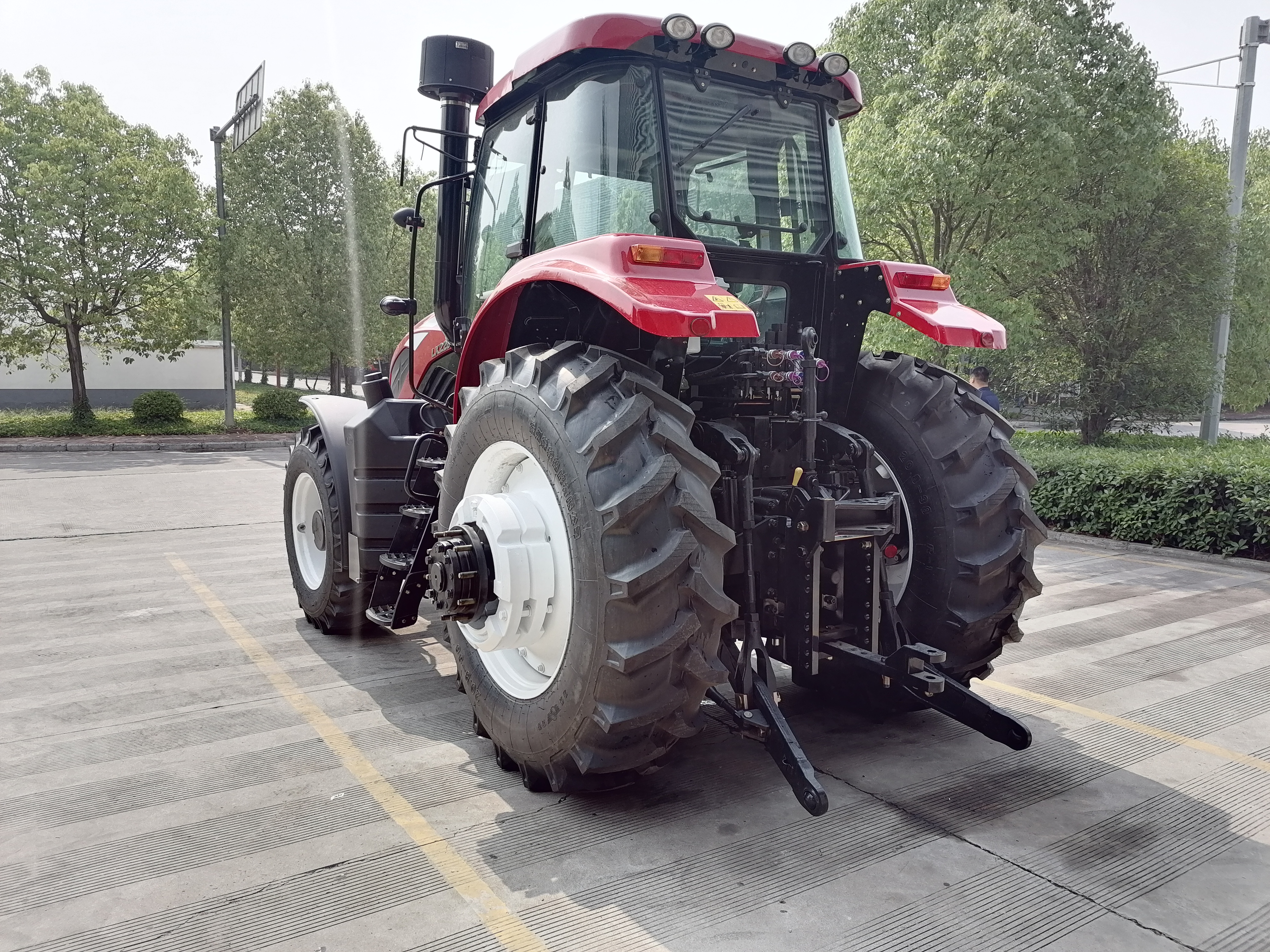

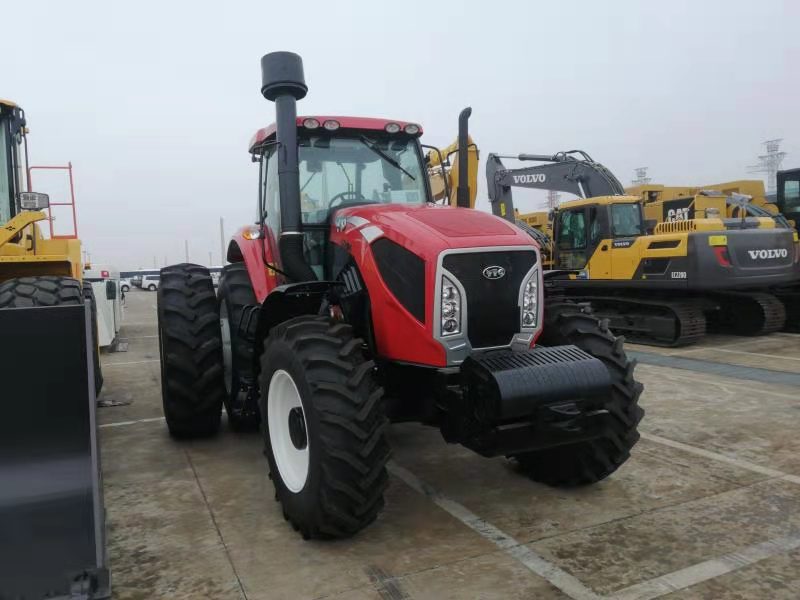

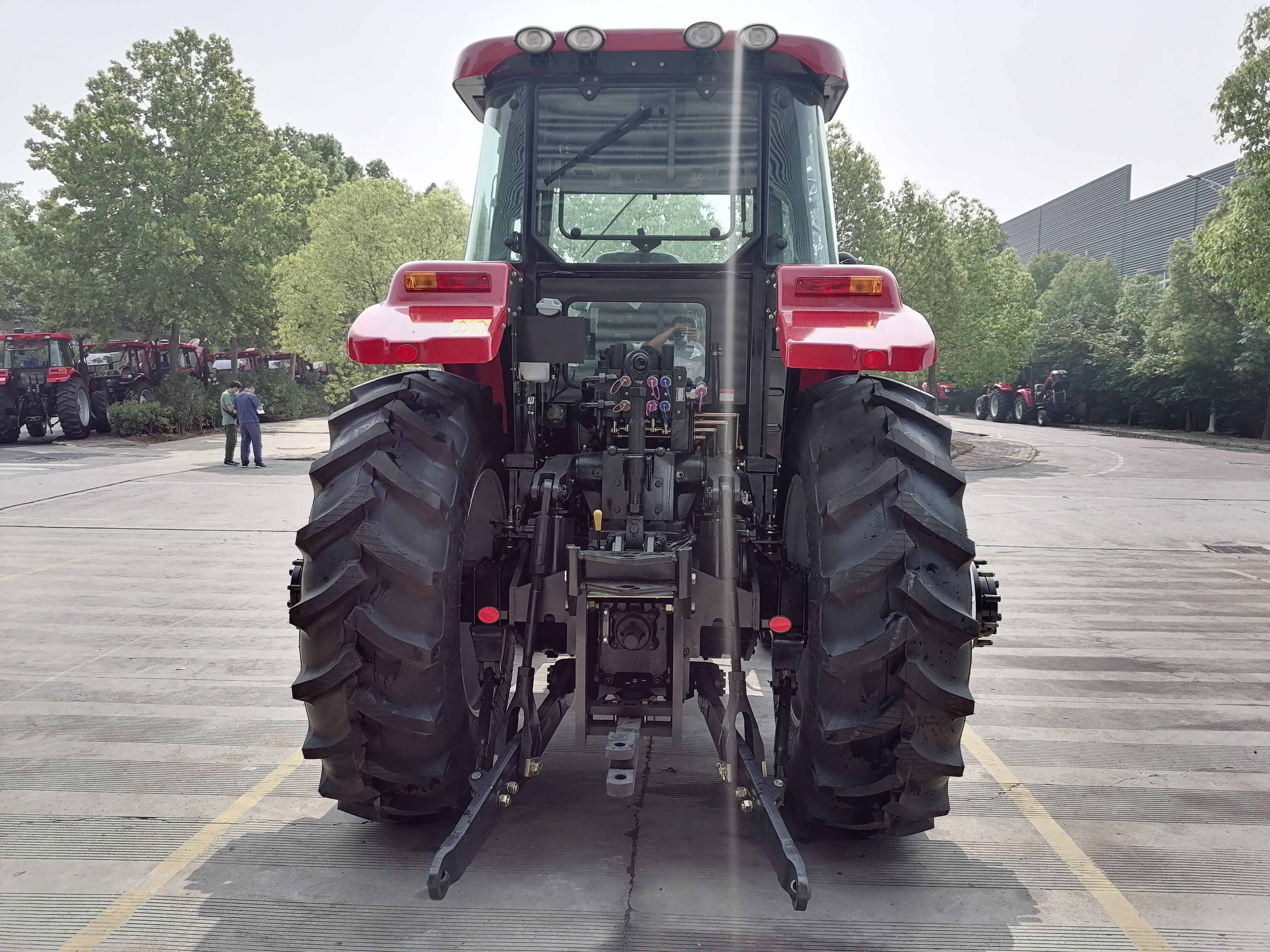

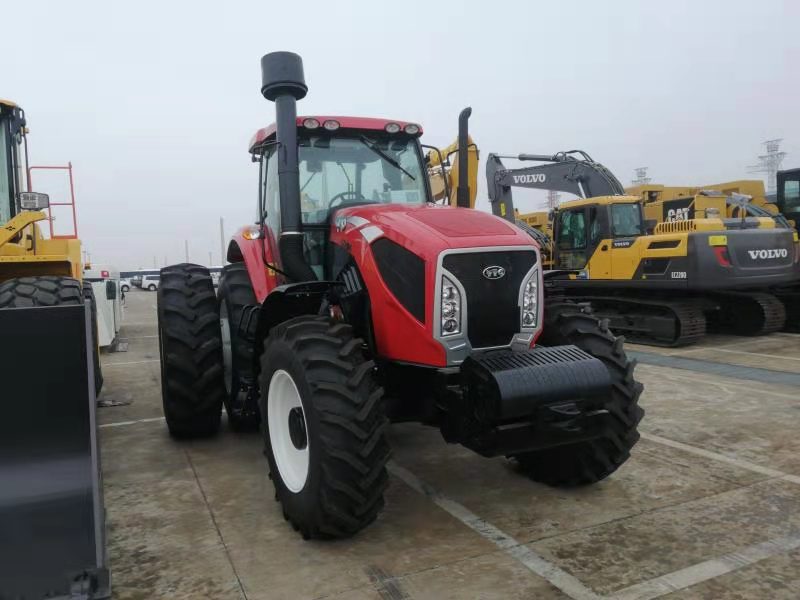

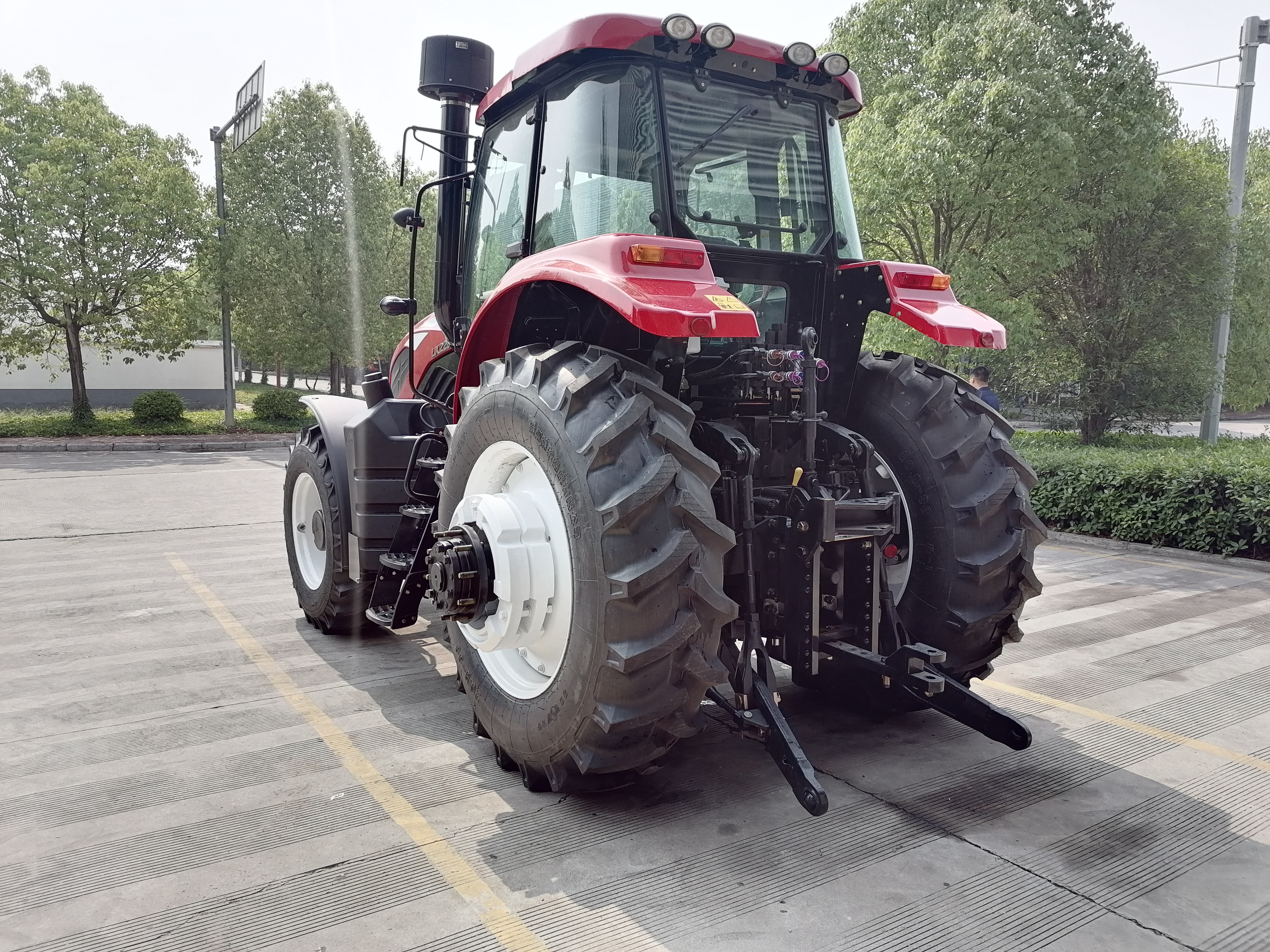

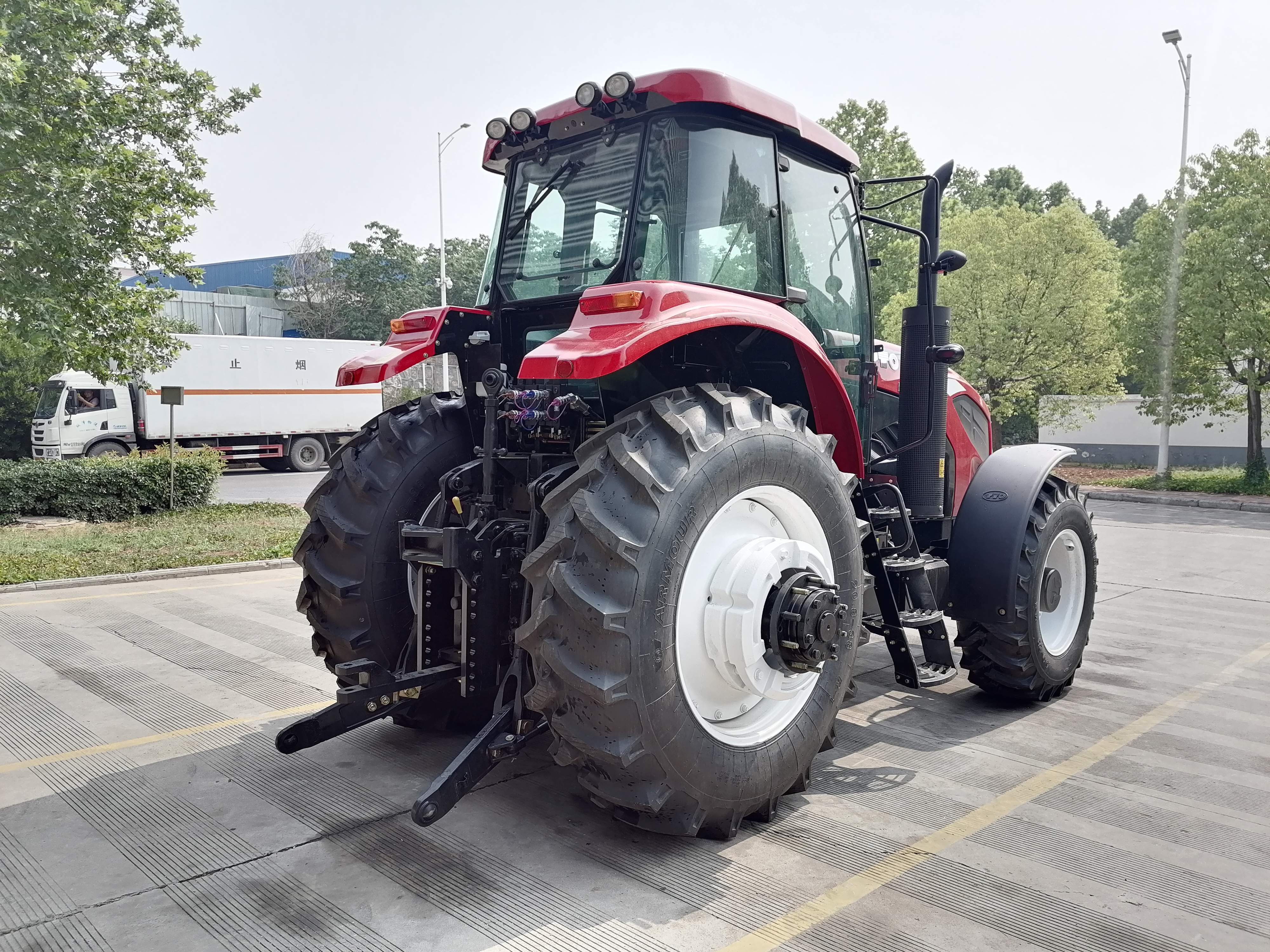

YTO LX2204 Farm Tractor, is a high-horsepower wheeled tractor independently developed by China YTO with independent intellectual property rights.
Farm tractor manufacturer, simple operation, wide range of applications, its rotary plowing in the orchard, greenhouse furrowing, terrace rotary plowing, slope furrowing and other geographical operations, as well as in the cotton furrowing, maize furrowing, grapes burying vines, tea plantation furrowing fertilizer, tobacco soil cultivation, seedling weeding and other economic crops, such as mid-plowing, loosening the soil, weed control, and so on.
Configuration
|
YTO-LX2204
|
Diesel engine
|
SC9D250G2
|
Clutch
|
Single function
|
Shift gear system
|
12+4 shift
|
Tyre size
|
16.9-28/20.8-38 with double rear tyre
|
Balance weight
|
Front 18/Rear 4
|
Cab
|
Streamlined
|
Air conditioner
|
Include
|
Traction system
|
Swing traction
|
PTO output rotating speed
|
540/1000 rpm
|
Hydraulic output
|
3 set
|
Suspension system
|
Ⅲ typre
|
Lift system
|
Position adjustment with swift lift
|
CD
|
Include
|
Air brake
|
Not include
|
Toolbox
|
Include
|
Tractor model
|
YTO –LX2204
|
|
Drive type
|
4×4
|
|
Overall dimension
|
mm
|
5430×2750×3130
|
Front wheel track
|
mm
|
1552-2252(1904)
|
Rear wheel track
|
mm
|
1700-2288(1800)
|
Min. ground clearance
|
mm
|
420
|
Min. turning radius/no single-side brake
|
m
|
5.0/6.2
|
Min. operating weight
|
kg
|
7600
|
Gears of transmission f/r
|
12/4
|
|
Forward speed
|
km/h
|
2.00-36.69
|
Reverse speed
|
km/h
|
4.44-14.48
|
Engine model
|
SC9D250G2
|
|
Engine rated power
|
kW
|
162
|
Engine rated RPM
|
r/min
|
2200
|
Rated fuel consumption
|
g/k W .h
|
≤235
|
Front tyre
|
16.9-28
|
|
Rear tyre
|
20.8-38
|
|
Min. lift capacity
|
kN
|
≥47
|
PTO shaft type
|
Rear, independent and synchronous
|
|
PTO shaft rotation speed
|
r/min
|
540/1000
|
Max. balance weight f/r
|
kg
|
1260
|
Max.PTO power
|
kW
|
≥145
|
Tilling depth control type
|
Position control
|
Main Structural Features:
1. Assembled with famous brand engine, strong power.
2. The whole machine is self-supporting and has large traction, which can be matched with heavy composite implements for operation.
3. Strong, reliable use; fast turnaround speed, high operating efficiency.
4. Long service life of the assembly; push-button control, easy to manipulate, no need to adjust, convenient maintenance; power output base with buffer device, power transmission is more stable, more reliable use.
