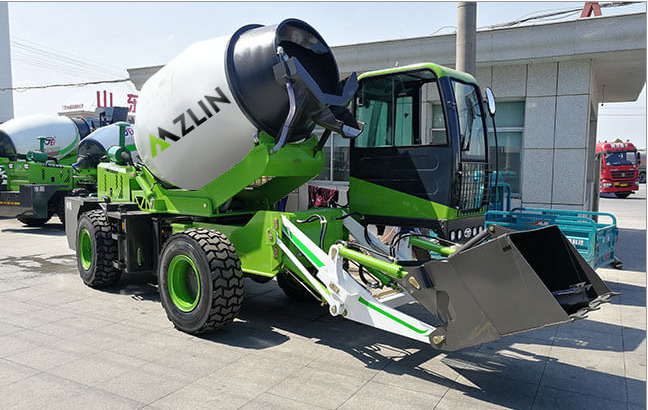

NEW 3.5 m³ Self-Loading Mixing Truck

Product Description

New 3.5 m³ self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270°, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.

Chat [email protected] Inquiry

RELATED PRODUCTS

1.2 m³ Self-Loading Mixing Truck

Model: Yunnai 490 supercharged
Rated power: 55kw
Water supply method:Time rela
Gears: 4 forward 4 backward Fuel
Drum geometry capacity (L): 1700
Drum rotation speed: 13 rpm
Mixing capacity: 1.2 cubic meters/tank
Max. speed(km/h): 30
Max. climbing degree(°): 30



Get Quotation

1.8 m³ Self-Loading Mixing Truck

Model Yunnai: 490 supercharged
Rated power: 78kw
Gears: 4 forward 4 backward Fuel Tank: 63 Liters
Pump: CBFC50/40 Motor: BM5-160
Drum geometry capacity (L): 2680
Drum rotation speed: 13 rpm
Mixing capacity: 1.8 cubic meters/tank



Get Quotation

4.0m³ Self-Loading Mixing Truck

Model: Yuchai 4108 supercharged
Rated power: 91kw
Model: ZL-315 power shift gearbox
Water tank capacity (L): 920L
Drum geometry capacity (L): 6000L
Drum rotation speed: 20 rpm



Get Quotation

5.5 m³ Self-Loading Mixing Truck

Model: FAW Xichai 6110 supercharged
Rated power: 92-132kw
Motor: American Sonny 56 motor
Gears: 4 forward 4 backward Fuel
Drum geometry capacity (L): 7800
Drum rotation speed: 20 rpm
Max. speed(km/h): 35
Max. climbing degree(°): 40
Min. turning radius(mm: 5300



Get Quotation



PRODUCT ADVANTAGES

ZLIN Self loading concrete mixer
1. Self-loading mixer truck integrated design
Easily replace mixer + loader + transporter
2. Self-loading mixer truck save human resources
The integration of feeding and stirring saves human resources
3.Self-loading mixer truck stirring more quickly and evenly
Double helix mixing screw, rapid and uniform discharge
4. Self-loading mixer truck strong tire grip
Preferred slotted tires for better grip and adaptability to all road conditions

Mobile portable cement mortar mixer mobile self-loading concrete mixer
Self-loading concrete mobile cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed,measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixeris just like a small car and the operator can drive it to where it needs to go. Self loading mobile concrete mixer is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

What About ZLIN Self Loading Concrete Mixers? – Export Cases

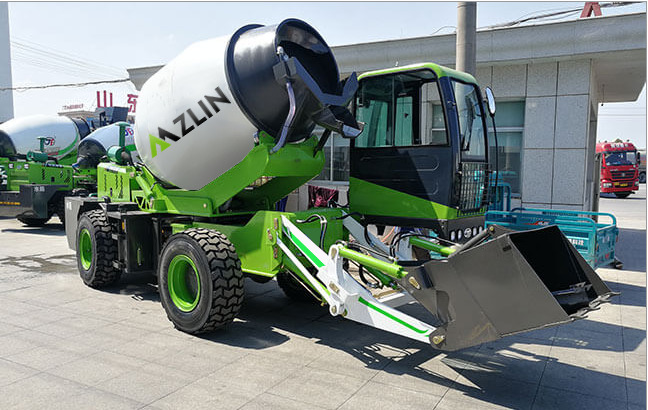

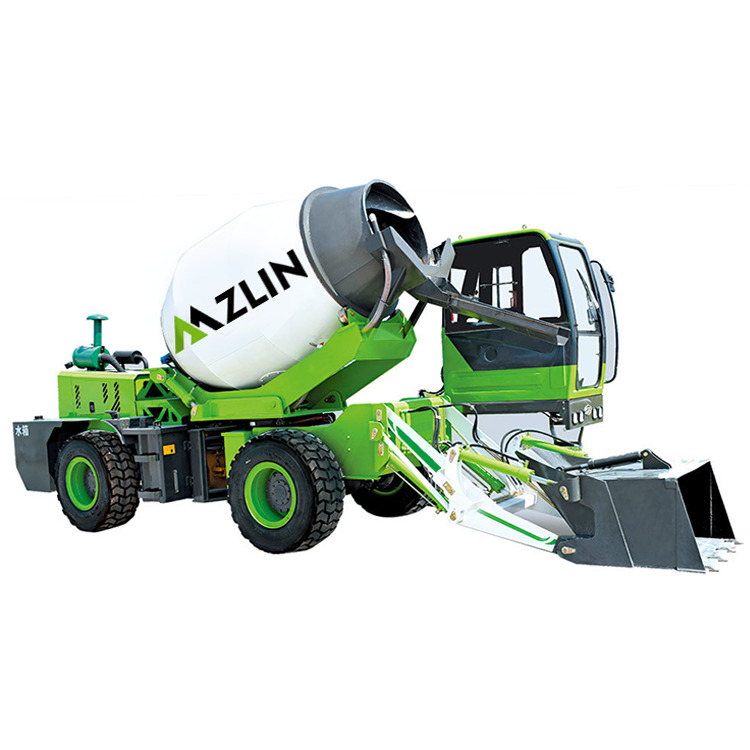

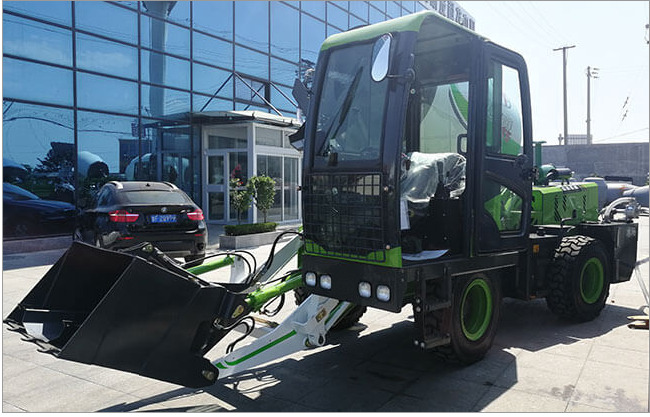

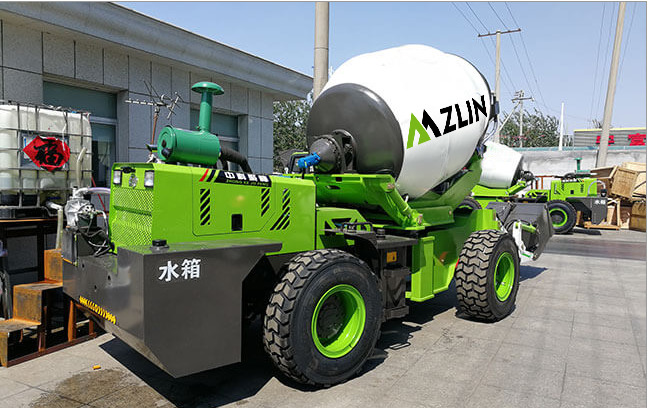

ZLIN has exported Two Self Loading Concrete Mixer to the Philippines in February 2022 . Now I’ll show you some photos before the shipment. As you can see, this Self Loading Concrete Mixer for sale in the Philippines has an attractive look. It will be used to provide great help for customers’ projects.

Our port partners:

RIO, RTA YARWUN PTY LTD, Lianyungang Port, Ningbo Port, Shanghai Port, Guangzhou Port, Dalian Port, Taicang Port, Yingkou Port, etc.

Our manufacturer partners:

HITACHI,SANY, DOOSAN, etc.

Customer Evaluation:

During my cooperation with Zlin Heavy Industry Group on this project, I found that ZLIN Group and Their team were knowledgeable and result oriented. Our cooperation process was very pleasant.


How Does A Self Loading Concrete Transit Mixer Work?-Working Principle, Click to watch the video

Recommendation

TECHNICAL PARAMETER

Brand name ZLIN
Vehicle parameters 3.5 square (270 °)
Model Yuchai 4105 supercharged
Dimension 7830*2680*4170
Wheelbase (mm) 2900
Overall mass (kg) 7800
Drive form torque converter
Max. speed(km/h) 30
Max. climbing degree(°) 30
Min. turning radius(mm) 5300
Min. ground clearance (mm) 380
Engine
Model Yuchai 4105 supercharged
Rated power 85kw
Transmission
Model ZL-280 powershift gearbox
Gears Gear 4 forward 4 backward
Commonly used parameters
Equipment model JBC-35
Hydraulic system parameters
Speed ratio of reducer HJ80-43
Pump CBGQ 2040/2080
Motor BM5-160
Water supply parameters
Water tank capacity (L) 620
Water supply method Time relay
Maintenance refill volume
Total capacity of hydraulic system (L) 120
Fuel tank (L) 120
Oil 16
Mixing and unloading
Drum geometry capacity (L) 4740
Drum rotation speed 18 rpm – 21 rpm
Mixing output 3.5 cubic meters/tank

FIND A REPUTABLE SUPPLIER - ZLIN

There are many suppliers in the market that manufacture self-loading mixers. You can find self loading concrete mixer suppliers online or offline. Of course, you can also look for suppliers locally or abroad. But most importantly, you need to find a reputable supplier with good reviews from many customers. ZLIN GROUP has focused on the construction machinery industry for many years. We always adhere to the vision of providing better construction machinery to more customers and creating more value for them. So far, we have exported multiple self-loading concrete mixer trucks to different countries such as Philippines, Indonesia, Vietnam, Pakistan, etc.

If you are interested in our self-loading concrete mixer truck, welcome to contact us for quotation immediately. We promise you can get a reply within 24 hours.

What Services Can ZLIN Provide For You? – After-Sales Service

1. One year warranty

2. Go to your site and help you install and debug

3. Free training for your operator;

4. Any problem, we will be here to serve you, or go to your city, check and maintain;

5. Spare parts are in stock, any needs, please leave your message on my website, we will arrange shipment within 48 hours;

6. Introduce other users to buy our self loading concrete mixers, we will give you some commission.
