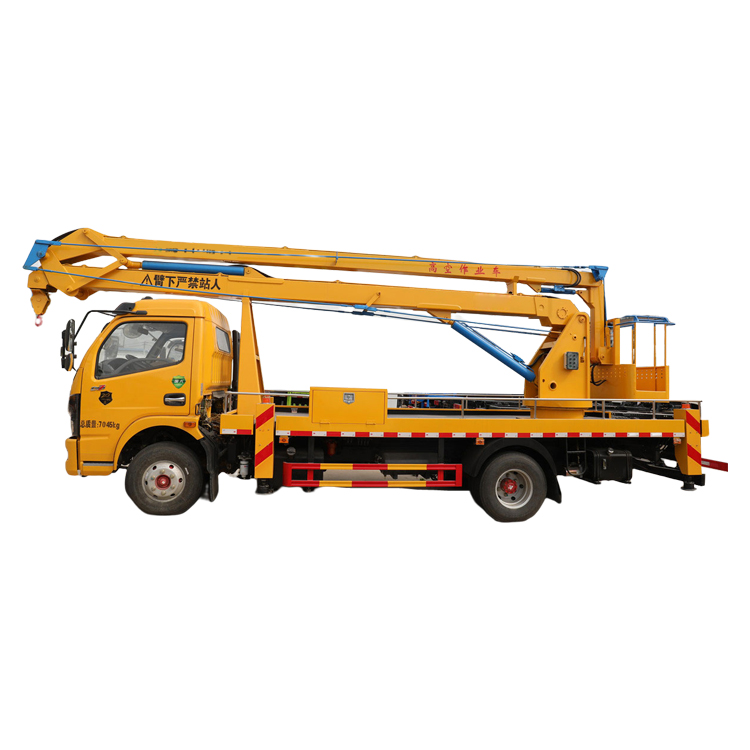

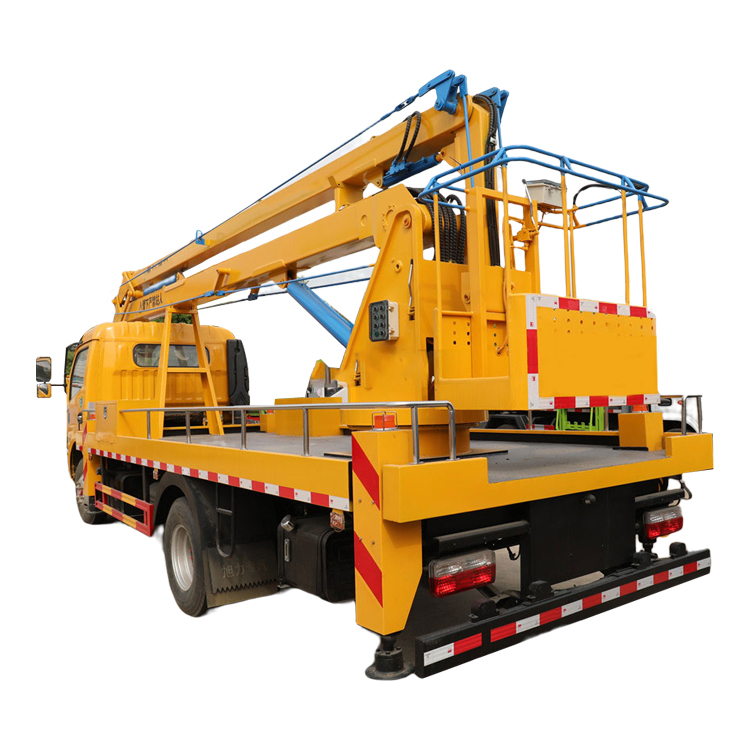

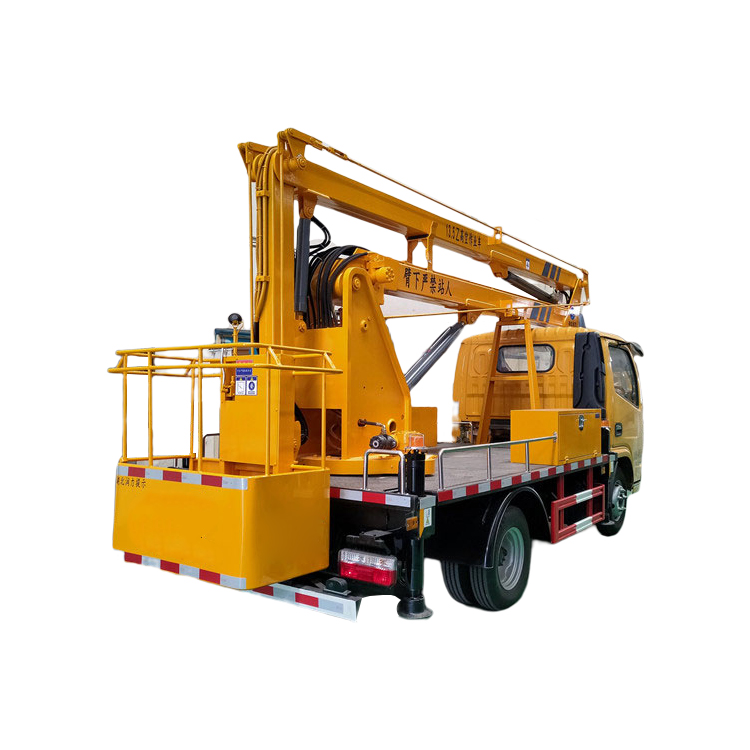

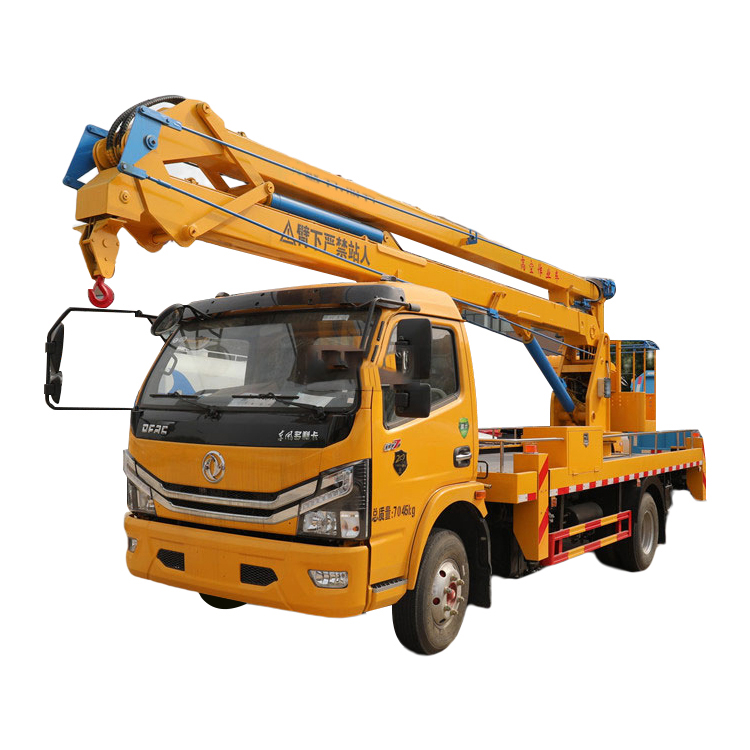

Dongfeng Aerial Working Platform Truck adopts Dongfeng light-type, medium-type and heavy-type chassis, hydraulic cylinders, hydraulic outriggers, lifting arms, working buckets and operating systems.
Performance description
The rotation system will allow continuous 360-degree rotation, with a safety system to prevent sudden drops in case of failure
Aerial basket is moving system with dual action commands, one at ground level and the other at the level of the basket truck equipped with two rotating amber lights
Aerial platform working truck equipped with balance valve ,emergency valve to keep safety when people overhead working
With the promotion and development of aerial working platforms, the popularity of the equipment in construction engineering, equipment manufacturing, electric power industry, warehousing and logistics, municipal greening, military engineering, emergency rescue and other application scenarios has been gradually increased, and diversified downstream application scenarios have been gradually expanded, such as housing repair, facade repair, engineering construction, arena construction, municipal greening, rail transit, urban renovation, garden maintenance, logistics and warehousing, film and television scene construction, shipbuilding, etc.
|
Truck
|
Drive mode
|
4×2
|
||
|
Chasis
|
DFA1080LJ12D3
|
|||
|
Engine
|
Model
|
CY4102-CE4C
|
||
|
Max. power(Kw)
|
91
|
|||
|
Displacement(ml)
|
3856
|
|||
|
Type of fuel
|
Diesel
|
|||
|
Dimensions
|
Overall dimension (mm)
|
8300×2200×3300
|
||
|
Wheel base (mm)
|
3800
|
|||
|
Front/Rear tread(mm)
|
1770/1586
|
|||
|
App./Dep. angel (°)
|
24/10
|
|||
|
Axles
|
Front axle(Kg)
|
3100
|
||
|
Rear axle(Kg)
|
4345
|
|||
|
Performance
|
Max. speed(Km/h)
|
99
|
||
|
Front/rear overhang(mm)
|
1210/2110
|
|||
|
No. of spring leaves
|
8/10+7
|
|||
|
Tire
|
Type
|
7.50-16
|
||
|
No of tire
|
6
|
|||
|
Mass
|
Payload(Kg)
|
|||
|
Special Function
|
Curb weight(Kg)
|
7250
|
||
|
G.V.W (Kg)
|
7445
|
|||
|
Max.height of operation(m)
|
14
|
|||
|
Max.radius of operation(m)
|
7.5
|
|||
|
Angle of revolution(°)
|
360
|
|||
|
Rated load of working platform(Kg)
|
200
|
|||
|
Rated sling load(Kg)
|
1000
|
|||
|
Front protraction(mm)
|
640
|
|||
|
Rear protraction(mm)
|
180
|
|||
Good stability
Can be operated simultaneously or individually to adapt to a variety of working conditions
Imported components
Load-sensitive proportional valves, balancing valves, controllers, etc. are all imported.
CAN bus control
Neat and simple wiring. Safe and reliable, high efficiency
Extra-large display screen
There is a display on the lower vehicle, which shows the working condition of the whole vehicle in real time.
