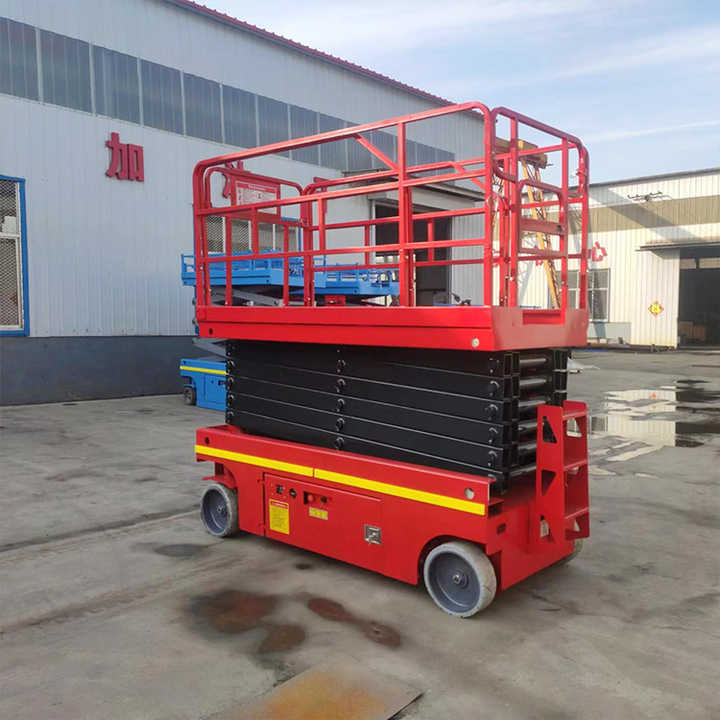

HECHA scissor lifts with reliable quality, simple structure, high performance, makes operation safer, maintenance easier. Ideal for indoor construction, maintenance and installation.
Performance description
● HECHA scissor lifts with reliable quality, simple structure, high performance, makes operation safer, maintenance easier. Ideal for indoor construction, maintenance and installation.
● Reliable & Safe Operation Innovated Pothole Protection Design Descent Protection
● High Efficient Performance
● Easy Maintenance
With the promotion and development of aerial working platforms, the popularity of the equipment in construction engineering, equipment manufacturing, electric power industry, warehousing and logistics, municipal greening, military engineering, emergency rescue and other application scenarios has been gradually increased, and diversified downstream application scenarios have been gradually expanded, such as housing repair, facade repair, engineering construction, arena construction, municipal greening, rail transit, urban renovation, garden maintenance, logistics and warehousing, film and television scene construction, shipbuilding, etc.
|
Dimension
|
Model
|
GTJZ1614DC
|
|
Max.working height-A
|
15.7 m
|
|
|
Max.platform height-B
|
13.7 m
|
|
|
Overall weight
|
3220 kg
|
|
|
Overall length-C
|
2.79 m
|
|
|
Overall Width-D
|
1.27 m
|
|
|
Overall height(railings unfolded)
|
2.62 m
|
|
|
Overall height(railings folded)-E
|
2.06 m
|
|
|
Wheelbase
|
2.24 m
|
|
|
Platform size(L*W-F)
|
2.64*1.14 m
|
|
|
Min.ground clearance（stowed）
|
0.1 m
|
|
|
Min.ground clearance (elevated)
|
0.02 m
|
|
|
Extendable platform length-G
|
0.9 m
|
|
|
Performance
|
Lift capacity
|
200 kg
|
|
Extension Deck lift capacity
|
113 kg
|
|
|
Max.occupancy
|
2
|
|
|
Min.turning radius-inside
|
0 m
|
|
|
Min.turning radius-outside
|
2.25 m
|
|
|
Drive speed(platform lowered)
|
4 km/h
|
|
|
Drive speed(platform Elevated)
|
0.8 km/h
|
|
|
Lifting/lowering speed
|
80/60 sec
|
|
|
Gradeability
|
25%
|
|
|
Max.tilt(Euro/USA)
|
1.5°/3°
|
|
|
Tire
|
Ф381×127 mm
|
|
|
Power
|
Motor
|
24V/4.5 kw
|
|
Battery
|
4×12V/300Ah
|
|
|
Charger
|
24V/25A
|
The whole machine is coated with electrophoretic paint,and the corrosion resistance is significantly improved.
Easy to operate,easy to use,and clear to the eye.
Reinforced and thickened, with strong bearing capacity, safe and durable.
Durable and durable. with low walking resistance and no damage to the ground.
Loading capacity : 40cbm
King pin diameter : 2 or 3.5 inch
Chassis brand : SINOTRUK
Overall dimensions : 10100X2496X3048mm
Drive mode : 6×4
Fuel Tanker: 20000L
