Foton GTL Dump Truck has a large load capacity, strong and powerful engine, low failure rate and comfortable driving.
Combining all aspects, the Foton GTL Dump Truck with strong fighting power is not only outstanding in space, but also worthy of your praise in appearance, power, comfort, handling and fuel consumption. Therefore, the cost performance of Foton GTL Dump Truck speaks for itself. To sum up, the more the auto industry moves forward, the more the variety of good cars becomes, and the way to win for auto brands is to capture the hearts of the buying public, just like the Foton GTL Dump Truck.
General-purpose engineering dump trucks can meet the needs of non-urban earthworks and general mining vehicle use, as a road hauler use, the loading capacity and weight is not advantageous, but a variety of conditions can be involved, suitable for the use of the card users are not fixed.
| 【Model】 | BJ3253DLPJB-7 | |||
| 【colour】 | 【red】 | |||
| 【Features】 | Dump truck | |||
| 【drive】 | 6×4 | |||
| GVW(kg) | 50T | |||
| Size parameters | 【(length × width × height) (mm)】 | 7782X2495X3400 | ||
| 【Wheelbase 】(mm) | 3400+1350 | |||
| Quality parameter | 【Maximum design mass (kg)】 | 32000 | ||
| 【Curb weight (kg)】 | 13500 | |||
| 【Rated payload （kg）/person】 | /3人 | |||
| Main performance parameters | 【Maximum speed】 (km/h) | 73.8(5.73) | ||
| 【Maximum grade】(%) | 44.8(6.72) | |||
| basic configuration | Body and appliances | Cab | Type | Flat top ETX-2490 |
| 【Interior】 | ETXinterior | |||
| Mounting type | Semi-floating spring | |||
| 【Cab lift】 | Manual | |||
| Manual doors and windows + hydraulic seat + manual rearview mirror | ||||
| 【Entertainment system (including radar)】 | MP3 + radio + USB | |||
| 165Ah | ||||
| 【air conditioning】 | Install air conditioning | |||
| power | 【engine】 | 【Diesel】 | ||
| 【Fuel type】 | WD615.44 | |||
| Rated power [kw / ps (r / min)] | 330 | |||
| Torque [N • m (r / min)] | 1250/1400-1600 | |||
| 【Fuel injection system】 | Mechanical pump / domestic pump | |||
| 【Displacement】 (ml) | 9726 | |||
| 【emission】 | Euro Ⅱ | |||
| 【fan】 | rigidity | |||
| 【transmission】 | 12JSD160T铁（Q） | |||
| 【Front axle(T)】 | 7.5T | |||
| 【Rear axle(T)】 | 13t 5.73 | |||
| Chassis | 【Frame specifications】 | Front 865/back 865 | ||
| 【Suspension System】 | Front, longitudinal leaf spring + cylindrical shock absorber + stabilizer bar,9 | |||
| Rear, longitudinal leaf spring + balance suspension + stabilizer bar,12 | ||||
| 【Steering gear】 | AM80L | |||
| 【Tire】 | 12.00R20 18PR | |||
| 【Fuel tank volume / material】 | 260L Aluminum alloy | |||
| 【Air filter type】 | desert | |||
| 【Muffler type】 | Horizontal square | |||
| Tops | 【Container size 】（mm） | 5200X2300X1500 | ||
| 【Lifting method】 | Front top | |||
| 【Container thickness】 | Bottom8 side6 | |||
| 【Cargo shape】 | (Rectangular bucket) | |||
| 【Material】 | Q345 | |||

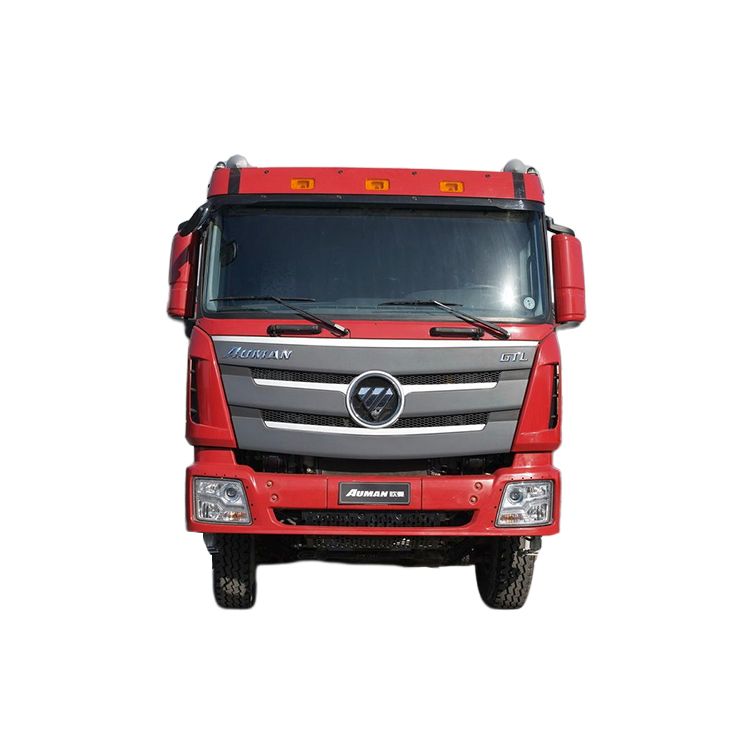

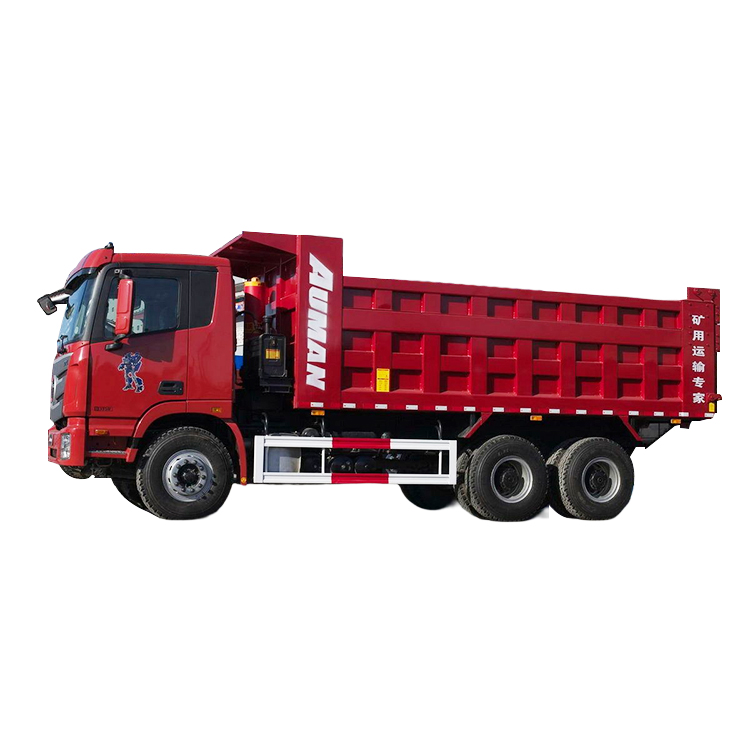

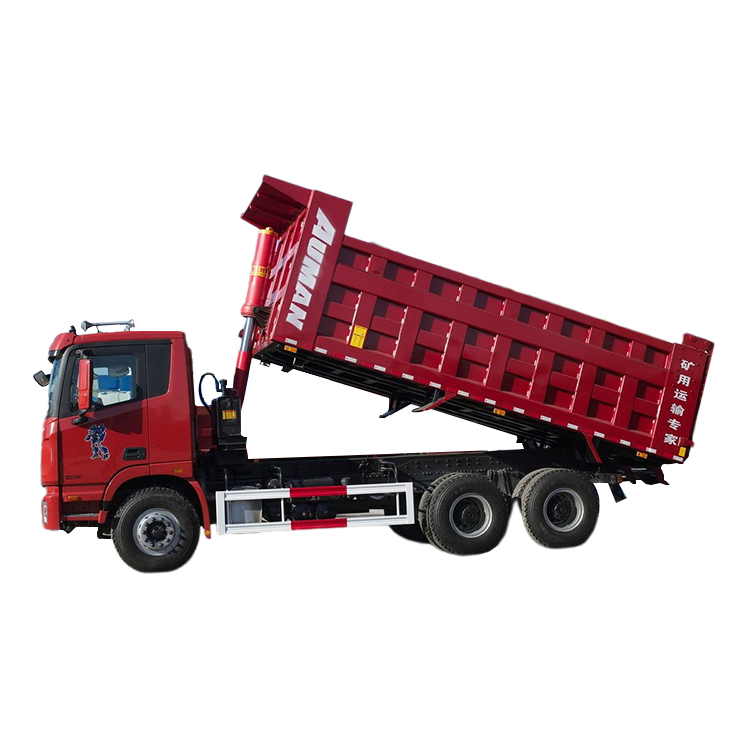

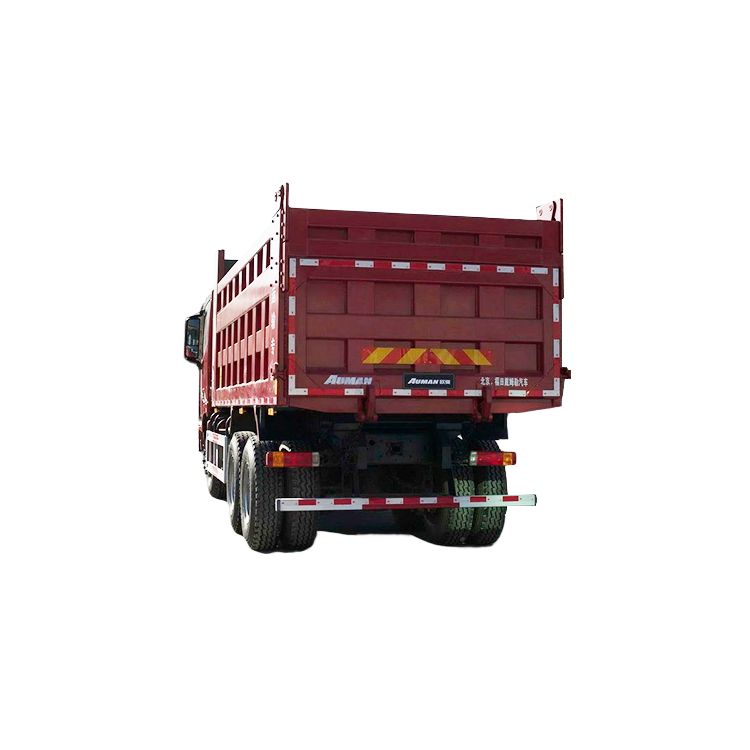

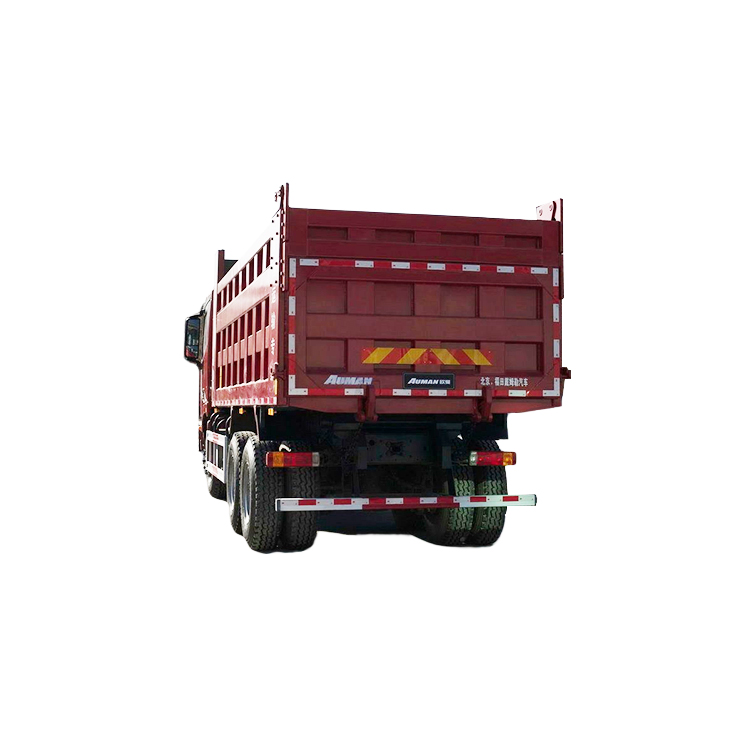

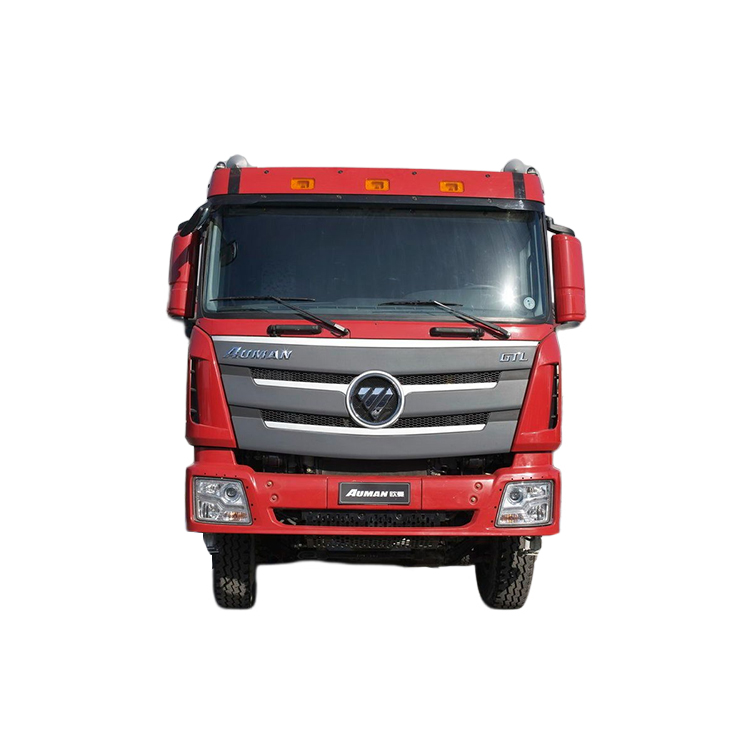

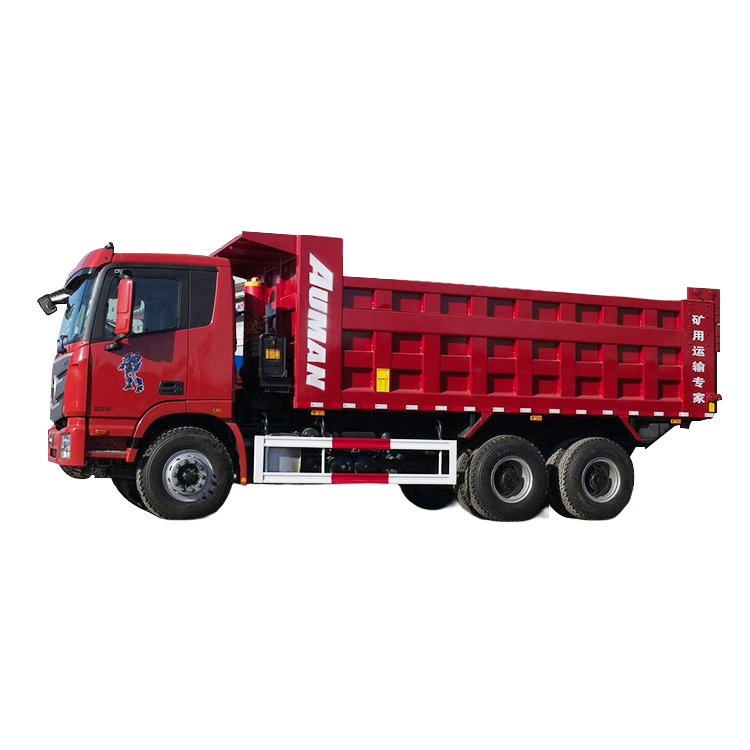

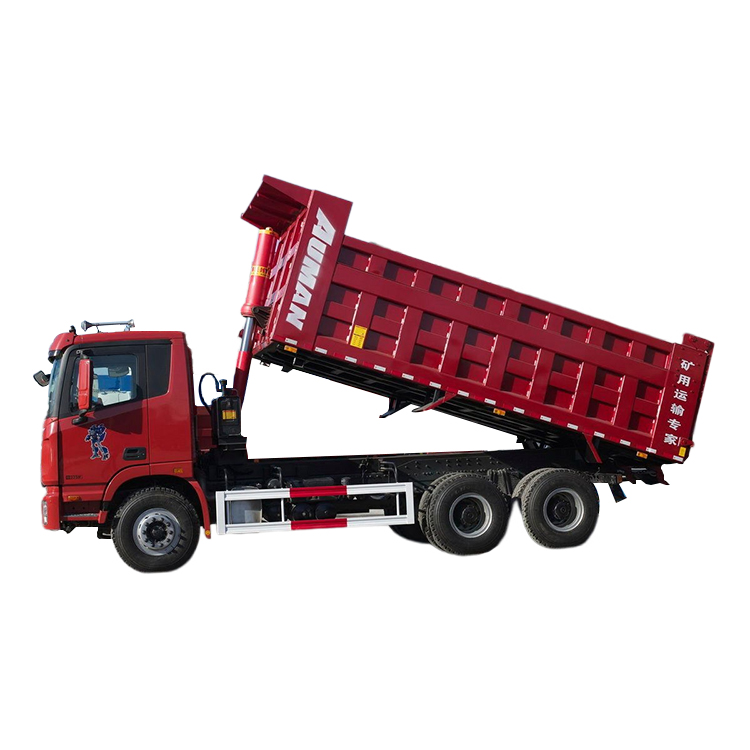

1. Appearance of Foton GTL Dump Truck
Foton GTL Dump Truck model is smooth, the rear design is very layered, and the overall body proportion looks harmonious in the planning. In short, the sharp planning senses successfully attract the attention of car buyers to the Foton GTL Dump Truck.
2. Powerful Foton GTL Dump Truck
Power is one of the reasons why I love and insist on choosing it, this vehicle is equipped with 11.6L displacement Weichai 6-cylinder diesel engine, and the drive form is 8X4, which can output the maximum horsepower 375.
3. Foton GTL Dump Truck has a large load capacity
The Foton GTL Dump Truck’s dimensions are 7782X2495X3400, which can meet the needs of general merchants.
4. The comfort of Foton GTL Dump Truck is very good
Regarding ride comfort, the cab of Foton GTL Dump Truck is particularly comfortable and spacious. At the same time, the cushions are soft and firm, giving a satisfying comfort in all road conditions, and the chassis is firm and reliable with high ground clearance whenever driving on rough roads. The air conditioning cooling is great.
