The full name of the road clearance truck, also known as tow trucks, roadside assistance vehicles, tow trucks, with lifting, pulling and lifting traction and other functions, the trucks are mainly used for road failure vehicles, urban vehicles and rescue and rescue.
The full name of the road clearance truck, also known as trailer, roadside assistance vehicles, towing vehicles, with lifting, pulling and lifting traction and other functions, the clearance truck is mainly used for road failure vehicles, city vehicles and rescue and rescue. Clearance vehicle according to the category is mainly divided into: towing and lifting body type, towing and lifting separation type, a towing type, flatbed towing type, multi-function clearance vehicle, hydraulic automatic clamping type. Basically, it is the second class chassis modified by the truck, and the structure type of the truck can be divided into towing, loading, lifting, and rescue (single-armed and double-armed) trucks.
VEHICLE MODLE
|
JDF5071TQZ
|
||
OVERALL DIMENSION(mm)
|
7420×2320×2540
|
GVW(Kg)
|
7490
|
Cargo body dimension(mm)
|
××
|
Rated payload(Kg)
|
|
approach/depar ture angle
|
20/12
|
Curb weihgt(Kg)
|
5495
|
Overhang(front /rear)(mm)
|
1180/2440
|
Max speed(km/h)
|
95
|
Chassis model
|
EQ1070TJ9AD3
|
||
Available engine
|
CY4102-C3F
|
Engine displacement(cc)
|
3856
|
Engine maker
|
Dongfeng Chaoyang Diesel Engine
|
Power(Kw)
|
70kw/95hp
|
Fuel type
|
diesle
|
Emission
|
Euro 2\3
|
Number of axle
|
2
|
Number of tire
|
6
|
wheelbase
|
3800
|
Tire size
|
8.25-16,7.50-16,8.25R16,7.50R16
|
Axle load(front/rear)
|
3090/4400
|
Front tread
|
1835,1750
|
Number of steel spring leaf(front/rear)
|
11/9+7,8/10+7
|
Rear tread
|
1640,1586
|
performance
|
Rated tow lifting weight(kg):1040 ;
stretch travel range of tow arm(mm):1180 maximum effective length of tow arm(mm):1300 maximum traction speed(km/h):40 |
Specification of flat board
|
Dimension of flat board(Length*width)(mm):5240*2100
Minimum gradient of flat board(°):10 work travel range of flat board(mm):2680 Maximum load weight of flat board(kg):3000 |
The specification of the winch qty(piece):1
rated towing weight(kg):3000 the length of steel wire rope(m):21 the speed of winch rope(m/min):8 |

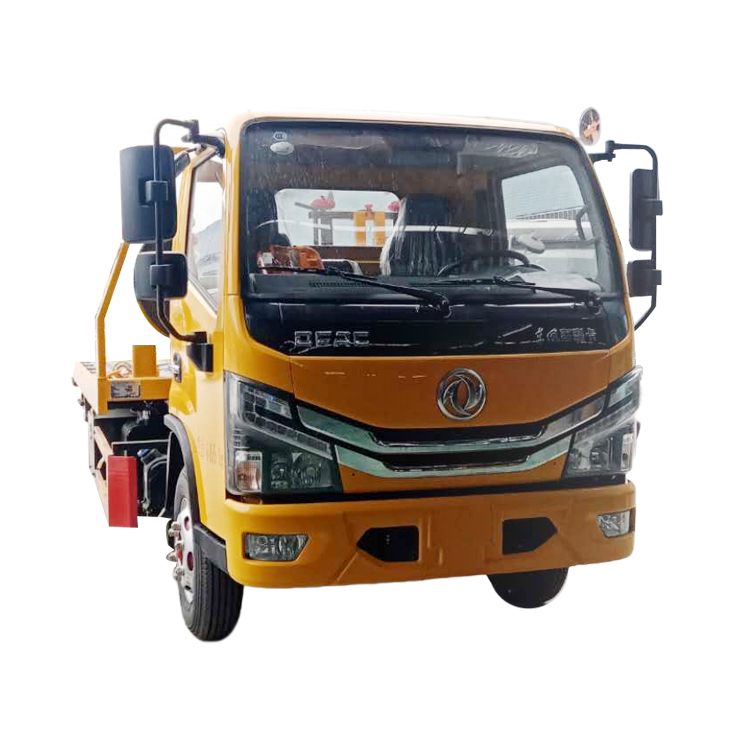

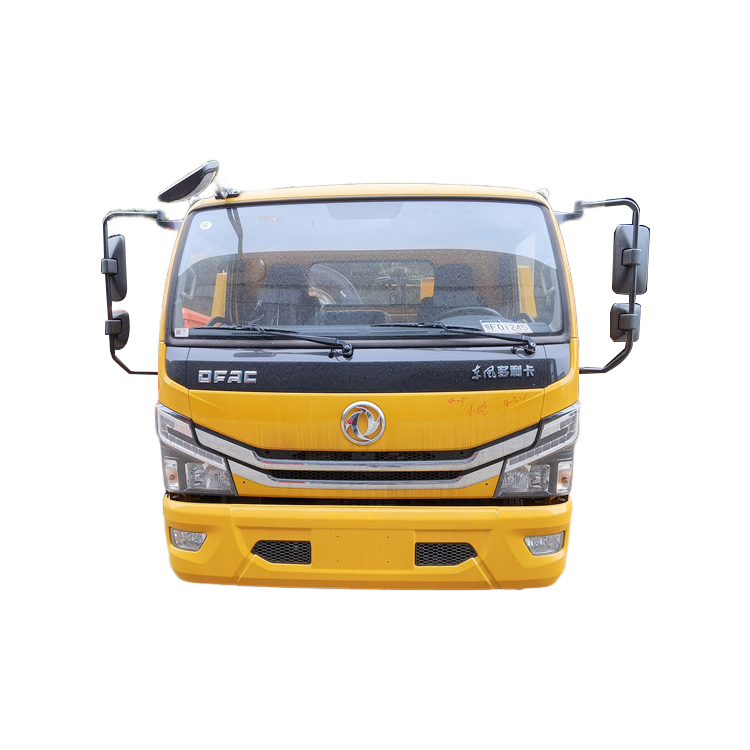

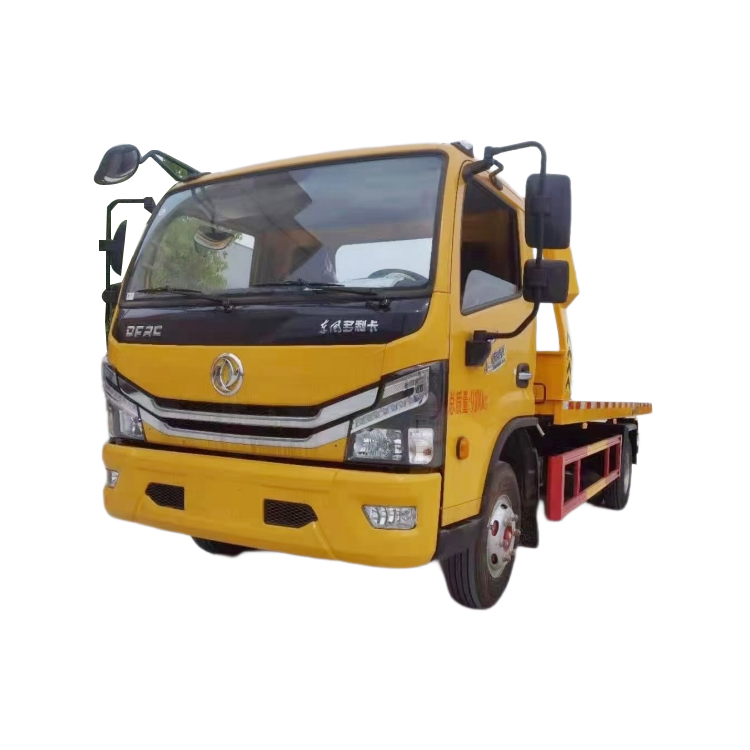

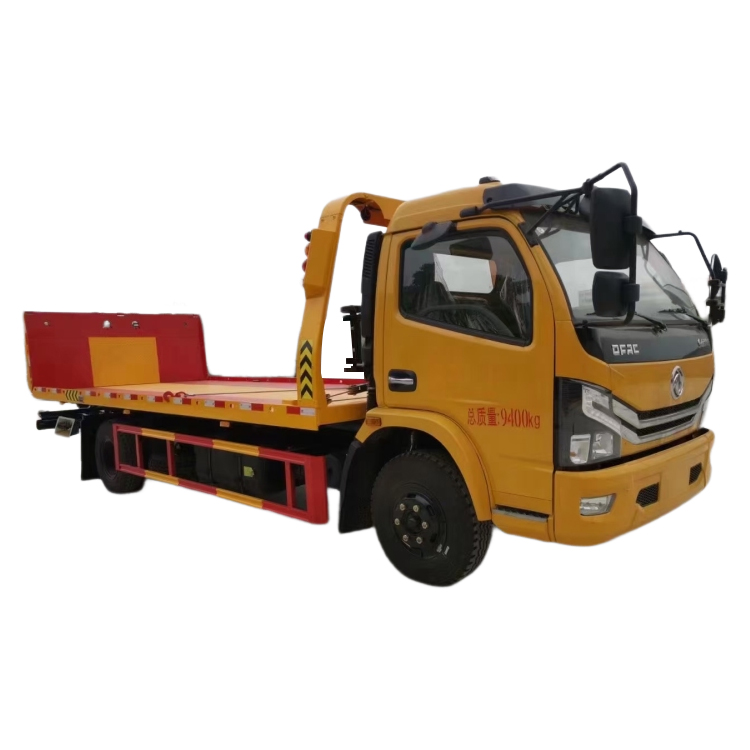

Dongfeng Flat Bed Wrecker Truck
Precision quality is trustworthy
01. Economical fuel consumption: national standard high-power engine, good comfort and low fuel consumption.
02. Imported accessories: multi-way valve, balance valve using Italian imports
03. Safety alarm: the warning light adopts LED long rows of warning lights, used to warn passing pedestrians and vehicles.
04. high stability: the boom adopts high strength, stability far more than the old four-sided structure
05. Safety and anti-dislodgement: the end of the wire rope is equipped with anti-dislodgement hooks, safe and reliable.
06. Save time and labor: double-side linkage operation, winch, boom, plate all one-key operation.
07. Stable and reliable: the front end of the plate is equipped with a baffle plate on each side, effectively preventing the vehicle from moving forward, stable and safe.
