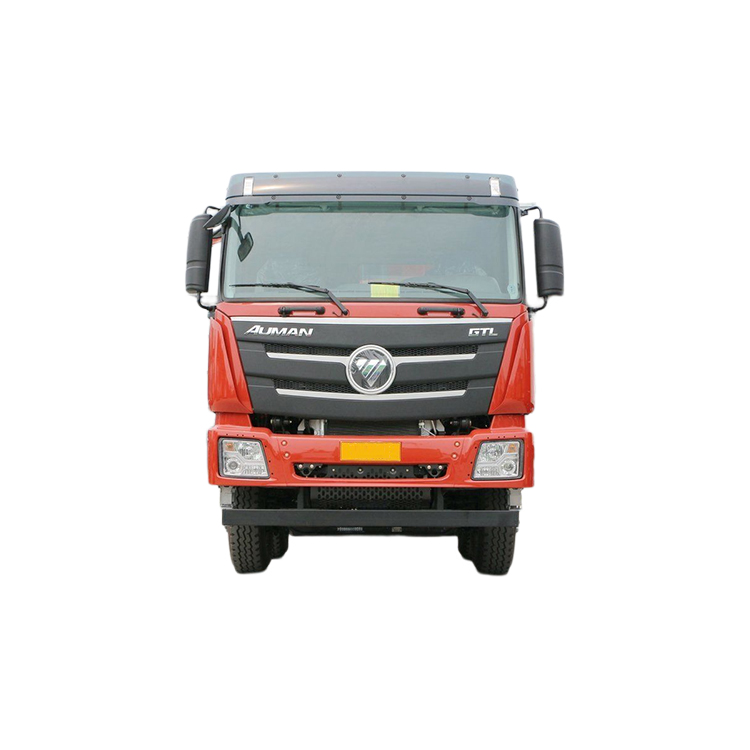

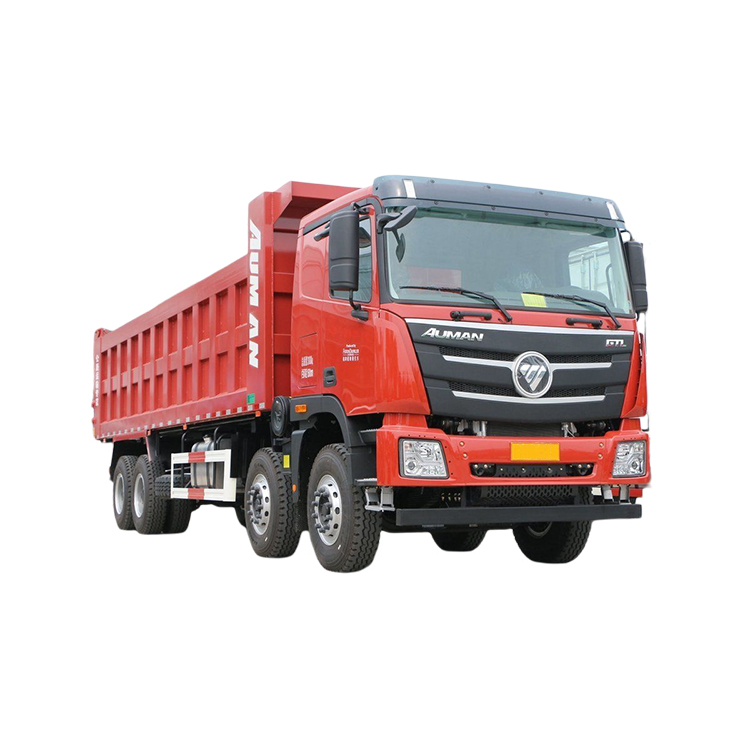

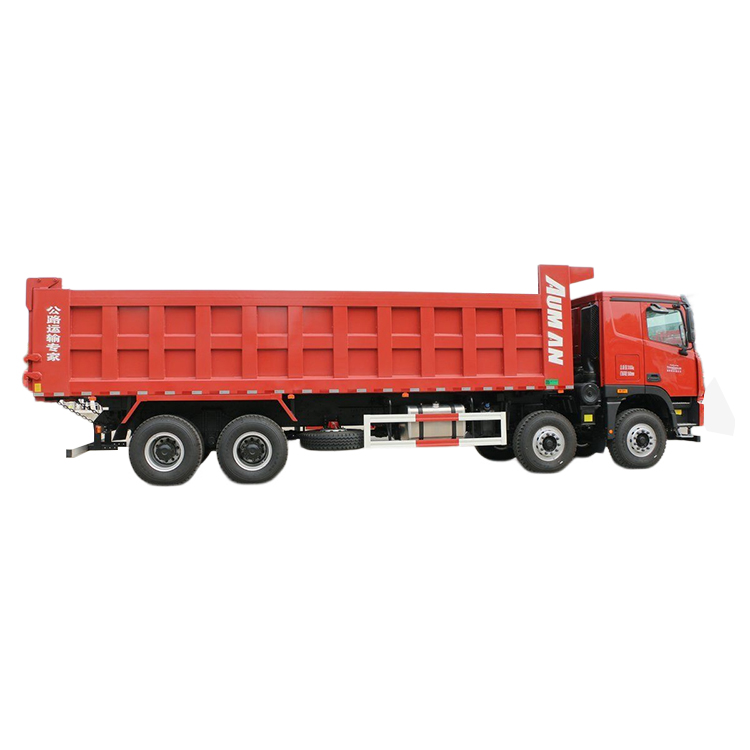

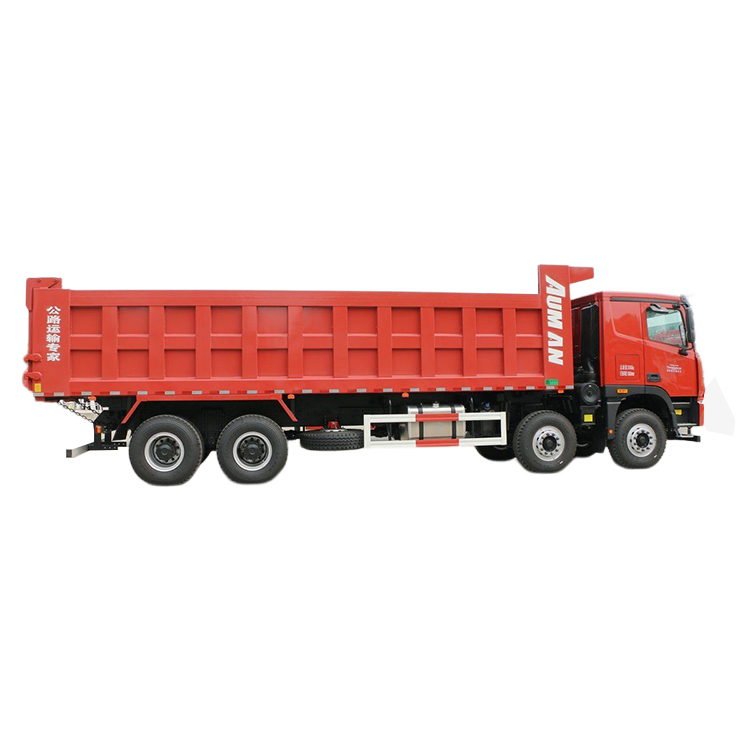

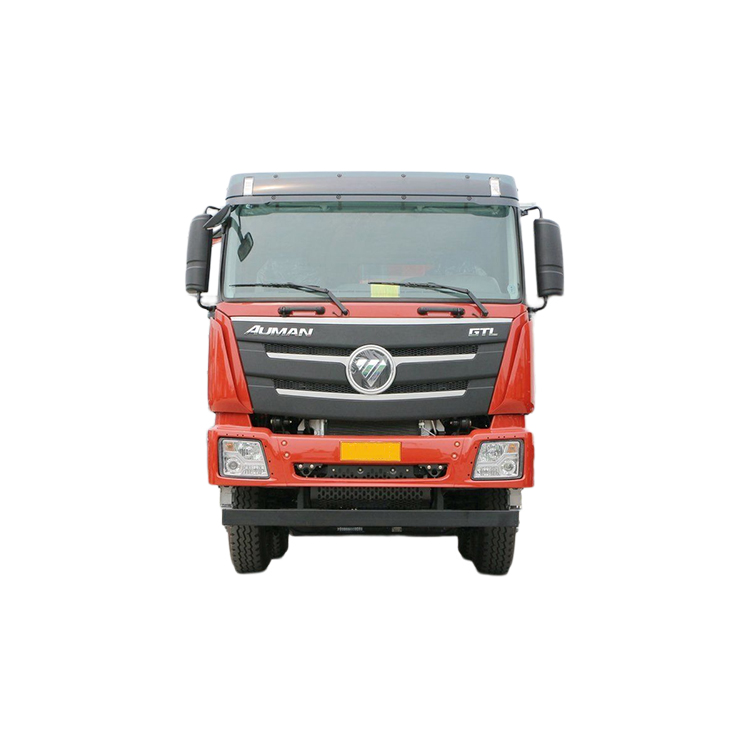

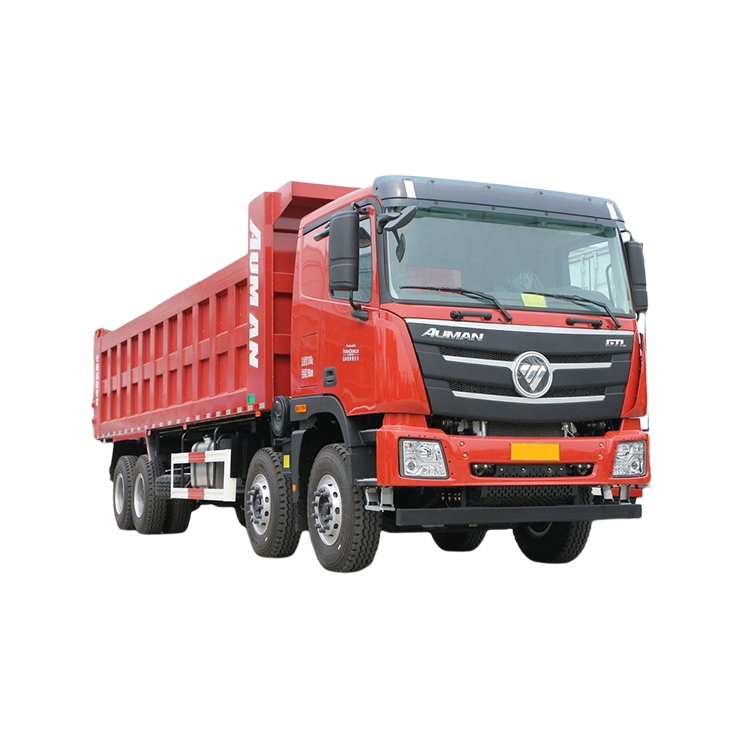

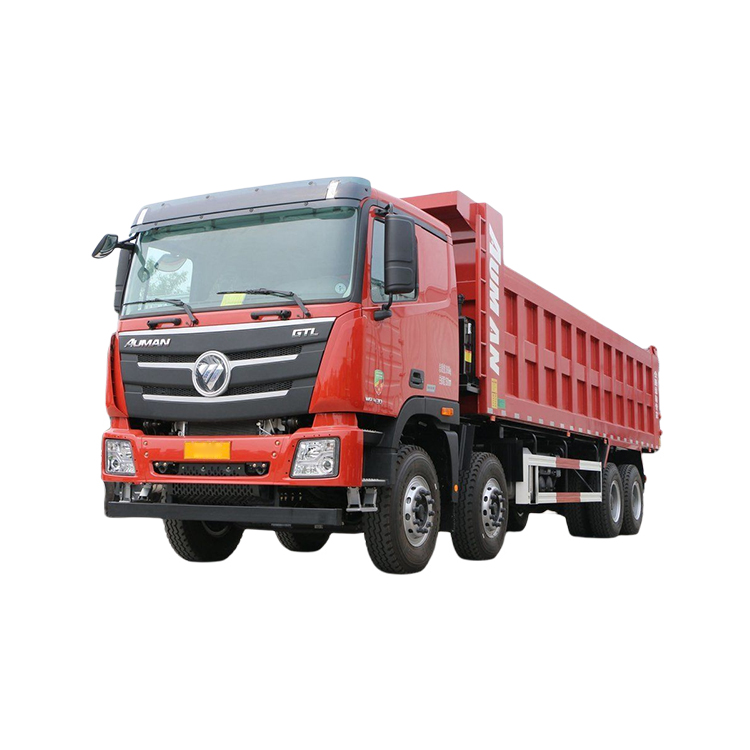

The lower center of gravity of the FOTON 8X4 is designed to make the lifting process safer, and at the same time, it does not need to add a sub beam to achieve effective support, which also has a certain lightweight effect.
The interior of FOTON 8X4 dump truck cab adopts a wrap-around design, and the streamline design of the center console increases the sense of comfort. In terms of interior craftsmanship, this vehicle maintains Foton’s consistent tradition of refinement, the overall interior texture and ergonomics and other details of the design, allowing users to drive more comfortable.
General-purpose engineering dump trucks can meet the needs of non-urban earthworks and general mining vehicle use, as a road hauler use, the loading capacity and weight is not advantageous, but a variety of conditions can be involved, suitable for the use of the card users are not fixed.
Vehicle type
|
Dump truck
|
|
Drive form
|
8×4
|
|
Model
|
BJ3313DMPJF-00
|
|
Main dimension parameters
|
The wheelbase(mm)
|
1800+4300+1350
|
The external size(mm)
|
10884X2495X3400
|
|
Packing case size(mm)
|
8000X2300X1500
|
|
Track(mm)
|
2005/1880
|
|
Main weight parameter
|
Complete vehicle kerb mass(kg)
|
15500
|
Total mass(kg)
|
31000
|
|
Design load(kg)
|
15305
|
● Power
This dump truck is equipped with Weichai WP12.430E50 engine with a displacement of 12L and a maximum power of 430 horsepower. Weichai engine power, solid and durable characteristics just coincide with the use of dump truck products demand. Heavy-duty working conditions are smooth and powerful, with strong power, stronger explosive force and large torque, which can fully meet the special transportation needs under working conditions.
● Tough chassis configuration
In terms of chassis configuration, this GTL heavy-duty dump truck has everything it should have, and all aspects are well considered.
● Upper Deck: Economical and Practical
The upper part of this GTL tipper is also made by a famous manufacturer, and the quality is guaranteed.
