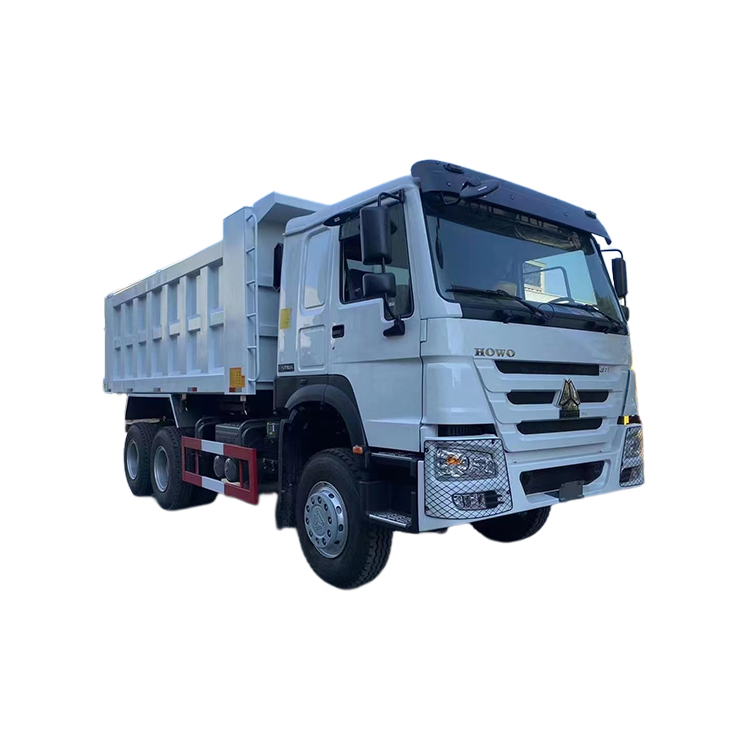

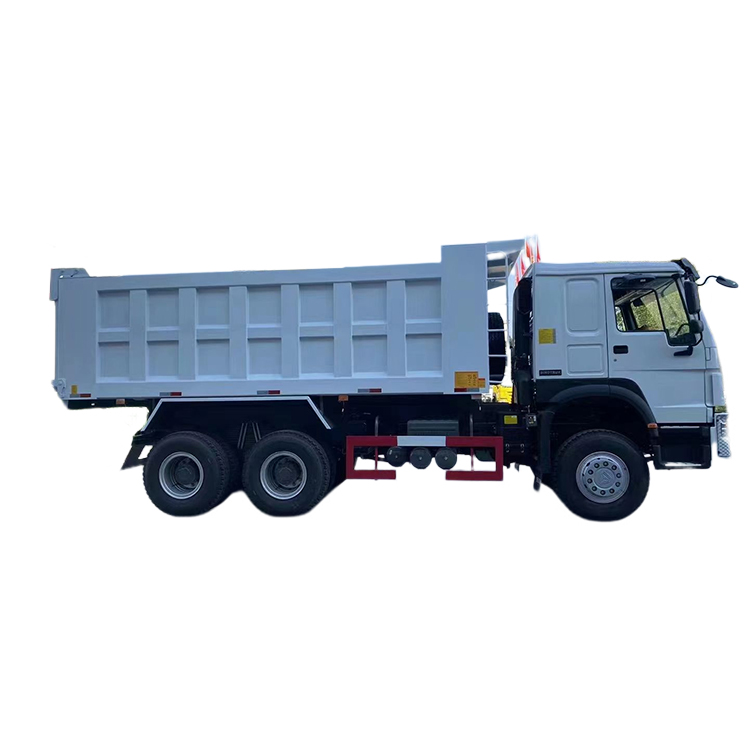

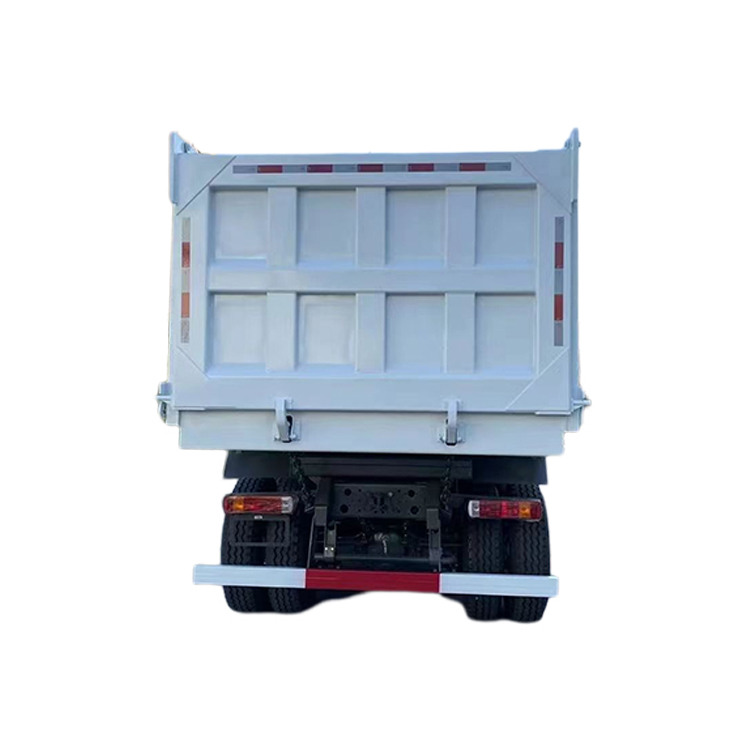

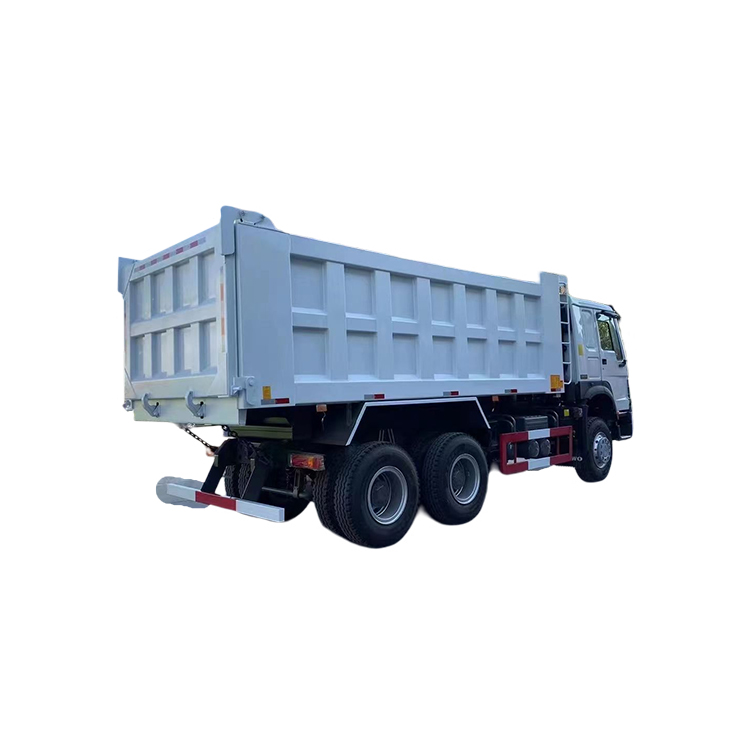

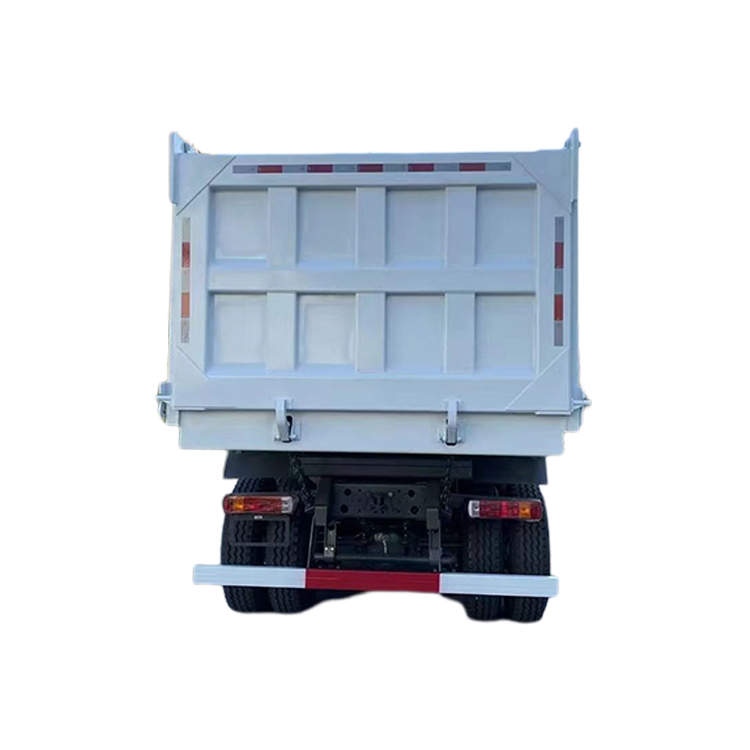

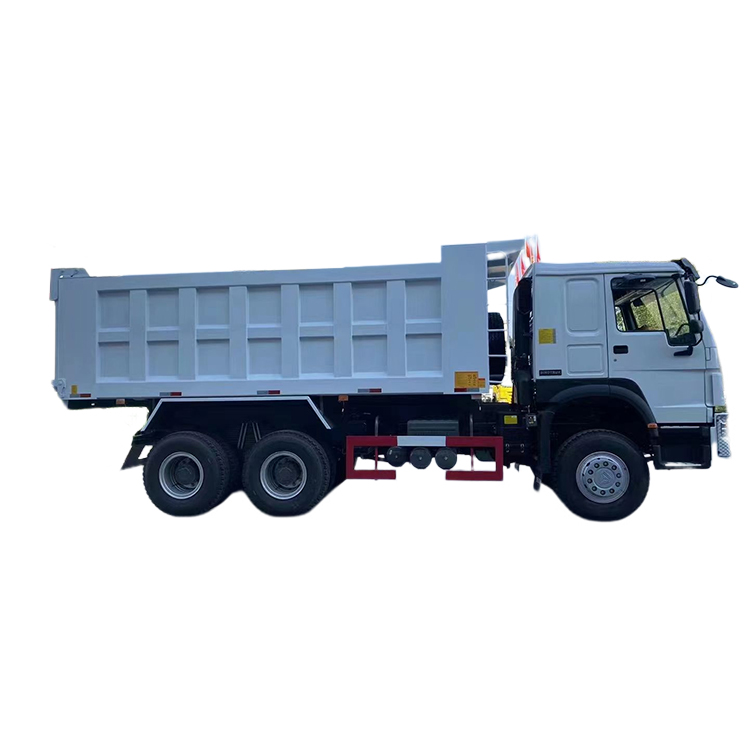

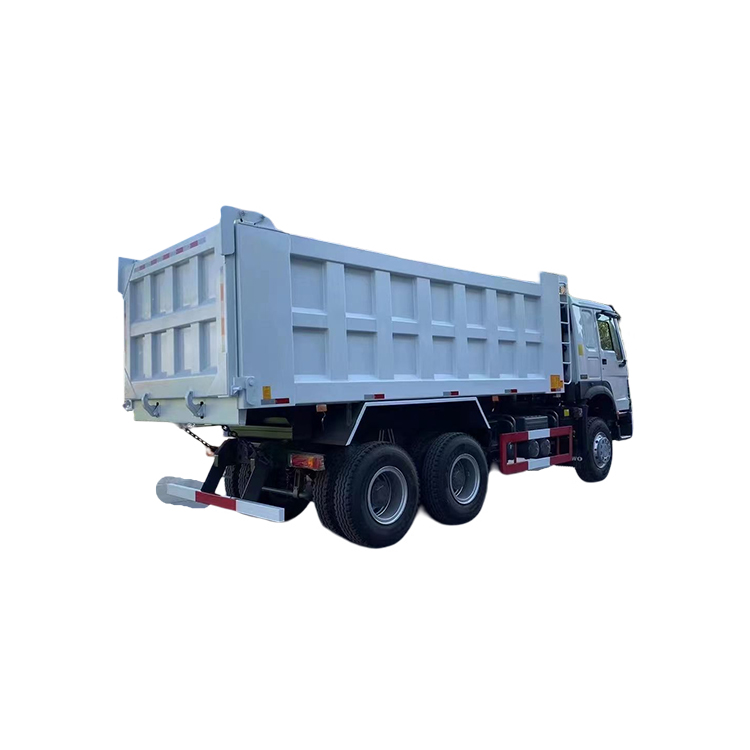

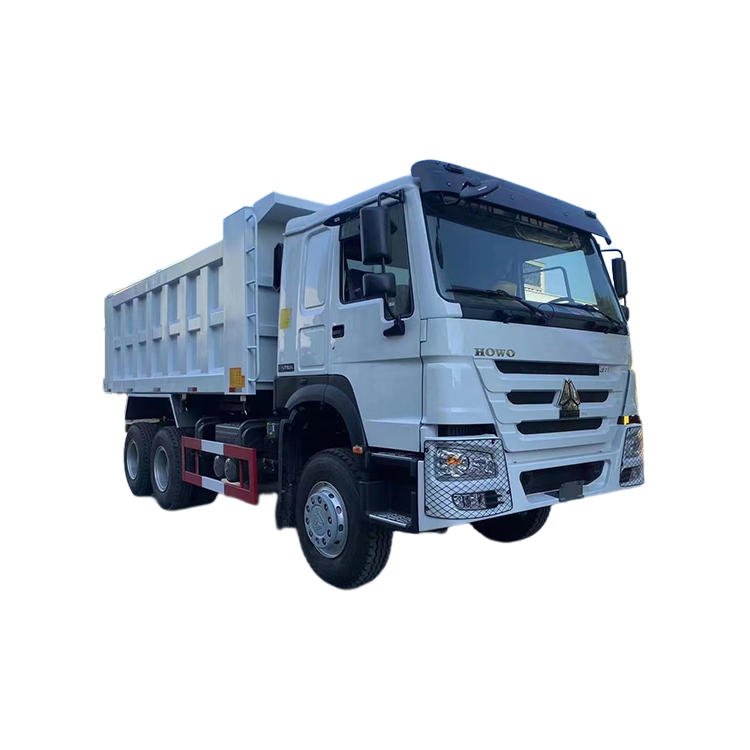

Howo 6x4 371 19cbm Dump Truck has a reasonable structure and reliable performance, which can save and reduce labor.
Wide range of applications
Mainly used for medium and long-distance freight transportation, with strong anti-shock and anti-bumping ability
Reasonable design
Strong power, large loading capacity, high transport efficiency, time and labor saving.
Durable and useful
With strong rigidity and strength, used to support the load to slow down the impact
Smooth running
Light weight of the whole vehicle to meet different The same road carrying capacity
General-purpose engineering dump trucks can meet the needs of non-urban earthworks and general mining vehicle use, as a road hauler use, the loading capacity and weight is not advantageous, but a variety of conditions can be involved, suitable for the use of the card users are not fixed.
| Truck Model | ZZ3257N3647 | ||||
| Truck Brand | SINOTRUK –HOWO | ||||
| Driving Type | Left Hand Driving | ||||
| Dimension(Lx W xH)（unloaded）（mm） | 8245x2550x3450 | ||||
| Cargo body size (L*W*H) | 5400x2300x1500 18m3 | ||||
| Cargo body thickness(mm) | bottom:8mm, side:6mm | ||||
| Lift type of Carriage | Ventral lifting | ||||
| Approaching angle/Departure angle（°） | 19/23 | ||||
| Overhang(front/rear) (mm) | 1500/1870 | ||||
| Wheel base (mm) | 3625+1350 | ||||
| Max speed（km/h） | 75 | ||||
| Curb weight（kg） | 12600 | ||||
| Loading Weight（kg） | 25000 | ||||
| Fuel tanker capacity(L) | 300L with locking fuel cap | ||||
| Clutch | Single-plate dry clutch Φ430mm | ||||
| Engine Model (Steyr technology, made in China) |
Model | WD615.47 | |||
| Horse Power | 371HP | ||||
| Emission | EURO II | ||||
| Fuel Type | Diesel | ||||
| Transmission | Model | HW19710,10 forwards and 2 reverse | |||
| Brake system | Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | ||||
| Auxiliary brake | Engine exhaust brake | ||||
| Steering system | Model | ZF hydraulic steering with power assistance Ratio：22.2-26.2 |
|||
| Front axle | HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
||||
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg |
||||
| Color | Optional | ||||
| Tire | 12.00R20 Steel tires 10+1 spare |
||||
| Electrical system | Operating voltage | 24V,negative grounded | |||
| Starter | 24V,7.35KW | ||||
| Alternator | 28V,1500W | ||||
| Batteries | 2*12V.165Ah | ||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | |||||
| Cab | HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
| Instrument Panel | Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | ||||
25 Ton HOWO Dump Truck for Sale
1. Heavy duty truck chassis for dump truck
2. Reinforced body structure with proven telescopic tipping gear
3. Combination of ride comfort and power
4. Key pressure point reinforced cargo body
5. 25ton dump truck’s robust power train can help you tackle any challenge at the construction site
6. Stable and reliable under-body tipping device ensures low-gravity hoisting
