Garbage Truck

Dongfeng garbage truck is widely used in urban street garbage disposal, all of them have self-unloading function and hydraulic operation, which is convenient for dumping.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

Dongfeng garbage truck is composed of sealed garbage compartment, hydraulic system and operating system. The whole vehicle is fully sealed, self-compression, self dumping, compression process of sewage into the sewage compartment, a more complete solution to the problem of secondary pollution in the transportation of garbage, the key components are imported parts, with high pressure, good sealing, easy to operate, safety and other advantages

Wild Applications of Garbage Truck

Sanitation truck garbage truck is very common when dealing with long-distance garbage transportation, its characteristics are also very obvious, especially the large sanitation truck garbage truck can achieve a large amount of one-time loading and transportation, can achieve compression, after sealed transportation, can better prevent secondary pollution, suitable for long-distance transportation of garbage. Sanitation truck garbage truck has become more and more common garbage collection vehicles. Usually stored garbage containers sanitation plastic barrels and the original iron barrels

Technical Parameters

Truck
Chassis model
EQ1070TJ9AD3
Engine
CY4102-C3C
Max. power(KW/rpm)
88/3856
Max. torque(N.m)
345
Type OF Fuel
Diesel
Outer dimension (mm)
7000×2320×2900
Wheel base (mm)
3800
Front/Rear tread(mm)
1750/1586
F/R Axle Loading Capacity(Kg)
2845/4645
Payload (kg)
3200
Curb weight(kg)
6095
G.V.W (kg)
9490
Max Speed(Km/h)
95
Tyre
8.25-16
Specfication of Tank
Container Capacity(m³)
5-8
Filling Mouth Grand Clearance(mm)
740
Filling Circulation Time(s)
20-25
Precompressor Load Time(s)
18-22
Precompressor Lifting Time(s)
6-9
Max. Compression Strength(T)
12
Max.Discharge Strength(T)
8

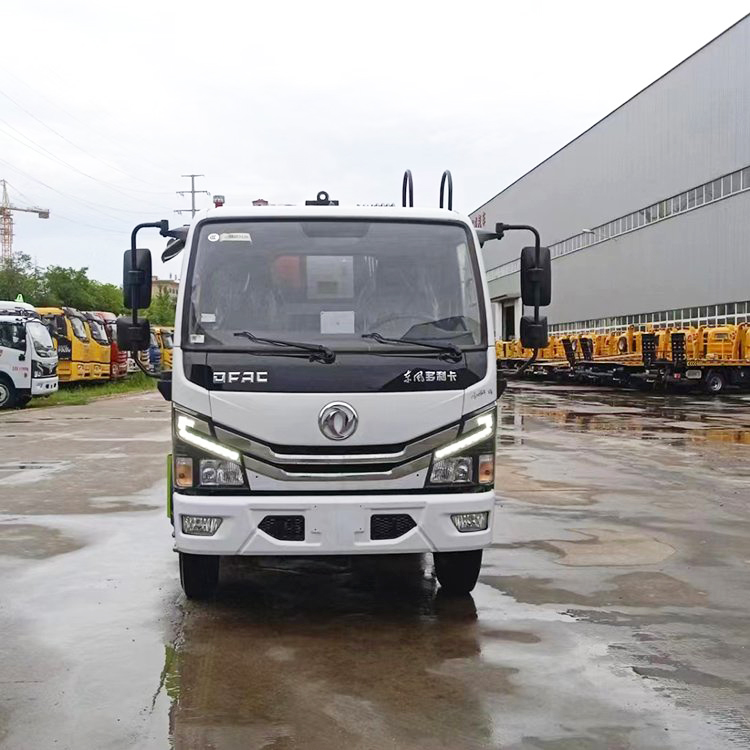

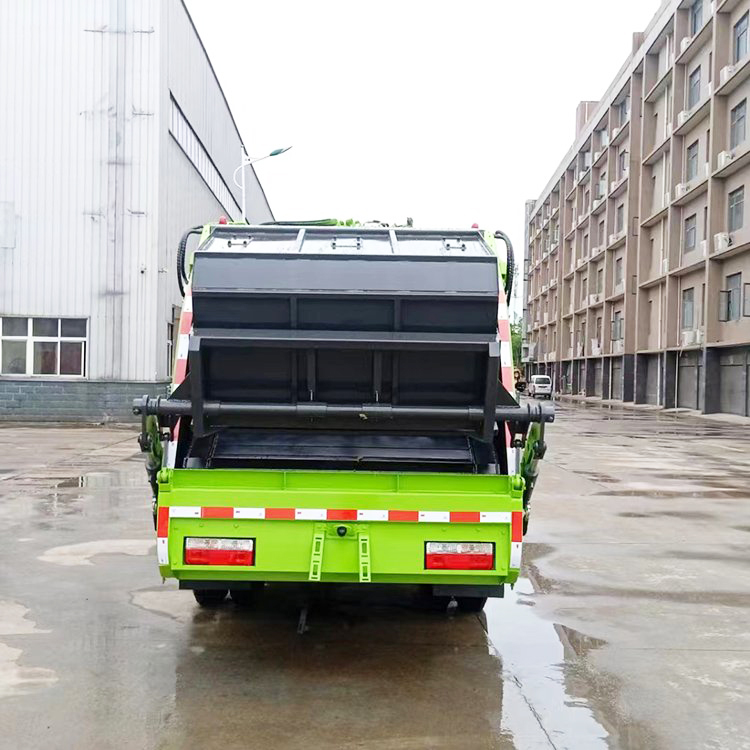

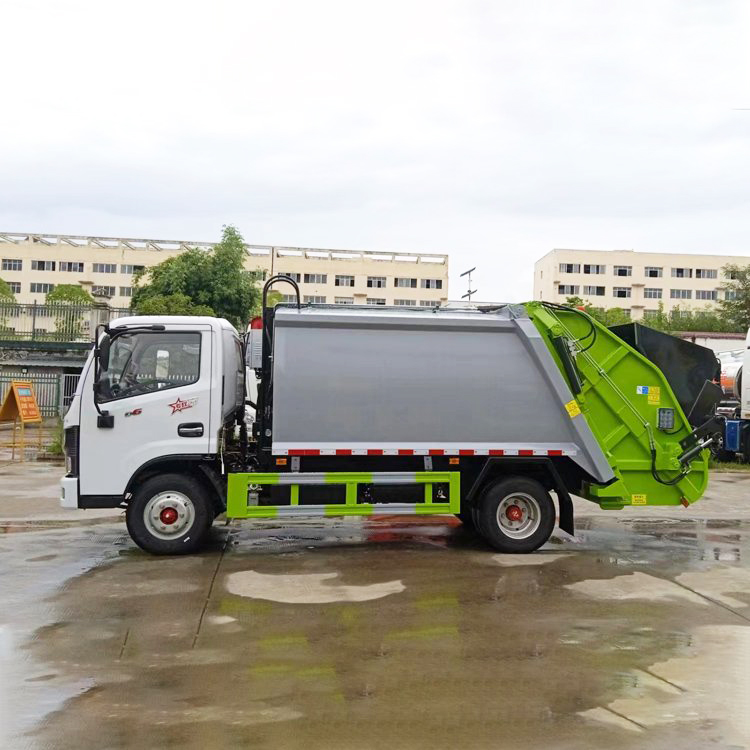

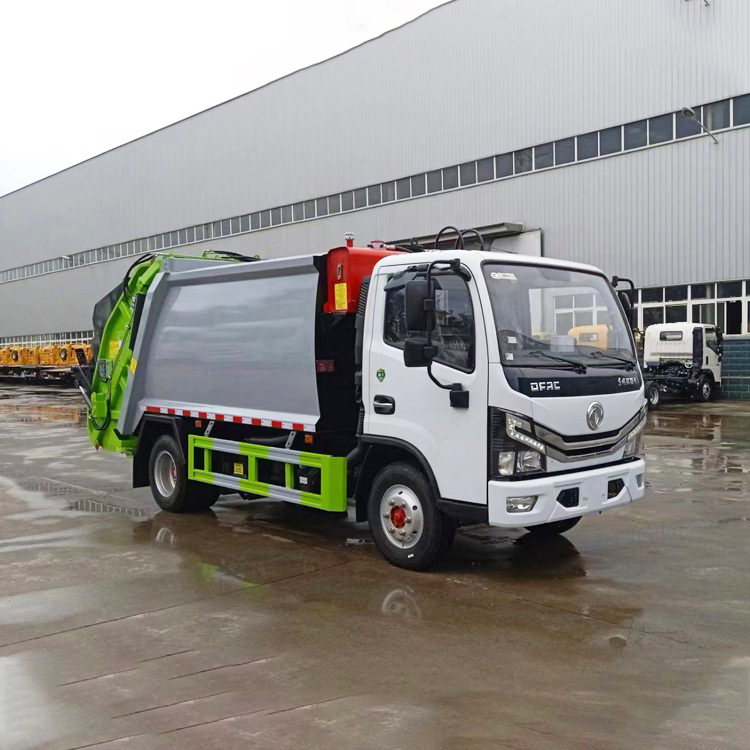

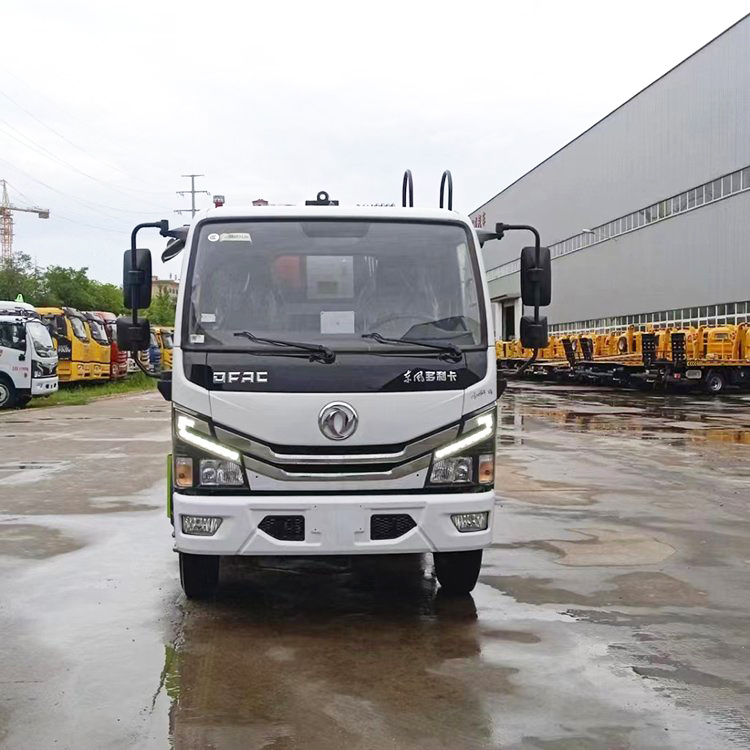

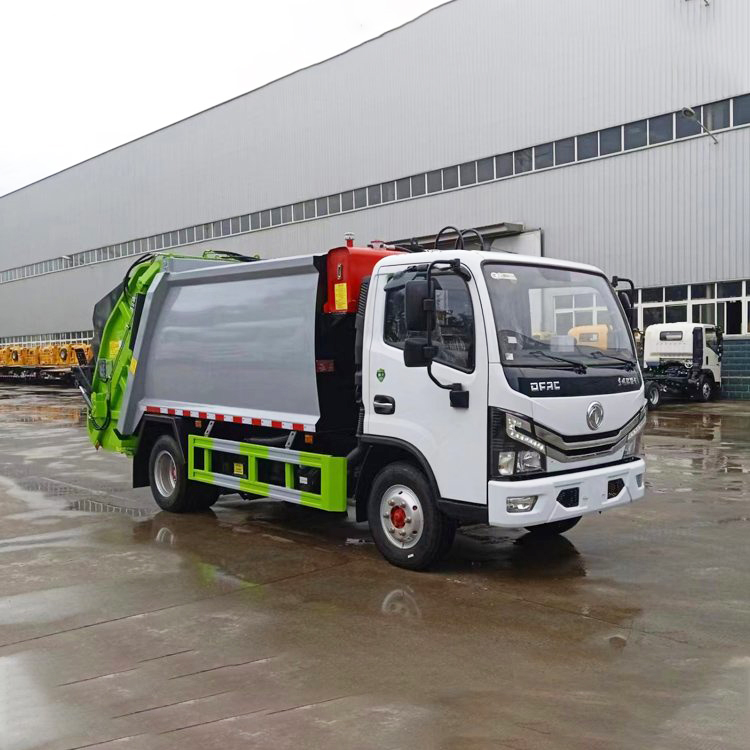

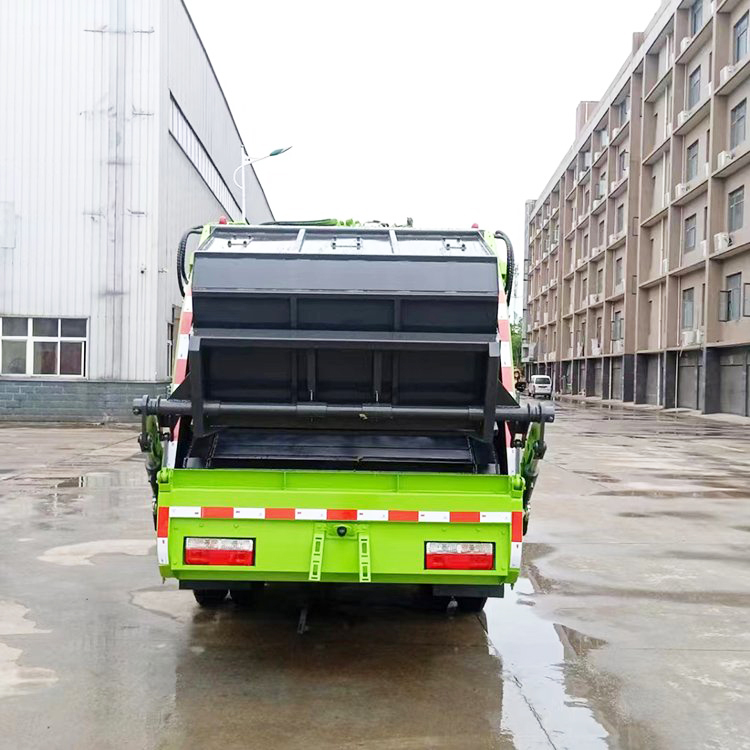

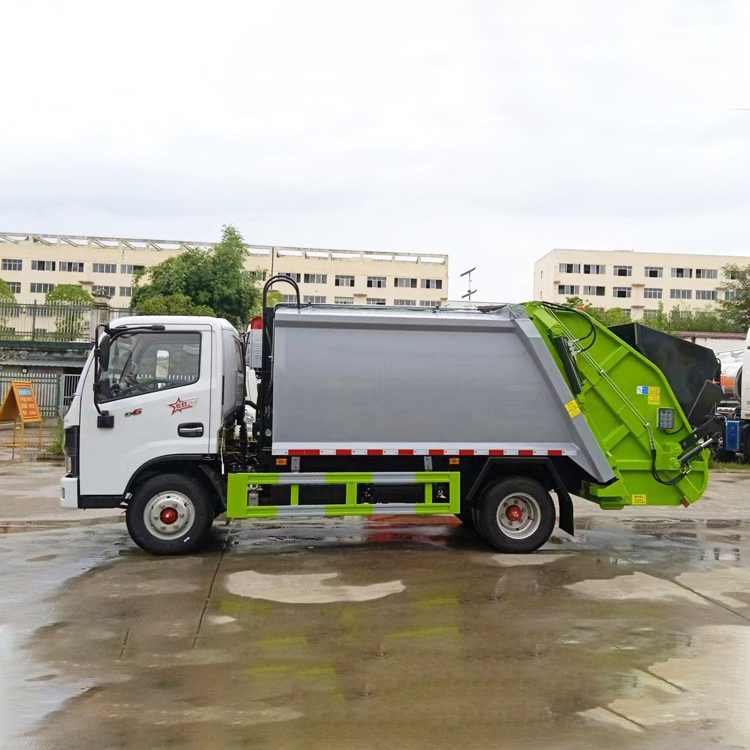

Vehicle Details

Dongfeng garbage truck has the advantages of high pressure, good sealing, convenient and reliable operation, etc. The curved box greatly increases the volume of the box as well as the aesthetics of the whole truck.

Dongfeng garbage truck has excellent material selection and strong compression capacity, strong transportation stability, good sealing between the garbage box and the rear door assembly, customized rubber strip sealing between the garbage box and the rear door assembly, good sealing, avoiding secondary pollution. All the filling and discharging operations require only one driver to operate; not only reduces the labor intensity of sanitation workers, but also greatly improves the work efficiency.

Dongfeng garbage truck has full power and solves the problem of secondary pollution during garbage transportation.
