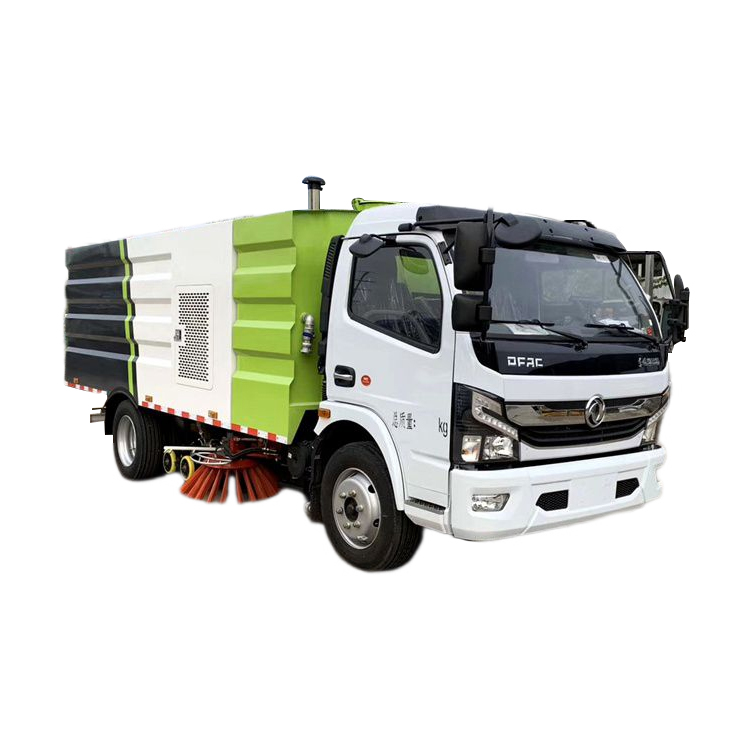

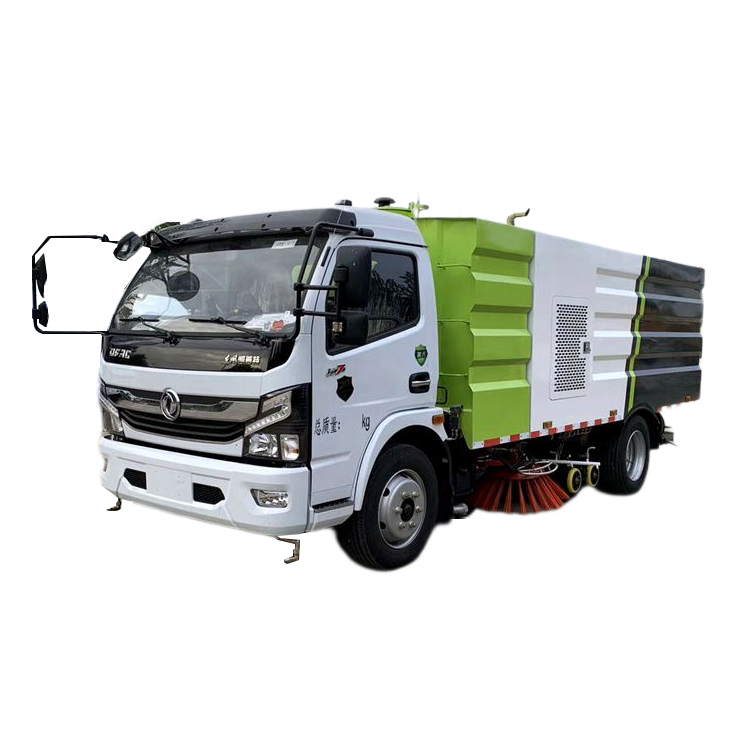

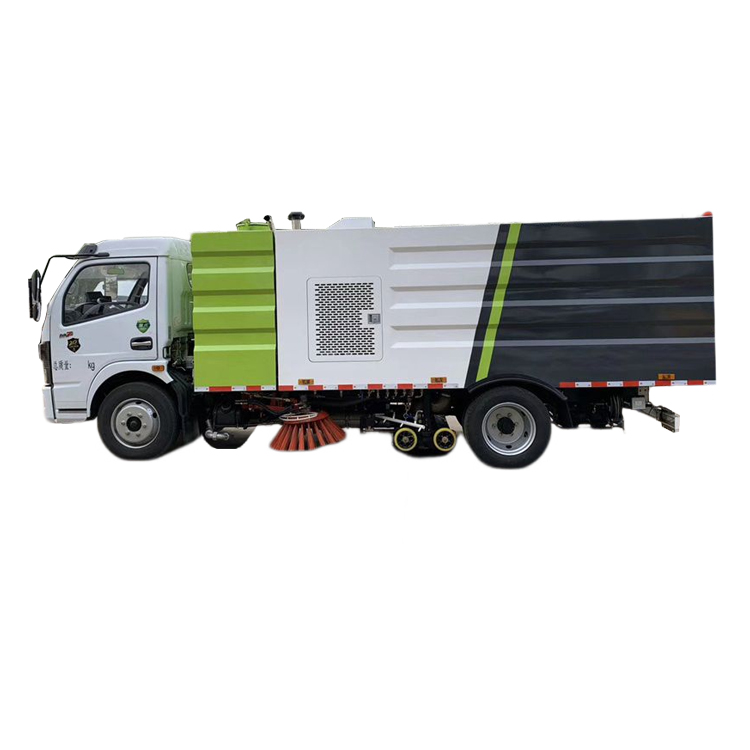

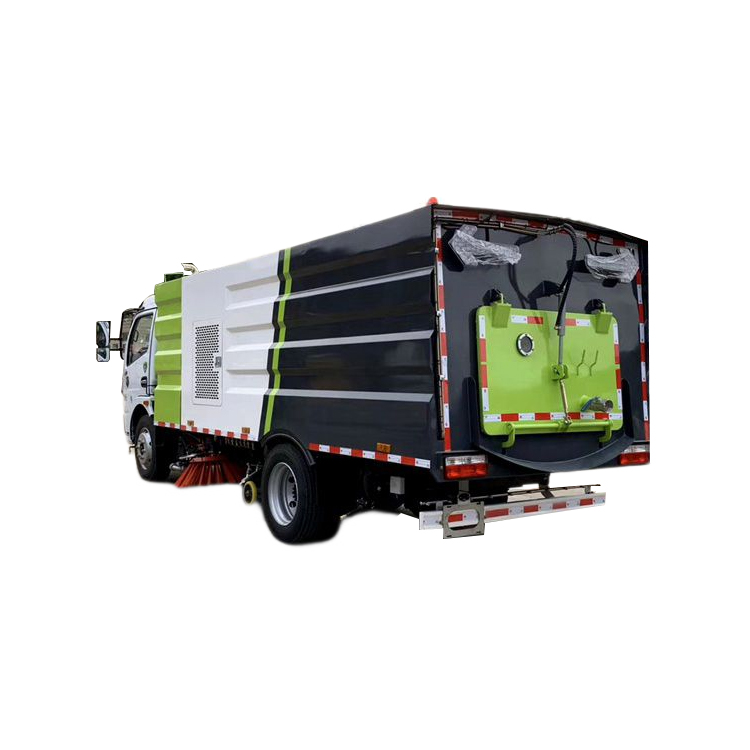

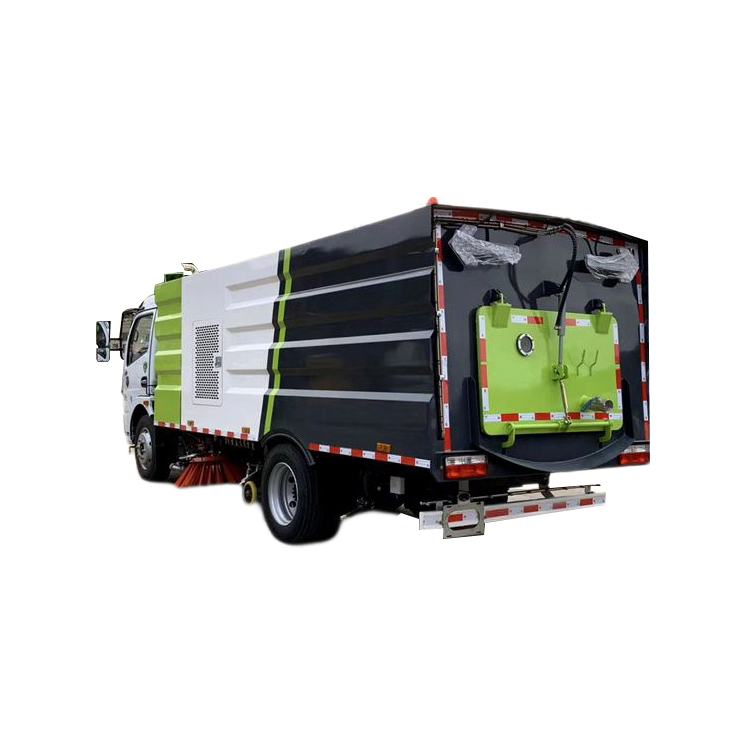

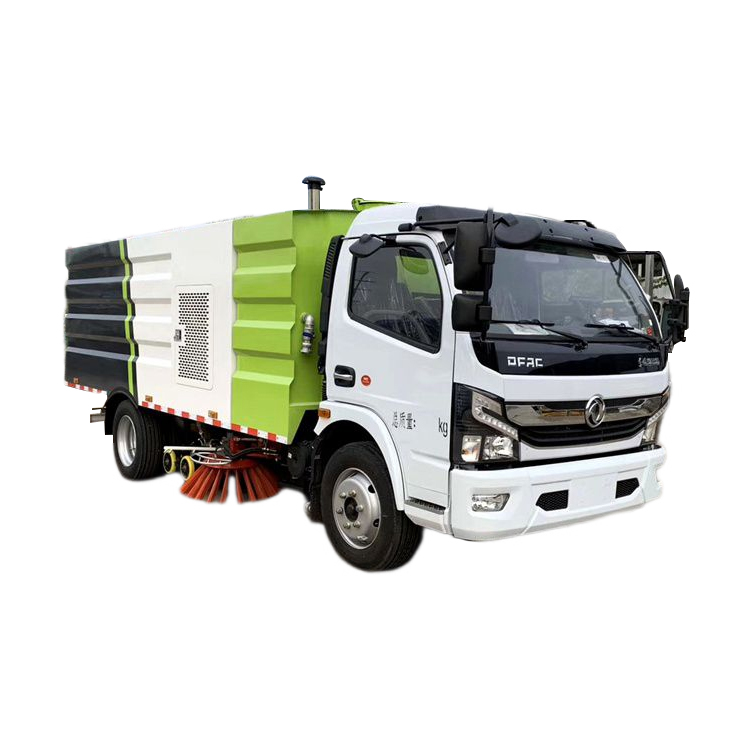

Road sweeper truck

Road Sweeper Truck is widely used in road sweeping operation of trunk highway, municipal and airport road surface, coal mine and plant, urban residential area, park and so on. Not only can sweep the garbage, but also the air media on the road to dust evolution, both to ensure the beauty of the road also maintains the environmental health.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

DONGFENG ROAD SWEEPER adopts the arrangement of center-mounted two-disk brush + center-mounted wide suction nozzle (built-in high-pressure spray bar) + center-mounted high-pressure side spray bar, which is convenient for sweeping device. It is driven by international hydraulic motor, which is stable and reliable, and the speed of the sweeper can be adjusted according to different sweeping conditions, which ensures good sweeping effect under various pollution conditions.

Wild Applications of Road sweeper truck

Road high-pressure cleaning truck, also known as “small high-pressure water sweeper”, with multi-functional washing operations, mainly used for urban sidewalks, sidewalks, roadside stone fast washing and cleaning, as well as urban small ads cleaning, fruit bins and garbage cans rinsing, ground dirt removal, tiles to restore the original color, bus stops flushing, public toilets flushing and so on.

Technical Parameters

Completed truck specification
Brand
DONGFENG
Name of products
Road sweeper truck
Product model
EL5070TSLD5
GVW(Kg)
7360
Rated payload(Kg)
2190
Overall dimension(mm)
6200,5950×2000×2590,2380
Curb weight(Kg)
5040
Approach/Departure(°)
‘20/12
Front overhang/rear overhang (mm)
1040/1852,1040/1602
Axle payload(Kg)
1800/3500
Max weight(Km/h)
99
Chassis specification
Chasis model
EQ1070SJ3BDF
Axle
2
Tyre number
6
Wheelbase (mm)
33,082,800
Tyre model
7.00-16,7.00R16
Leaf spring
6/6+5
Front tread(mm)
1,503,148,515,191,590
Fuel type
diesel
Rear tread (mm)
149,415,161,540
Engine model
Manufacture
displacement(ml)
Power(Kw)
JE493ZLQ3A
ISUZU
2770
85
Item
Specification
Vice motor
JX493G
Vice motor power
57 kW 77.5hp
Max GVW
6500 kg
Max speed
≥95km/h
Sweeper width
≥2.2m
Water tanker
1 m3
Dustbin tanker
2m3
Operation Speed
3~15km/h
Max working area
45000 m2/h
Max suction diameter
120 mm
Sweep efficiency
≥95%

Vehicle Details

DONGFENG ROAD SWEEPER is suitable for highway sweeping and cleaning work at all levels, as the dust is small during the whole operation. The vehicle has strong adaptability, with roadside stone sweeping device, left and right distributed non-dust-raising roll sweeping suction nozzle, sweeping width adjustment and other proprietary core technologies, to solve the current problem of dusty road sweepers, through the air duct conversion device, can also be rainy day operation, all-weather operation can be realized.
