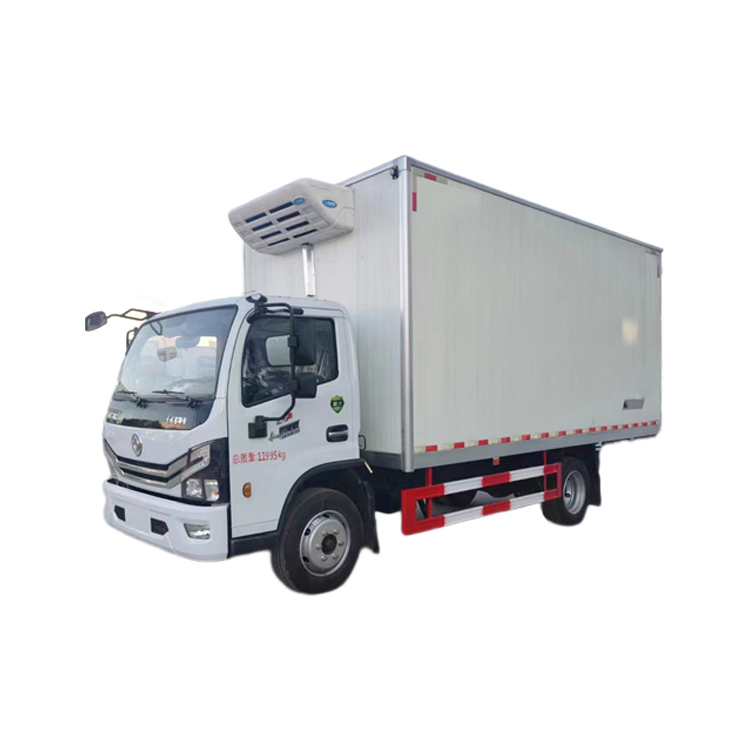

Dongfeng 5t Refrigerator Truck

Dongfeng Refrigerator Truck is a closed-type van used for transporting frozen or preserved goods. It is a refrigerator truck equipped with refrigeration unit and polyurethane insulated compartments, and is commonly used for transporting frozen food, dairy products, vegetables and fruits, vaccines and medicines, etc. It is also used as a refrigerator truck for the transportation of frozen food.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

Dongfeng 5t Refrigerator Truck

Economical & Efficient & Valuable

1. Famous Dongfeng chassis
2. High quality engine
3. Customized van size
4. Steel wire tire

Wild Applications of Refrigerator Truck

Refrigerated truck refers to the closed compartment transportation vehicle used to maintain the temperature of frozen or preserved goods, refrigerated truck is equipped with refrigeration unit refrigeration device and polyurethane insulated compartments of refrigerated special transportation vehicles, refrigerated trucks can be classified according to manufacturers, chassis carrying capacity, compartment type. Refrigerated trucks are commonly used to transport frozen food (refrigerated trucks), dairy products (dairy trucks), chemical products, vegetables and fruits (fresh goods trucks), vaccines and medicines (vaccine trucks), electronic products, flowers, high-grade furniture and so on.

Technical Parameters

Model
E31-535
Wheelbase(mm)
3300
Engine model
Chaochai CY4102-C3D
Engine power(Kw)
80
Engine displacement(ml)
3756
Gearbox
A100
Frame(mm)
188
Front/Rear axle(T)
2.5/3.5
Tyre
7.00-16
Payload(Kg)
4500
Curb weight(Kg)
2800
G.V.W.(Kg)
7300
Overall dimensions(mm)
5995×2090×2260
Length of the cargo body(mm)
3800
Cab
one and a half row
Power supply(V)
24
Braking system
air brake without spring
Steering system
mechanical
A/C
optional
Aluminum alloy rim
optional
Central lock
optional
Specifications of Van
Thickness of van (mm)
100
Inside and outside of van’s material
FRP(Fiber Reinforced Plastics)
Middle of van’s material
Polyurethane
Insulation layer
Under 120kPa high pressure,overall foam
Rear doorpost
stainless steel
ventilation opening
yes
Refrigerating capacity
4689
Refrigerant
404A
Min. temperature(℃)
-15℃~ -18℃
adopt to Korea’s HT-500 non-independent unit

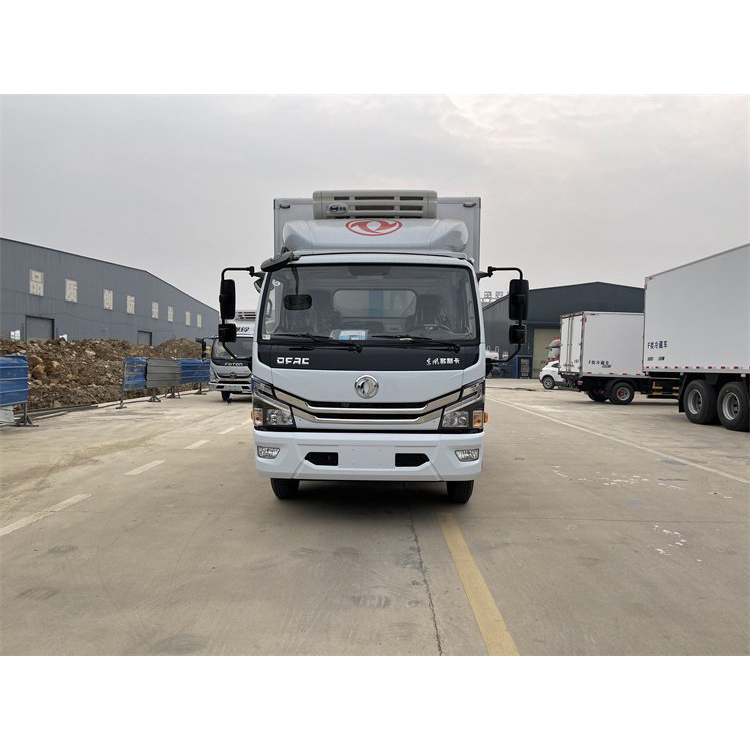

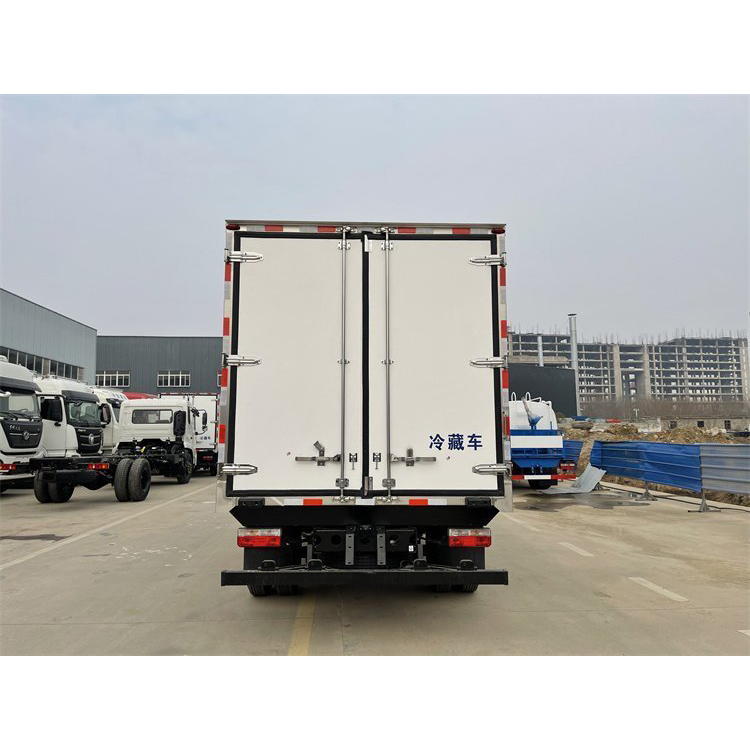

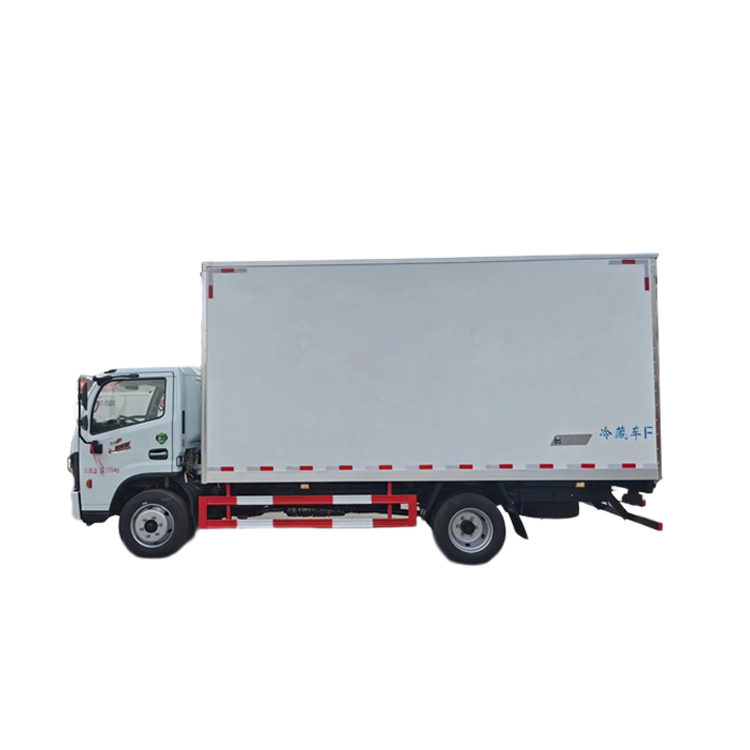

Vehicle Details

Fashionable styling, highlighting the dignity
Stylish and elegant exterior design of the whole truck, modern and fashionable front face, humanized and convenient door slanting window design, leading the new trend of global light truck styling.

Reliable quality, efficient operation
Original factory manufacturing, integrated design of the whole vehicle, so that the chassis, compartments, refrigeration unit matching to achieve the best program; using the world-renowned latest transmission and Dongfeng special axles, reliable and durable; the introduction of the international advanced compartment production process, the use of high-end polyurethane foam, high strength, insulation and preservation of freshness first-class effect.
