3 axle 50-60T U type dump trailer

3 axle low bed semi trailer For Transport Engineering Vehicle and Construction Machinery

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

One of the benefits of using a regular low bed trailer is that it is cost effective. The trailers are cheaper than other heavy duty trailers. Another advantage is the longer cargo platform. The lower part of a regular low bed trailer can be used as a cargo hold.

Company Advantage

We are the top one and professional semi-trailer supplier.
We can give you better product and favorable price.
ZLIN Vehicle has successfully entered into over 50 countries around the world

Technical Parameters

ITEM PARAMETERS
Trailer model 3 axle low bed semi trailer
Tare weight 12,500kg
Total Size 13,000x(3,000+500)x3,849mm
Working platform 9,000x(3,000+500)x1,350mm
Loading weight 50,000kg
Axle FUWA brand 13Ton* 3axles (axle length 2180mm)
Wheelbase 8580+1310+1310mm
Suspension Mechanical suspension (Reinforced by channel steel)
Steel spring Chinese local brand 10/10/10 Leaf spring
Side beam 25# channel steel(Q235)
Cross member 14# channel steel(Q235)
Platform plate 4mm diamond plate with special lines
Tire type &quantity Triangle Brand Radial tyre 12R22.5 x 12 units

Vehicle Details

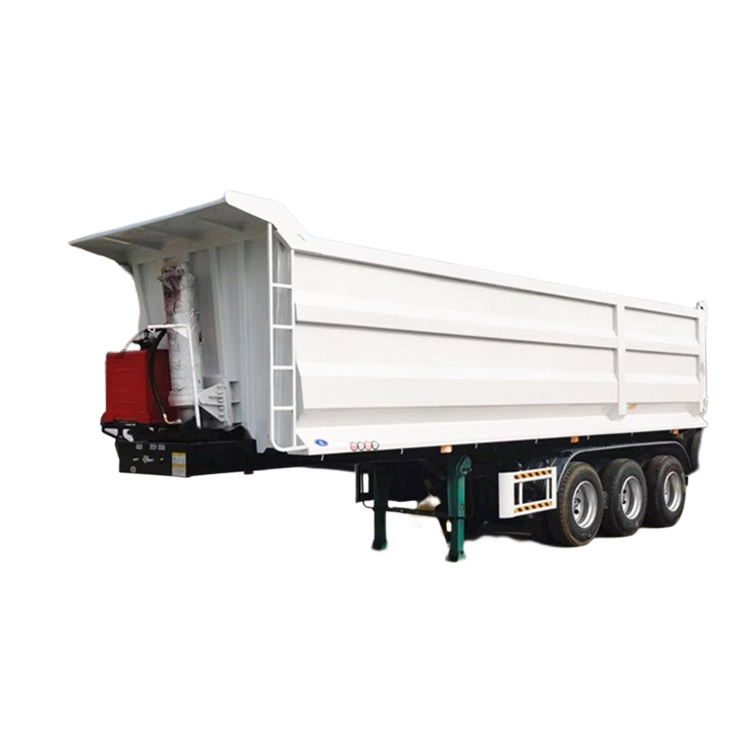

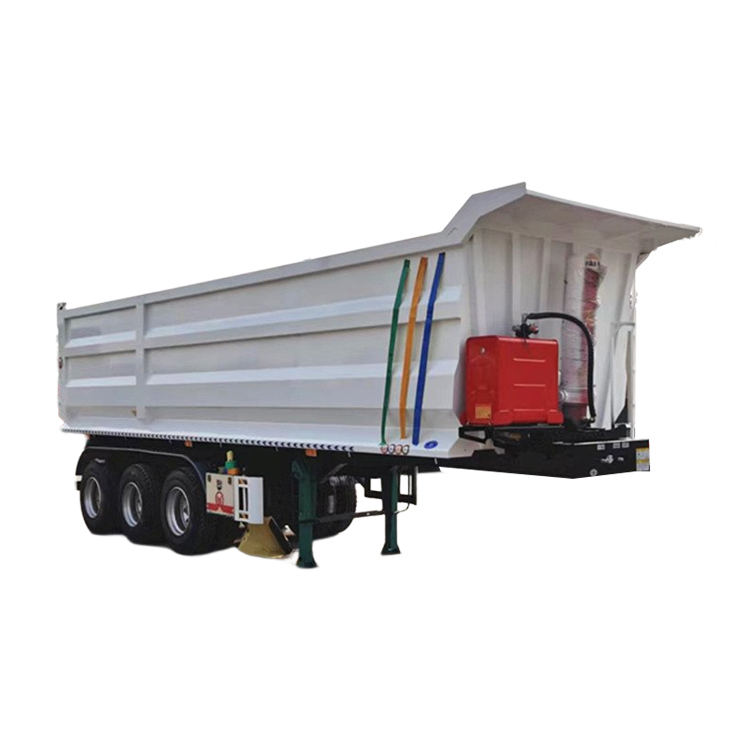

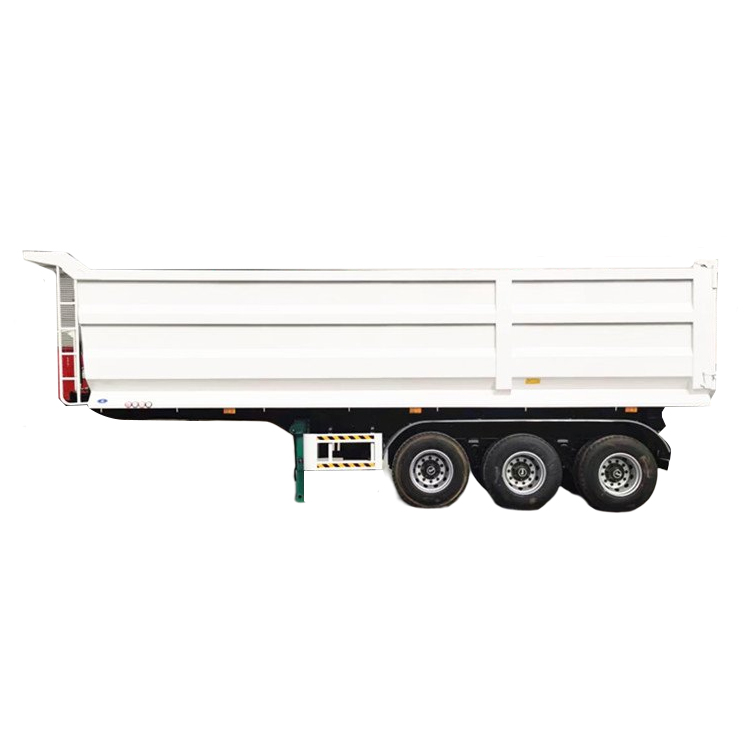

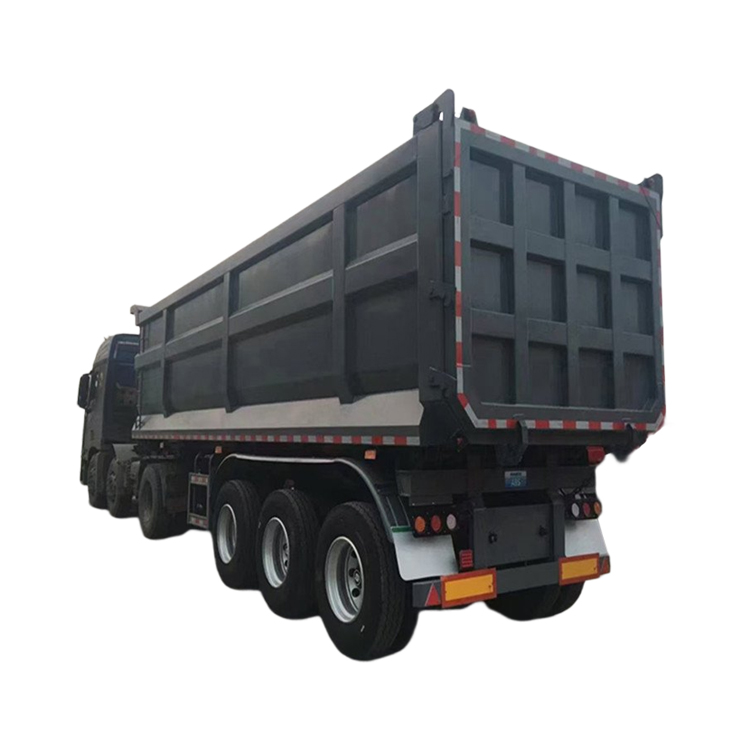

3Axle Rear-Tipper Trailer

Dump semi traileradopt advanced design concept. For the tipper trailer box, we adopt high strength steel to make it durable whenload the sand or small stones or rocks, especially under the off road condition.
