Low bed trailer

There are many types of trailers. Their basic frame, body and traveling system are basically the same as trucks. The railing carriages are usually made of thin steel plates with longitudinal concave prismatic lenses stamped into the railing panels of the carriages, which are transversely welded with convex ribs to increase the stiffness of the brackets and reduce the mass of the brackets. Welding or connecting willow. The longitudinal and transverse beams of the frame are mostly notched interface structure, and the two longitudinal beams are arranged in equal width, which makes the frame have better bending resistance.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

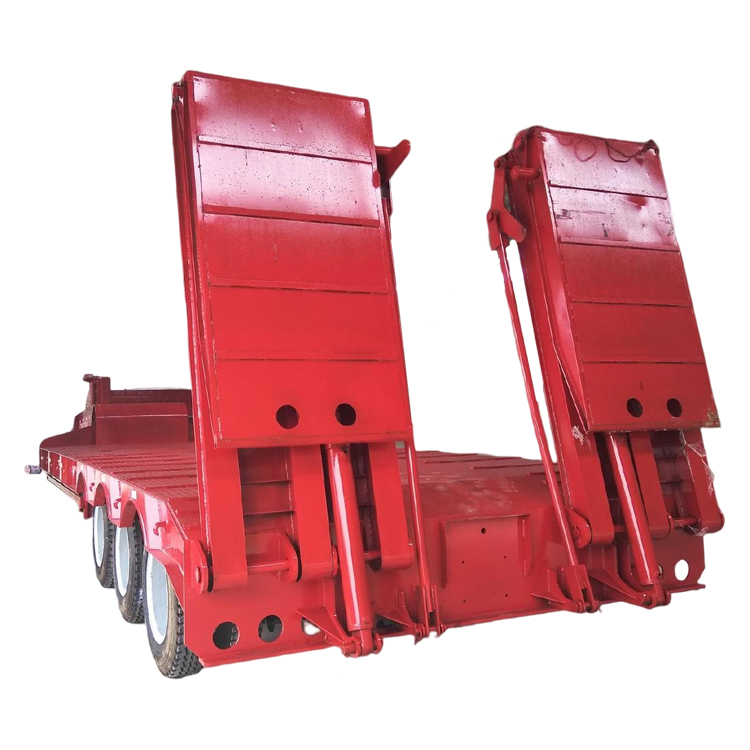

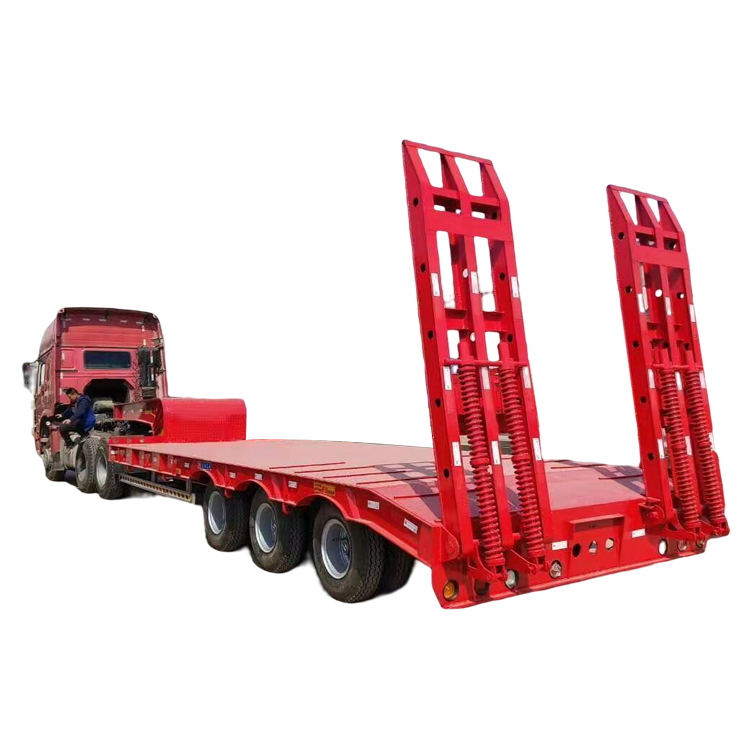

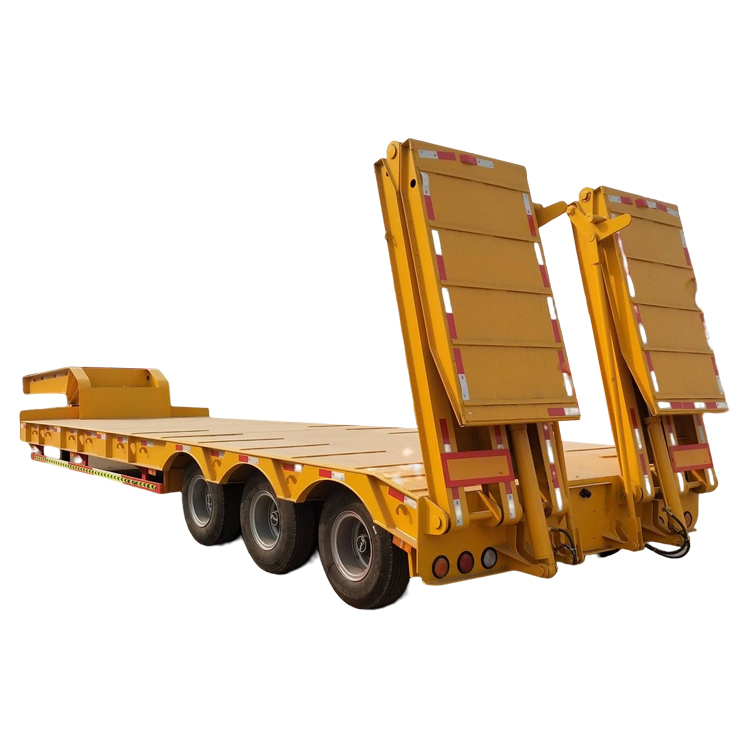

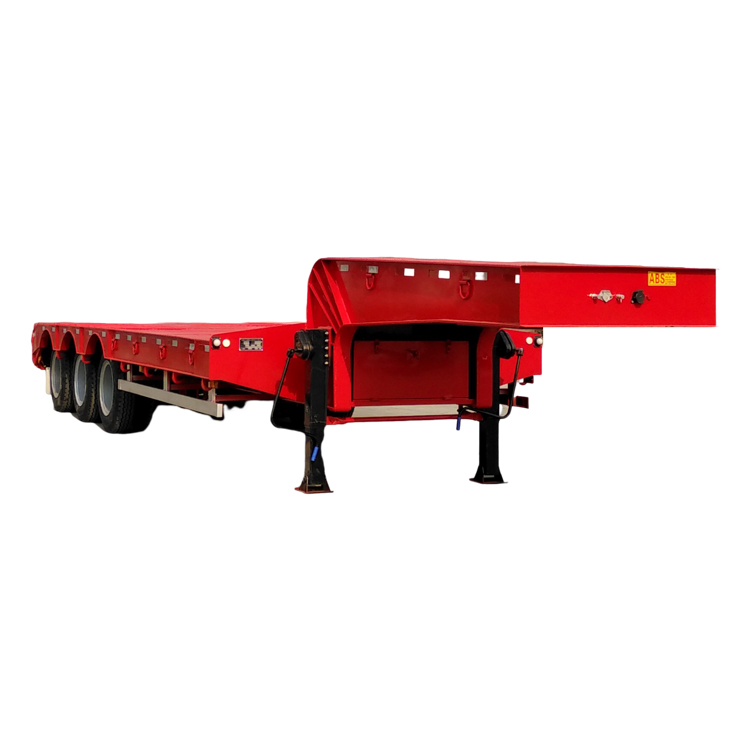

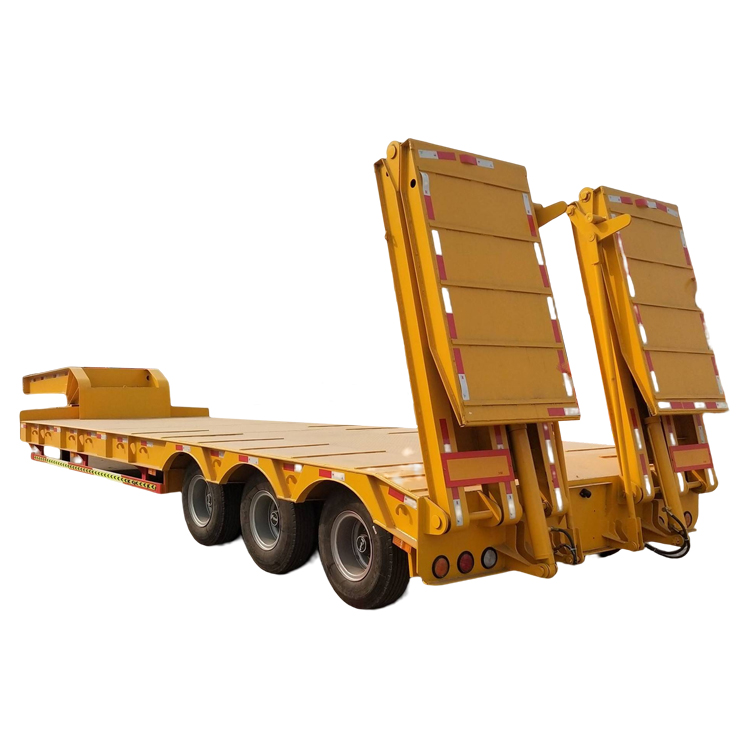

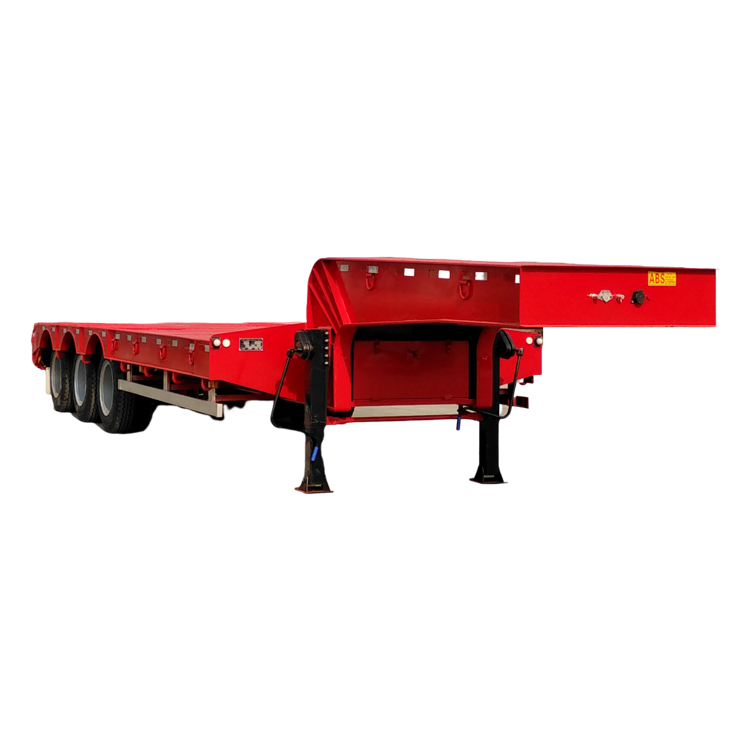

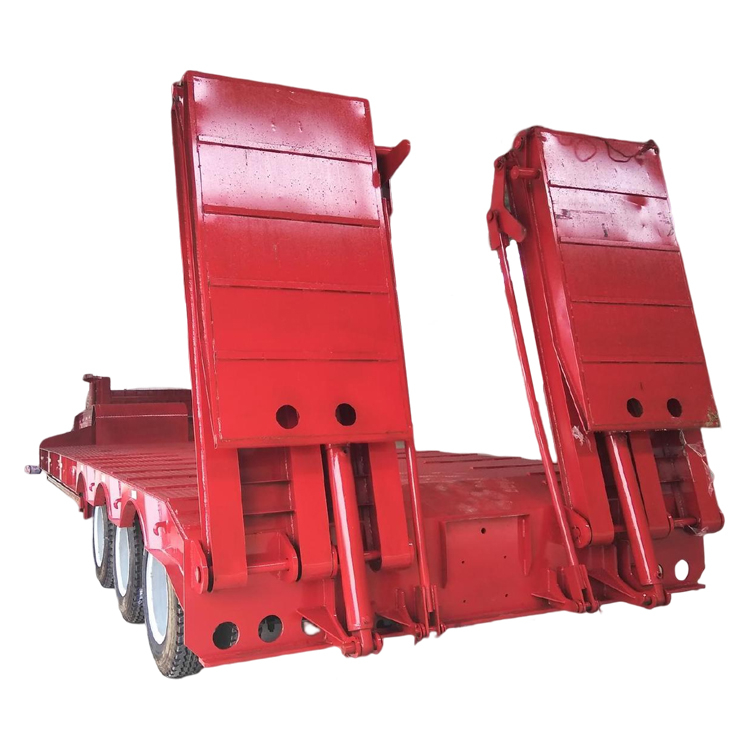

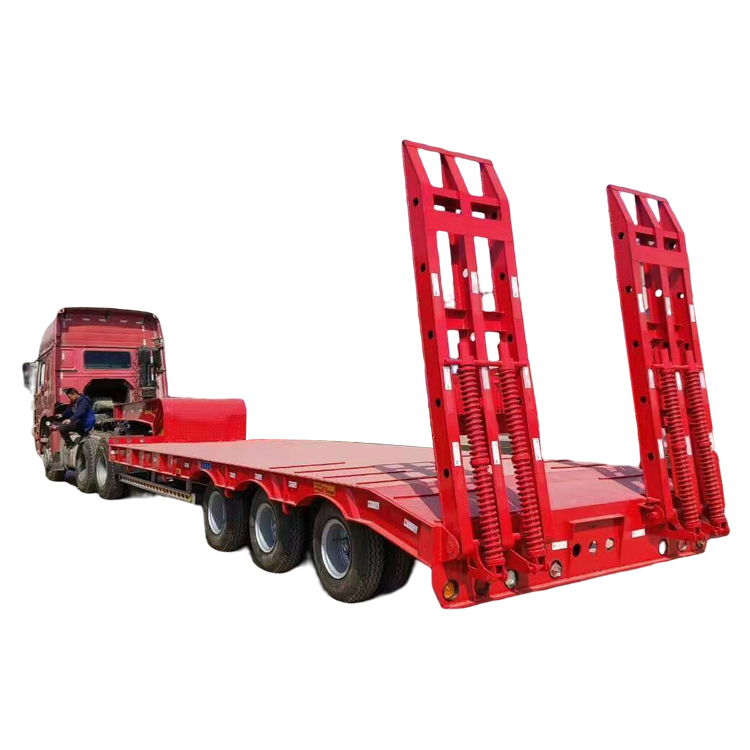

3 Axles Low Bed Trailer

3 axle low bed semi trailer For Transport Engineering Vehicle and Construction Machinery

1.This series hydraulic low bed trailer applicable for the transportation of the mechanical equipment, excavators, bulldozer, large objects, highway construction equipment, large tanks, power plant equipment or machine,and all sorts of steel products.
2. Low bed trailer dimension could be customized, we can manufacture it according to your needs.
3.The axles of tri axle low bed semi trailer can be Fuwa/Bpw with different tonnages by your need with price differences.

Company Advantage

We are the top one and professional semi-trailer supplier.
We can give you better product and favorable price.
ZLIN Vehicle has successfully entered into over 50 countries around the world.



Technical Parameters

ITEM
PARAMETERS
Trailer model
3 axle low bed semi trailer
Tare weight
12,500kg
Total Size
13,000x(3,000+500)x3,849mm
Working platform
9,000x(3,000+500)x1,350mm
Loading weight
50,000kg
Axle
FUWA brand 13Ton* 3axles (axle length 2180mm)
Wheelbase
8580+1310+1310mm
Suspension
Mechanical suspension (Reinforced by channel steel)
Steel spring
Chinese local brand 10/10/10 Leaf spring
Side beam
25# channel steel(Q235)
Cross member
14# channel steel(Q235)
Platform plate
4mm diamond plate with special lines
Tire type &quantity
Triangle Brand Radial tyre 12R22.5 x 12 units
