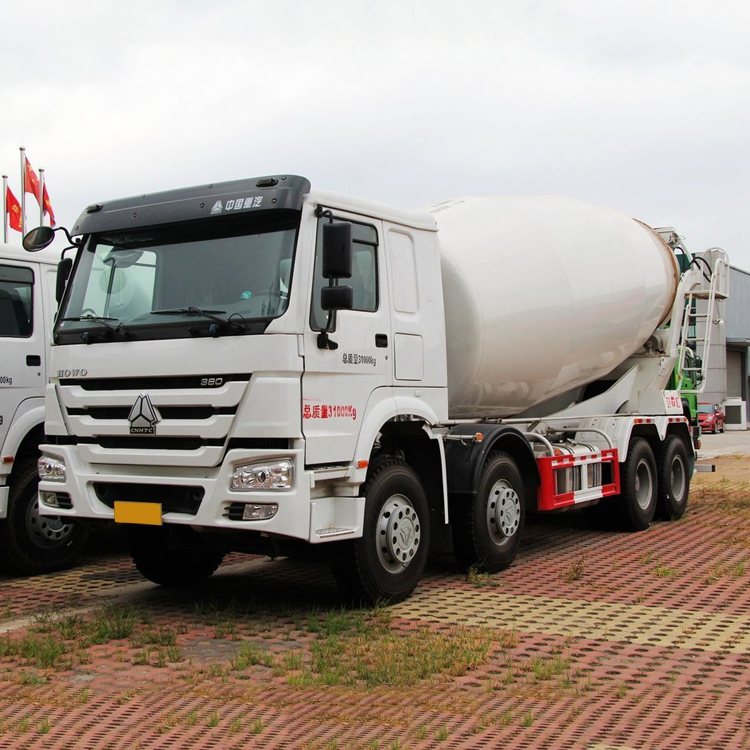

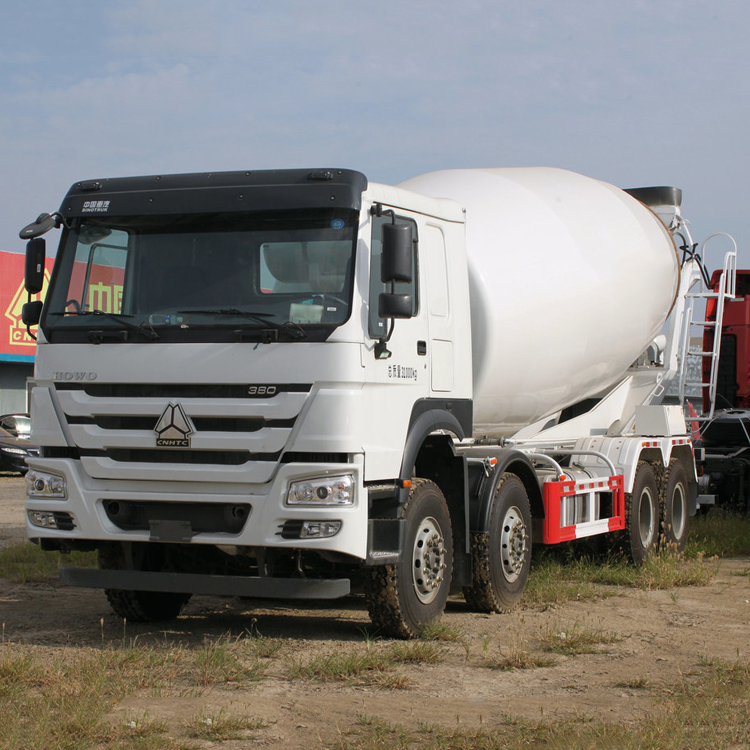

8×4 12-16m3 concrete mixer truck

The engine of 8x4 12-16m3 concrete mixer truck is powerful, faster lifting, more economical and fuel-saving, environmentally friendly and pollution-free

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

Vehicle carrying capacity is strong, no dismantling and maintenance, save energy and save money. Overall sturdy and safe! Equipped with a luxury centre console, original air-conditioning, it is able to create the best profit model with high speed, high efficiency, high reliability and fuel saving.

Wild Applications of Concrete mixer truck

The main application of the mixer truck is to transport concrete to the construction site, with a short distance, high frequency characteristics, pay great attention to the timeliness.

Concrete mixer trucks are specialized trucks used to transport concrete for construction purposes. These trucks are equipped with cylindrical mixing drums to carry the mixed concrete. These trucks are equipped with a cylindrical mixer to carry the mixed concrete, and the mixer is kept rotating during transportation to ensure that the concrete does not solidify.

Technical Parameters

Overall parameter
Overall dimension 10500x2500x4000mm
Kerb weight 17000kg
Mixing Drum parameter
Mixing drum material High quality wear-resistance steel
Agitating capacity 12M3
Drum overall dimension(with frame) 7600*2500*2850mm
Mixing drum size Diameter: Φ2450mm Length: 5830mm
Charging rate ≥3 m3/min
Top feed hopper dimension ≥650 mm
Discharging rate ≥2 m3/min
Residual rate ≤0.5%
Water tank capacity 450L
Radiator 18L
Chassis parameter
Chassis Brand SINO Truck
Chassis model ZZ1317N3667C1
Axle base 1800+3600+1350mm
Driving type Left hand drive(LHD)
Engine model WD615.96E
Rated power (HP) 336 EGR
Emission standard Euro II
Fuel type Diesel

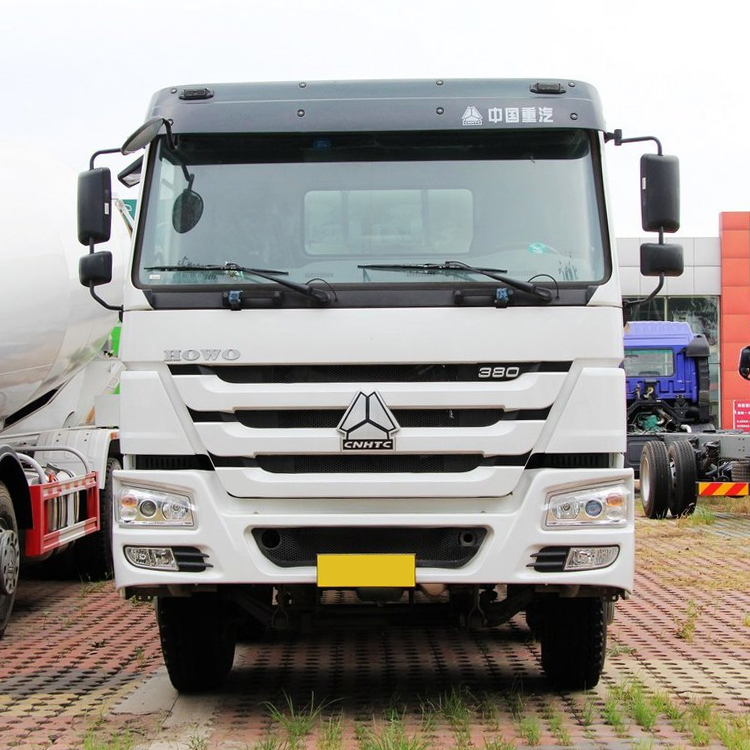

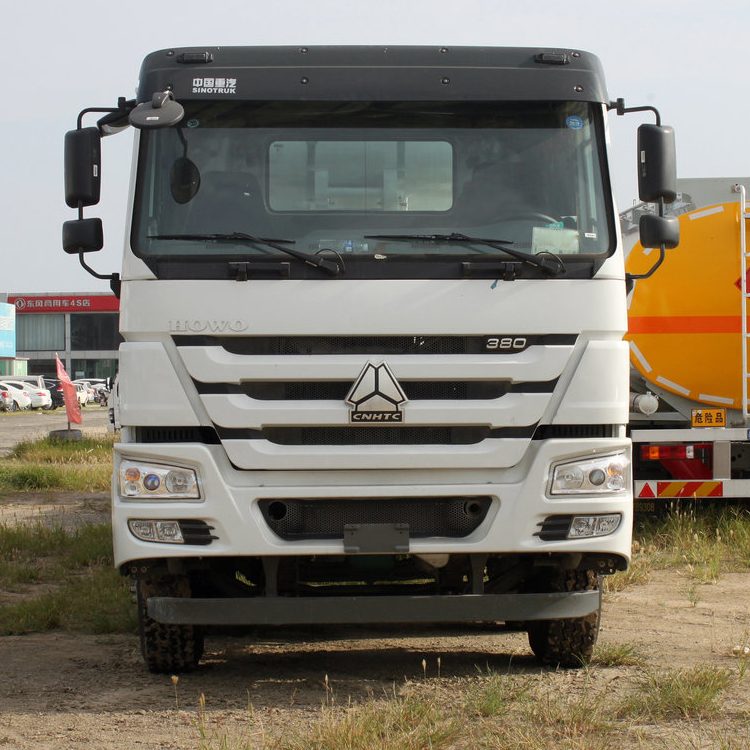

Vehicle Details

The engine of 8×4 12-16m3 concrete mixer truck is powerful, faster lifting, more economical and fuel-saving, environmentally friendly and pollution-free!

8×4 12-16m3 concrete mixer truck’s gearbox has big torque, fast climbing, international quality, high quality and light operation.
