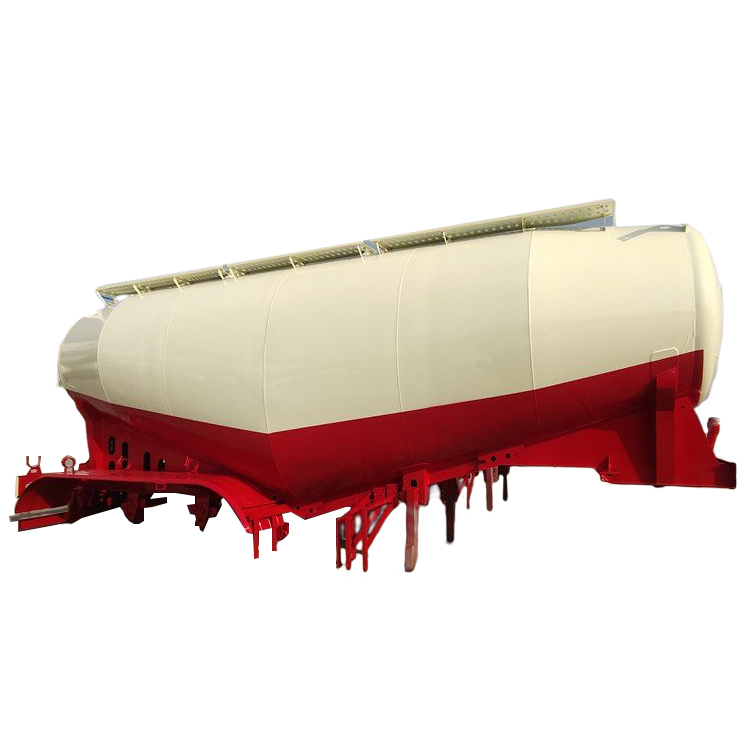

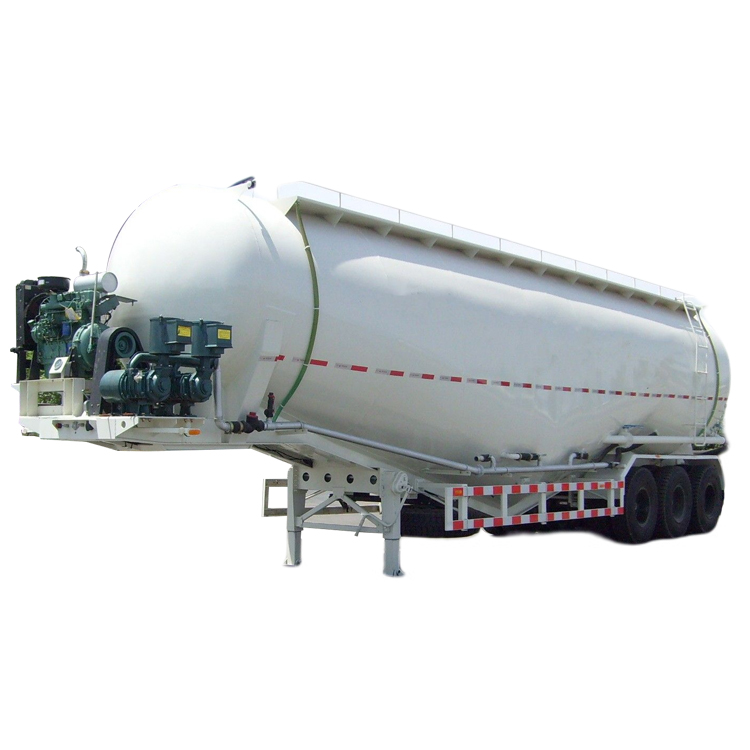

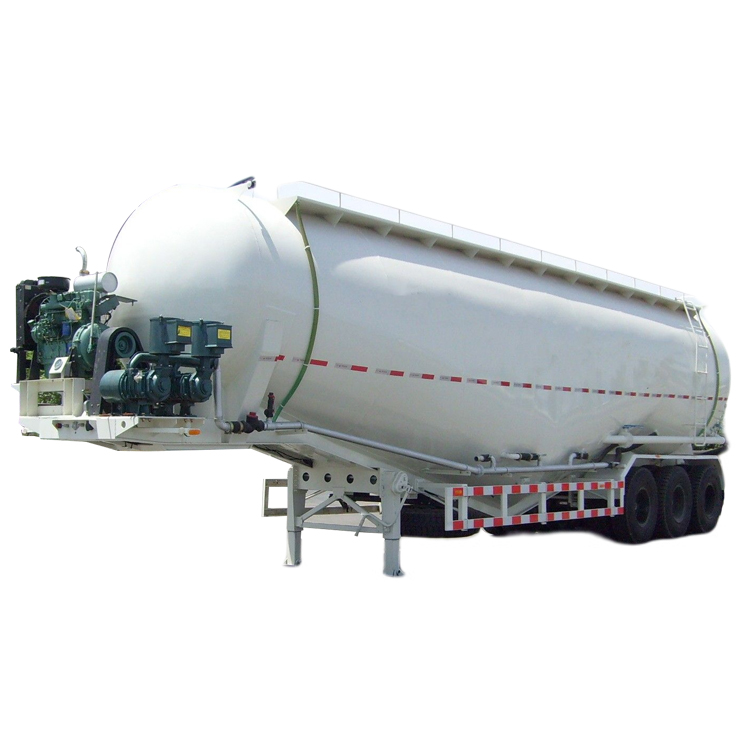

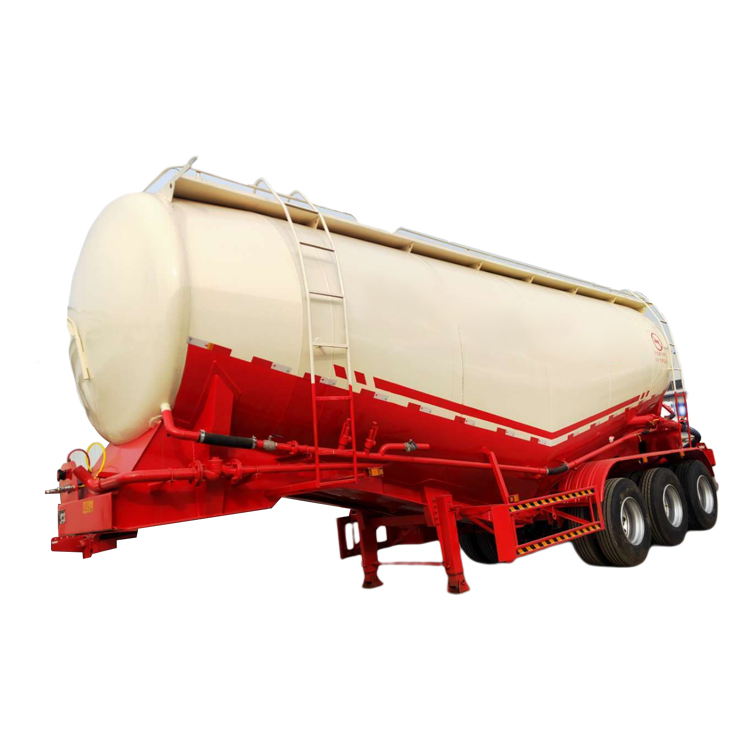

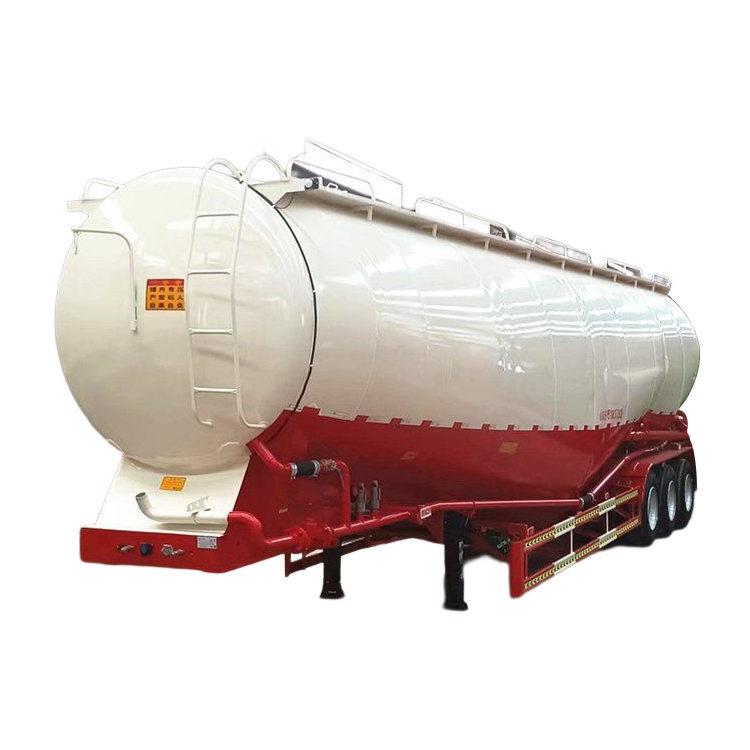

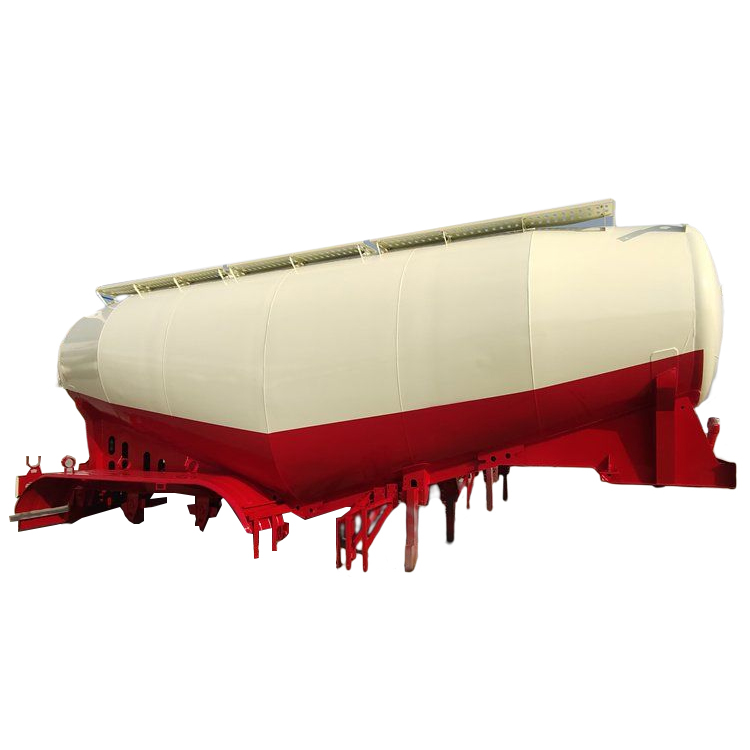

Bulk cement tanker trailer is a semi-trailer that transports low density materials such as powder, granule, cement, etc. It is also known as powder and granule material transportation vehicle or dust semi-trailer. Working Principle: The main vehicle takes power and diesel engine air compressor to provide output power.
The 40m3 Bulk Cement Tanker It is mainly used to transport powdered materials such as cement, fly ash, calcium carbide powder, talcum powder, carbon black, and granular materials such as rice grains and plastic particles.
Bulk Cement Tanker is suitable for the bulk transportation of fly ash, cement, lime powder, ore powder, granular alkali and other dry materials with particle diameter not more than 0.1mm. It is mainly used in cement factories and other large construction sites.
| Vehicle parameters | |||
| Overall dimensions | 10500X2496X2958mm | Curb weight | 12265kg |
| Tank dimensions | 6000X2400X1600mm | Tank volume | 20000L |
| Chassis parameters | ||||
| Chassis model | ZZ1257M4641W | Chassis brand | SINOTRUK | |
| Overall dimensions | 10100X2496X3048mm | Wheel base | 4600+1350mm | |
| Front/rear wheel track | 2022, 1830/1830mm | Front/rear suspension | 1500, 2600mm | |
| Approach/departure angle | 16/15° | Maximum speed | 90km/h | |
| Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||
| Cab | Configuration | HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers | ||
| Color | White, other color is optional | |||
| Engine | Model | WD615.62 | ||
| Emission | Euro 2 | |||
| Type | 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine | |||
| Rated power | 266hp, rated power speed 2200rpm | |||
| Displacement | 9726ml | |||
| Max.torque | 1350N.m | |||
| Bore x stroke | 126x130mm | |||
| Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||
| Tire | Size | 295/80R22.5 tubeless tire | ||
| Number | 10+1 nos | |||
| Clutch | φ430 diaphragm clutch | |||
| Front axle | HF 7 tons | |||
| Rear axle | ST 16 tons | |||
| Drive form | 6X4 | |||
| Suspension | Multi leaf springs | |||
| Rated voltage | 24V, DC | |||
| Transmissions | HW13710CL, 10 speed forward 2 reverse. | |||
| Steering device | Power assisted steering | |||
| Steering wheel | Left hand drive | |||
| If there is a slight change in the chassis parameters above, please take the actual product as the standard | ||||
| Water tank structure parameters | ||||
| Tank dimensions | 6000X2400X1600mm | Tank volume | 20000L | |
| Tank material | Carbon steel | Tank thickness | 5mm | |
| Nozzle sprinkling width | ≥14m | Range of water cannon | ≥28m | |
| Suction height | ≥7m | Color and Logo | Optional | |
| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. | |||
| MOQ,payment terms,delivery terms,price | |||||
| MOQ | One unit | ||||
| Payment terms | T/T 40% down payment, 60% balance after inspection before delivery | ||||
| Inspection | Buyer’s agent or third party inspection agency,the cost is paid by the buyer | ||||
| Delivery term | 35working days from down payment | ||||
| Documentation | Maintenance manual | ||||
| User manual | |||||
| Packing list | |||||
| Commercial invoice | |||||
| Certificate of origin is optional | |||||
| Spare parts list for purchase is optional | |||||
| Standard tools | With standard tools for chassis and water tank structure | ||||
| Packing | The main vehicle nude and covered with wax, attached parts and tools put into standard export box | ||||
| Other requirements | Please fill in here | ||||
| Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks. |
|||||
40m3 Bulk Cement Tanker
Reduce human resource consumption and improve labor efficiency.
Save packaging material costs and reduce costs.
The packaging bag will not be damaged during transportation by cement tanker.
Bulk cement is not susceptible to moisture during transportation and rarely deteriorates after a year of storage.
Loading capacity : 40cbm
King pin diameter : 2 or 3.5 inch
Chassis brand : SINOTRUK
Overall dimensions : 10100X2496X3048mm
Drive mode : 6×4
Fuel Tanker: 20000L
