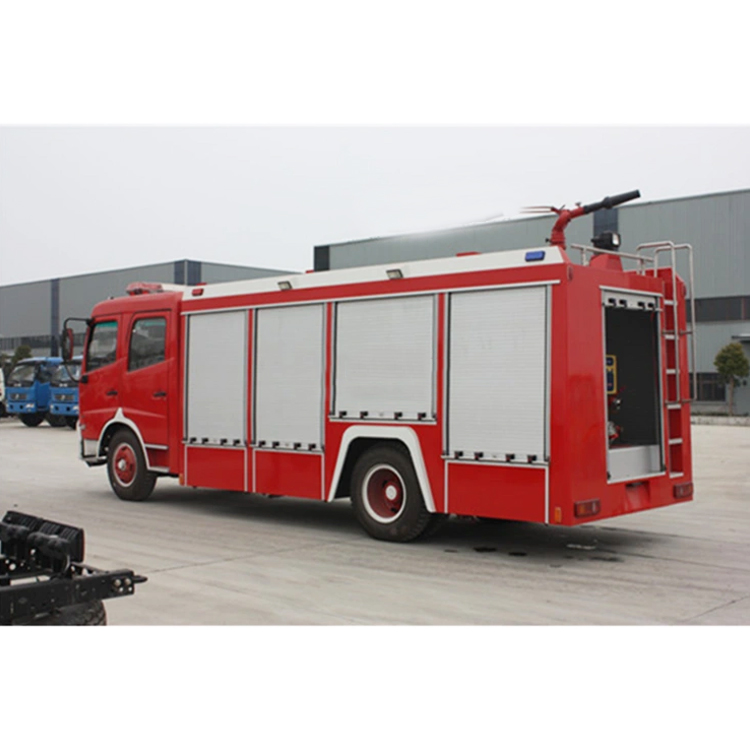

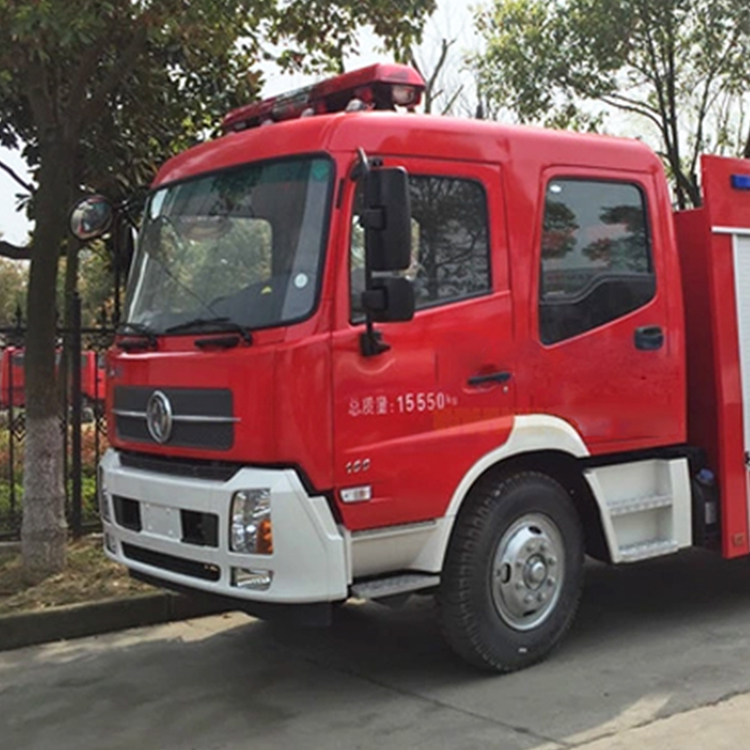

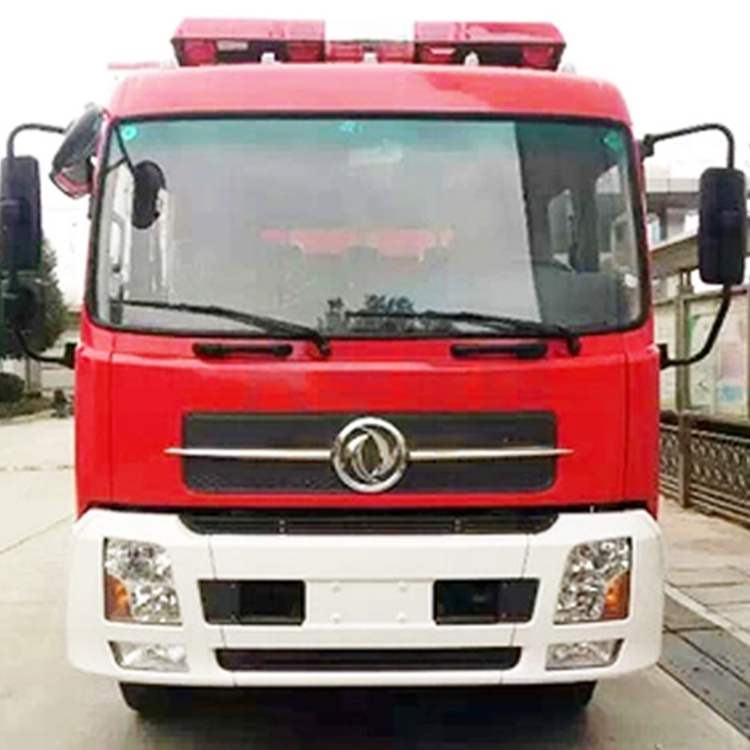

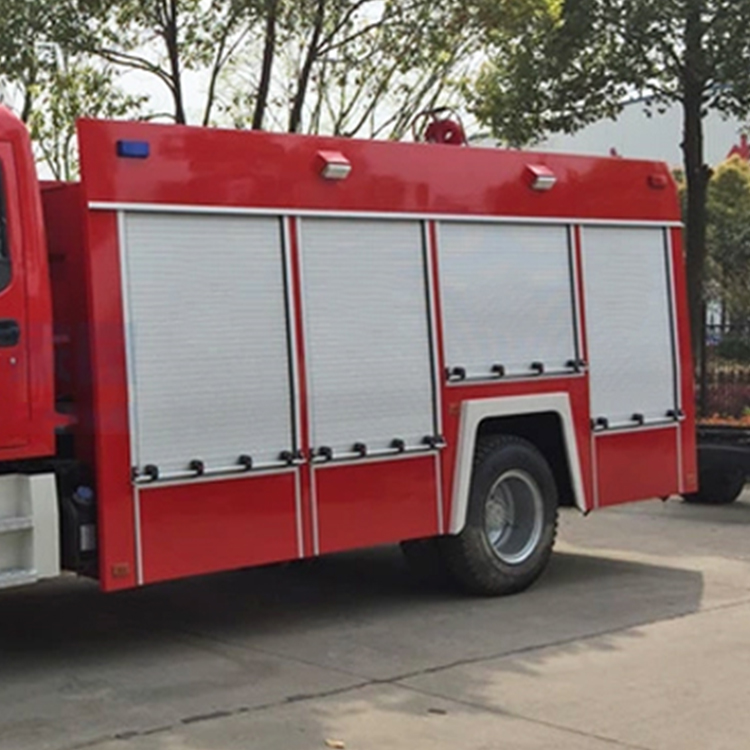

Dongfeng 4*2 fire fighting truck 6000L is characterized by flexible mobility, good maneuverability and easy maintenance.
Dongfeng 4*2 fire fighting truck 6000L consists of firefighter crew room and body two major components, the car for the internal warehouse tank structure, the front of the body for the tank + equipment box, liquid tank for high-quality carbon steel, the car’s most important feature is maneuverable and flexible, good maneuverability, easy maintenance. It can be widely used in public security fire department, factories, mines and enterprises, communities, wharves and other places to fight general material fires and grease chemical fires.Fire truck is a vehicle specially used for fire extinguishing, rescue and emergency disposal, which can send firefighters to high altitude for fire extinguishing and rescue, fire command truck is a kind of vehicle used for commanding and coordinating fire extinguishing and rescue work, fire command truck can carry out comprehensive command and coordination of fire extinguishing and rescue work, and firefighting tanker truck can provide fire-fighting water for the scene of the accident.
|
Model
|
JDF5150GXFPM60T
|
Chassis
|
DFL1160BX2
|
||||
|
Weight(kg)
|
Rated payload
|
6000
|
Outer diemension
|
8120×2480×3350
|
|||
|
Curb weight
|
8550
|
Van size
|
/
|
||||
|
G.V.W
|
15000
|
Wheel base
|
4500/4200
|
||||
|
Engine
|
model
|
B190 33
|
type
|
Turbocharged and Intercooled Diesel Engine
|
|||
|
Power/displacement
|
140/5900
|
manufacture
|
Dongfeng Cummins Engine Co., Ltd
|
||||
|
Performance
|
Max speed
|
90
|
Tread
|
Front
|
1880
|
||
|
Cab
|
Double row/Flat head
|
Rear
|
1800/1860
|
||||
|
Cab capacity
|
3+3
|
Overhang
|
Front
|
1430
|
|||
|
Tyre number
|
6
|
Rear
|
2130
|
||||
|
Tyre spec.
|
10.00-20,9.00-20
|
Driving angle
|
App.
|
20
|
|||
|
NO. of spring leaf
|
7/9+6,8/10+8
|
Dep.
|
13
|
||||
|
Tank capacity
|
Water Tanker: 6000L
|
||||||
Performance description Water suction line: water pump with 125mm intake valve, can intake water from natural source or other liquid tanks. Outlet waterline: both sides have one medium pressure water outlet, on top of the tank have one water deluge pipeline with diameter no less than 50mm. Water intake line: at rear of the water tank, can pump water inside tank directly. Release water line: all water pipe line equipped with release water line and ball valves to ensure the water tank not over filled, to protect water pump and other valves.
Loading capacity : 40cbm
King pin diameter : 2 or 3.5 inch
Chassis brand : SINOTRUK
Overall dimensions : 10100X2496X3048mm
Drive mode : 6×4
Fuel Tanker: 20000L
