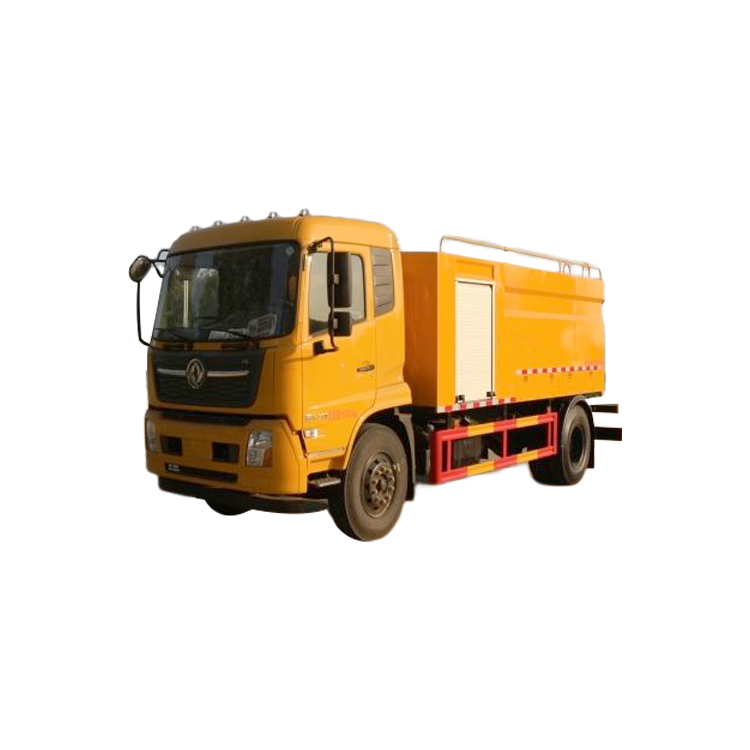

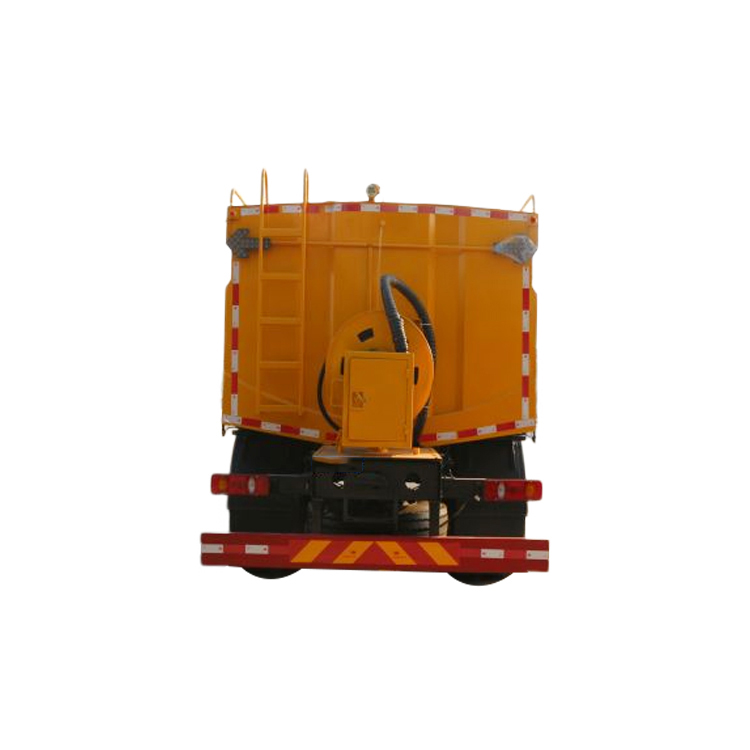

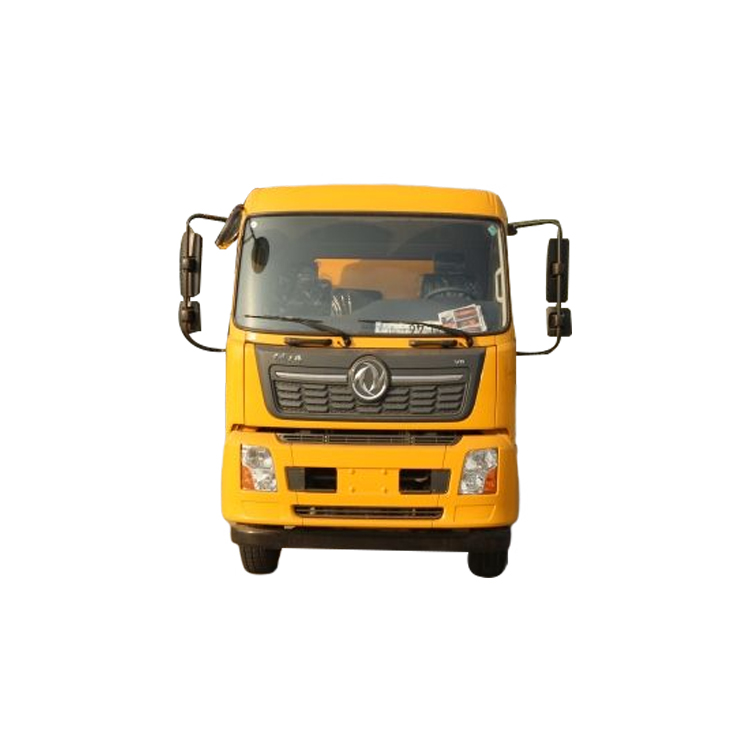

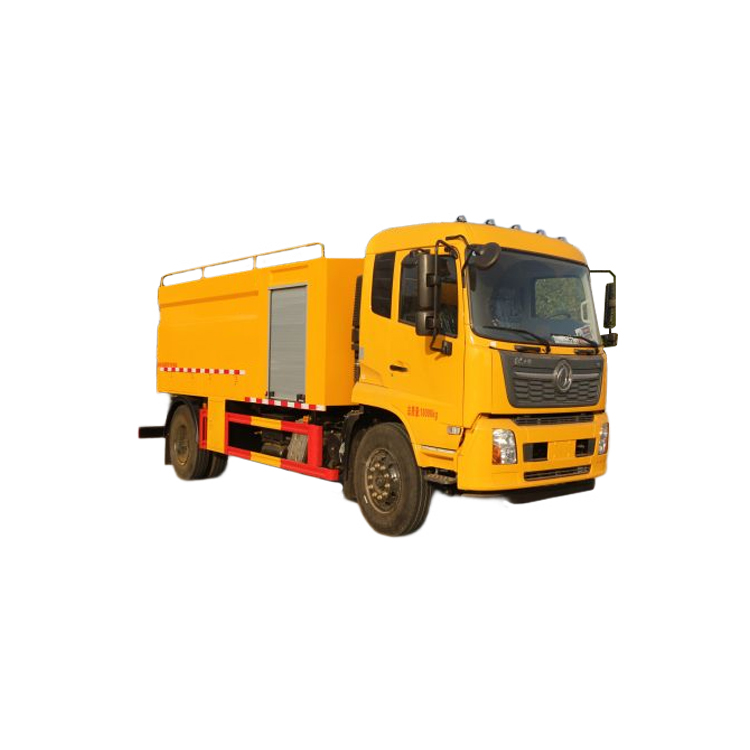

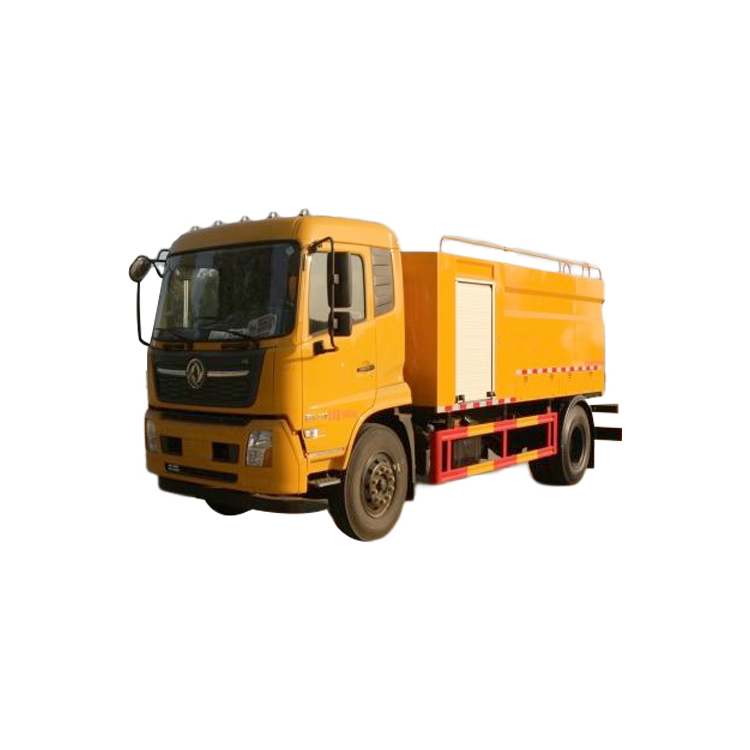

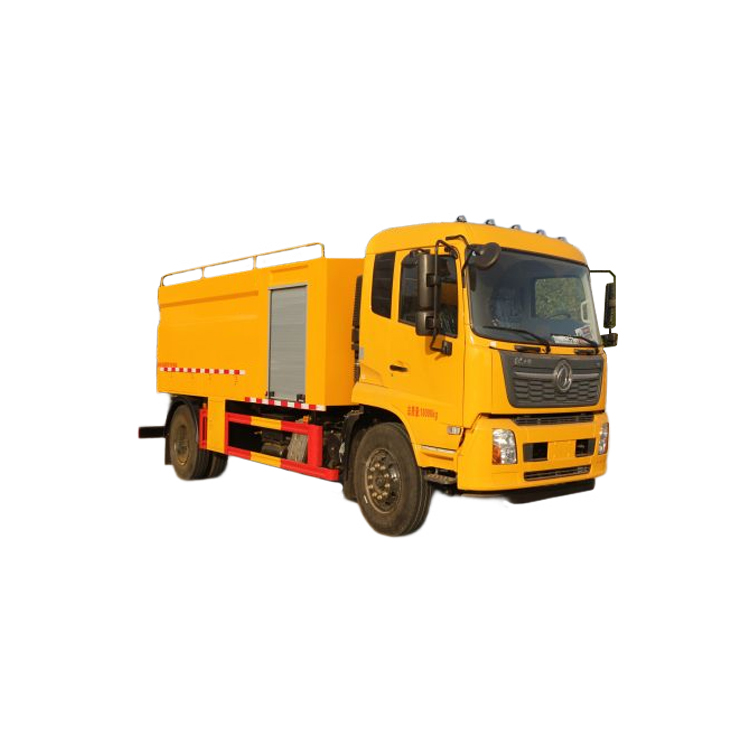

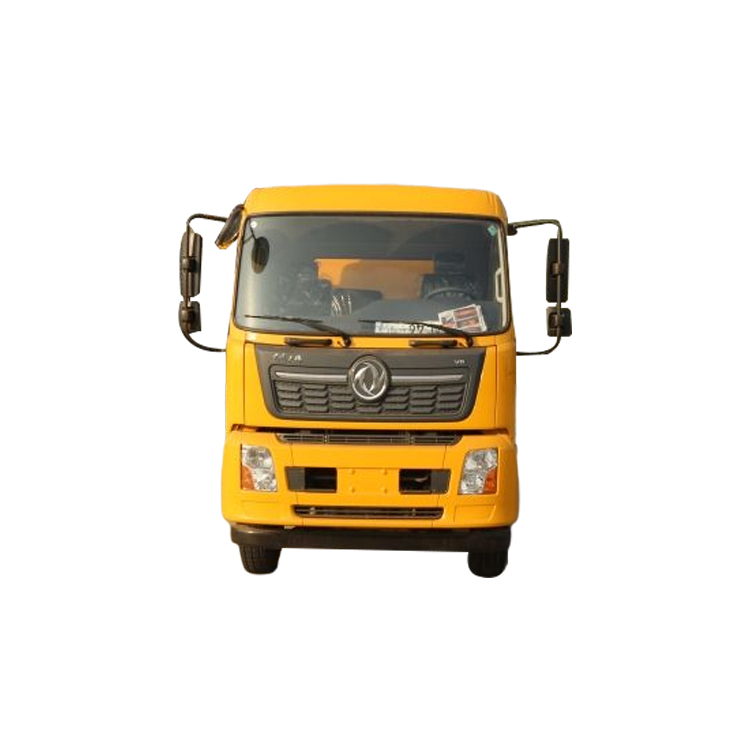

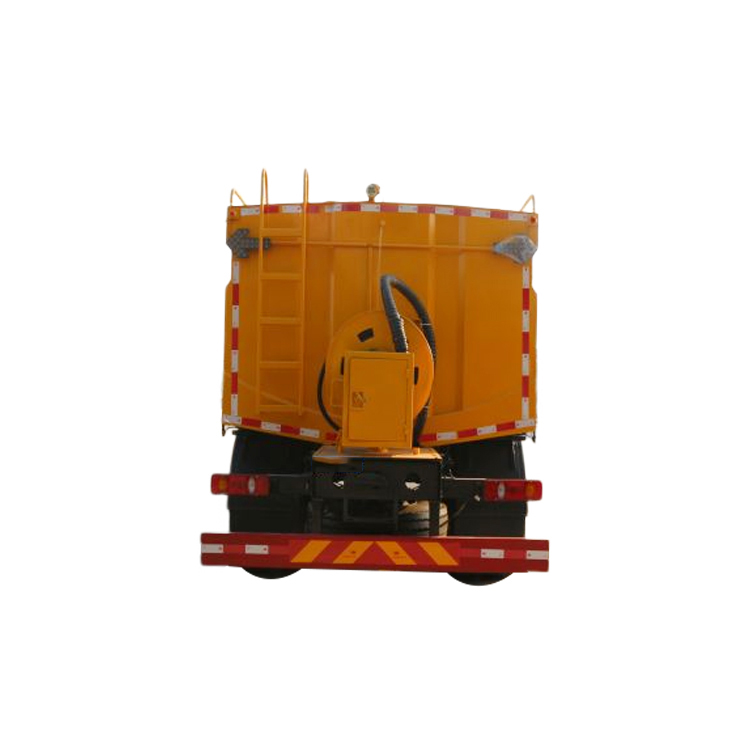

High-pressure cleaning truck is a special operation vehicle combined with chassis, tank and special equipment, and its main function is to clean the road surface.
Road high-pressure cleaning truck, also known as “small high-pressure water sweeper”, with multi-functional washing operations, mainly used for urban sidewalks, sidewalks, roadside stone fast washing and cleaning, as well as urban small ads cleaning, fruit bins and garbage cans rinsing, ground dirt removal, tiles to restore the original color, bus stops flushing, public toilets flushing and so on.
Dimensions
|
Overall dimension (mm)
|
7450x2480x2985
|
Wheel base (mm)
|
3950
|
|
Front/Rear tread(mm)
|
1880/1860
|
|
Performance
|
Max. speed(Km/h)
|
90
|
App./Dep. angel (°)
|
20/11
|
|
Max. gradability (%)
|
30
|
|
Min.turning diameter(m)
|
19
|
|
Min.ground clearance(mm)
|
240
|
|
Mass
|
Payload (Kg)
|
5930
|
Curb weight(Kg)
|
5880
|
|
G.V.W (Kg)
|
12005
|
|
Special function
|
Outer dimession(mm)
|
4200×2000×1150
|
Effective volume(m³)
|
10
|
|
Material of tank
|
carbon steel
|
The working principle of multi-function high pressure cleaning truck
The use of high-pressure water generated by the high-pressure pump, through the water spray frame of the high-pressure nozzle spray, the use of high-pressure water flow of kinetic energy, high pressure, low-flow way of cleaning, strong decontamination, high efficiency and water conservation, can be cleaned of old road stains; or high-pressure water through the left (right) corner spray spraying, cleaning the curb, sidewalk and guardrail isolation area; the use of high-pressure spray gun can also be cleaned signposts, billboards, elevated roads, etc.; spraying system with a The spraying system has the functions of powerful spraying to reduce dust, spraying air disinfectant and regulating air humidity.
