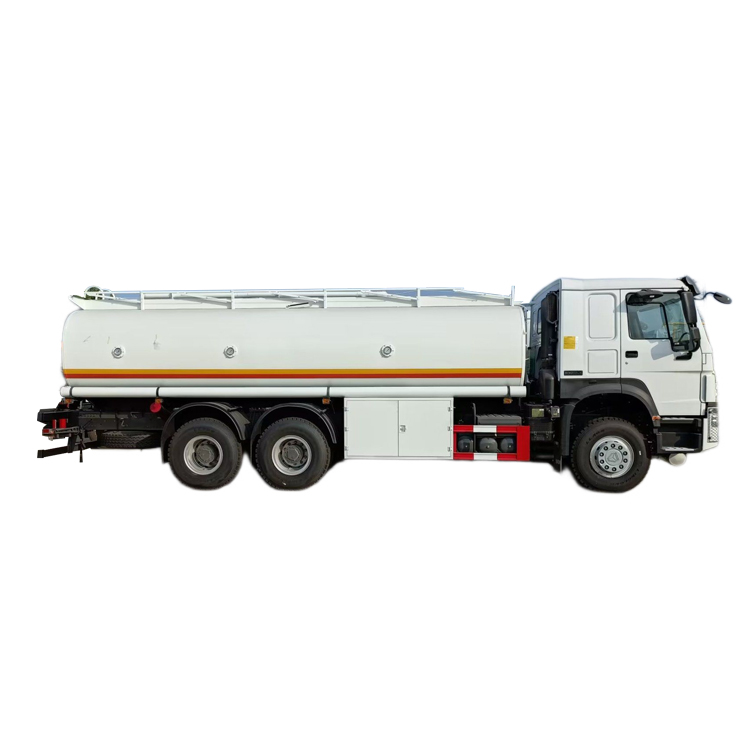

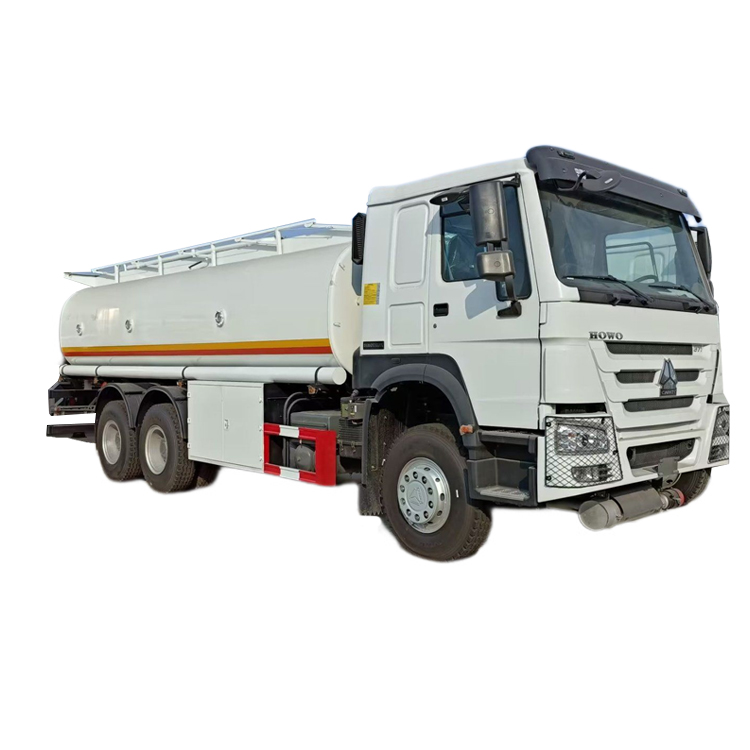

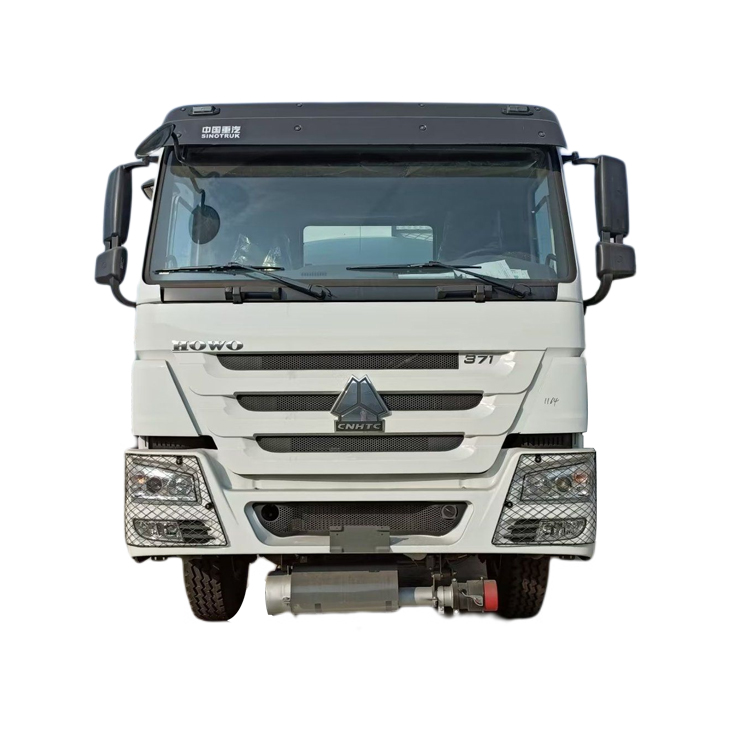

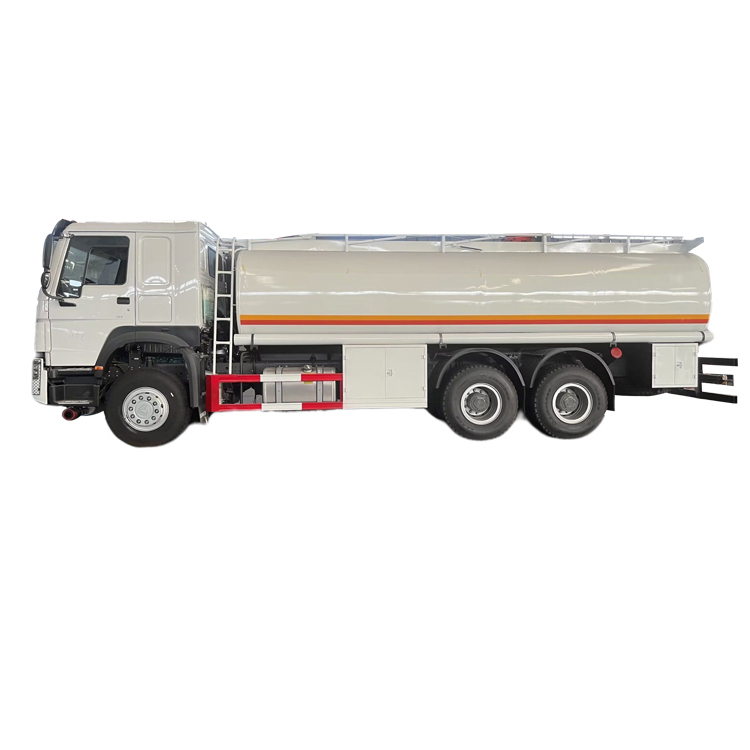

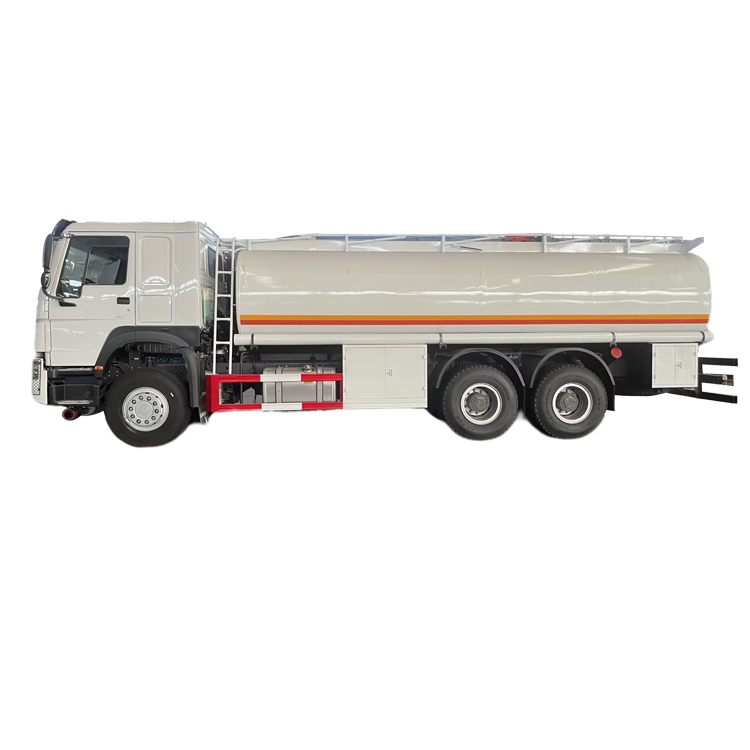

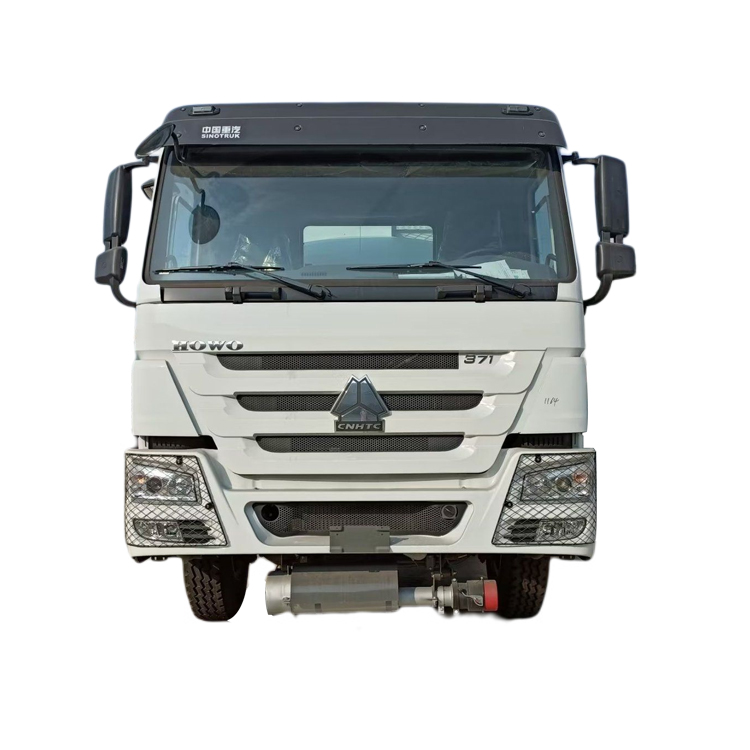

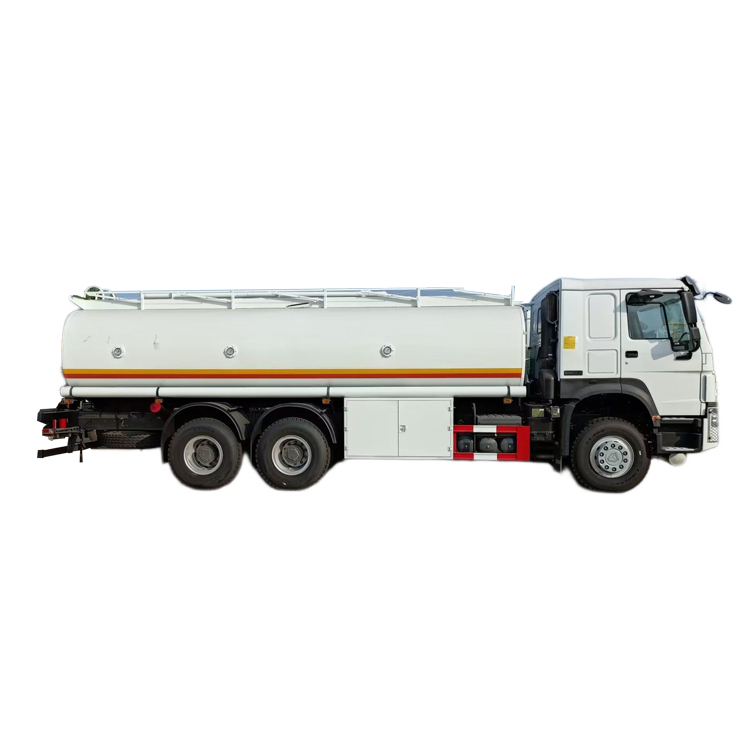

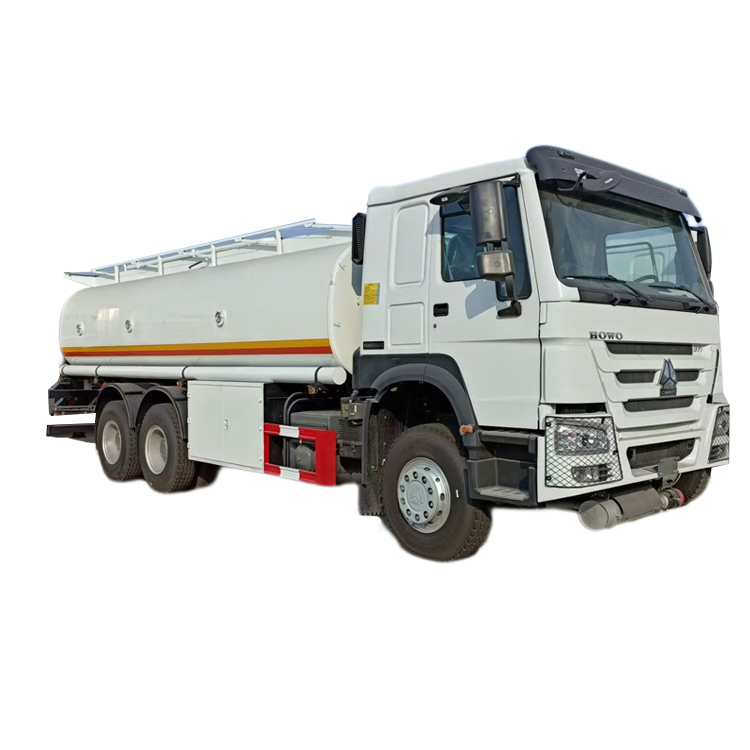

HOWO 6×4 20000L fuel tanker truck

The HOWO 6X4 20000L Fuel Tanker Truck is built with big tires, high chassis, and site specific! Affordable price, full set of European standards.

Chat [email protected] Inquiry

PRODUCT ADVANTAGES

HOWO 6X4 20000L Fuel Tanker Truck is designed according to the concept of maximizing the value of customers, based on a long time and multi-faceted research and cooperation with international heavy-duty truck experts, so that our customers can truly experience the superb operational functions of the truck. The overall structure is reasonable and compact, and the sealing and gap degree of each connecting part is the highest level in China at present.

Wild Applications of Fuel Tanker Truck

The main applications of water tankers are in the fields of railroad transportation, maritime cross-border transportation, special container asset monitoring, and Belt and Road railroad cross-border transportation.

Technical Parameters

Specification
Drive mode 6×4
Engine Model WD615.47
Type  6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
Max. power(Kw/rpm) 272/2200
Max. torque(N.m/rpm) 1500/1100-1600
Displacement(ml) 9726
Type of fuel Diesel
Compression ratio (16.6±0.5):1
Cab HOWO 76 (with air-conditioner) single berth
Gearbox Model HW19710 + HW70 PTO
Max.torque(N.m) 1390
Clutch Φ430mm diaphragm spring clutch
Tyre Size 315/80R22.5
Air conditioner A/C
Dimensions Overall dimension (mm) 9400x2500x3850
Front  axle HF9   9000kg
 Rear axle HC16   16000kg/16000kg
Wheel base (mm) 3825+1350
Mass Payload(Kg) 11870
Curb weight(Kg) 14500
G.V.W(Kg) 25000
Performance Max. speed(Km/h) 80
Max. gradeability(%) 40
Min. turning diameter(m) 23
Fuel consumption(L/100Km) 36
Special function Tanker 20000L
Oil tanker material High quality wear-resistance steel Model:Q235, Drum body thickness: 5mm,
Head material 6mm/Q235
Swash plate material 4mm/Q235
 manhole cover 1
The upper handrail yes
Counter with
Refuel gun and pipe 30m pipe with refuel gun
Others 8kg dry powder, 2 pieces, 24V LED light

Vehicle Details

HOWO 6X4 20000L Fuel Tanker Truck adopts excellent power system and advanced fuel injection technology, which can achieve efficient working condition and reduce fuel consumption.

Driver-centered design concept
The four-point full-floating structure of the cab effectively reduces the vibration of the cab and driving fatigue, and the configuration of HOWO 6X4 20000L Fuel Tanker Truck effectively increases the stability of the cab. Air suspension seat with height adjustment, backrest and lumbar support heating, steel degree adjustment, quick inflation and deflation, etc., to ensure that the driver driving in the best condition.
