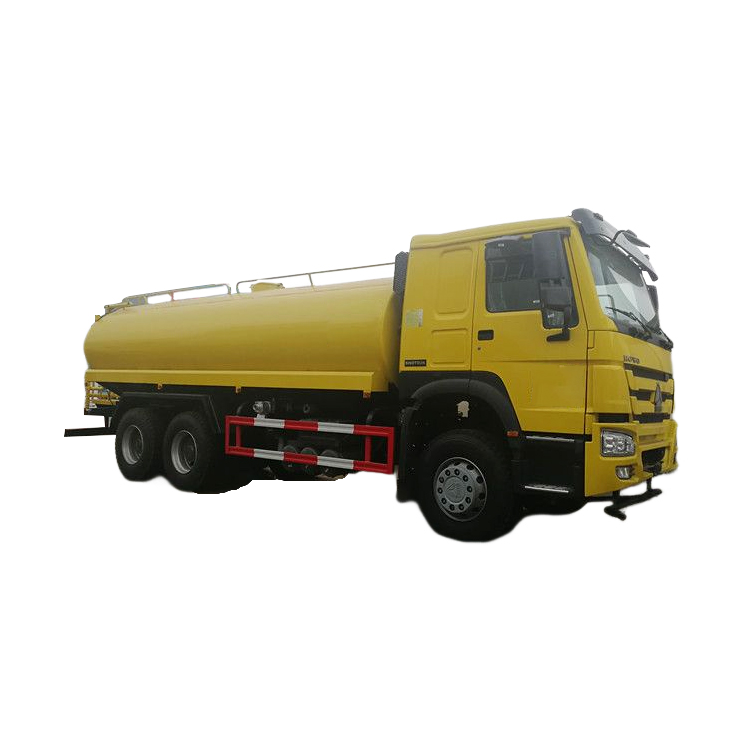

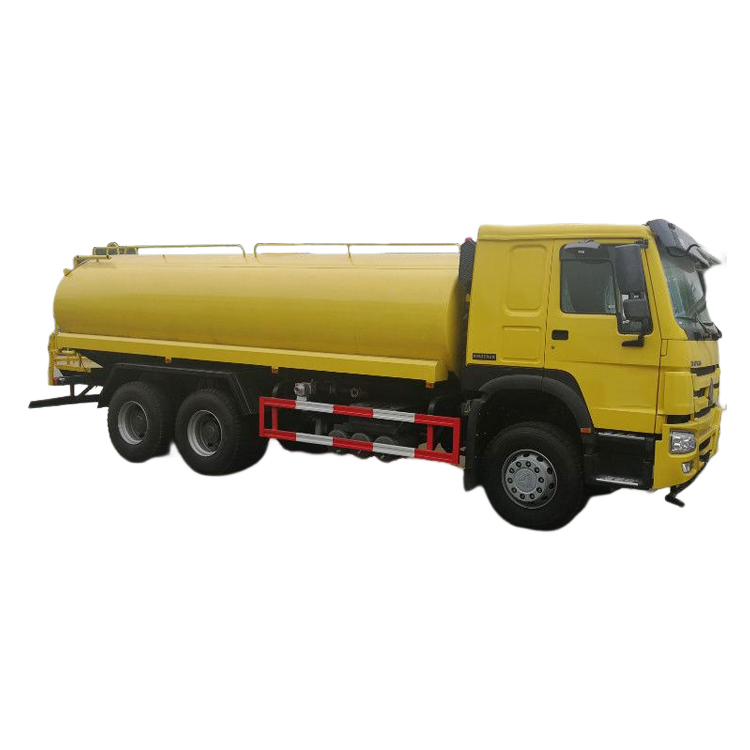

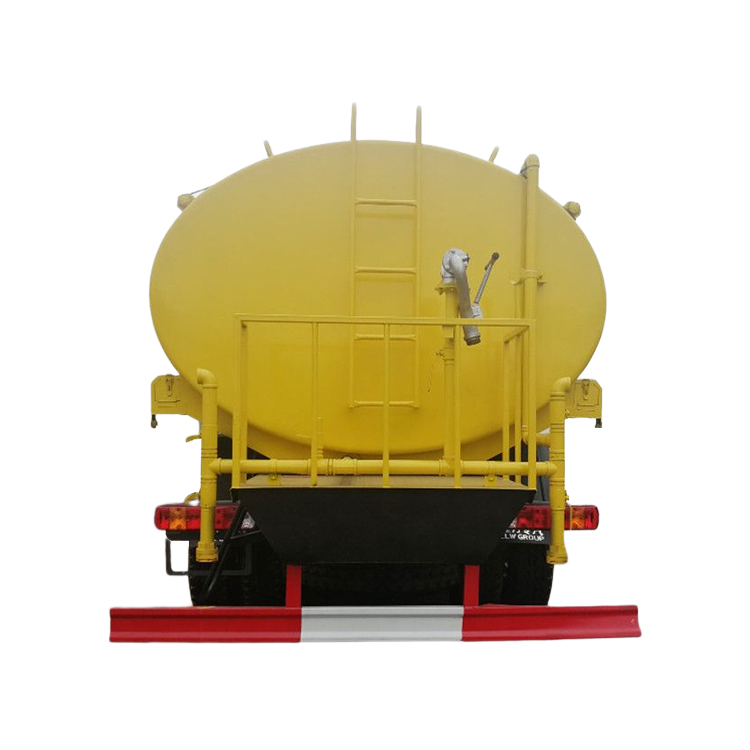

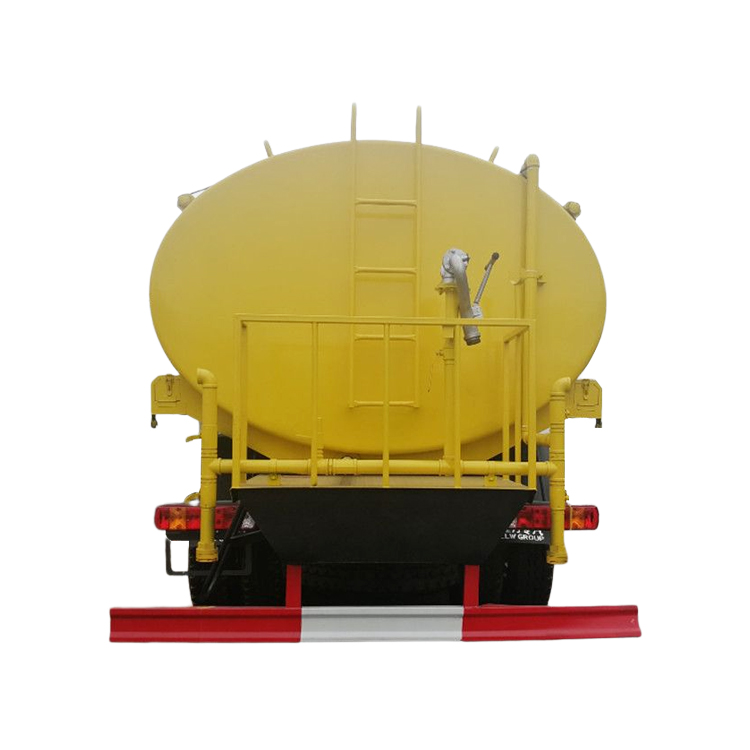

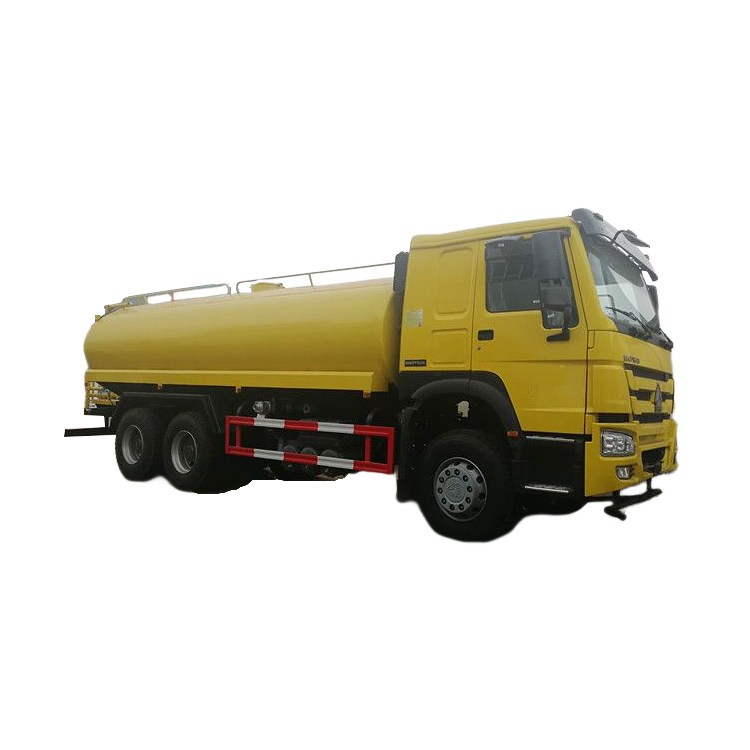

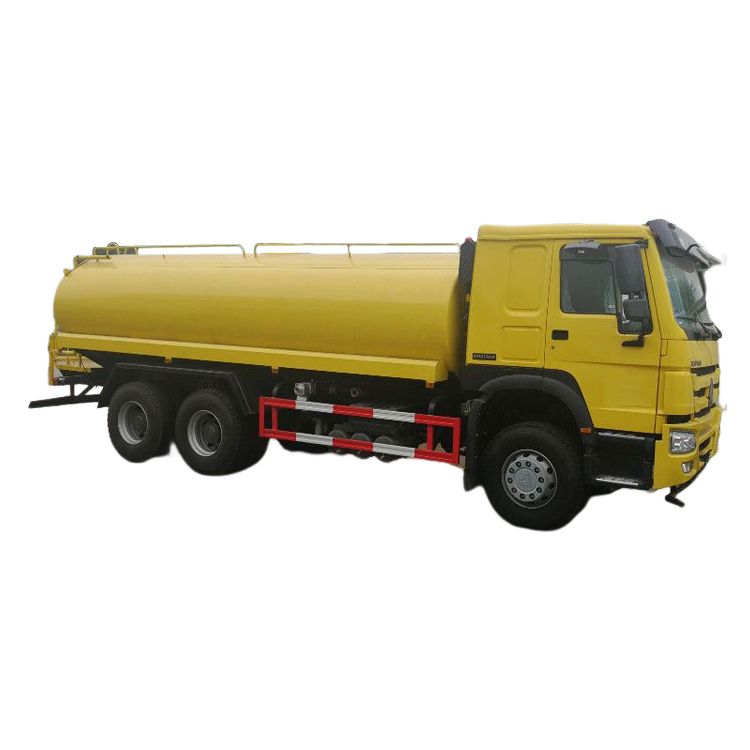

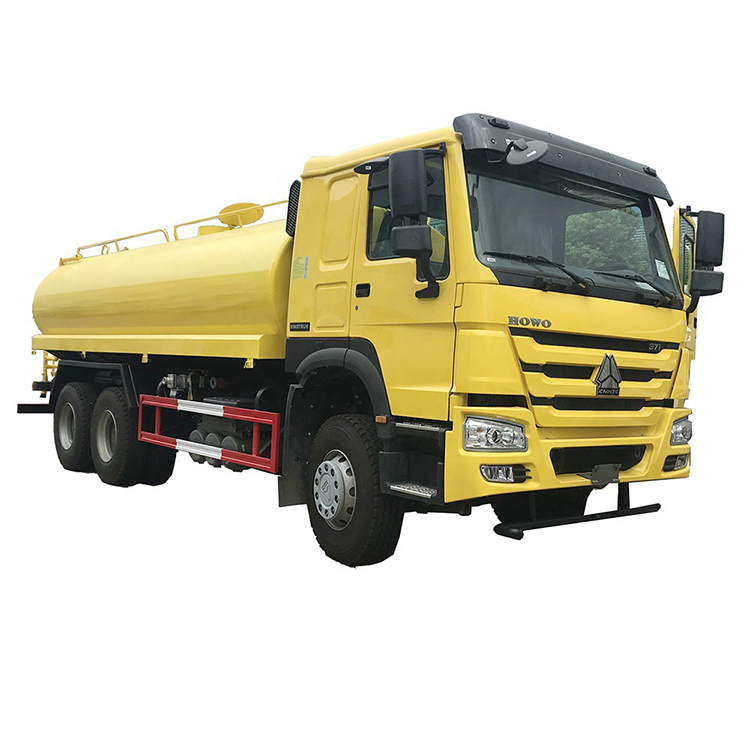

Howo water tanker truck, as an excellent cleaning vehicle, has become a star product in the automobile market by virtue of its strong power, efficient transmission, comfortable suspension cab and other multiple advantages. Whether it is in the field of urban road cleaning, greening irrigation, factory stuff cleaning and so on, it has a wide range of applications.
Howo water tanker truck adopts powerful, economical and environmentally friendly engine with good power output, which makes Howo water tanker truck 20000L show a very stable and reliable performance in the work. At the same time, it can deliver power better and work easily under heavy load to meet the demand.
Introduction to the five main roles of water tankers Sprinkle its role mainly:
1. cooling.
When the weather is hot, sprinkle water on the road, play a role in reducing the temperature, to protect the role of the road, because the temperature is too high, the road will crack.
2. dust.
Road dust is large, sprinkling water can be dust wet, effectively preventing dust up, thereby reducing air pollution.
3. Green gardening.
The shape of the water column of the sprinkler gun can be adjusted to be straight, heavy rain, medium rain, hairy rain, etc., which can water the roadside flowers and trees, or flush the dust on the trees.
4. Use as a fire truck in emergency.
Sprinkler with its own high-pressure water cannon, the range of up to 30-50 meters, so in an emergency can be used to extinguish the fire, its own assembly of fire interfaces, but also for its water to provide greater convenience.
5. Water transportation.
Sprinklers are temporarily used as water trucks, therefore, sprinklers are also called water trucks, water tankers and so on.
Vehicle parameters | |||
Overall dimensions | 10500X2496X2958mm | Curb weight | 12265kg |
Tank dimensions | 6000X2400X1600mm | Tank volume | 20000L |
Chassis parameters | ||||
Chassis model | ZZ1257M4641W | Chassis brand | SINOTRUK | |
Overall dimensions | 10100X2496X3048mm | Wheel base | 4600+1350mm | |
Front/rear wheel track | 2022, 1830/1830mm | Front/rear suspension | 1500, 2600mm | |
Approach/departure angle | 16/15° | Maximum speed | 90km/h | |
Chassis Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||
Cab | Configuration | HW76 a row and a half deluxe cab(with sleeping berth), allowable 3 passengers | ||
Color | White, other color is optional | |||
Engine | Model | WD615.62 | ||
Emission | Euro 2 | |||
Type | 6 cylinders, in-line, 4-stroke, water cooled, turbo inter-cooling, direct injection, diesel engine | |||
Rated power | 266hp, rated power speed 2200rpm | |||
Displacement | 9726ml | |||
Max.torque | 1350N.m | |||
Bore x stroke | 126x130mm | |||
Manufacturer | China National Heavy Duty Truck Group Co.,Ltd | |||
Tire | Size | 295/80R22.5 tubeless tire | ||
Number | 10+1 nos | |||
Clutch | φ430 diaphragm clutch | |||
Front axle | HF 7 tons | |||
Rear axle | ST 16 tons | |||
Drive form | 6X4 | |||
Suspension | Multi leaf springs | |||
Rated voltage | 24V, DC | |||
Transmissions | HW13710CL, 10 speed forward 2 reverse. | |||
Steering device | Power assisted steering | |||
Steering wheel | Left hand drive | |||
If there is a slight change in the chassis parameters above, please take the actual product as the standard |
Water tank structure parameters | ||||
Tank dimensions | 6000X2400X1600mm | Tank volume | 20000L | |
Tank material | Carbon steel | Tank thickness | 5mm | |
Nozzle sprinkling width | ≥14m | Range of water cannon | ≥28m | |
Suction height | ≥7m | Color and Logo | Optional | |
Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. |
MOQ,payment terms,delivery terms,price | |||||
MOQ | One unit | ||||
Payment terms | T/T 40% down payment, 60% balance after inspection before delivery | ||||
Inspection | Buyer’s agent or third party inspection agency,the cost is paid by the buyer | ||||
Delivery term | 35working days from down payment | ||||
Documentation | Maintenance manual | ||||
User manual | |||||
Packing list | |||||
Commercial invoice | |||||
Certificate of origin is optional | |||||
Spare parts list for purchase is optional | |||||
Standard tools | With standard tools for chassis and water tank structure | ||||
Packing | The main vehicle nude and covered with wax, attached parts and tools put into standard export box | ||||
Other requirements | Please fill in here | ||||
Because exchange rate and ocean freight may be changed in near future,so the price is only valid for 15 days. Please confirm the price again with our company before placing the order,thanks. |
Howo water tanker truck has a wide range of applications. Not only can it be used in many fields such as urban road cleaning, greening irrigation, factory stuff cleaning, etc., but also has an important role in the cleaning and impact of building construction, mining enterprises and other industries. At the same time, the advantages of Howo water tanker truck are also very outstanding, which can complete large-scale cleaning or irrigation in one trip and improve efficiency.
