Suction sewage tanker truck is a new type of sanitation vehicle for collecting, transferring, cleaning and transporting sludge and sewage to avoid secondary pollution, the suction tanker can be self-absorbing and self-discharging, with fast working speed, large capacity and convenient transportation.
Suction sewage tanker is a new type of sanitation vehicle for collecting, transferring, cleaning and transporting sludge and sewage to avoid secondary pollution. Suction sewage tanker can be self-absorbing and self-discharging, with fast working speed, large capacity, convenient transportation, and it is suitable for collecting and transporting feces, slurry, crude oil and other liquid substances. Suction sewage truck and suction manure truck functions are different, can be used for feces and sewer sludge suction cleaning work, but because of the differences in the structure of the two vehicles, resulting in specific uses and prices are very different.
| Truck | Drive mode | 4×2 | |
| Chassis | DFL1120B | ||
| Engine | Model | CumminsISDe180 30 | |
| Type | 136/2500 | ||
| Power/Displacement(Kw/ml) | 4500 | ||
| Type of fuel | Diesel | ||
| Tyre | Size | 9.00-20 | |
| Air conditioner | A/C | ||
| Dimensions | Overall dimension (mm) | 8600×2500×2830 | |
| Wheel base (mm) | 4700 | ||
| Front/Rear tread(mm) | 1880/1860 | ||
| Performance | Max. speed(Km/h) | 90 | |
| App./Dep. angel (°) | 20/11 | ||
| Max. gradability (%) | 30 | ||
| Min.turning diameter(m) | 19 | ||
| Min.ground clearance(mm) | 240 | ||
| Mass | Payload (Kg) | 5930 | |
| Curb weight(Kg) | 5880 | ||
| G.V.W (Kg) | 12005 | ||

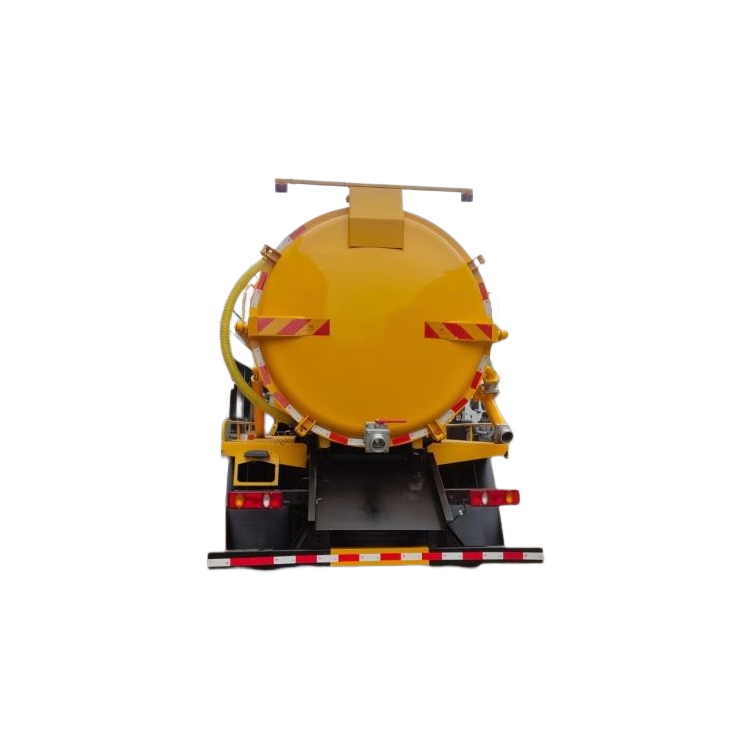

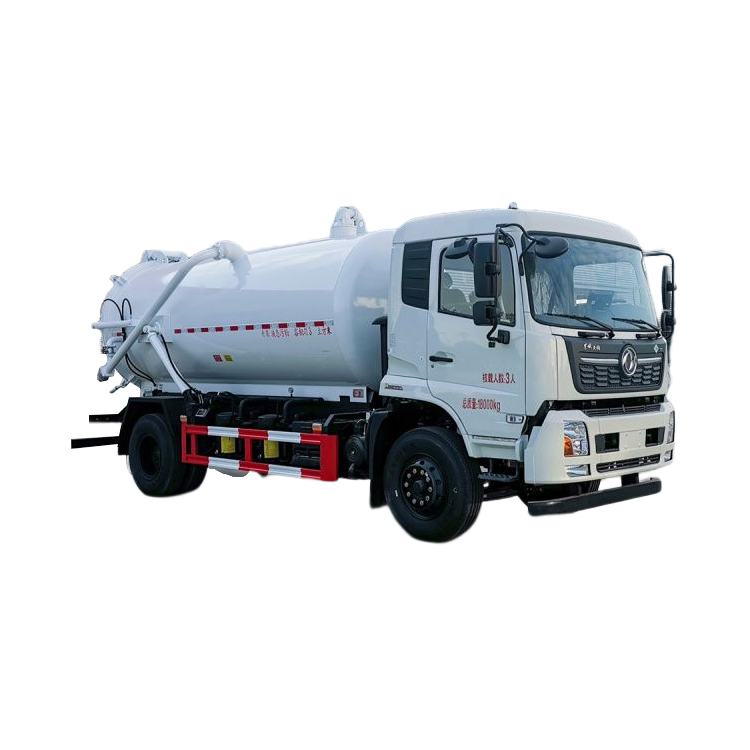

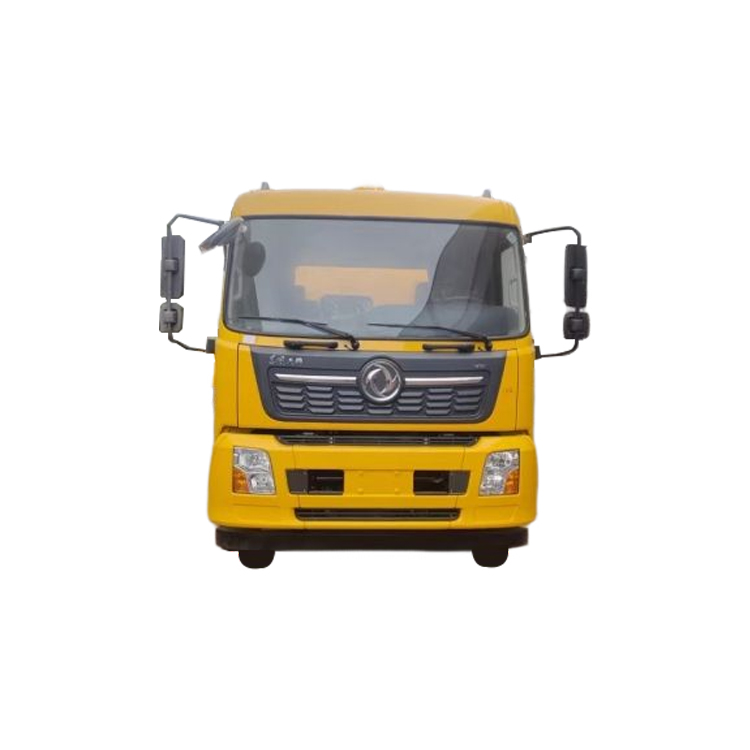

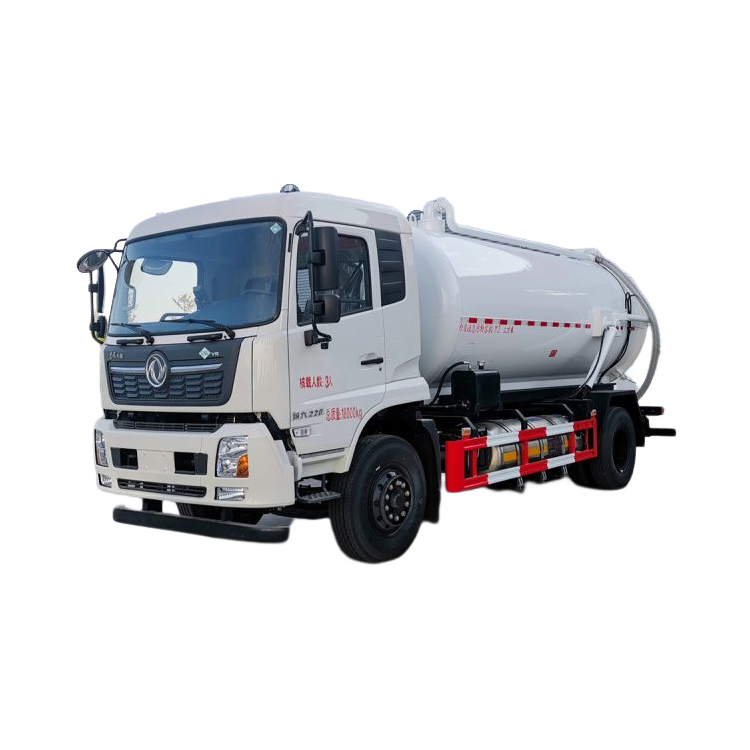

Dongfeng suction sewage tanker truck
1. Enough sewage volume degree.
2. Protecting device to prevent the sewage from seeping into the pump body.
3. Volume pump is driven by hand, easy to operate.
4. Hydraulic pump is working synchronously with the volume pump ,very reliable.
5. Discharging by hydraulic system.
6. Beautiful appearance, easy operation and good performance.
If you choose other configurations or models, please send an inquiry and contact the sales staff. We will configure a suitable car according to your needs and give you apreferential price.
Loading capacity : 40cbm
King pin diameter : 2 or 3.5 inch
Chassis brand : SINOTRUK
Overall dimensions : 10100X2496X3048mm
Drive mode : 6×4
Fuel Tanker: 20000L
