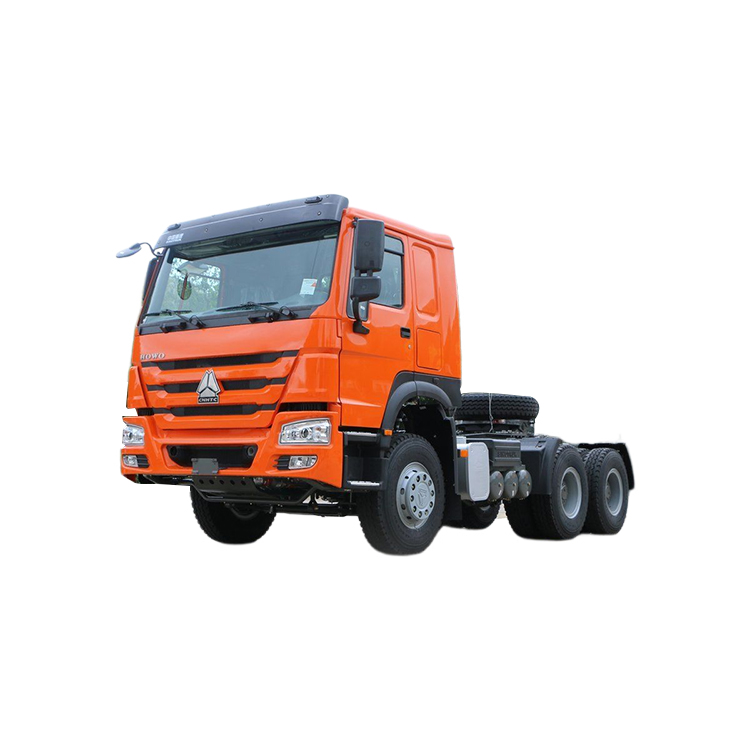

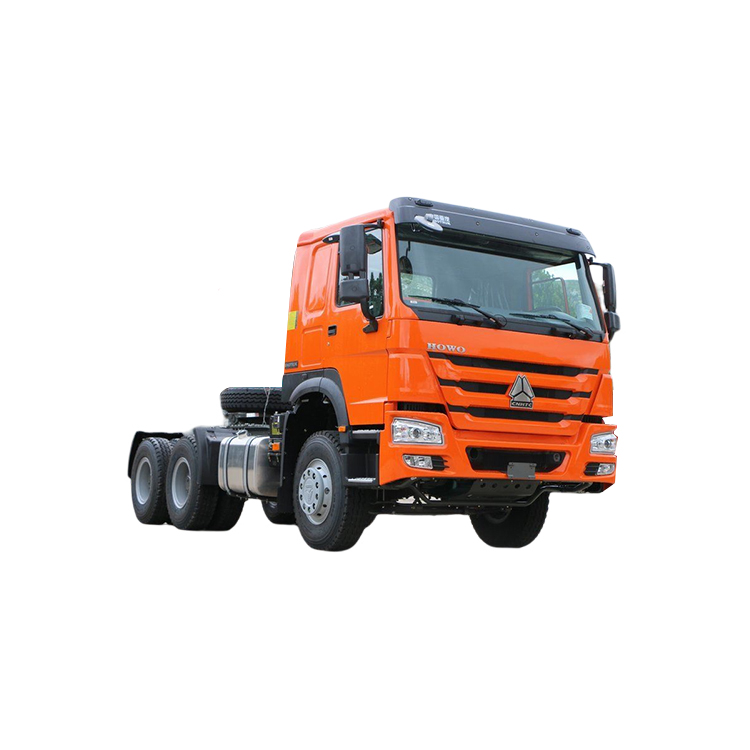

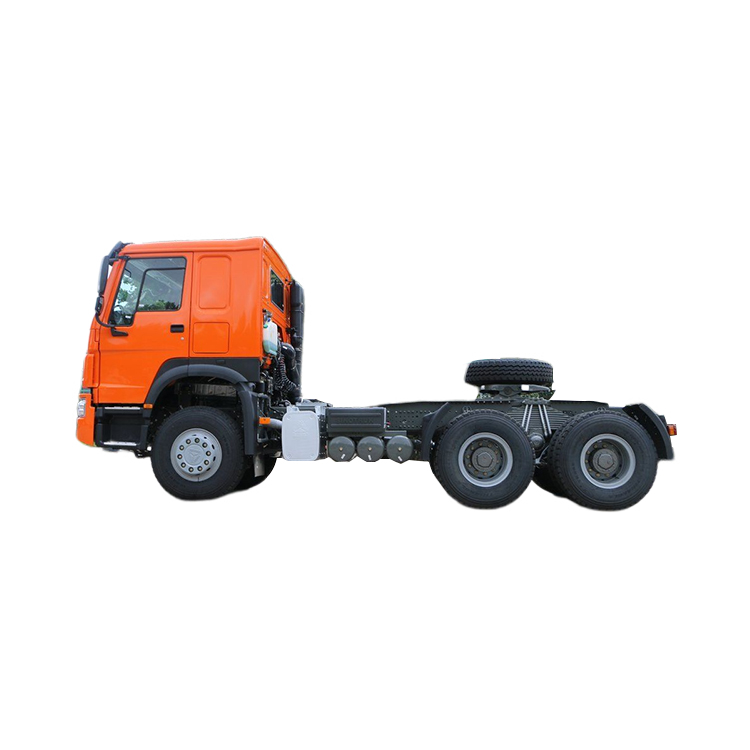

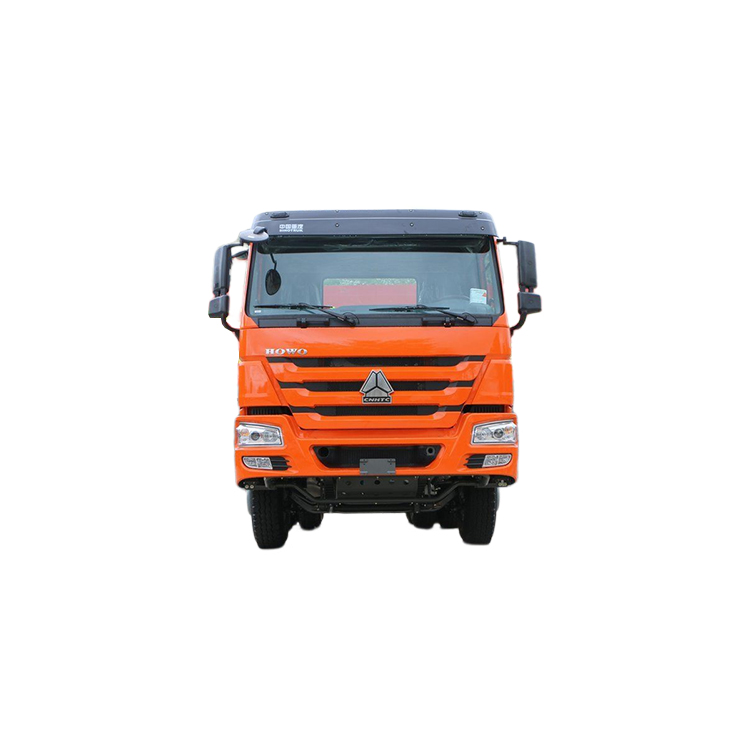

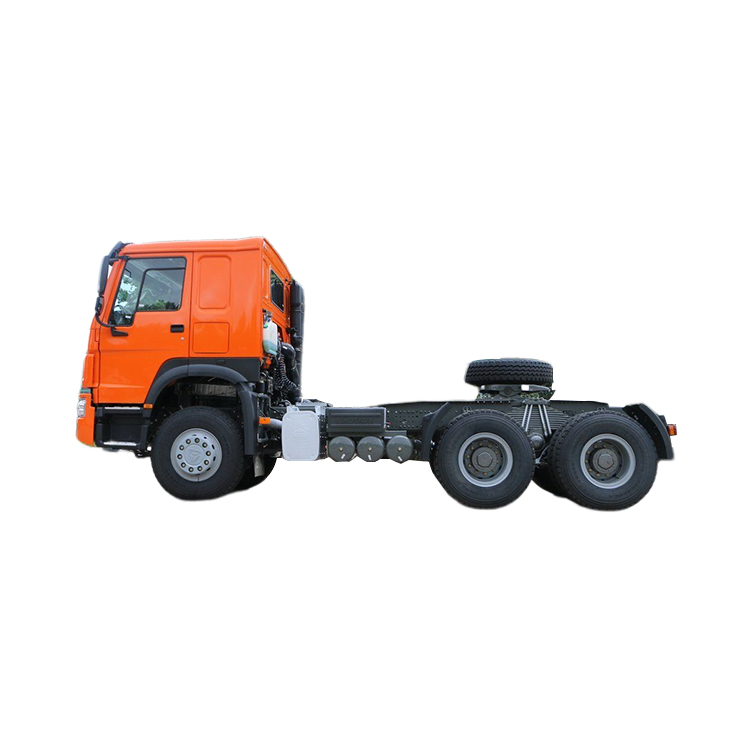

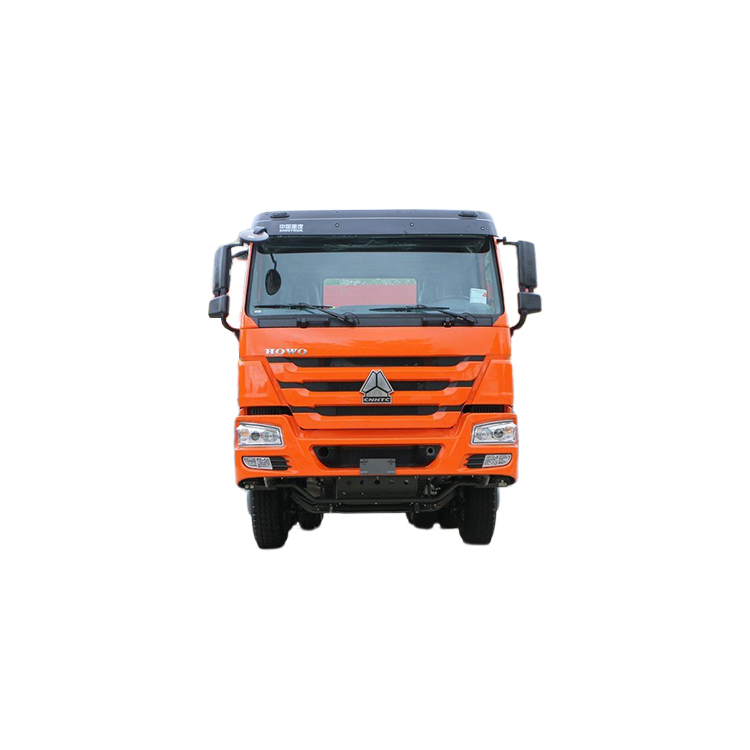

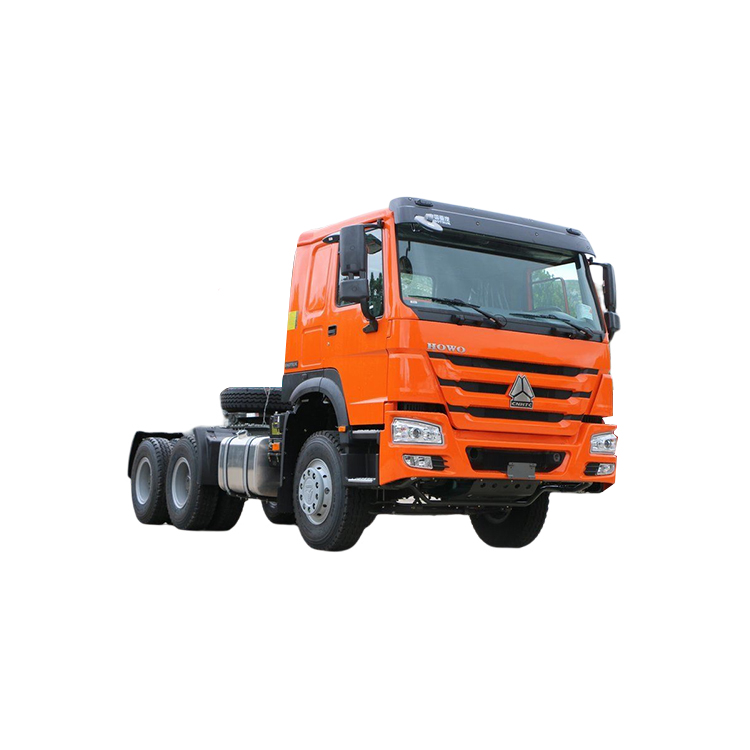

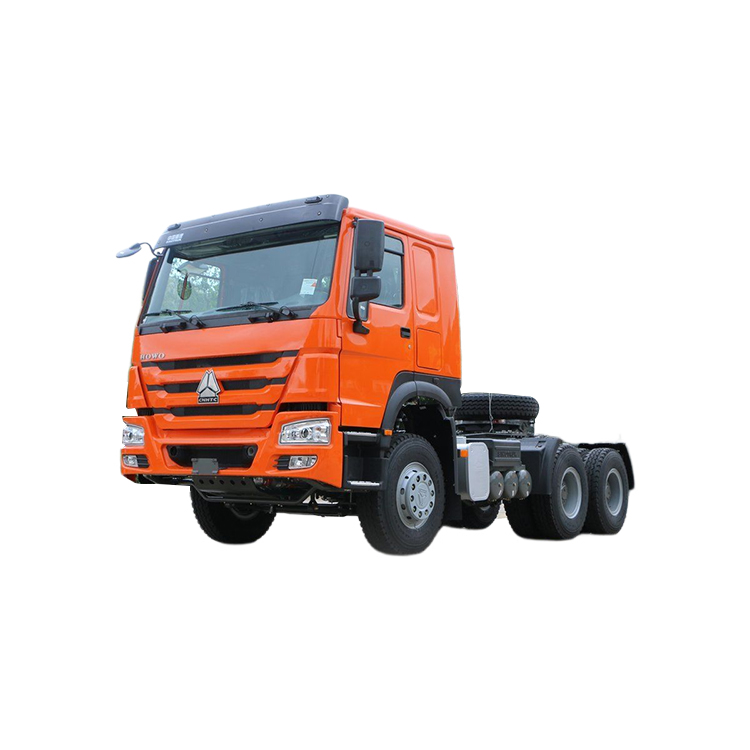

Howo 6x4 Tractor is a heavy duty truck with outstanding performance, it is equipped with a powerful engine and excellent transmission for excellent traction and transportation capacity.
The engine of the Howo 6×4 tractor adopts high-pressure common rail technology, which makes the fuel injection more precise and improves the combustion efficiency and power output. The vehicle is also equipped with a first-class transmission, which can automatically match the best working conditions under different driving conditions, ensuring the smoothness of the vehicle and the efficiency of high-speed driving.
Tractor application areas
1. Transportation field: Tractor trailer is a necessary tool for long-distance freight industry, which can be used to tow semi-trailers and other large trucks to ensure that the goods are safely transported to their destinations.
2. construction field: tractor-trailer can be used to tow a variety of construction equipment, such as excavators, bulldozers, cranes and so on. These heavy equipment are usually towed to the construction site by the tractor-trailer.
3. Yacht field: large yachts need to be towed by tractor-trailers to the seaside berths for smooth launching.
VEHICLE SPECIFICATION | DESCRIPTION | |
Truck Model | ZZ4257S3241W | |
Type of Vehicle | TRACTOR TRUCK | |
Truck Type | 6×4 | |
Driving Position | Left Hand Driving | |
Fuel tanker capacity(L) | 400L | |
The Total Mass | 50,000kg | |
Dead Weight | 9210 | |
Max speed(km/h) | 102 | |
Color | Optional | |
Chassis & Add Components | ||
Frame Details | High-Strength U-profile ladder frame with section of 300*90*8mm and reinforced sudfram, all cold riveted cross members. | |
Dimension(Lx W xH)(unloaded)(mm) | 6800*2560*3000 | |
Approaching angle/Departure angle(°) | 16/70 | |
Overhang(front/rear) (mm) | 1500/725 | |
Wheel base (mm) | 3225+1350 | |
Engine | ||
Model | WD615.47 | |
Power | 371HP | |
Emission | EURO II | |
Displacement(L) | 9.726 | |
Type | water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | |
Kind of Fuel | Diesel | |
Clutch & Gear Box System | ||
Clutch | SINOTRUKΦ430mm diaphragm spring clutch | |
Gear Box | HW19710 10 forwards and 2 reverse |
|
Axles | ||
Front Axle Model | HF7 axle Loading Capacity:1*7000kg |
|
Rear Axle | ST16 axle Loading Capacity:2*16000kg |
|
Electrical System | ||
Battery | 2X12V/165Ah | |
Alternator | 28V-1500w | |
Starter | 7.5Kw/24V | |
Brake System | ||
Service brake | Dual circuit compressed air brake | |
Parking brake | spring energy, compressed air operating on rear wheels | |
Auxiliary brake | Engine exhaust brake | |
Steering system | ||
Model | Standard | |
Type | hydraulic steering with power assistance | |
Wheels & Tyres | ||
Type | 12.00R20 | |
Brand | Standard Brand | |
Quantity | 10+1 spare | |
Kin pin | 50mm/90mm | |
Cabin | ||
Type | HW76 Standard cabin |
The exterior design of Howo 6×4 tractor is simple and atmospheric, with smooth body lines, giving a distinctive visual impact. The front end adopts a large air intake grille and streamlined lights, making the whole vehicle look more sporty and fashionable.
In terms of driving, the car has good maneuverability and comfort, with a spacious cab interior and comfortable seats, bringing a more enjoyable driving experience to the driver. In addition, the vehicle is also equipped with advanced safety systems, making the vehicle driving process more safe and reliable.
All in all, Howo 6×4 tractor is a heavy-duty truck that integrates performance, appearance, handling and safety, and is the leader in the heavy-duty truck industry in every aspect, worthy of customers’ trust and choice.
